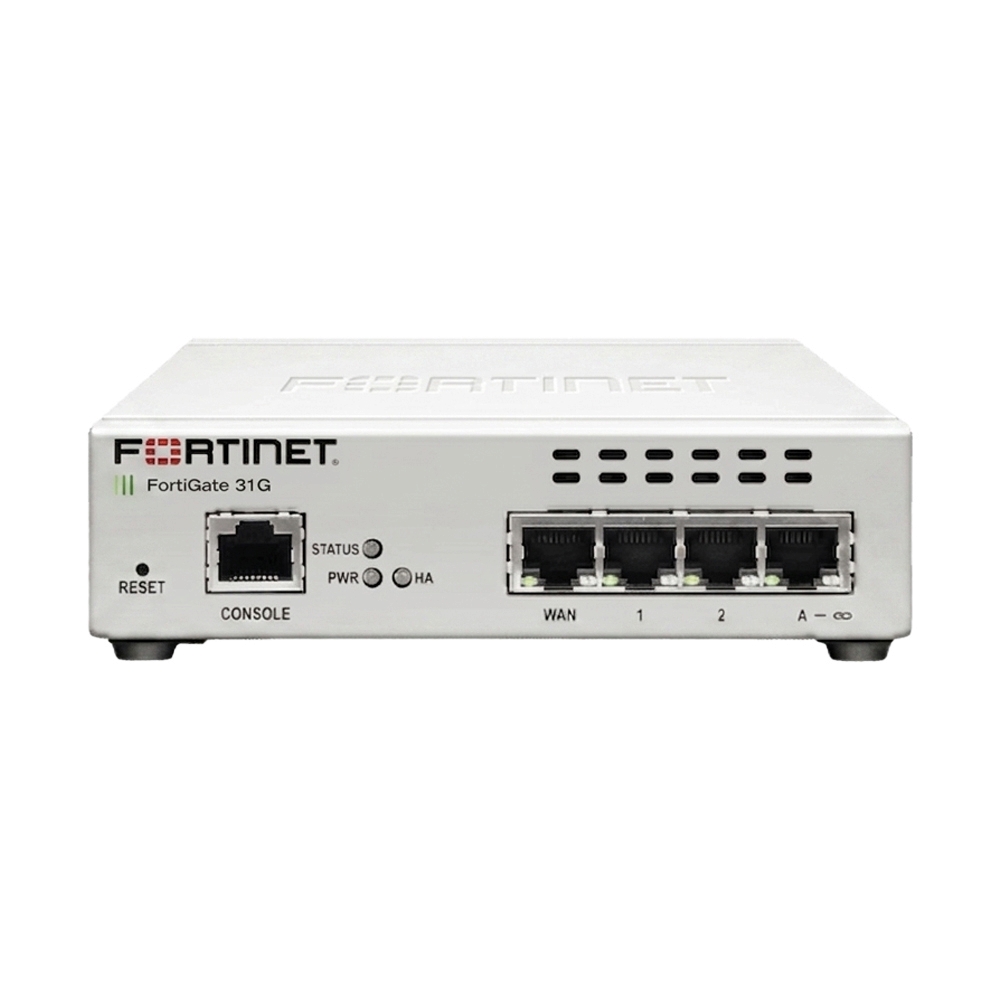

Firewall FortiGate 31G (FG-31G-BDL-950-12)

31G (FG-31G-BDL-950-12)

N/A

• 30 GB

• YES

• 1x Console Port
• 1x GE RJ45 WAN Ports
• 1x GE RJ45 FortiLink Ports
• 2x GE RJ45 Internal Ports

NONE

• IPS Throughput : 800 Mbps
• NGFW Throughput : 570 Mbps
• Threat Protection Throughput : 500 Mbps

• IPsec VPN Throughput (512 byte) : 3.5 Gbps
• Gateway-to-Gateway IPsec VPN Tunnels : 200
• Client-to-Gateway IPsec VPN Tunnels : 250
• SSL-VPN Throughput : -
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : -
• SSL Inspection Throughput (IPS, avg. HTTPS) : 400 Mbps
• SSL Inspection CPS (IPS, avg. HTTPS) : 260
• SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 55,000
• Application Control Throughput (HTTP 64K) : 830 Mbps
• CAPWAP Throughput (HTTP 64K) : TBA Gbps
• Virtual Domains (Default / Maximum) : Not Supported
• Maximum Number of FortiSwitches Supported : 8
• Maximum Number of FortiAPs (Total / Tunnel Mode) : 16 / 8
• Maximum Number of FortiTokens : 500
• High Availability Configurations : Active-Passive, Active-Active

• Management Options : FortiManager, FortiCloud, Web UI (HTTPS), Command Line Interface (CLI / Console)
• Management Ports : 1x Console Port (RJ45)
• Storage Capacity : 30 GB

• IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) : 4 / 4 / 3.9 Gbps
• IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) : 4 / 4 / 3.9 Gbps
• Firewall Latency (64 byte UDP packets) : 2.87 μs
• Firewall Throughput (Packets Per Second) : 5.85 Mpps
• Concurrent Sessions (TCP) : 600,000
• New Sessions/Second (TCP) : 30,000
• Firewall Policies : 2,000

• IPsec VPN Throughput (512 byte) : 3.5 Gbps
• Gateway-to-Gateway IPsec VPN Tunnels : 200
• Client-to-Gateway IPsec VPN Tunnels : 250
• SSL-VPN Throughput : -
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : -

• YES

• Threat Protection : IPS (800 Mbps), NGFW (570 Mbps), Threat Protection (500 Mbps), Application Control (830 Mbps)
• Storage Capacity : 30 GB
• Security Fabric Integration : รองรับ FortiLink จัดการ FortiSwitch (สูงสุด 8 เครื่อง) และ FortiAP (สูงสุด 16 เครื่อง)
•Hardware Security : มี Trusted Platform Module (TPM) เพิ่มความปลอดภัยระดับฮาร์ดแวร์

• FortiOS

N/A

• Power Rating : 12VDC, 2A
• Power Source Powered by external DC power adapte : 110V/0.17A, 240V/0.085A
• Maximum Current : 100V/0.11A, 240V/0.055A

NONE

• 8.1 W / 9.3 W

• Operating Temperature : 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -31°F to 158°F (-35°C to 70°C)
• Humidity : 20% to 90% non-condensing

• USGv6/IPv6

N/A
