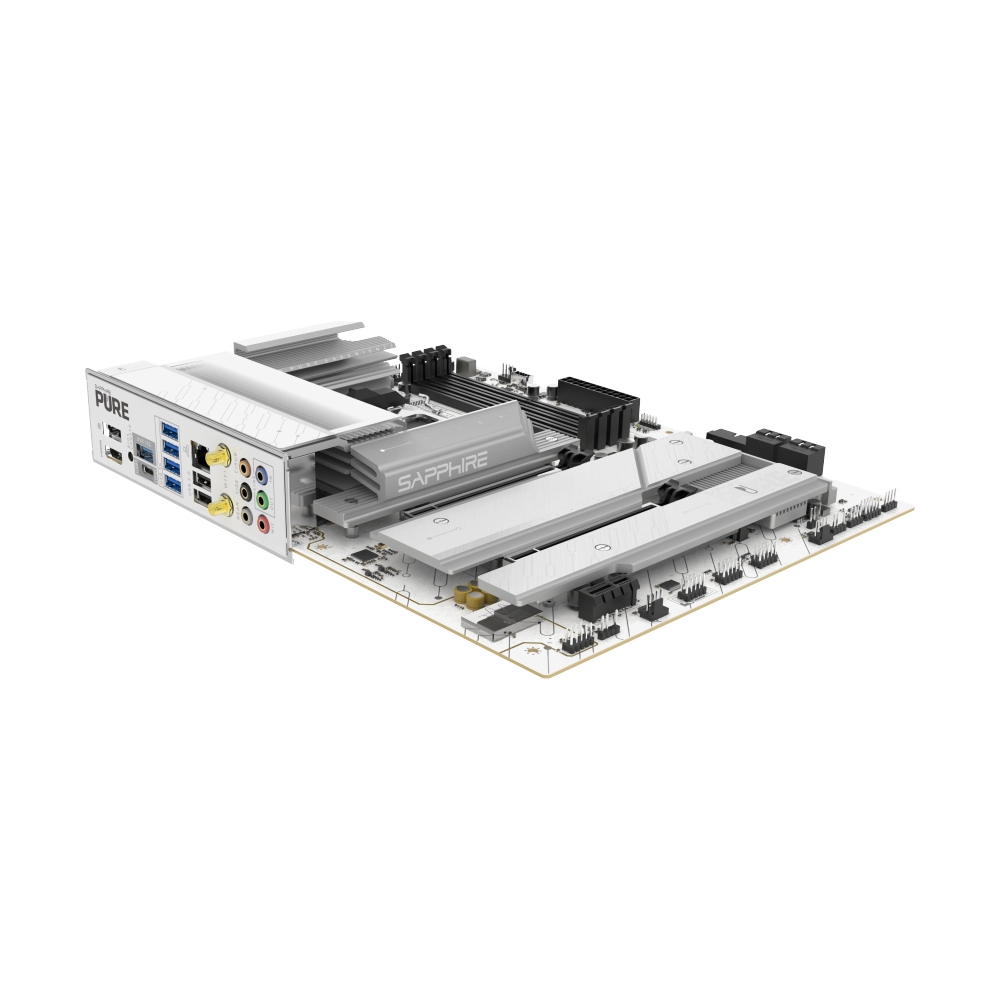

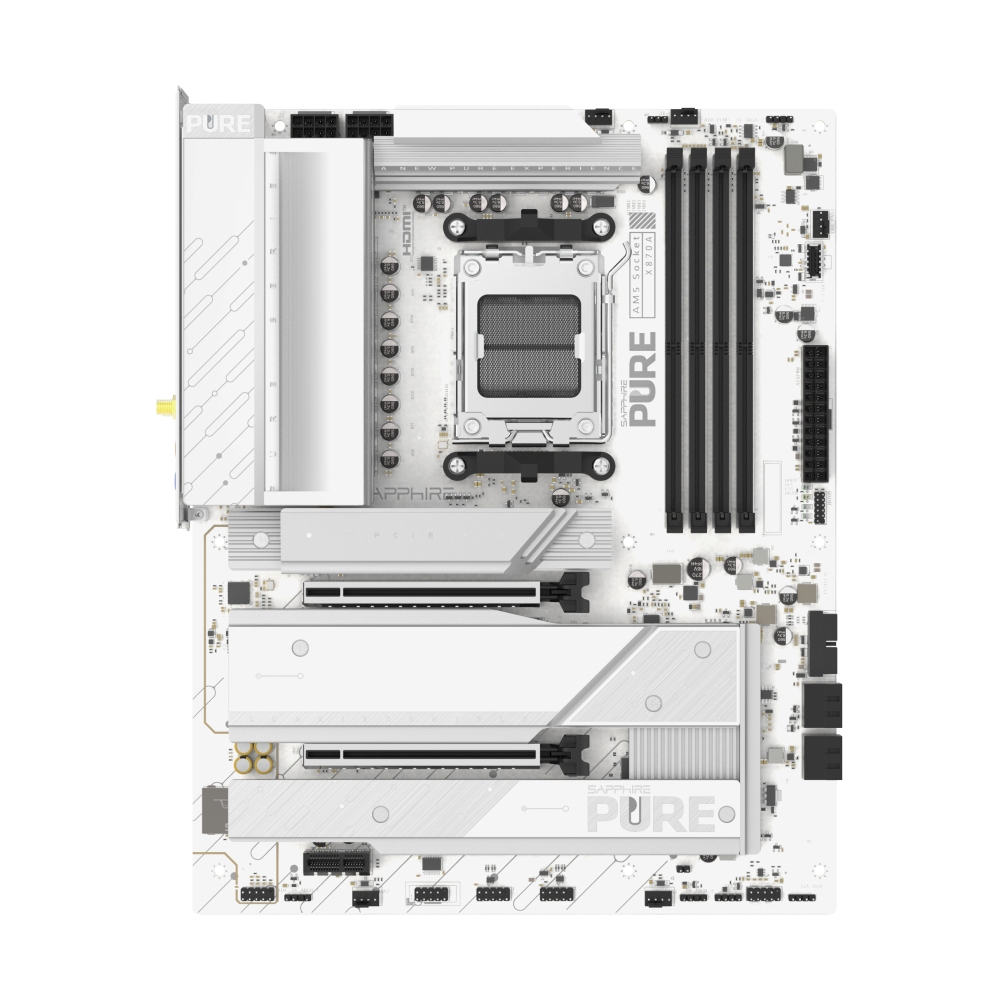

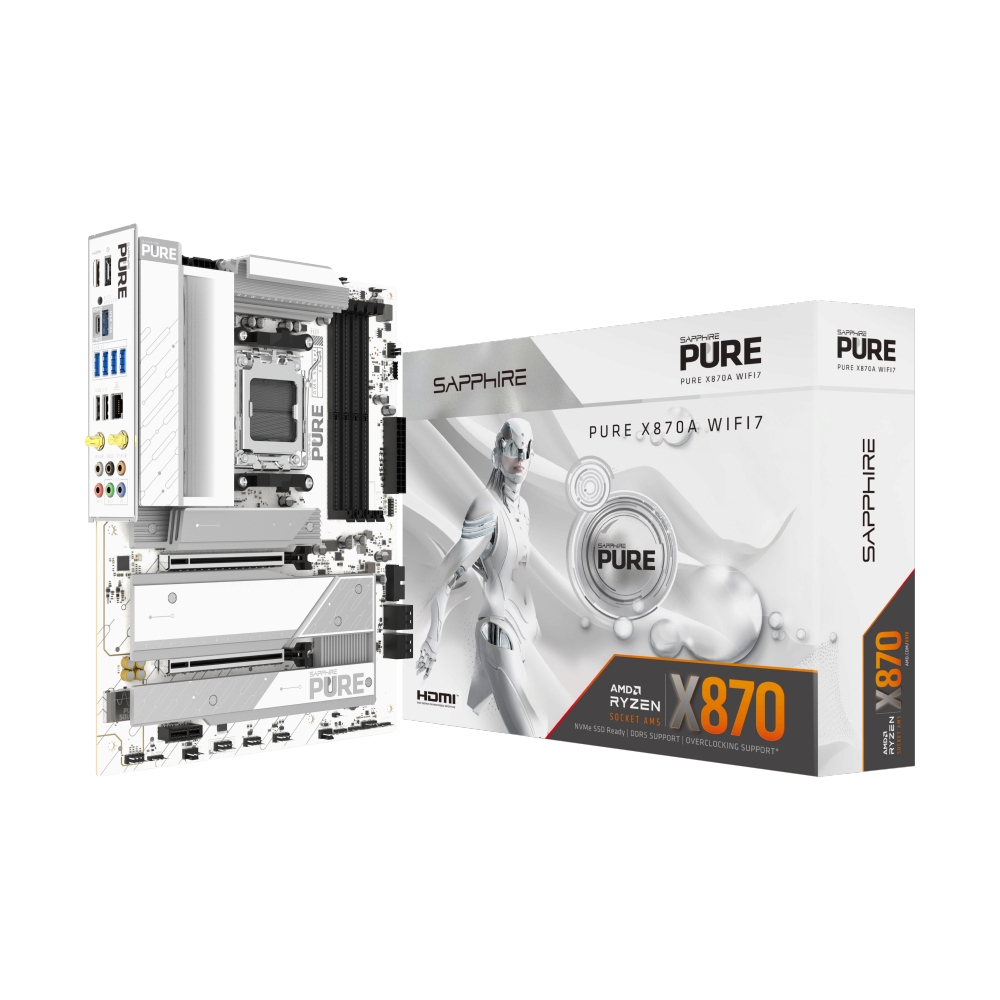

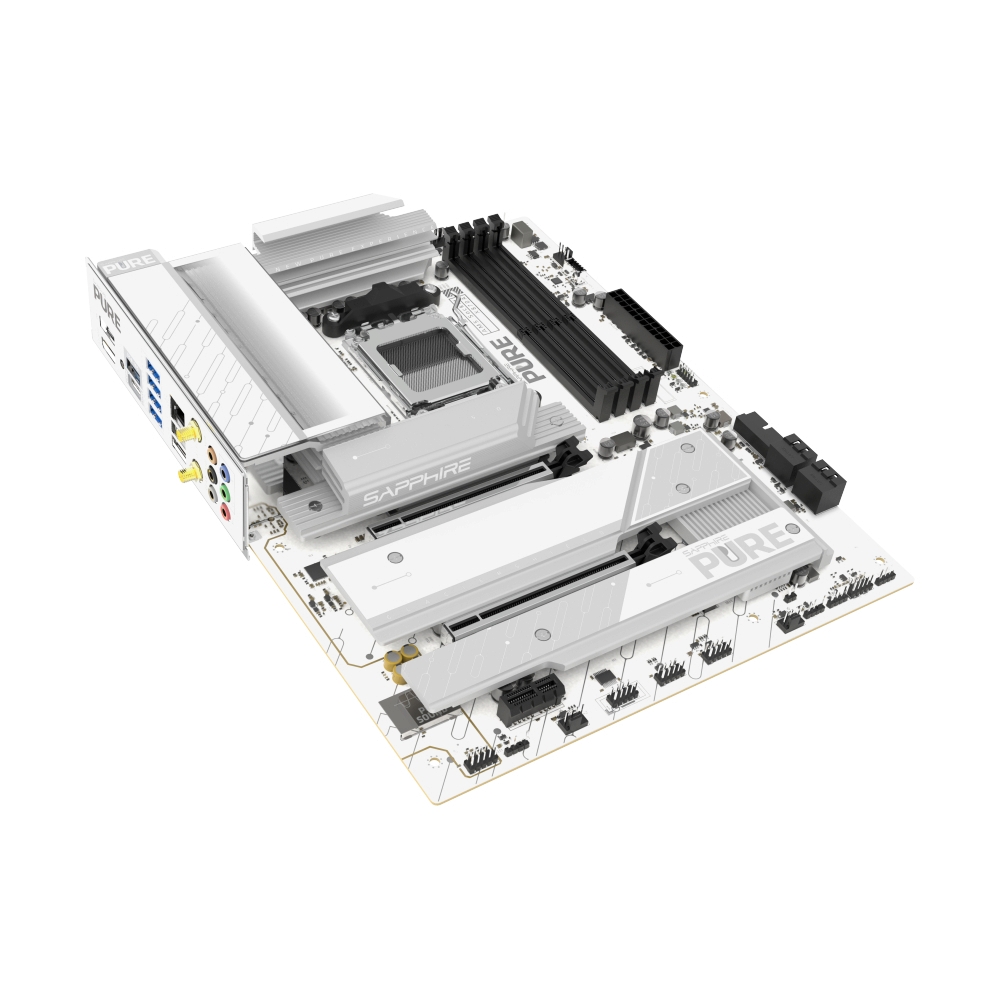

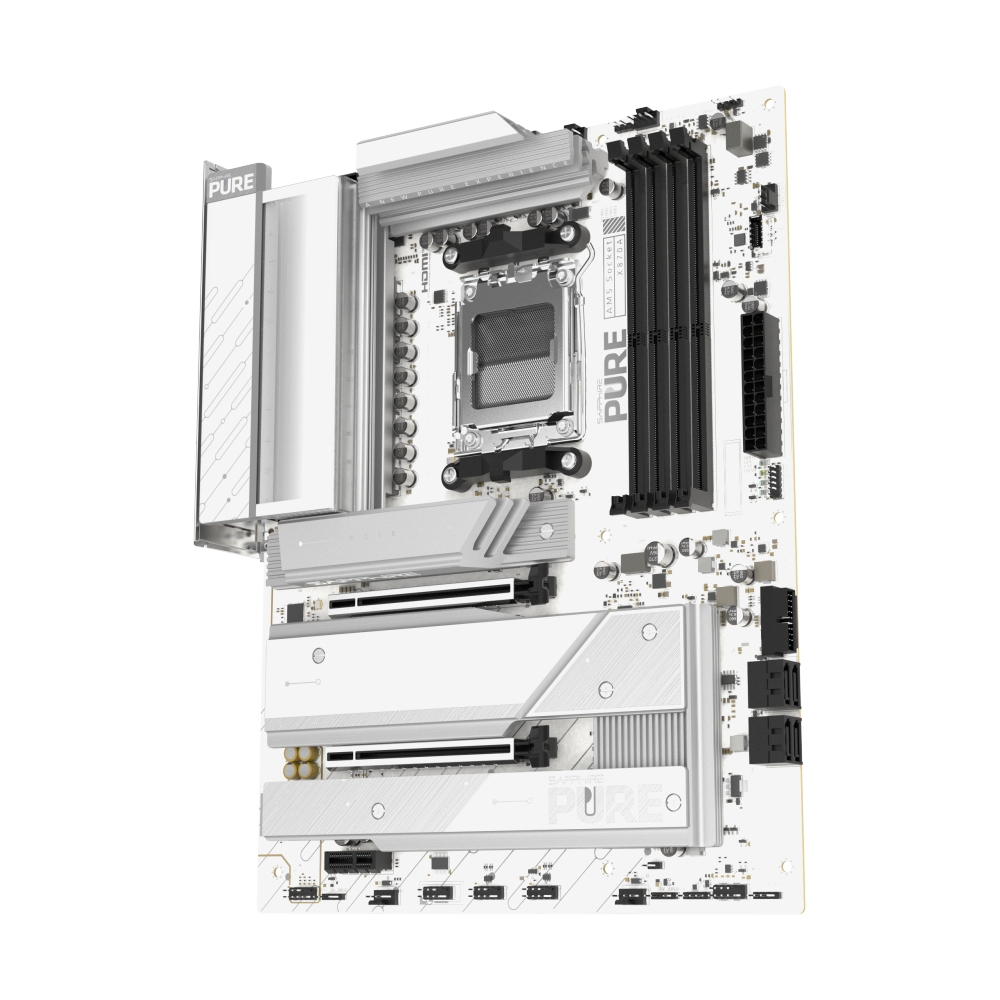

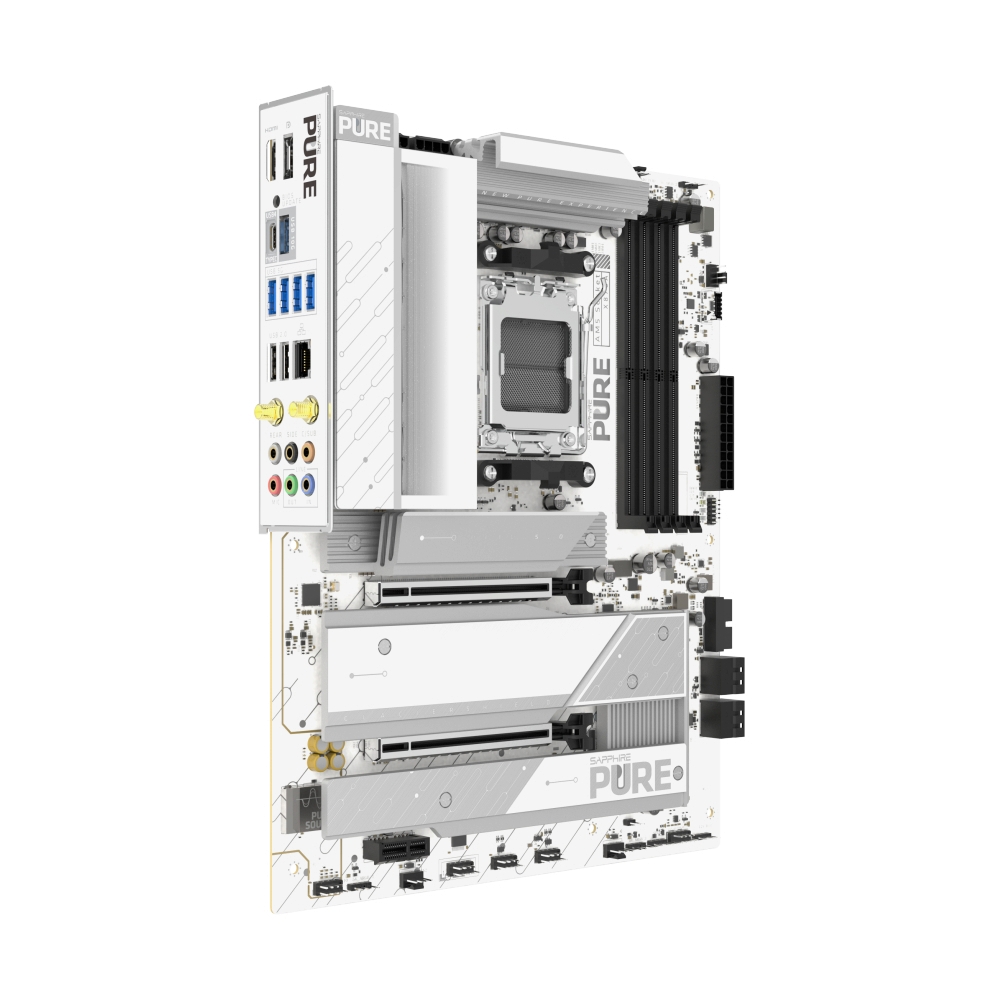

MAINBOARD (AM5) SAPPHIRE PURE X870A WIFI7 DDR5
- Support CPU : AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
- Form Factor : ATX
- Chipset : AMD X870 Chipset
- Memory Channel : Dual Channel DDR5 4DIMM
- Memory Support : up to 8400(O.C.)
- Memory MAX : 256GB
- M.2 Slot : 3 slots
- SATA III 6G : 4 ports
- PCIe 5.0x16 : 1 slot
- Lan Port : 5 Gigabit LAN
- Wireless : Wi-Fi 7
- SAPPHIRE CORE BIOS
- 16+2+1 Phase CPU Power, 55A Per Phase,
- Robust VRM, M.2 and PCH Cooling
- PCIe 5.0 M.2 Support
- Debug LED
รายละเอียดสินค้า
อ้างอิงจาก : www.sapphiretech.com
ข้อมูลผลิตภัณฑ์
PURE X870A WIFI7 DDR5
Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
AMD
AM5
AMD X870
4 x DDR5 Memory Slots
Support DDR5 Memory Only
Maximum Memory Speed : Up to 8400 MT/s (OC)
Maximum System Memory : 64GB x 4 = 256GB
Support Dual Channel Memory Technology
Support Extended Overclock Profile (EXPO) and Extreme Memory Profile (XMP) Modules
8400
1 x DisplayPort
1 x HDMI
None
Realtek® ALC897 HD Audio, 7.1 Channel
1 x PCIE 5.0 x16 Slot
1 x PCIE 4.0 x4 Slot**
1 x PCIE 3.0 x1 Slot
**PCIEx16_2 GEN4x4 will be Disabled when M.2_3 GEN4x4 is occupied.
PCIe 5.0
1 x M.2_1 PCIE 5.0 Supports 2280/2242
1 x M.2_2 PCIE 4.0 Support 2280/2242
1 x M.2_3 PCIE 4.0 Support 2280/2242**
4 x SATA 3.0 6GB/s
*For maximum operating speed, connect Gen5 device to the M.2_1 slot.
*For maximum operating speed, install the hard drive with the operating system in the M.2_1 slot
**PCIEx16_2 GEN4x4 will be Disabled when M.2_3 GEN4x4 is occupied.
NVMe
3
Front USB Headers
1 x USB 3.2 Gen2 (1 x Type-C)
1 x USB 3.2 Gen1 (2 x Type-A)
2 x USB 2.0 (4 x Type-A)
Rear Ports
2 x USB 2.0
4 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-A, 6× Audio Jacks
1 x USB 4.0 (40G) Type-C
1 x CPU Fan Header (CPU_FAN)
1 x Water Cooling Pump Header (AIO_PUMP)
3 x System Fan Headers (CHA_FAN1, CHA_FAN2, CHA_FAN3)
1 x Front Audio Header (F_AUDIO)
1 x Front Panel Header (F_PANEL)
3 x 5V ARGB Headers (5V_ARGB_1, 5V_ARGB_2, 5V_ARGB_3)
1 x 12V RGB Header (12V_RGB)
1 x Speaker Header (SPEAK)
1 x Serial Port Header (COM
2 x USB 2.0
4 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-A, 6× Audio Jacks
1 x USB 4.0 40G (DisplayPort Alt mode & 15W PD) Type-C
1 x DisplayPort
1 x HDMI ™
1 x RJ45 LAN
2 x Wi Fi Antenna
One-click Flash BIOS Button
Realtek® RTL8126 5 Gigabit Ethernet
WiFi 7 Module (M.2), Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band, Bluetooth 5.4 Support
ATX
N/A
N/A
Debug LED
DRAM : Yellow
CPU : Red
GPU : White
Boot : Green
N/A
Windows 11
N/A
