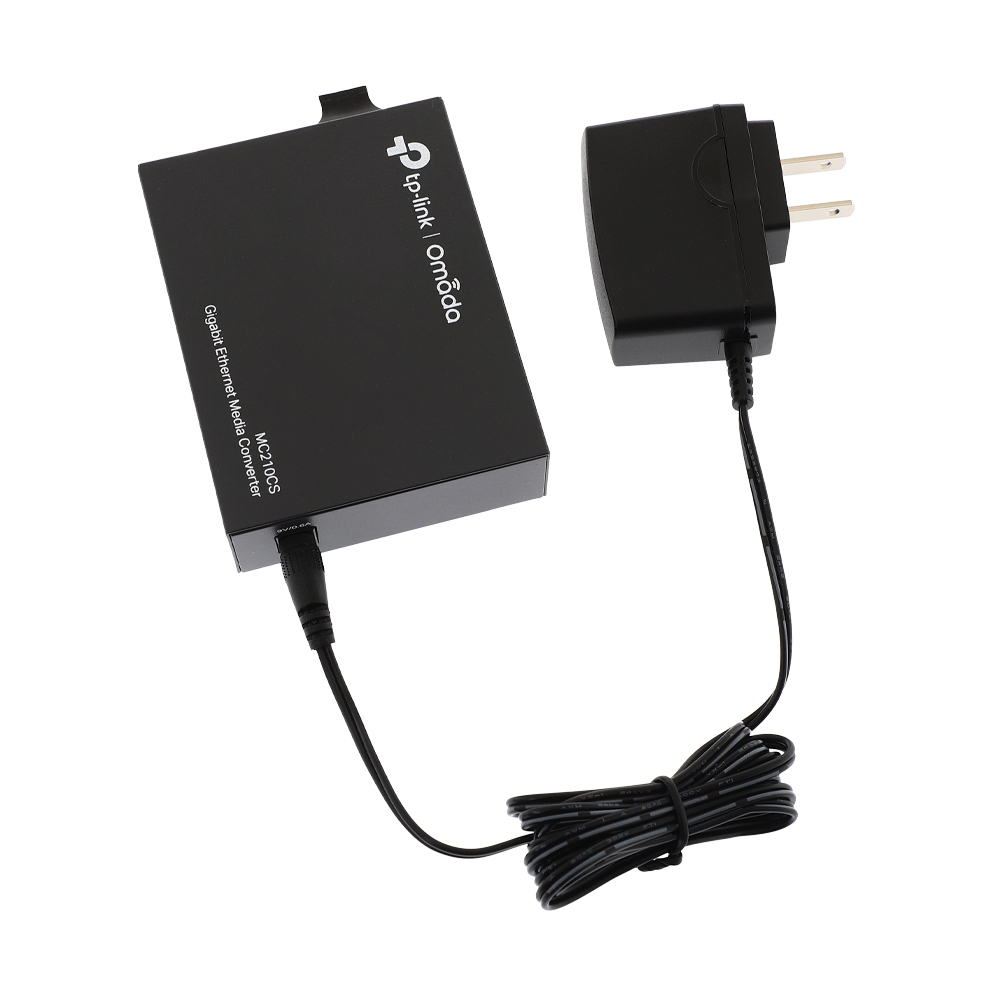

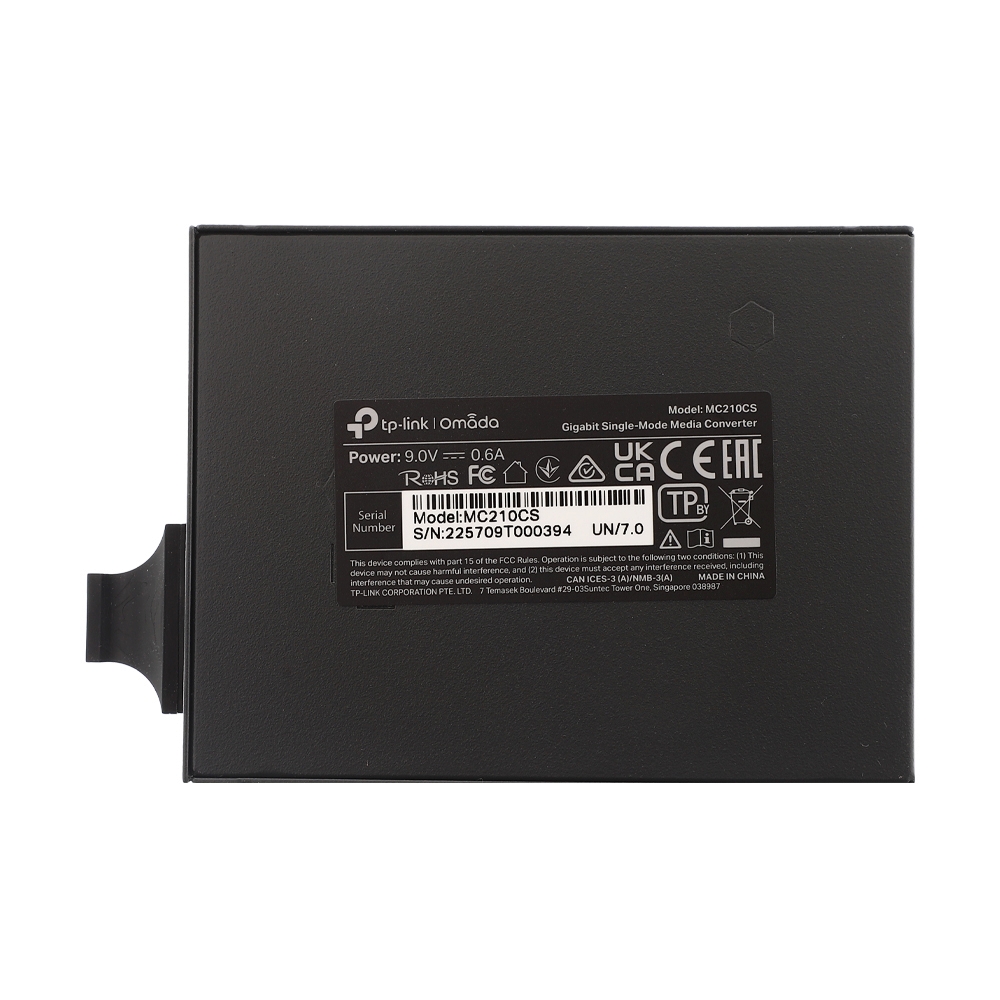

Ethernet Media Converter Single Mode TP-LINK (MC210CS)
- 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends fiber distance up to 15km
รายละเอียดสินค้า
What This Product Does
The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port
- Extends fiber distance up to 15km
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
ข้อมูลผลิตภัณฑ์
MC210CS
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
1 1000M SC/UPC port
1 10/100/1000M RJ45 port (Auto MDI/MDIX)
PWR, Link/Act
1310nm
1000BASE-LX
- Single-mode Fiber
1000BASE-T
- UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)

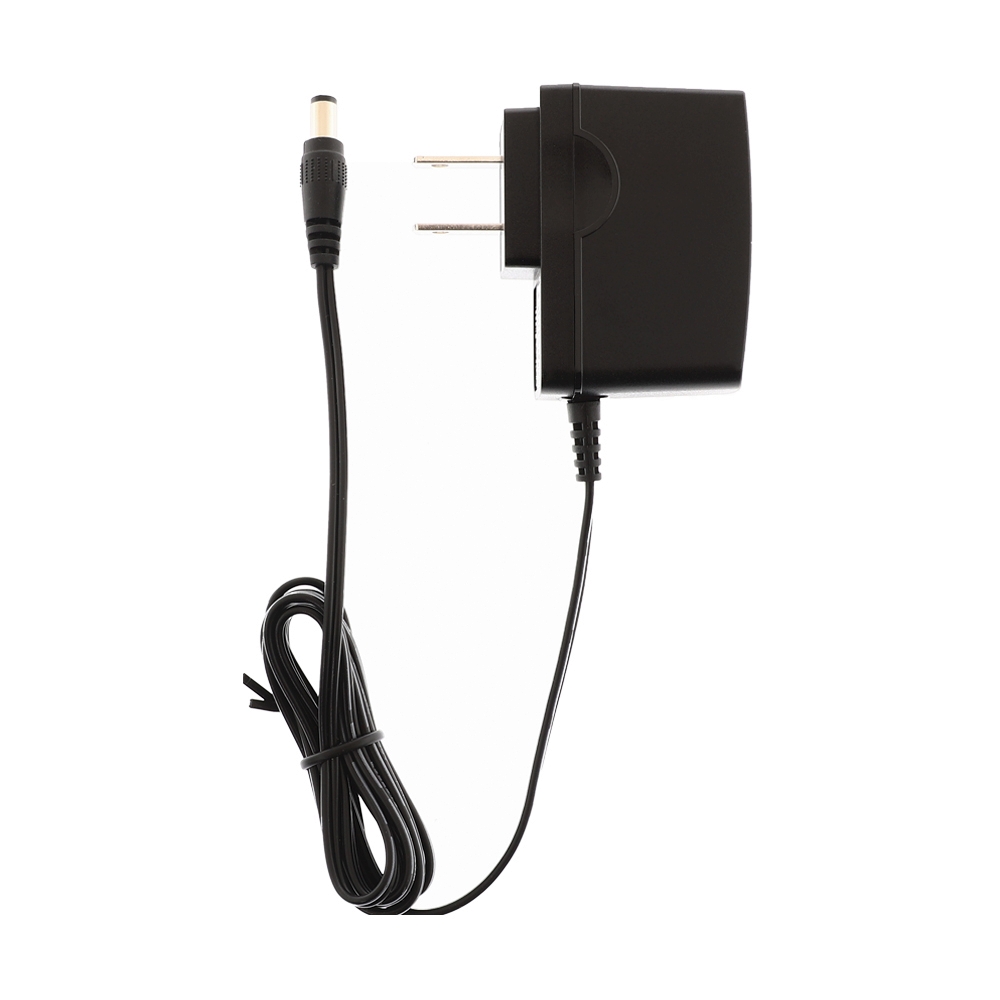

External Power Adapter
1.8W
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
FCC, CE, RoHS
