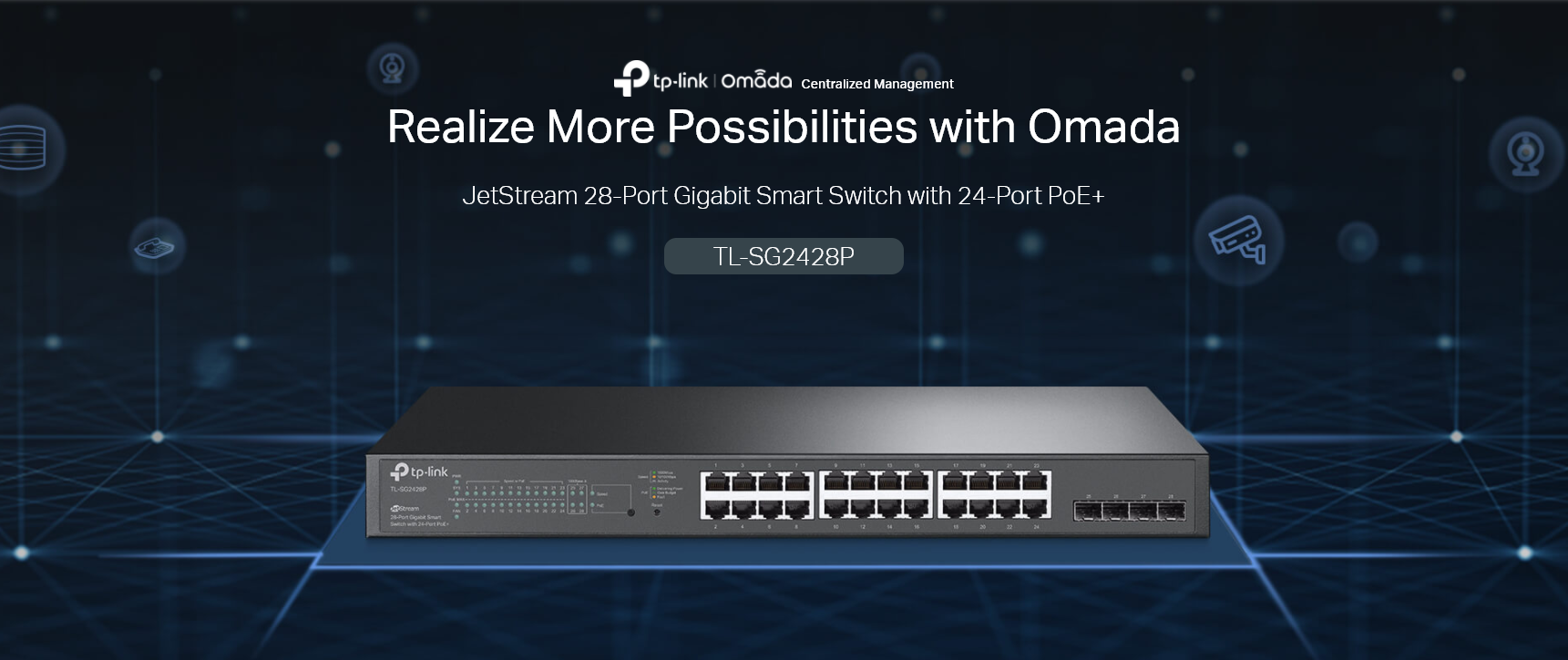

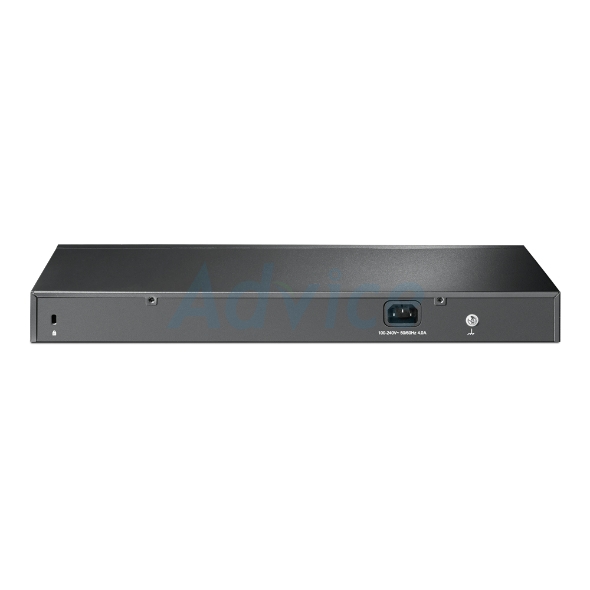

Gigabit Switching Hub 24 Port TP-LINK TL-SG2428P (18",24 PoE,+4 SFP)
- Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x , IEEE802.3at
- Interface
- 24× 10/100/1000 Mbps RJ45 PoE Ports (PoE Power Budget 250 W)
- 4× Gigabit SFP Slots
- Switching Type : Layer 2 switching
- Switching Capacity : 56Gbps
- Casing : Steel
- Package Contents
- TL-SG2428P
- Power Cord
- Rack mount kit
- Rubber Feet
- Quick start guide
- Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
TL-SG2428P
24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4× Gigabit SFP Slots
None
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
N/A
N/A
8K
41.7 Mpps
9 KB
4.1 Mbit
N/A
N/A
N/A
56 Gbps
N/A
N/A
N/A
N/A
N/A
Omada App
Centralized Management
Cloud Access
• VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN
• Protocol VLAN
• GVRP
• Voice VLAN
• AAA
• 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with
SSLv3/TLS 1.2
• Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
• IP/Port/MAC based access control
N/A
2
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
250 W
32.1 W (110 V/ 60 Hz with no PD connected)
308.6 W (110 V/ 60 Hz with 250 W PD connected)
Operating Temperature: 0–50 ℃ (32–122 ℉);
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
CE, FCC, RoHS
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
