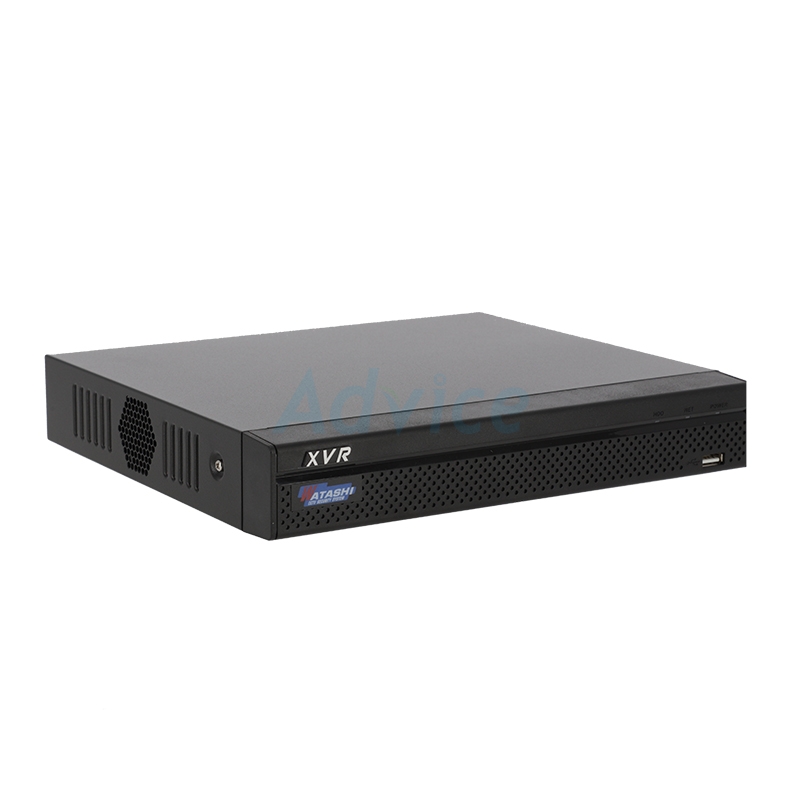

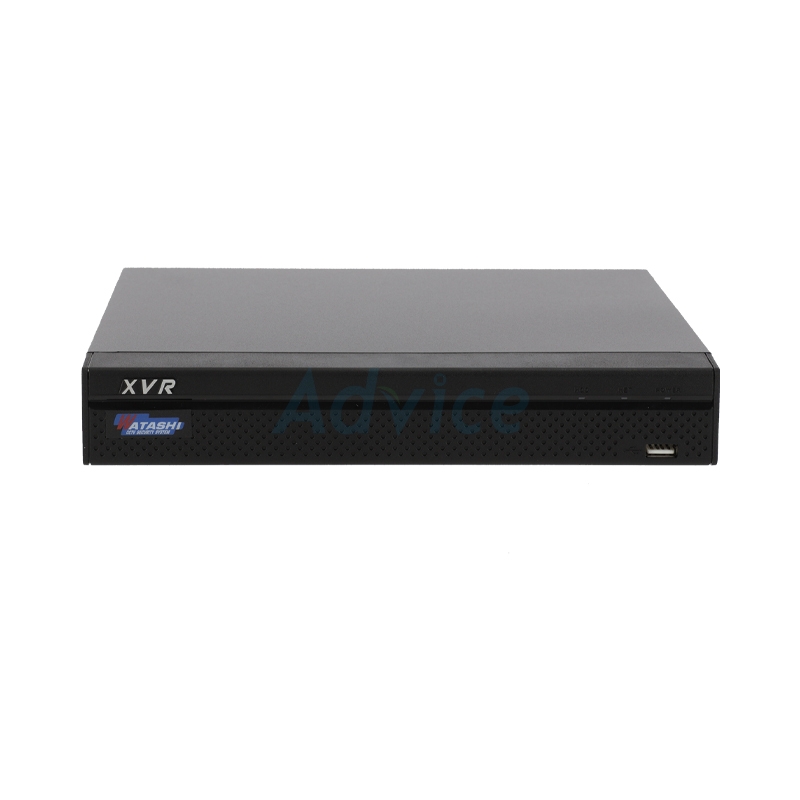

เครื่องบันทึก DVR 16CH. HDCVI WATASHI WVR028X-I3
- Video Compression : AI Coding/H.265+/H.265/H.264+/H.264
- Encoding Resolution : 1080N, 720P, 960H, D1, CIF
- Interface
- 1x SATA port
- 2x USB (1 USB 2.0 , 1 USB 3.0)
- 1x HDMI
- 1x VGA
- 1x 10/100/1000 Mbps Ethernet port, RJ-45)
- 1x RS-485
- Video output : HDMI/VGA independent output
- Capacity : up to 16 TB for a single HDD,the maximun HDD capacity varies with enviroment temperature
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 24 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth
- Up to 2 channels video stream ( analog channel ) Perimeter Protection
- Up to 16 channels video stream ( analog channel ) SMD Plus
- Up to 2 channels video stream (analog channel ) human face recognition
- IoT & POS functionalities
ข้อมูลผลิตภัณฑ์
WVR028X-I2
AHD / TVI / CVI / Analog / IP
Video Input : 16CH (5MP)
IP Video Input : 16+8CH (6MP)
Video compression : H.265+/H.265/H.264+/H.264
Audio input : 1CH
Two-way audio : Reuse audio in/out, RCA
HDMI output : 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA output : 1920 × 1080, 1280 × 1024, 1280 × 720
Frame rate : 30fps
Audio output : 1CH
User Access : 128 users
Network protocols : HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
16 x VIDEO IN
1 x AUDIO IN, RCA
1 x AUDIO OUT, RCA
1 x HDMI
1 x VGA
1 x RS485
1 x RJ45
2 x USB
Slot : 1 SATA
Capacity : up to 10TB
12VDC / 2A
<12W
Operating Conditions : -10°C to +55°C (+14°F to +131°F), 0–90% RH
Storage Conditions : -20°C to +70°C (-4°F to +158°F), 0–90% RH
