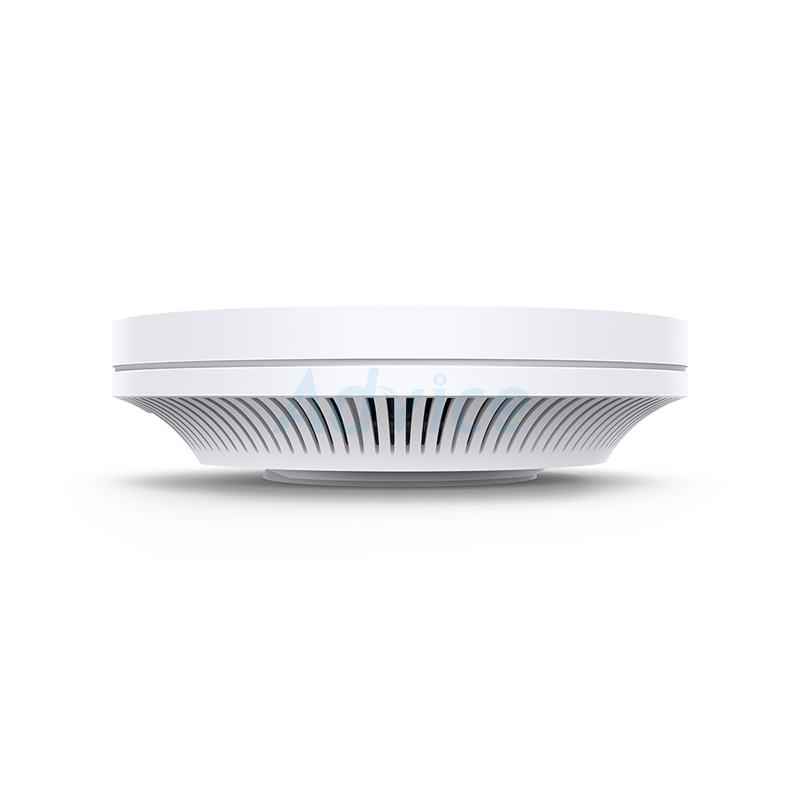

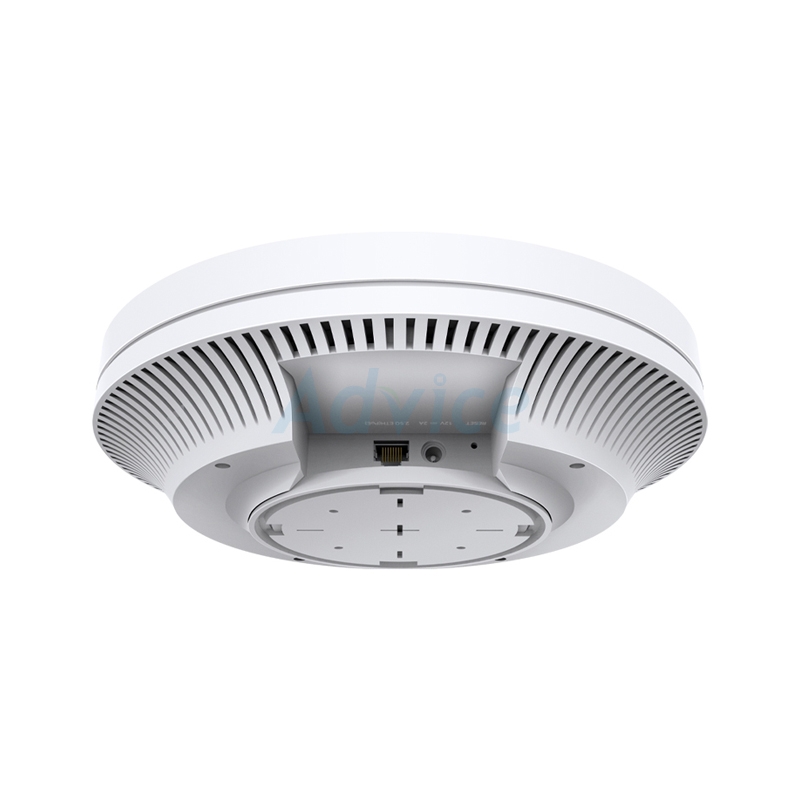

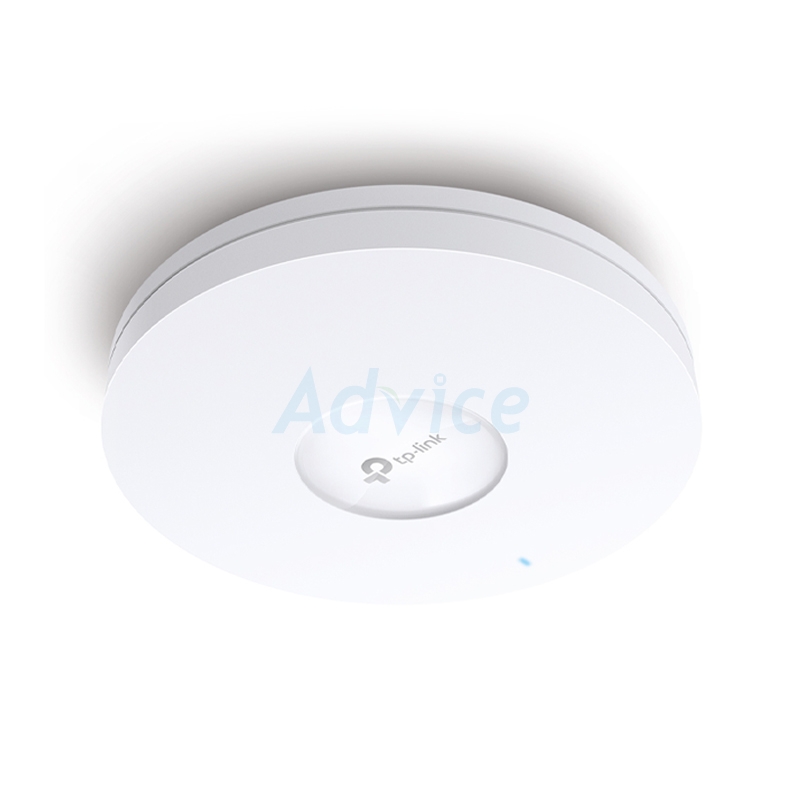

Access Point TP-LINK (EAP620 HD) Wireless AX1800 Dual Band Gigabit WiFi 6
- Wireless Standards : IEEE 802.11ax/ac/n/g/b/a
- Signal Rate : Wireless AX1800
- 5 GHz: Up to 1201+ Mbps
- 2.4 GHz: Up to 574+ Mbps
- Interface : Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)
- Power Supply : 48V Passive PoE , 12V/1.5A DC , 802.3at PoE
- Mounting : Ceiling /Wall Mounting
- Antenna Type : Internal Omni Antenna ( 2.4GHz: 2*4dBi , 5GHz: 2*5dBi )
- High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
รายละเอียดสินค้า
High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO** increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before.
Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band)†. With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.? This allows sensitive applications like VoIP and video conferences to go uninterrupted.
อ้างอิงจาก : www.tp-link.com
ข้อมูลผลิตภัณฑ์
EAP620 HD
IEEE 802.11ax/ac/n/g/b/a
Internal Omni
- 2.4 GHz: 2× 4 dBi
- 5 GHz: 2× 5 dBi
Transmission Power
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, EIRP)
FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
2.4 GHz and 5 GHz
1 × Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Reset
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Ceiling /Wall Mounting (Kits included)
12VDC
802.3at PoE
EU: 12 W
US: 13.5 W
Operating Temperature : 0 - 40°C (32 - 104°F)
Storage Temperature : -40 - 70°C (-40 - 158°F)
Operating Humidity : 10 - 90% RH non-condensing
Storage Humidity : 5 - 90% RH non-condensing
CE, FCC, RoHS
EAP620 HD
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide
