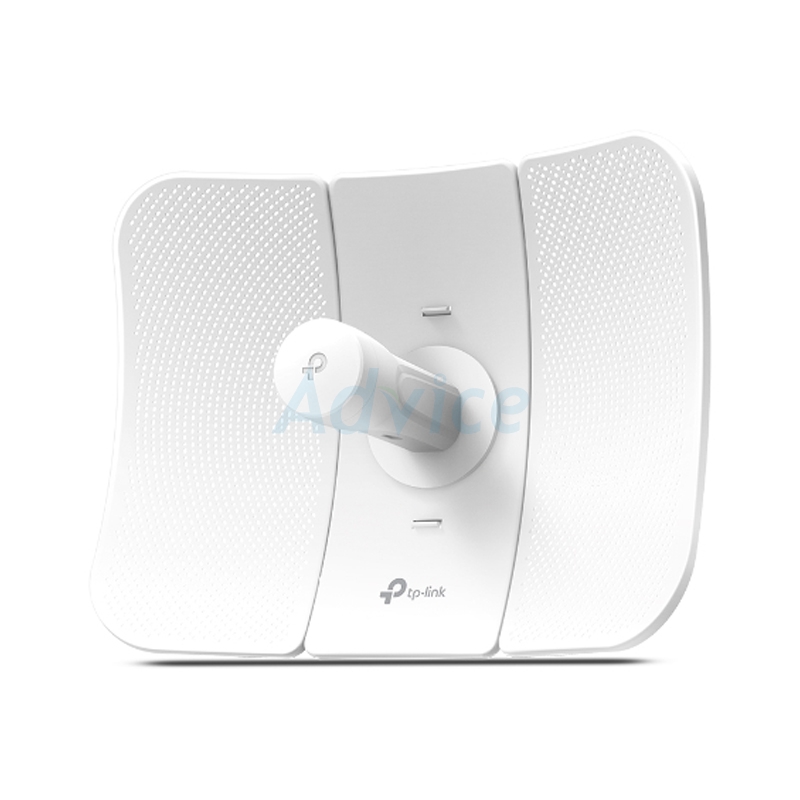

Access Point Outdoor TP-LINK (CPE710) Wireless AC900 (5GHz) 23dBi
- Wireless Standards : IEEE 802.11a/n/ac
- Signal Rate : 5GHz 867 Mbps
- Interface : 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
- Power Supply : Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) , 16-27VDC
- Mounting : Pole/Wall Mounting
- Antenna Type : 23 dBi
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
รายละเอียดสินค้า
Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.
Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

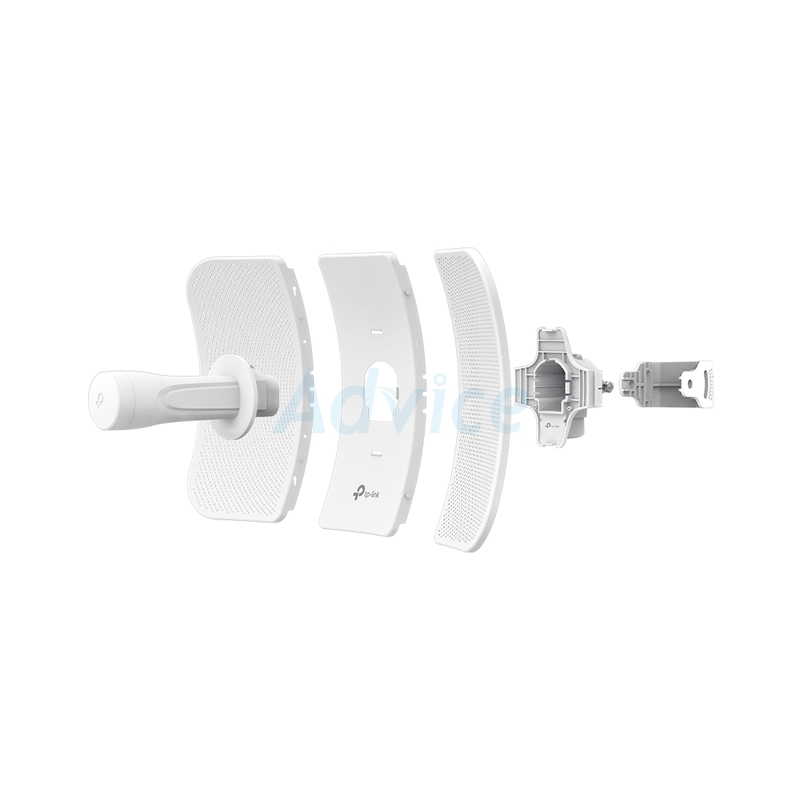

Stable Structural Design and Flexible Installation
Snap-lock parts make assembly simple and convenient
Pole mount kits and the freedom of three-axis alignment facilitate flexible installation
Sturdy design ensures stability in windy conditions
อ้างอิงจาก : www.tp-link.com
ข้อมูลผลิตภัณฑ์
CPE710
802.11a/n/ac
23dBi
Transmit Power : 27dBm
5GHz 867Mbps
Qualcomm 750MHz CPU, MIPS 74Kc
128 MB DDR2 RAM, 16 MB Flash
1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
Reset Button
128 MB DDR2 RAM, 16 MB Flash
Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range : 16-27V DC
Operating Temperature : -40°C~70°C (-40°F~158°F)
Storage Temperature : -40°C~70°C (-40°F~158°F)
Operating Humidity : 10%~90% non-condensing
Storage Humidity : 5%~95% non-condensing
CE, FCC, RoHS, IP65
N/A
