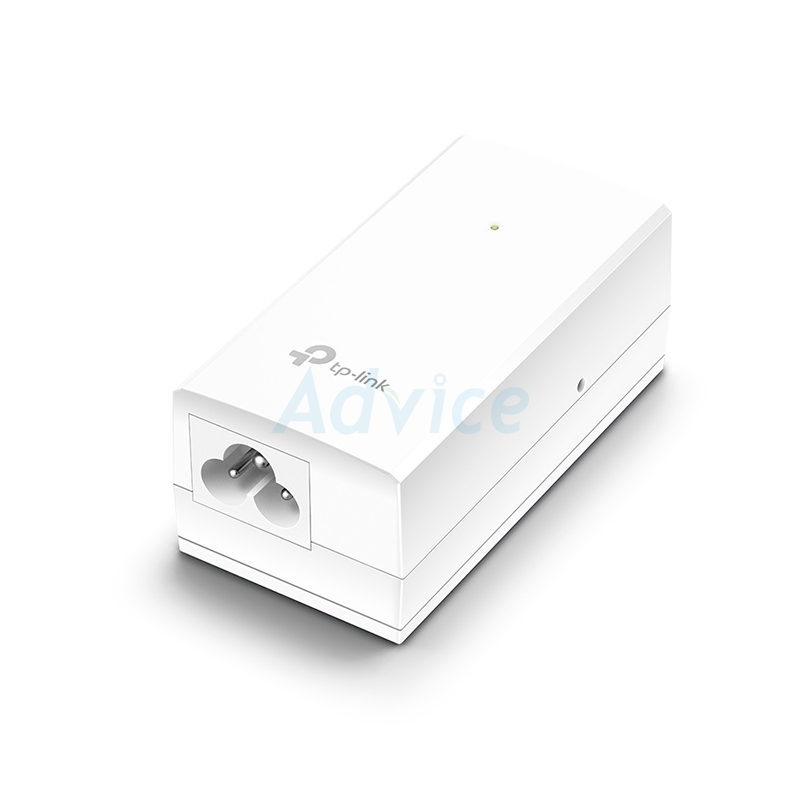

Power Over Ethernet Adapter TP-LINK (TL-POE2412G)
- Interface
- 2x 10/100/1000Mbps RJ45 Port
- AUTO Negotiation/AUTO MDI/MDIX
- 1x 100~240V / 50~60Hz AC Power Input Port
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
- Power Supply : 12W (Max. 24VDC)
- Auto-determine the necessary power requirements
- 24V passive PoE supported
- Convenient wall-mounting design
- Gigabit speed support
- Plug-and-Play, requires no configuration
รายละเอียดสินค้า
Passive PoE Adapter
Powers TP-Link products that support 24V passive PoE
Convenient Wall-Mounting Design
TL-POE2412G offers a convenient wall-mounting brackets to be easily installed on a wall.
Power Your Devices
Use the passive PoE adapter TL-POE2412G to simultaneously supply power and transmit data to a passive PoE device.
อ้างอิงจาก : www.tp-link.com
ข้อมูลผลิตภัณฑ์
TL-POE2412G
2 x 10/100/1000Mbps RJ45 Port
10BASE-T : UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX : UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T : UTP category 5, 5e, 6 cable (Max 100m)
100-240VAC / 50-60Hz
Operating Temperature : 0°C~40°C (32°F~104°F)
Storage Temperature : -40°C~70°C(-40°F~158°F)
Operating Humidity : 10%~90% non-condensing
Storage Humidity : 5%~90% non-condensing
FCC, CE, RoHS
24V 12W Passive PoE Adapter TL-POE2412G
Power Cord
Wall Mounting Kits
