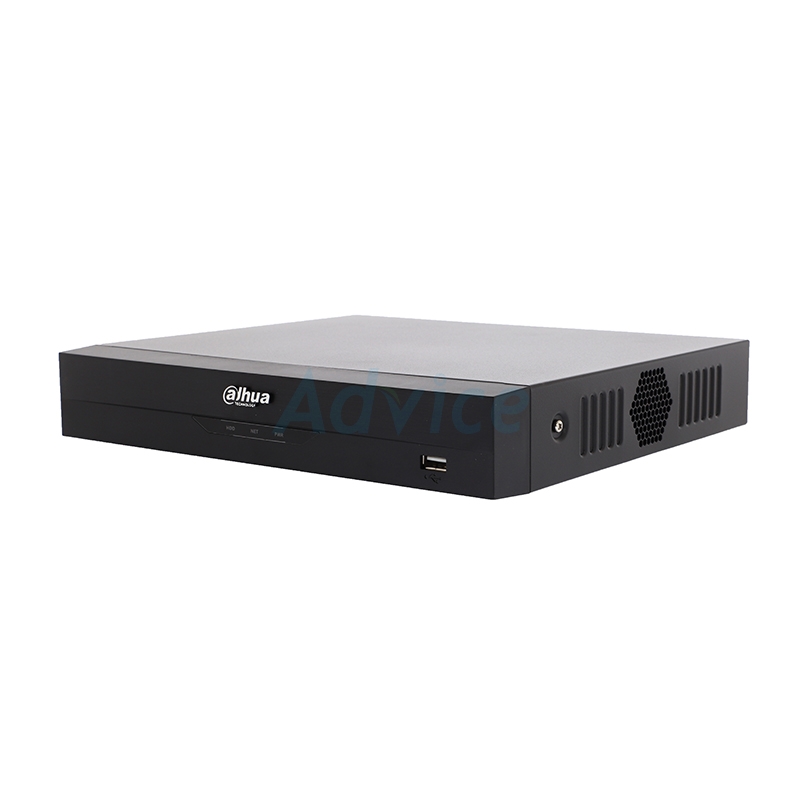

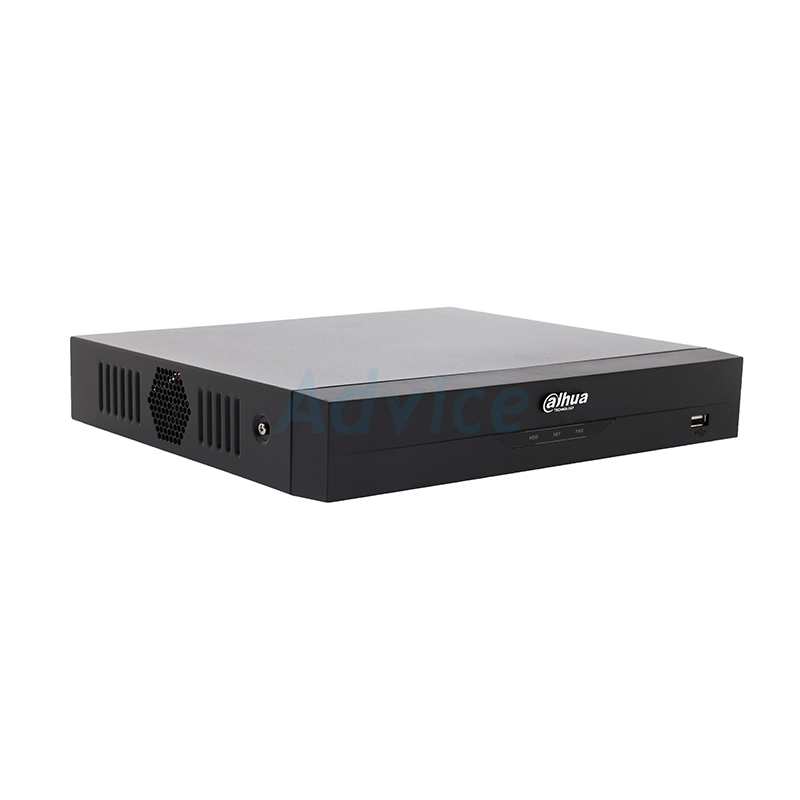

DVR 4CH. HDCVI DAHUA#XVR4104HS-I
- Video Compression : AI Coding; H.265+; H.265; H.264+; H.264
- Encoding Resolution : 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
- Interface
- 1x SATA Port
- 2x USB Ports
- 1x HDMI
- 1x VGA
- 1x (10/100 Mbps Ethernet port, RJ-45)
- 1x RS-485
- Video output : 1 HDMI, 1 VGA
- Capacity : up to 16 TB.The maximum HDD capacity varies with environment temperature
- Supports Full-channel AI-Coding
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 5 channels IP camera inputs, each channel up to 2MP; Max 32 Mbps incoming bandwidth
- Up to 4 channels video stream ( analog channel ) SMD Plus
ข้อมูลผลิตภัณฑ์
XVR4104HS-I
AHD / TVI / CVI / Analog / IP
Video Input : 4CH
IP Video Input : 4+1CH(2MP)
Video compression : AI Coding/H.265+/H.265/H.264+/H.264
Audio input : 1CH, RCA
Two-way audio : Reuse audio in/out, RCA
HDMI output : 1920 × 1080, 1280 × 1024, 1280 × 720
VGA output : 1920 × 1080, 1280 × 1024, 1280 × 720
Frame rate : 25/60fps
Audio output : 1CH, RCA
User Access : 128 users
Network protocols : HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

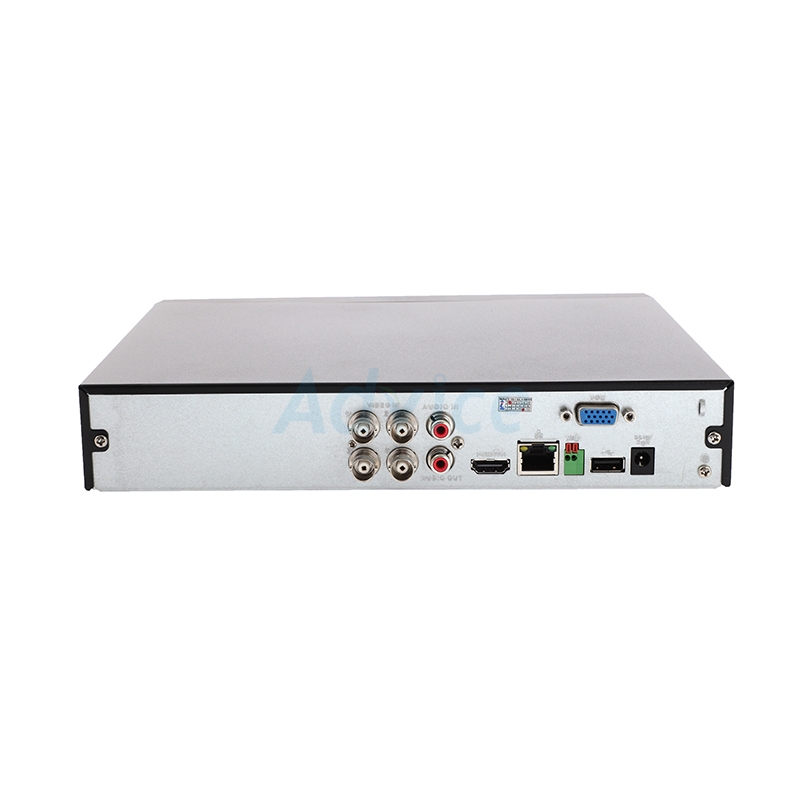

4 x Video In
1 x HDMI
1 x VGA
1 x Audio Out
1 x Audio In
2 x USB
1 x RS485
Slot : 1 SATA
Capacity : up to 6 TB
12VDC / 1.5A
<4W
Operating Conditions : -10°C to +45°C (+14°F to +113°F), 0%-90% (RH)
Storage Conditions : -20°C to +70°C (-4°F to +158°F), 0%-90% (RH)
Support, ONVIF 16.12, CGI Conformant
