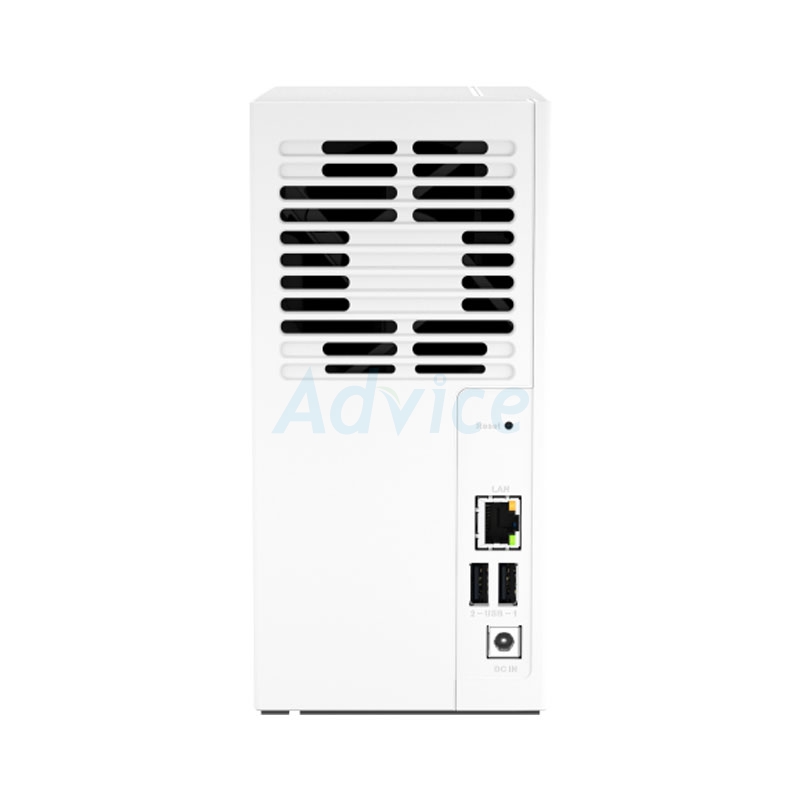

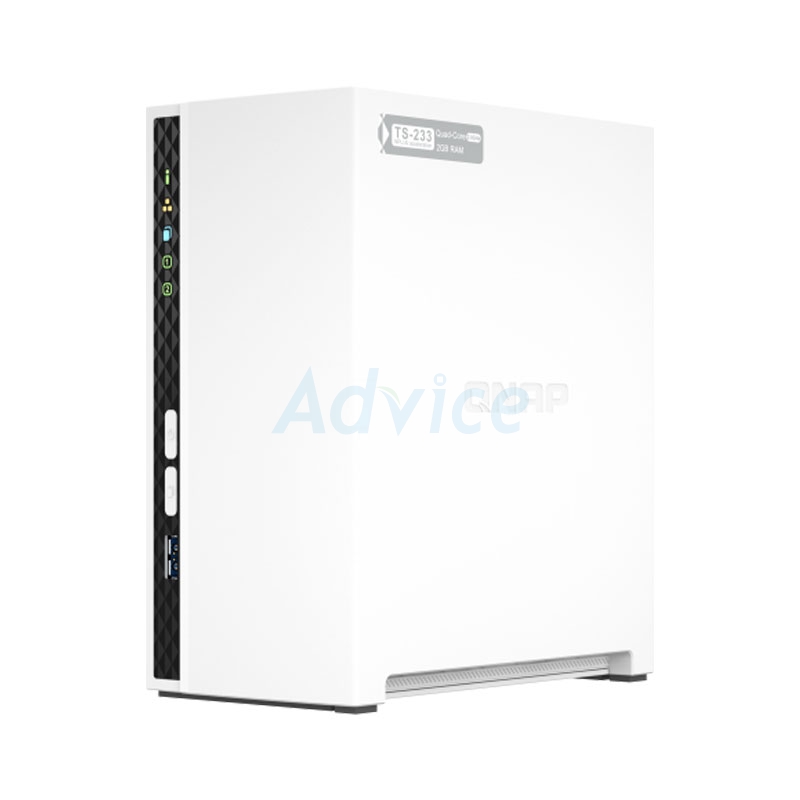

NAS QNAP (TS-233, Without HDD.)
- Processor : ARM 4-core Cortex-A55 2.0GHz processor
- System Memory : 2 GB on board (non-expandable)
- Compatible Drive types : 3.5" SATA HDD , 2.5" SATA SSD ,
- Drive Bay : 2 Bay
- Maximum Internal Raw Storage Capacity : 52 TB
- Interface
- 1x RJ45 1GbE LAN Port
- 1x USB 3.2 Gen 1 Port
- 2x USB 2.0 Port
- 2x 3.5" SATA HDD
- Supported Client OS : Windows®, macOS®, Linux®, Windows Server
รายละเอียดสินค้า

Minimalist design
The compact and slim TS-233 prioritizes a clean and essential design, and perfectly blends into your home or office. The design extends to the hard drives, which can be installed without needing a screwdriver.



Effective cooling fan for heat flow
The TS-233 is small in size and remains high-performance, cool, and quiet with an effective cooling fan.

64-bit Cortex-A55 quad-core 2.0 GHz CPU NAS for everyday use and collaboration
Powered by a ARM® Cortex-A55 quad-core 2 GHz processor, built-in 2 GB RAM, one Gigabit LAN port, and supports two SATA 6Gb/s hard drives, the TS-233 provides dependable read/write performance for running various home and business NAS applications. The TS-233 features AES-NI 256 hardware-accelerated encryption for both full NAS volumes and shared folders, boosting system performance while securing sensitive data.

NPU accelerates on-device AI performance. 6x Faster face recognition.
With a built-in NPU (Neural network Processing Unit) processor, the TS-233 boosts QNAP AI Core (the AI-powered engine for image recognition) performance for high-speed face and object recognition.

Protect your data with higher security
The TS-233 provides advanced privacy and security settings but is easy to set up and use. Besides IP blocking and HTTPS connectivity, there are more apps that help ensure an optimal level of NAS protection against threats like malware and hackers.
อ้างอิงจาก : www.qnap.com
ข้อมูลผลิตภัณฑ์
TS-233
• ARM 4-core Cortex-A55 2.0GHz processor
• QTS 5.0.0
• 2 GB, not expandable
Note : Reserves some RAM for use as shared graphics memory.
• 3.5-inch SATA hard disk drives
• 2.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives
• 2
None
• System Status, LAN, USB, HDD1~2
• 2 x USB 2.0
• 1 x USB 3.0
• 1 RJ45 Gigabit Ethernet Port
N/A
• Power
• Reset
• USB Copy
• JBOD, Single, RAID 0, 1
• Apple Mac OS 10.10 or later
• Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
• IBM AIX 7, Solaris 10 or later UNIX
• Microsoft Windows 7, 8, 10 and 11
• Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022, and 2025
• Qsync, User customization, Central
• 1 x 80mm, 12VDC
• 65W Adapter, 100-240VAC
• Operating temperature : 0 - 40°C (32°F - 104°F)
• Storage Temperature : -20 - 70°C (-4°F - 158°F)
• Relative Humidity : 5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
• TS-233
• Ethernet Cable
• AC Adapter
• Power Cord
• Flat head screw (for 3.5" HDD) x8
• Flat head screw (for 2.5" HDD) x6
• Quick Installation Guide (QIG)
