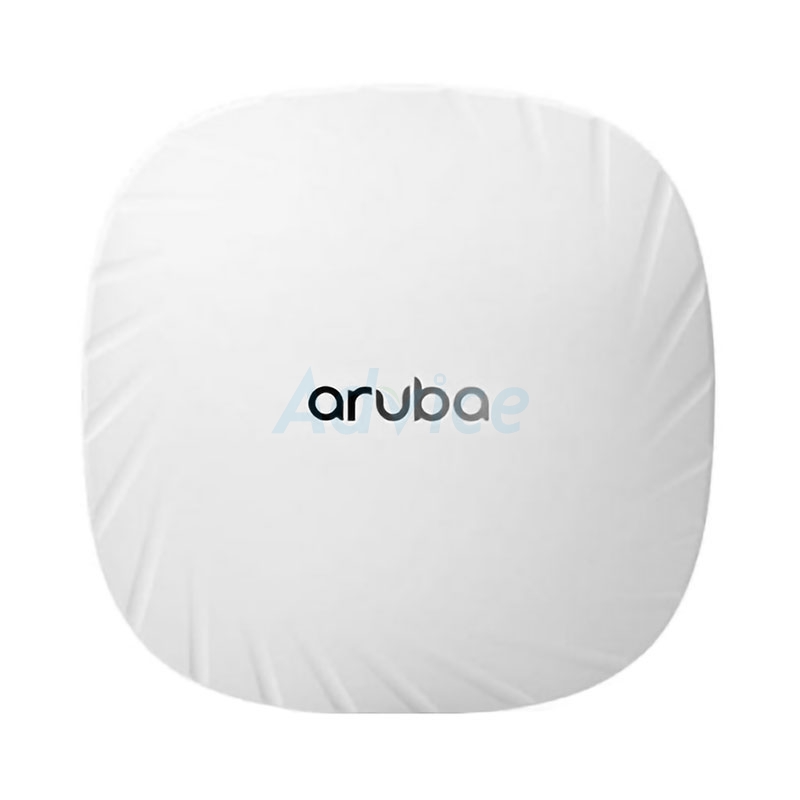

Access Point ARUBA Instant On AP505 (R2H28A) Wireless AX1800 Dual Band Gigabit WiFi 6
- Wireless Standards : IEEE 802.11ax
- Signal Rate : Wireless AX1800
- 5 GHz: Up to 1.2G Gbps
- 2.4 GHz: Up to 574 Mbps
- Interface : Gigabit Ethernet port (RJ-45)
- Power Supply : DC power connector(12V) (not included) 802.3af/at PoE
- Mounting : Ceiling /Wall Mounting
- Antenna Type : Integrated down-tilt omni-directional (4.9dBi in 2.4GHz , 5.7dBi in 5 GHz)
- Maximum number of associated : Up to 256 associated client devices per radio
ข้อมูลผลิตภัณฑ์
AP505 (R2H28A)
Two integrated dual-band downtilt omni-directional antennas
2.4GHz
5GHz
two multi-color LEDs For System and Radio status
1 x RJ-45 Auto-sensing link speed (10/100/1000BASE-T)
Reset button
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM
802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
AP
12VDC
802.3af/at POE (class 3 or 4)
DC powered: 8.9W / 14.2W.
POE powered (802.3at): 11.0W / 16.5W.
POE powered (802.3af): 11.0W / 13.5W.
This assumes that up to 5W is supplied to the attached USB device
Operating Temperature : 0°C to +50°C / +32°F to +122°F
Operating Humidity : 5% to 93% non-condensing
Storage Temperature : -40°C to +70°C / -40°F to +158°F
Storage Humidity : 5% to 93% non-condensing
