ข้อมูลสินค้าGigabit Switching Hub 16 Port D-LINK DGS-F1018P-E (17",16 PoE,+2 SFP)

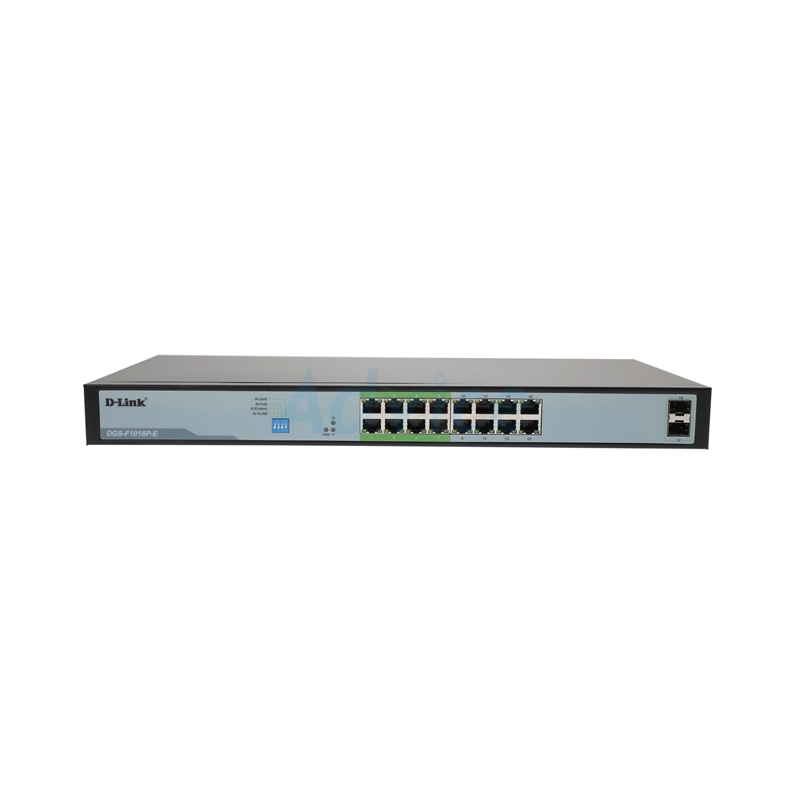

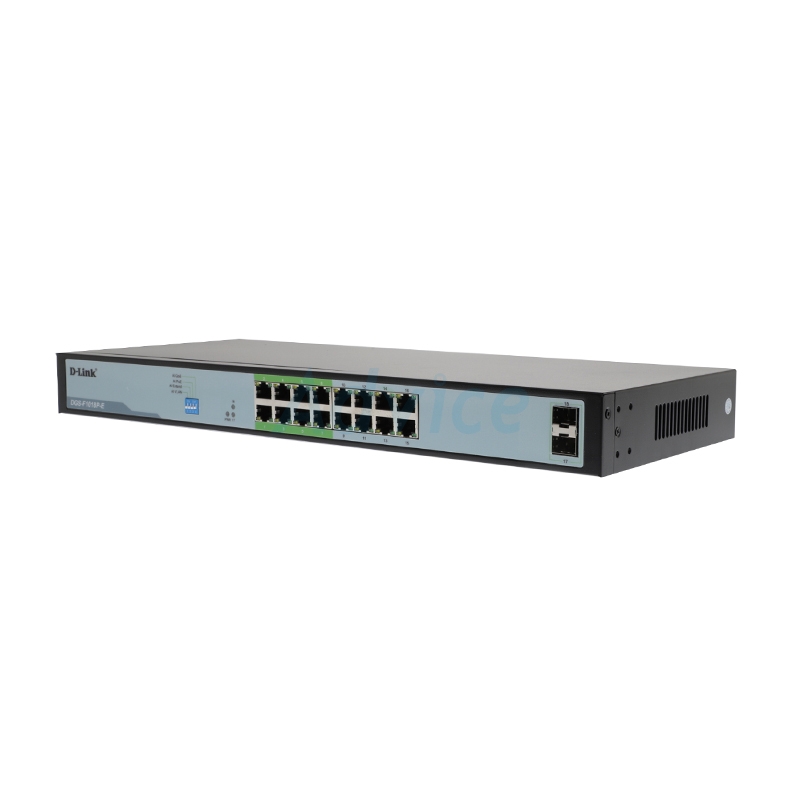

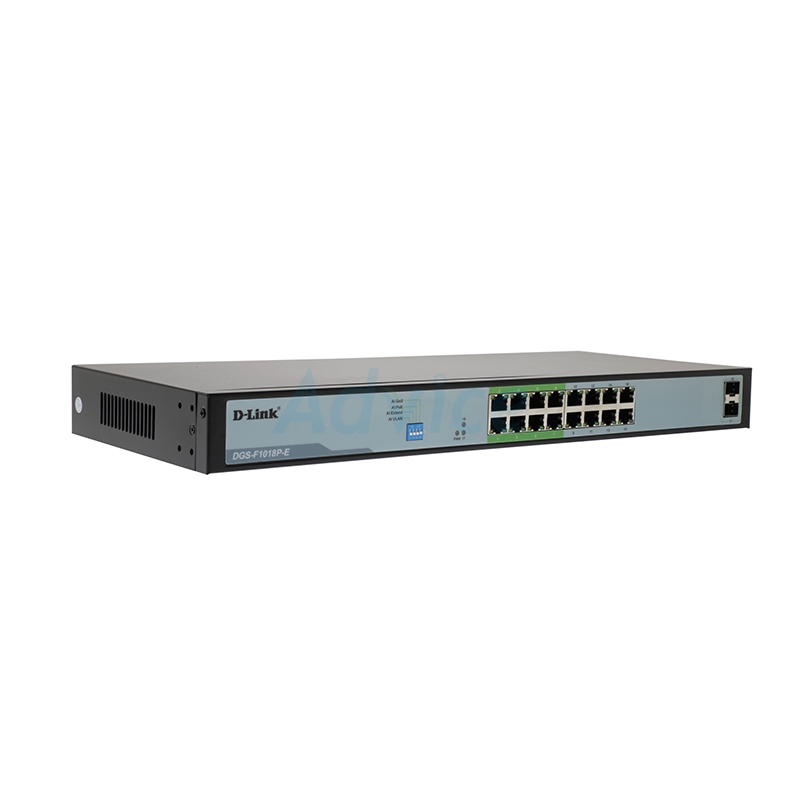

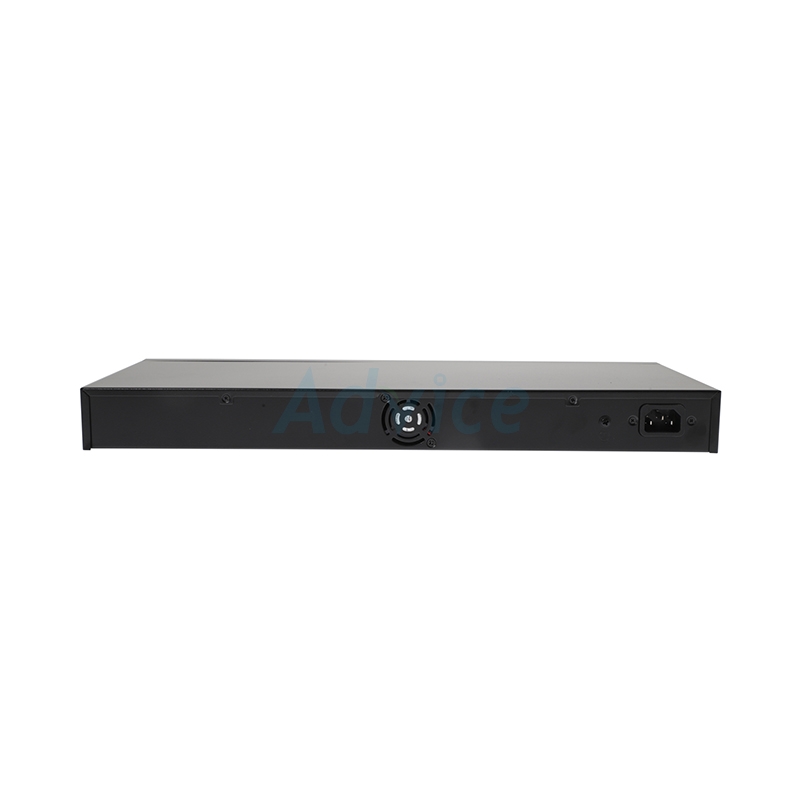

Gigabit Switching Hub 16 Port D-LINK DGS-F1018P-E (17",16 PoE,+2 SFP)
D-LINK

Gigabit Switching Hub 16 Port D-LINK DGS-F1018P-E (17",16 PoE,+2 SFP)

ประกัน 3 ปี
รหัสสินค้า: A0144373
  • Standards and Protocols : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
  • Interface
    • 16× PoE+ gigabit RJ45 ports (Port 1 - 8 PoE can support up to 250m @ 10Mbps with Extend enabled)
    • 2× SFP slots
  • Switching Type : Unmanaged
  • Switching Capacity : 36Gbps
  • Casing : Metal

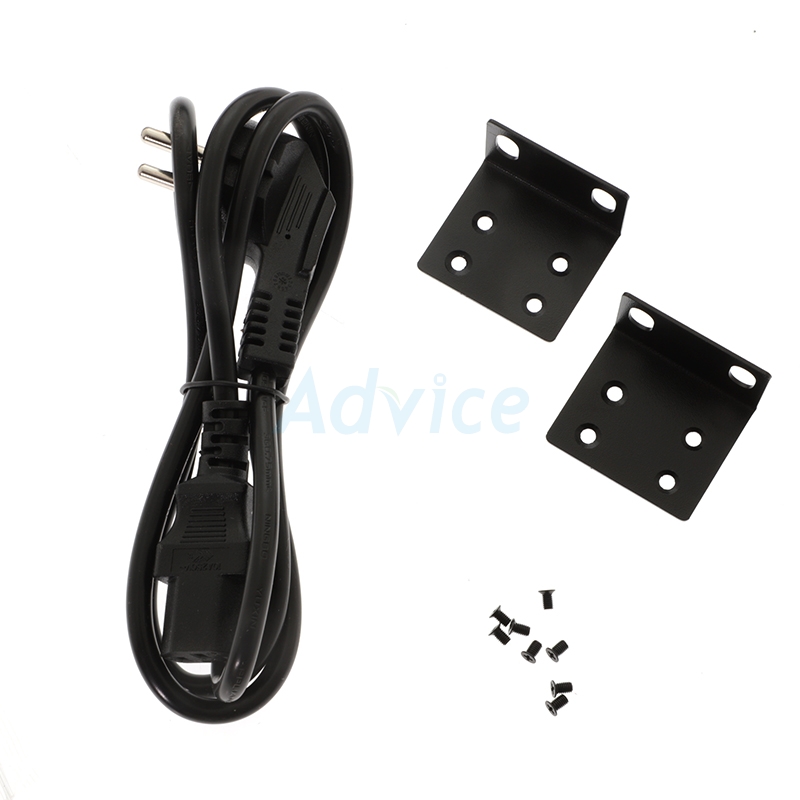

  • Package Contents
    • DGS-F1018P-E
    • Installation Guide
    • Power Cord
  • 150W (30 W max. per PoE port)
  • Support transmission Data/PoE up to 250m cable length (Port 1-8 with Extend enabled)
  • 6KV Lightning protection
  • Smart Features: Extend, VLAN, QoS and PoE
  • Plug & Play
คำค้นหาGigabitSwitchingHubD-LINKDGS-F1018P-E16 PortPOE+2 SFP17''
ราคาหน้าร้าน ฿5,650

รายละเอียดสินค้า

Built for your Need
Robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras, CCTV, VoIP, AP etc




Up to 250m PoE and Data Transmission
Equipped with PoE extend technology, DGS-F1018P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution




6KV Surge Protection
D-Link 250M is enhanced with 6KV surge protection Effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position




Enhanced with VLAN Function
With a flick of button, Isolate the downlink port to each other can effectively suppress network storms and improve network performance




Enhanced with Video QoS
Improve the Video Packet Priority
Create high priority for video streaming, perfect solution for IP camera/CCTV





Intelligent Detection
Automatically Detect unresponsive PoE device and reboot the device for recovery





อ้างอิงจาก : www.dlink.co.th

ข้อมูลผลิตภัณฑ์

BrandD-LINK
Model

DGS-F1018P-E

Network Interface

16 x 10/100/1000 BASE-T ports
2 x SFP

Standards and Protocols

IEEE 802.3u,Fast Ethernet standard?
IEEE 802.3ab,Gigabit Ethernet standards
IEEE 802.3ab,Gigabit Ethernet standards
IEEE 802.3x,Full-duplex Ethernet data link layers
IEEE 802.3af/at ,Ethernet power supply POE standard
IEEE 802.3az ,EEE,Energy efficient Ethernet standard
IEEE 802.3z,Gigabit Ethernet fiber-optic standard

Switching Capacity

36 Gbps

Transmission Method

Adopt Store-and-forward

MAC Address Table

8K

Forwarding Rate

10M port maximum 14800pps
100M port maximum 148800pps
1000M port maximum 1488000pps

LED Indicators

Power, Link/Activity

PoE

Port 1 - 16 IEEE 802.3af/ IEEE 802.3at

Environment

Temperature Operating : 0 to 40?C (32 to 104?F)
Humidity Operating : 0% to 95% RH non-condensing
Humidity Storage : 0% to 95% RH non-condensing

Certifications

Safety : LVD
EMI/EMC : CE, FCC

Package Contents

N/A
