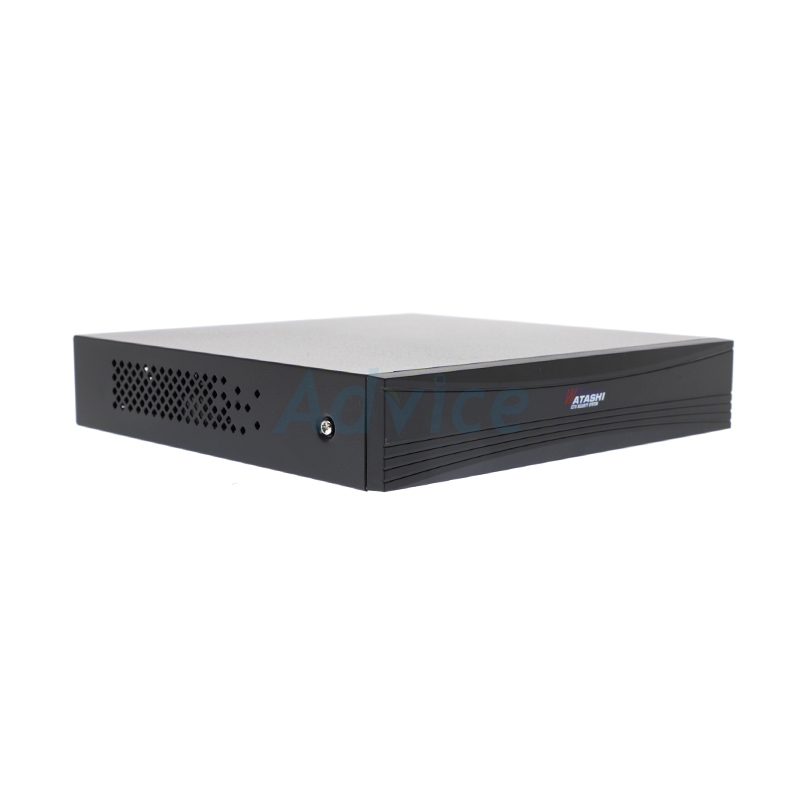

DVR 4CH. HDCVI WATASHI#WVR066A-I
- Video Compression : H.264
- Encoding Resolution : 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
- Interface
- 1x SATA Port
- 2x USB Ports
- 1x HDMI
- 1x VGA
- 1x RJ-45 Port (100M)
- Video output : HDMI/VGA simultaneous output
- Capacity : up to 6TB capacity
- Supports Full channel AI-Coding
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 5 channels IP camera inputs, each channel up to 2MP; Max 20 Mbps incoming bandwidth
- Up to 4 channels video stream (analog channel) SMD Plus
ข้อมูลผลิตภัณฑ์
WVR066A-I
CVI,TVI, CVBS, IP, Analog
Video Input : 4CH
IP Video Input : 4+1CH (2mp)
Video compression : H.265+/H.265
Audio input : 1CH, RCA
Two-way audio : Reuse audio in/out, RCA
HDMI output : 1920 × 1080, 1280 × 1024, 1280 × 720
VGA output : 1920 × 1080, 1280 × 1024, 1280 × 720
Frame rate : 25/30 fps
Audio output : 1CH, RCA
User Access : 128 users
Network protocols : HTTP; HTTPS; TCP/IP; IPv4/IPv6; 3G/4G; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
4 x Video in
1 x HDMI
1 x VGA
2 x USB
1 x Audio in
1 x Audio out
1 x RJ-45
Slot : 1 SATA
Capacity : up to 6 TB
12VDC / 1.5A
<7W
Operating Conditions : -10°C to +45°C (+14°F to +113 °F), 0%-90% (RH)
Storage Conditions : -20°C to +70°C (-4°F to +158°F), 0%-90% (RH)
