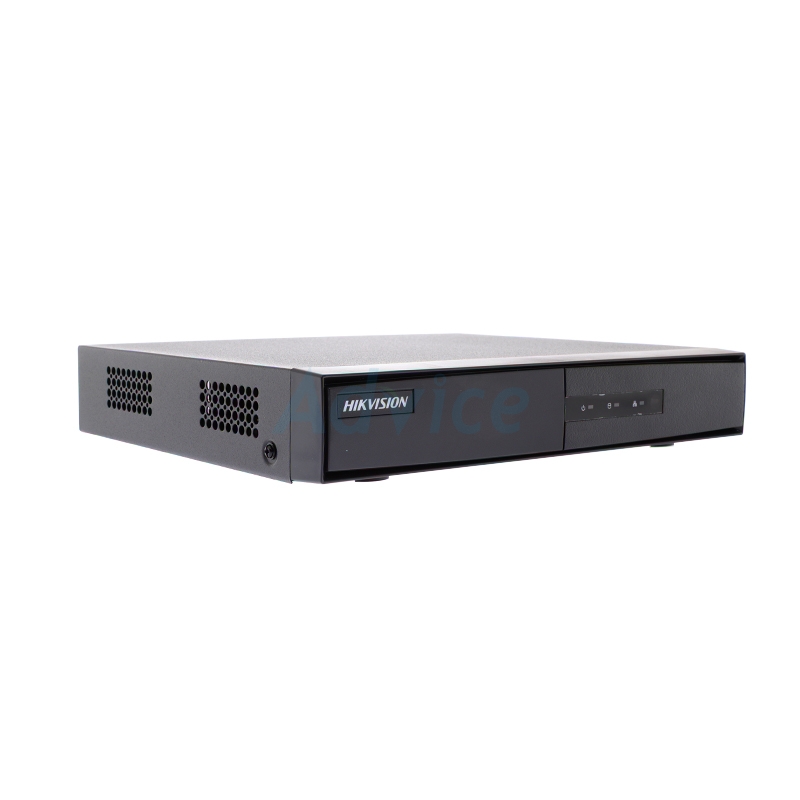

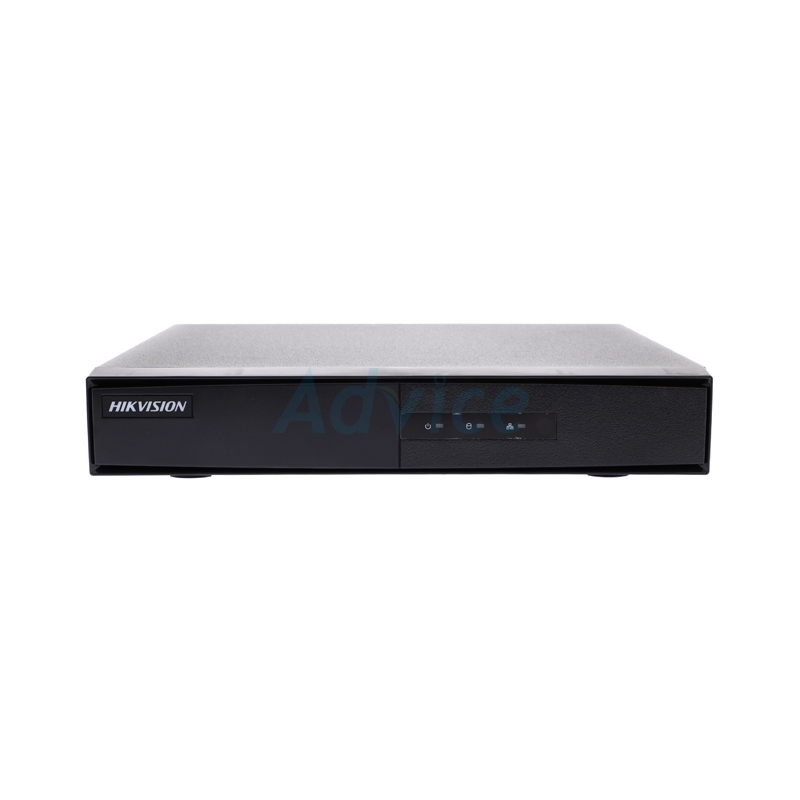

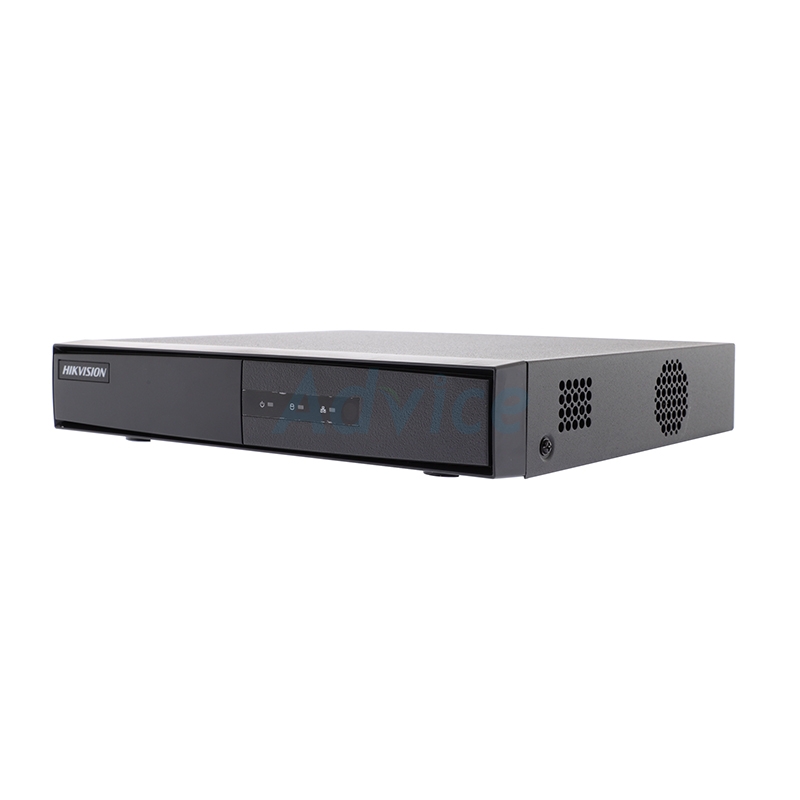

เครื่องบันทึก NVR 4CH. HIKVISION DS-7104NI-Q1/4P/M

ประกัน 3 ปี

รหัสสินค้า: A0151220

Video Compression : H.265+/H.265/ H.264+/H.264
Encoding Resolution : 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Interface
- 1x SATA port
- 2x USB 2.0
- 1x HDMI
- 1x VGA
- 1x RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
- 4x RJ-45 10/100 Mbps self-adaptive Ethernet interface
Video output : HDMI/VGA simultaneous output
Capacity : Up to 6 TB capacity for each disk
Decoding Capability : 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
Power : ≤ 36 W
Up to 8 network cameras can be connected
Record Resolution : 1920 x 1080p
Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
Up to 4-ch network camera inputs
Up to 4-ch 1080p decoding capability

ราคาหน้าร้าน ฿2,990

ข้อมูลผลิตภัณฑ์

BrandHIKVISION

Model
DS-7104NI-Q1/4P/M

Video/Audio input
Video Input : 4CH
Video compression : H.265+/H.265/ H.264+/H.264
Recording Resolution : 6 MP

Video/Audio output
HDMI : 1-ch, 1920 × 1080p/60Hz
VGA : 1-ch, 1920 × 1080p/60Hz

Network
Remote Connection : 16
Network Protocol : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP

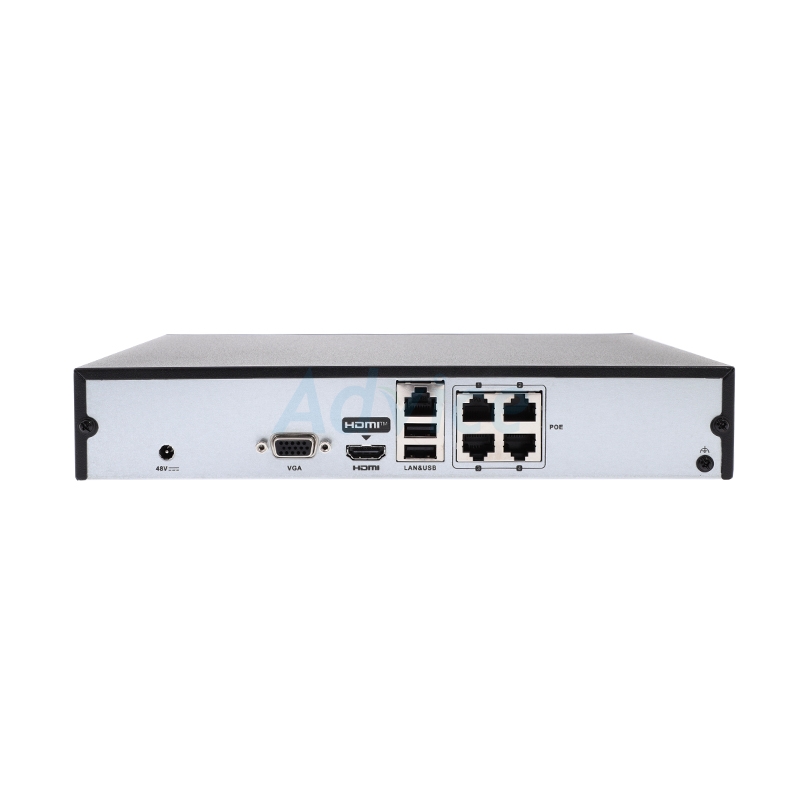

Interface
1 x RJ-45 10/100Mbps
2 × USB 2.0
1 x HDMI
1 x VGA

Storage
1 SATA Up to 6TB

Power Supply
48 VDC, 1 A

Power Consumption
≤ 10 W

Working Environment
Temperature : -10 to +55º C (+14 to +131º F)
Humidity : 10% to 90%

ONVIF
None

PoE
4 x RJ-45 10/100 Mbps 36 W
Standard : IEEE 802.3 af/at

Package Contents
N/A
