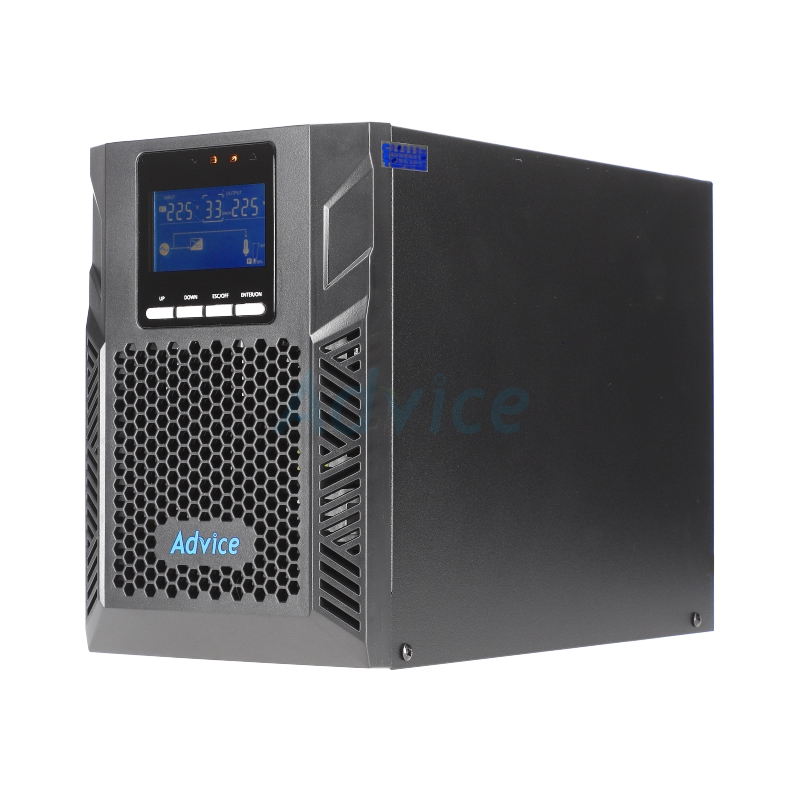

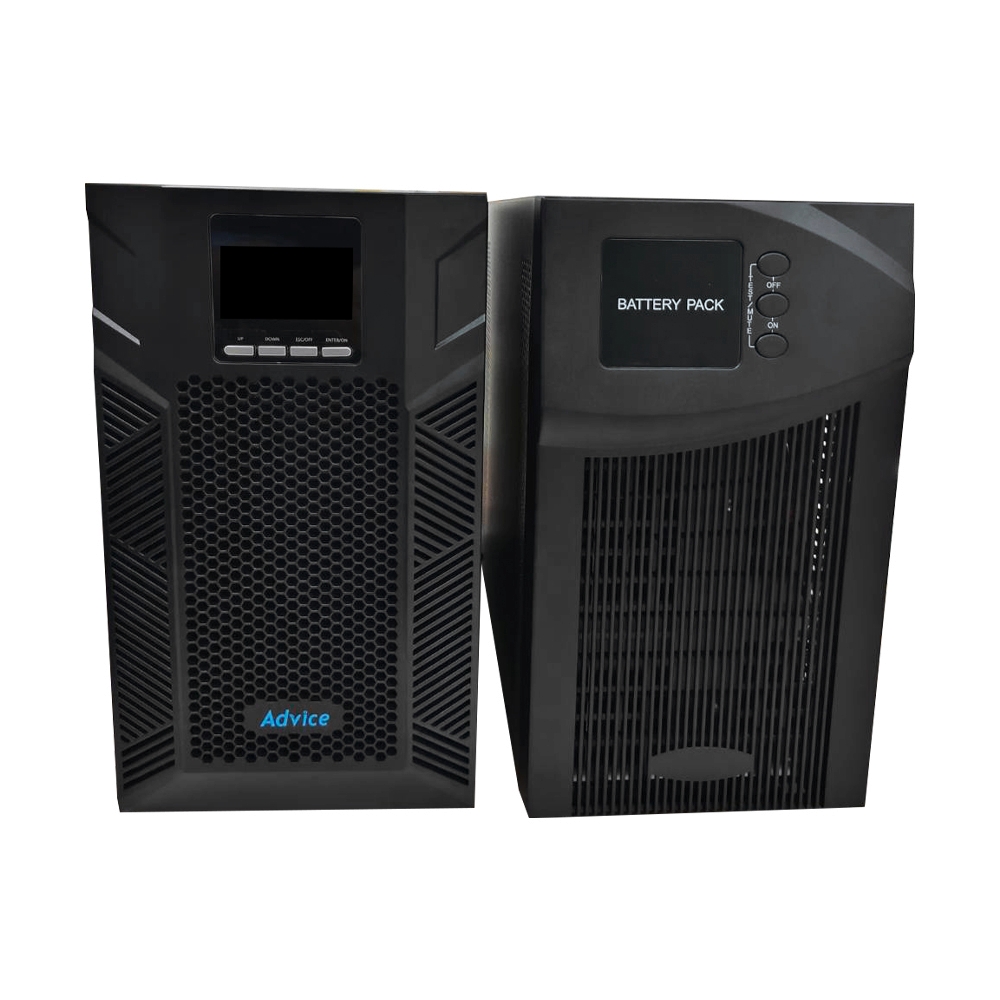

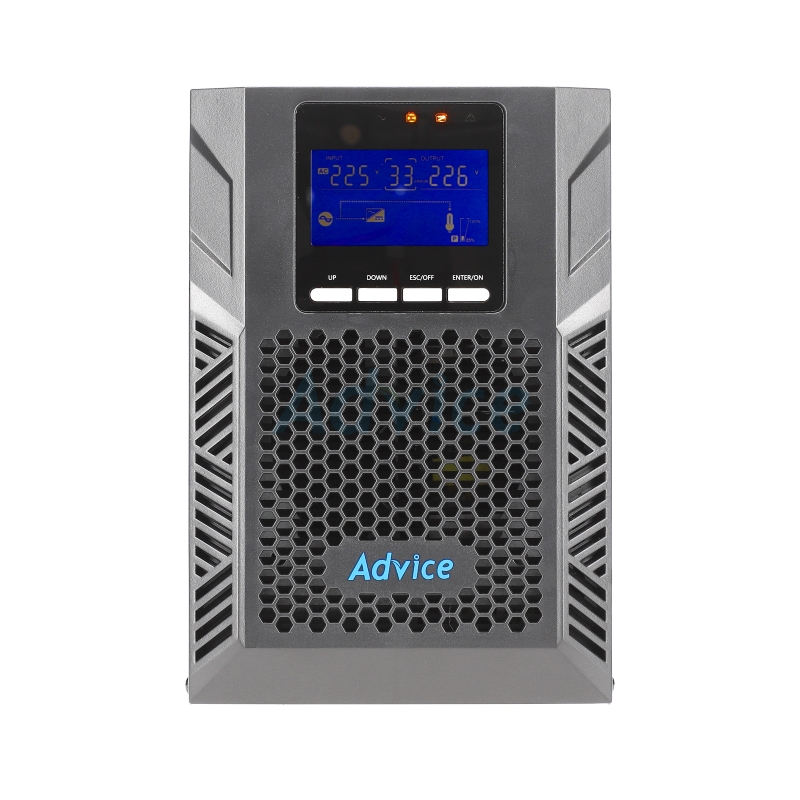

UPS 1000VA ADVICE H1000

ประกัน 2*0*2

รหัสสินค้า: A0152804

Rated Capacity : 1000 VA / 900 Watt
Nominal Input Voltage : 200-240 VAC
Backup : 3 Ports

คำค้นหาUPS ADVICE H1000 1000VA A0152804 Advice H-1000 LCD เครื่องสำรองไฟ สำรองไฟ เครื่องสำรองไฟฟ้า

ราคาหน้าร้าน ฿14,500

ข้อมูลผลิตภัณฑ์

BrandAdvice

Model
H1000

Type
True Online

Rated Capacity
1000 VA / 900 Watts

Nominal Input Voltage
• RATED VOLTAGE : 200/208/220/230/240VAC (Selectable)
• VOLTAGE RANG : 110VAC+ - 5% -300VAC +-5%
• POWER FACTOR : 0.99
• BYPASS VOLTAGE : 170VAC-264VAC (Setting By LCD)
• CURRENT HARMONIC (THDi) : <3%(100% Non-Linear Load)

Nominal Output Voltage
• RATED VOLTAGE : 220VAC
• POWER FACTOR : 0.9
• VOLTAGE REGULATION : 220VAC+-1%
• FREQUENCY LINE MODE : 47-53 Hz
• FREQUENCY BATTERY MODE : 50/60 Hz+-0.1%

Input Frequency
40-70 Hz

Backup Time
Long run unit depends on the capacity of external batteries

Display
LCD (Indicator)

Output Connections
3 Outlet (Backup)

Interface Port
USB
RS232
SNMPcard (Optional)
Relay card (Optional)
ขั่วต่อ EPO (Option)
External batteries
RJ45 Net Surge protection

Indicator & Audible Alam/ Protection
Line mode
Bat.mode
ECO mode
Bypass mode
Battery low voltage
Overload & UPS fault

Battery Type
Depends on the capacity of external batteries

Waveform Type
Pure Sinewave

Typical recharge time
4 hours recover to 90 % capacity

Battery Replacement
12 V 9.0 AH x4 capacity of external batteries
