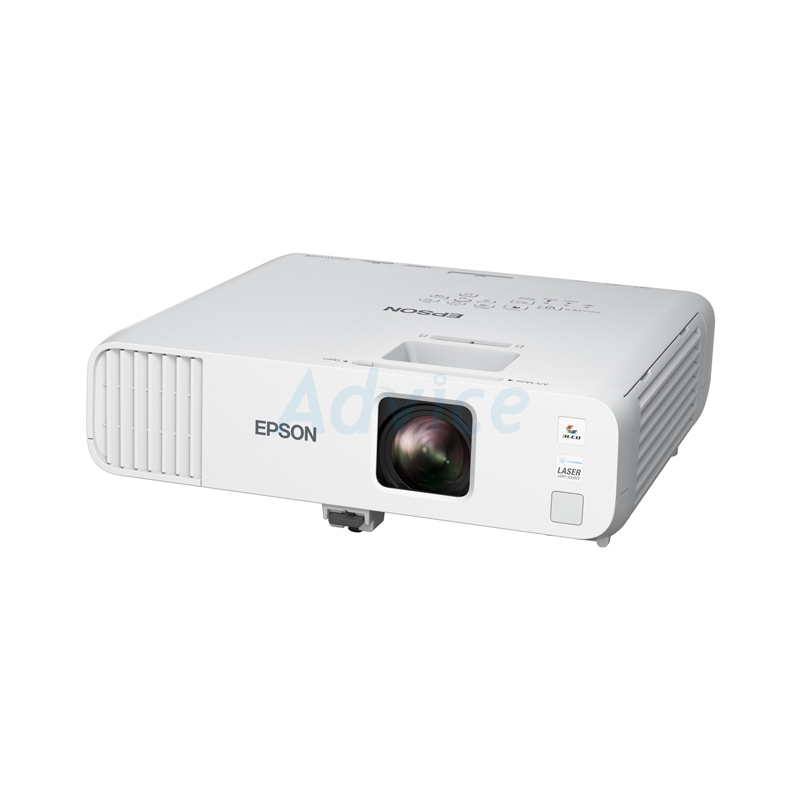

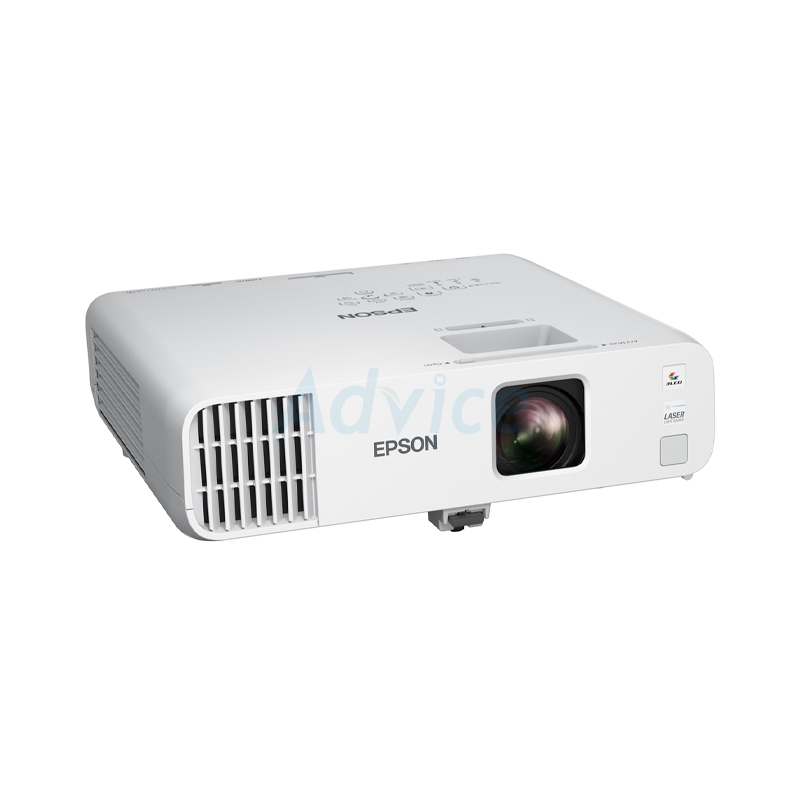

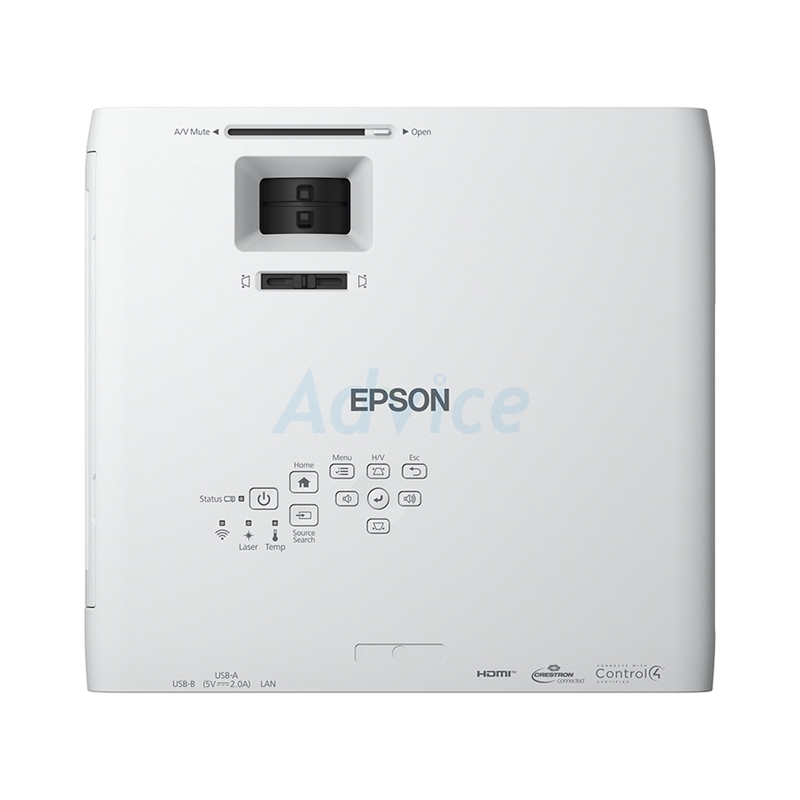

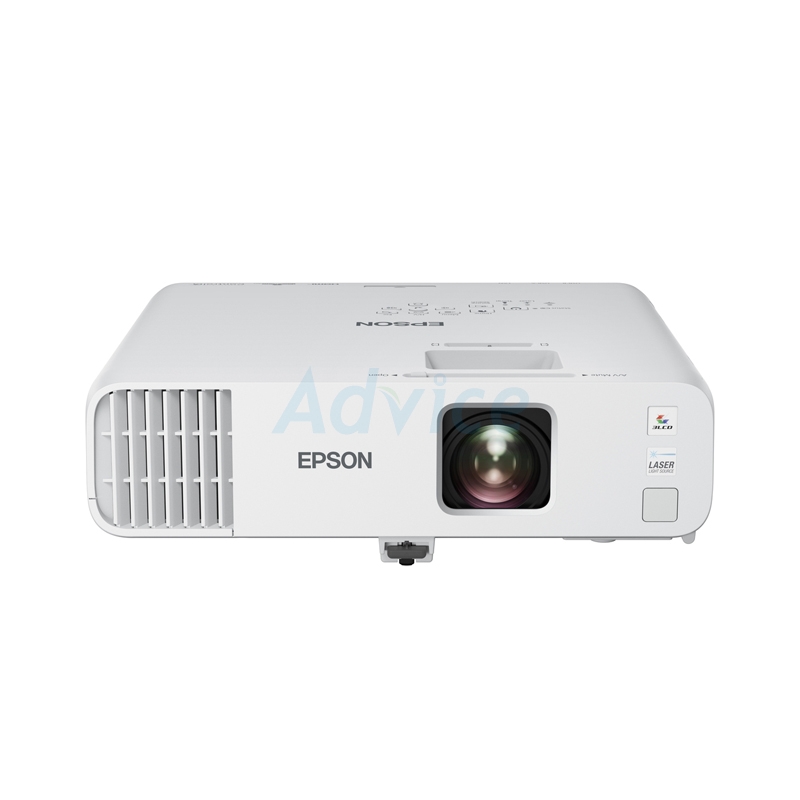

PROJECTOR EPSON EB-L210W

EB-L210W

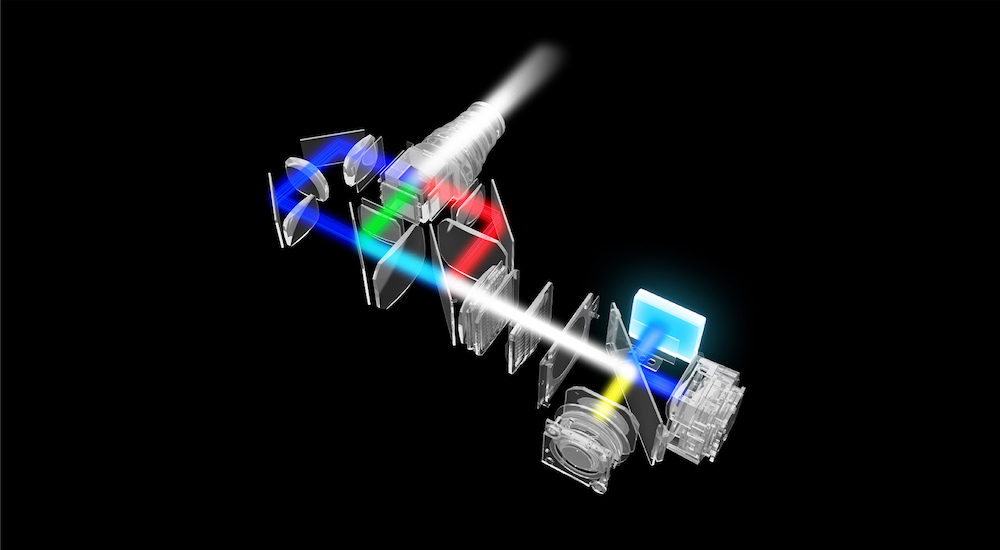

RGB liquid crystal shutter projection system

1280 x 800 (WXGA)

N/A

N/A

• Standard Size :
60" screen 180 cm
• Zoom : Wide :
30" to 300" [88 cm to 909 cm]

• Colour Light Output:
4,500lm

• White Light Output (Normal/Extended)
4500lm / 3100lm

2,500,000 : 1

16:10

None

N/A

N/A

N/A

30" to 300" [88 cm to 909 cm]

1.41 – 2.26

Optical Zoom (Manual) / Focus (Manual)
 • F-Number : 1.51 – 1.77
 • Focal Length : 18.2 – 29.1mm

N/A

1.0 – 1.62 (Optical Zoom)

N/A

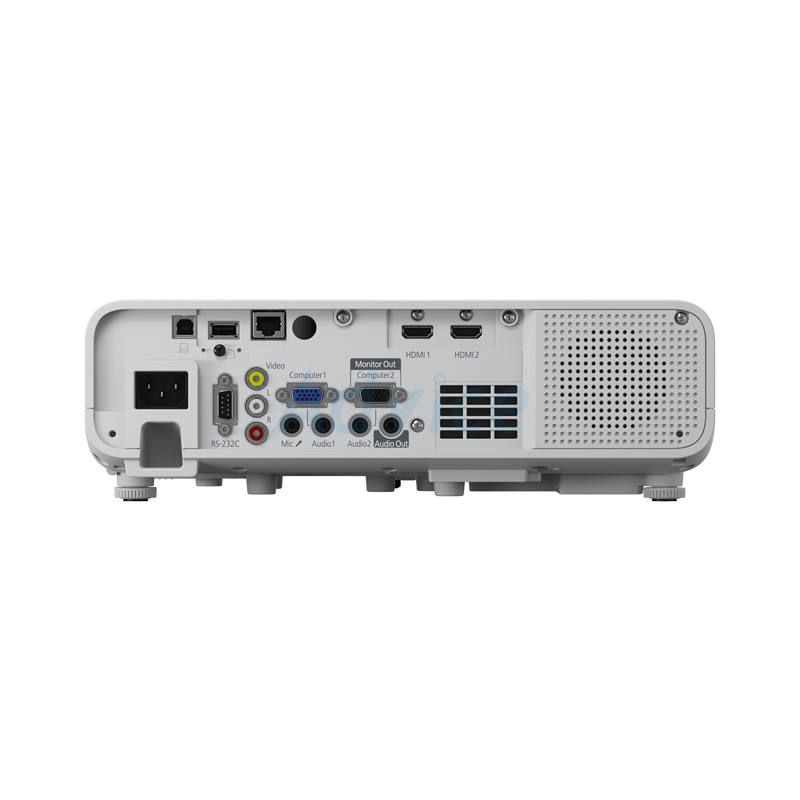

Input :
2 x D-Sub 15Pin
1 x Composite RCA (Yellow)
2 x HDMI (HDCP 2.2)
1 x RCA (White, Red)
2 x Stereo Mini Jack
1 x RS-232C: D-Sub 9pin

Output :
1 x D-Sub 15Pin (Black)
1 x Stereo Mini Jack

Others :
1 x USB Type A (For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply)
1 x USB Type B (for Firmware Update, Copy OSD Settings)
1 x Mic I/O: Stereo Mini

Network I/O :
Wired LAN: RJ45 x 1 (100Mbps)
Wireless: Built-in and Optional (Using ELPAP11)

Wireless Specification (In-built wireless LAN and Screen Mirroring) :
 • Supported Speed for Each mode :
Infrastructure :
IEEE 802.11b (2.4GHz): 11 Mbps⁴
IEEE 802.11g (2.4GHz): 54 Mbps⁴
IEEE 802.11n (2.4GHz): 72.2 Mbps⁴
IEEE 802.11a (5GHz): 54 Mbps⁴
IEEE 802.11n (5GHz): 150.0 Mbps⁴
IEEE 802.11ac (5GHz): 325Mbps⁴

 • Access Point(Wi-Fi Direct) :
IEEE 802.11g (2.4GHz): 54 Mbps⁴
IEEE 802.11n (2.4GHz): 72.2 Mbps⁴
IEEE 802.11a (5GHz): 54 Mbps⁴
IEEE 802.11n (5GHz): 150.0 Mbps⁴
IEEE 802.11ac (5GHz): 325Mbps⁴

 • Supported Mode :
Infrastructure, Access Point (Wi-Fi Direct)

 • Wireless LAN Security
Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Wireless Specifications (Optional Wireless LAN) :

 • Supported Speed for Each Mode:Access Point (Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54Mbps⁴, IEEE 802.11n (2.4GHz): 72.2Mbps⁴, IEEE 802.11a (5GHz): 54Mbps⁴, IEEE 802.11n (5GHz): 150Mbps⁴, IEEE 802.11ac (5GHz): 325Mbps⁴
 • Supported Mode:Access Point (Wi-Fi Direct)
 • Supported Security Type:WPA2-PSK (AES)

Sound Output : 16 W Monaural

• Type : Laser Diode

Light Source Life (Normal/ Quiet/ Extended):
20,000 / 20,000 / 30,000 hrs

Vertical/Horizontal Keystone : ±30° / ±30°

Fan Noise (Normal / Eco) : 37dB / 27dB

100 – 240 V AC ±10%, 50/60 Hz

LD On (Normal / Extended): 260W / 191W
Standby (Network On / Off): 2.0W / 0.5W
