ข้อมูลสินค้าSwitching Hub MERCUSYS (MS106LP) 6 Port (4-Port PoE)(4)

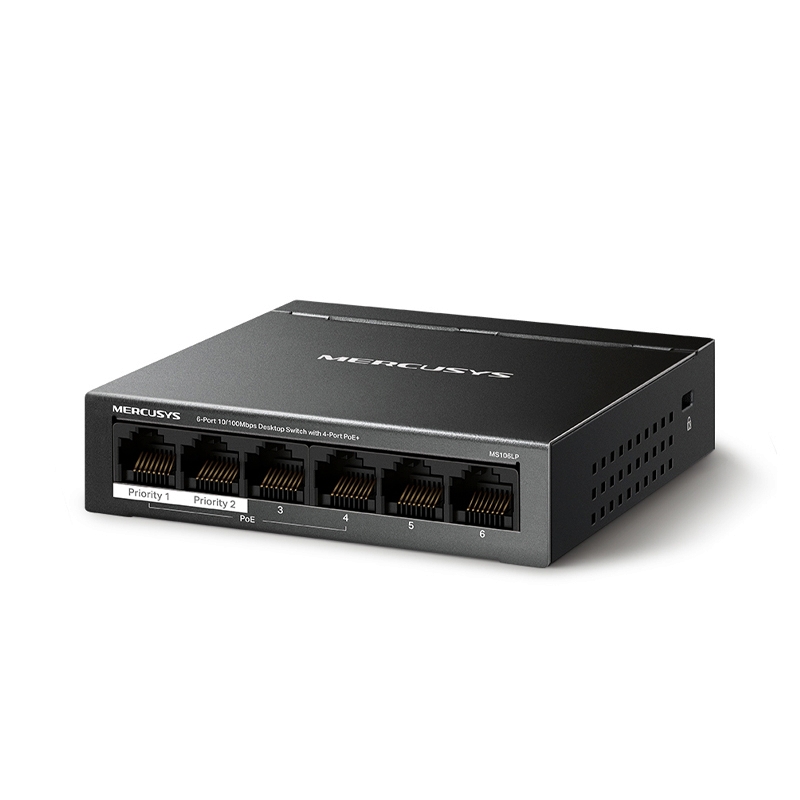

Switching Hub MERCUSYS (MS106LP) 6 Port (4-Port PoE)(4)
MERCUSYS

Switching Hub MERCUSYS (MS106LP) 6 Port (4-Port PoE)(4)

รหัสสินค้า: A0156180
  • Standards and Protocols : IEEE 802.3 af/at Powered Devices
  • Interface
    • 6x 10/100 Mbps RJ45 Ports (PoE Power Budget: 40 W)
    • 2x 10/100 Uplink ports
  • Switching Type : Unmanaged
  • Switching Capacity : 1.2 Gbps
  • Casing : Metal
  • Package Contents
    • MS106LP
    • Power Adapter
    • Rubber Feet
    • Quick Installation Guide
  • 6 Ports: 6× 10/100 Mbps RJ45 ports with 4 PoE+ ports
  • Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
  • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 40 W for all PoE ports*
  • 2× Uplink Ports: MS106LP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
  • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
  • Isolation Mode: One click to divide traffic for specific ports for stability and security
  • Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
  • Durable Metal Casing: Allows for efficient heat dissipation and long network life
  • Plug and Play: Simple to use and saves time and effort
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices



คำค้นหาSwitching HubMERCUSYS(MS106LP)6 Port(4-Port PoE)(4')6957939003845
ราคาหน้าร้าน ฿565

รายละเอียดสินค้า

ข้อมูลผลิตภัณฑ์

BrandMERCUSYS
Model

MS106LP

Network Interface

6 x 10/100 Mbps PoE ports
2 x 10/100 Mbps Uplink ports

USB Port

N/A

Standards and Protocols

802.3 af/at Powered Devices

Switching Capacity

1.2 Gbps

MAC Address Table

2k, Auto-learning, Auto-aging

Forwarding Rate

Store and Forward

Jumbo Frame

2 KB

LED Indicators

Power, Link/Act, PoE Status

Security

One click to divide traffic for specific ports for stability and security

Material

Metal

PoE

PoE Standard: compatible with 802.3af/at PDs
PoE Port 1–4, up to 30 W per port
PoE Power Budget 40 W

Power Supply

External Power Adapter (Output: 53.5V/0.81A)

Power Consumption

1.87W (22/50 Hz, no PD connected)
44.8W (220/50 Hz, with 40W PD connected)

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing

Certifications

CE, RoHS

Package Contents

MS106LP
Power Adapter
Rubber Feet
Quick Installation Guide
