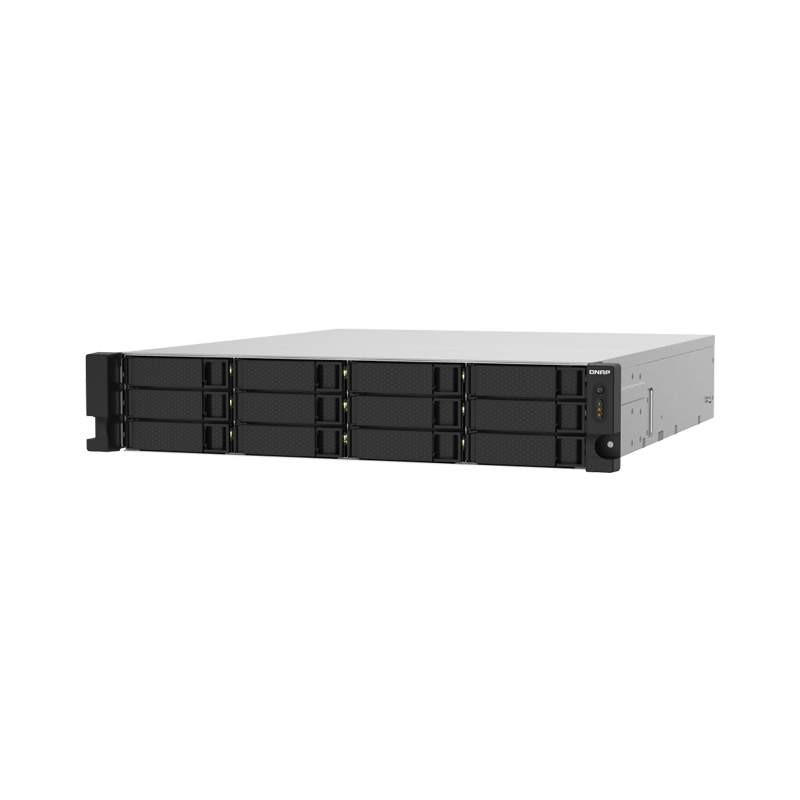

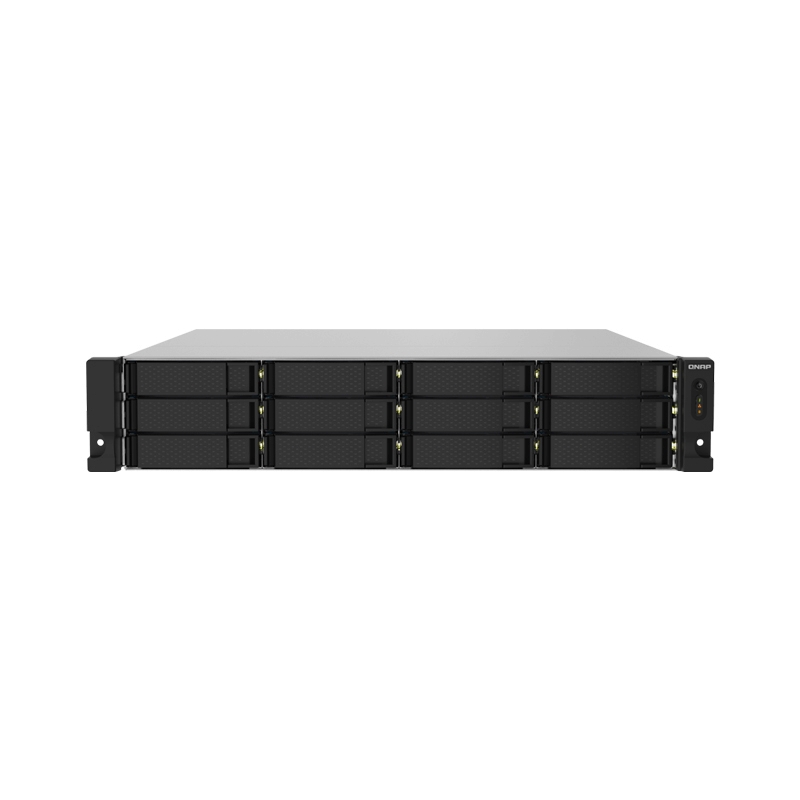

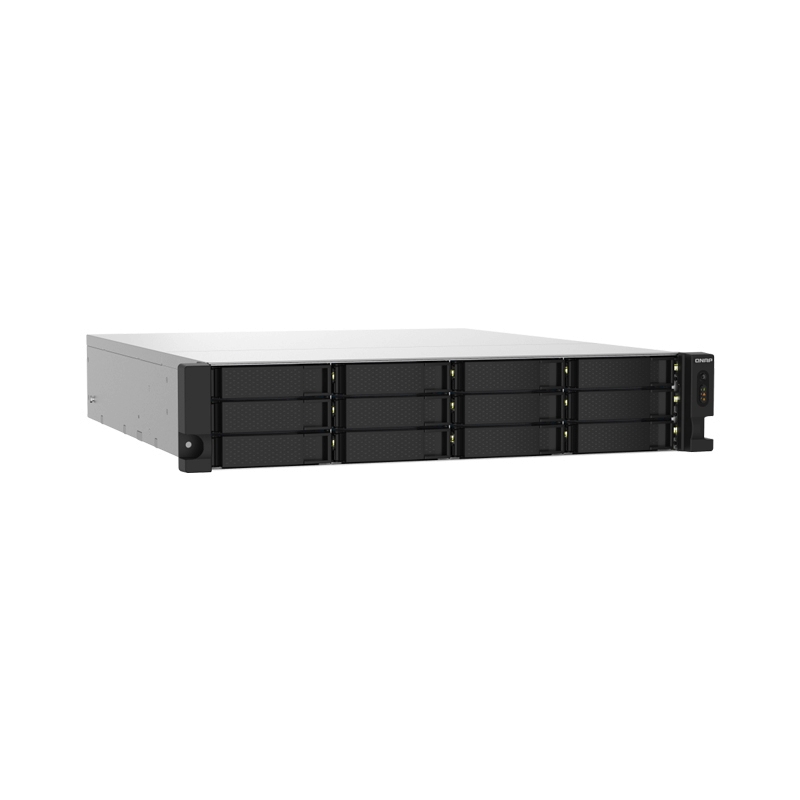

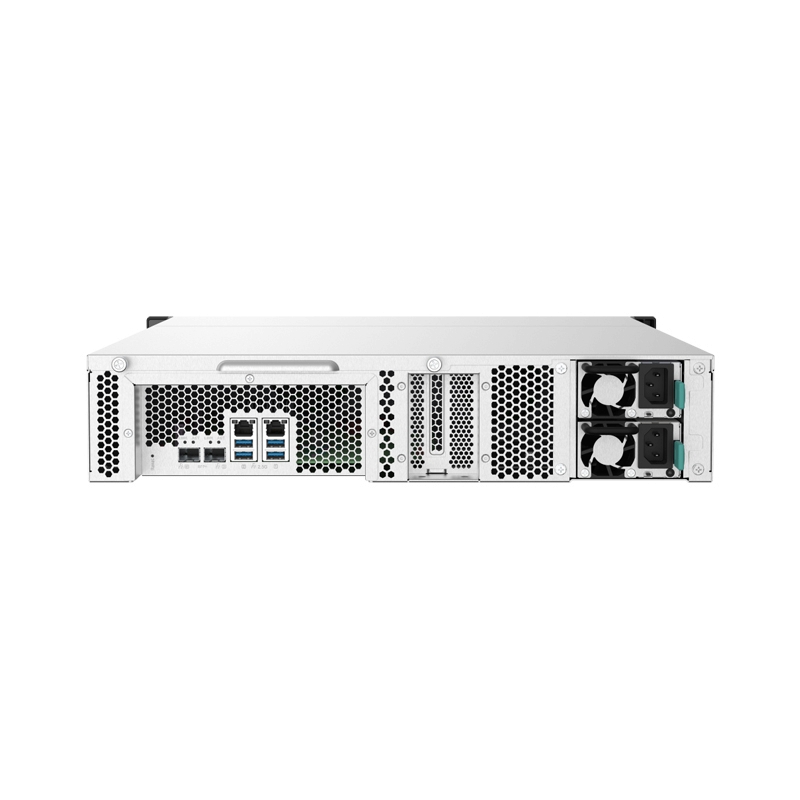

NAS QNAP (TS-1232PXU-RP-4G, Without HDD.)
- CPU : AnnapurnaLabs Alpine AL324 ARM® Cortex-A57 4-core 1.7GHz
- Memory : 4 GB
- Number of Drives : 12 BAY
- Quad-core 1.7GHz Rackmount NAS
- 10GbE SFP+ and 2.5GbE ports
- Redundant power supply for SMB IT environments
- HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and cloud storage for comprehensive disaster recovery planning.
- Increase the storage capacity of the TS-1232PXU-RP with QNAP TR RAID expansion enclosures or TL JBOD.
รายละเอียดสินค้า
อ้างอิงจาก : www.qnap.com
ข้อมูลผลิตภัณฑ์
TS-1232PXU-RP-4G (Without HDD)
AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor, 64-bit ARM
QTS 5.1.3
4GB (1x4 GB) UDIMM DDR4
1 x UDIMM DDR4, Up to 16 GB
12 x 3.5-inch SATA 6Gb/s, 3Gb/s
SATA (2.5" or 3.5")
Hot-swappable
4 x USB 3.2 Gen 1
2 x 2.5 Gigabit Ethernet Port
2 x 10GbE SFP+
N/A
None
HDD 1-12, Status, LAN, Storage expansion
Video Station
Music Station
Power, Reset
PPTP, L2TP/IPSec, OpenVPN, QBelt (QNAP proprietary)
IPv4, IPv6
8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
2-bay: JBOD, Single, RAID 0, 1
N/A
Domain Security
Security Counselor
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
Max. Number of Concurrent Connections (CIFS) - with Max. Memory : 700
N/A
File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 3/4 services
N/A
Wake on LAN (WOL) *Only the 2.5GbE port
2U Rackmount
2 x 70mm, 12VDC
250W (x2) PSU, 100 - 240V
Operating Mode, Typical : 83.57 W
Operating Temperature : 0 - 40 °C (32°F - 104°F)
Storage Temperature : -20 - 70°C (-4°F - 158°F)
Relative Humidity : 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
N/A
TS-1232PXU-RP
Ethernet Cable x 1
Power Cord x 2
Flat head screw x 48 (for 3.5" HDD)
Flat head screw x 36 (for 2.5" HDD)
Quick Installation Guide (QIG)
