ข้อมูลสินค้ากล้องวงจรปิด 2.8mm HDCVI DAHUA HFW1200RHMP-IL-A
DAHUA

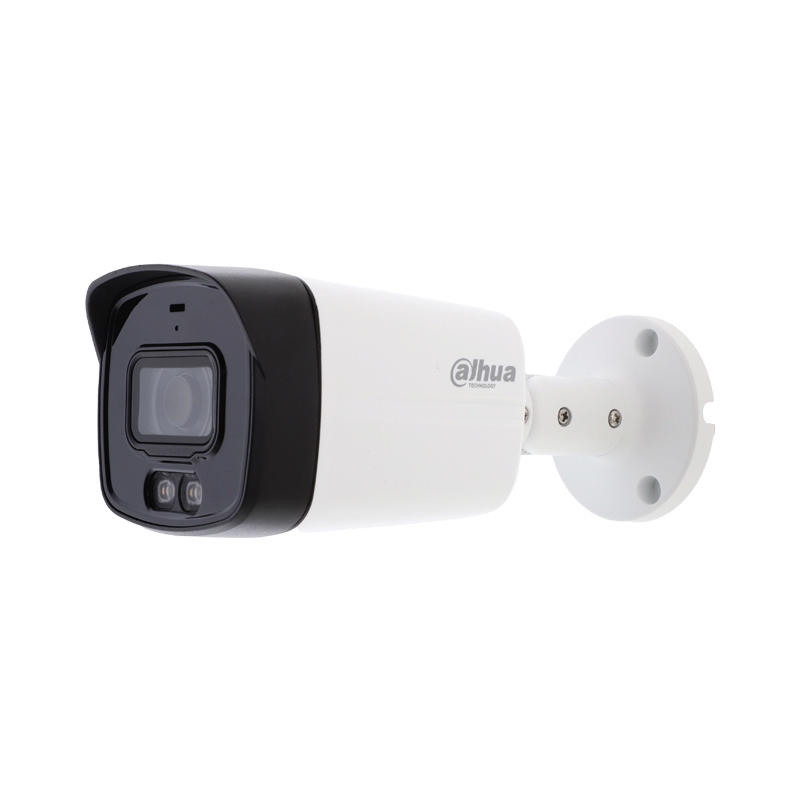

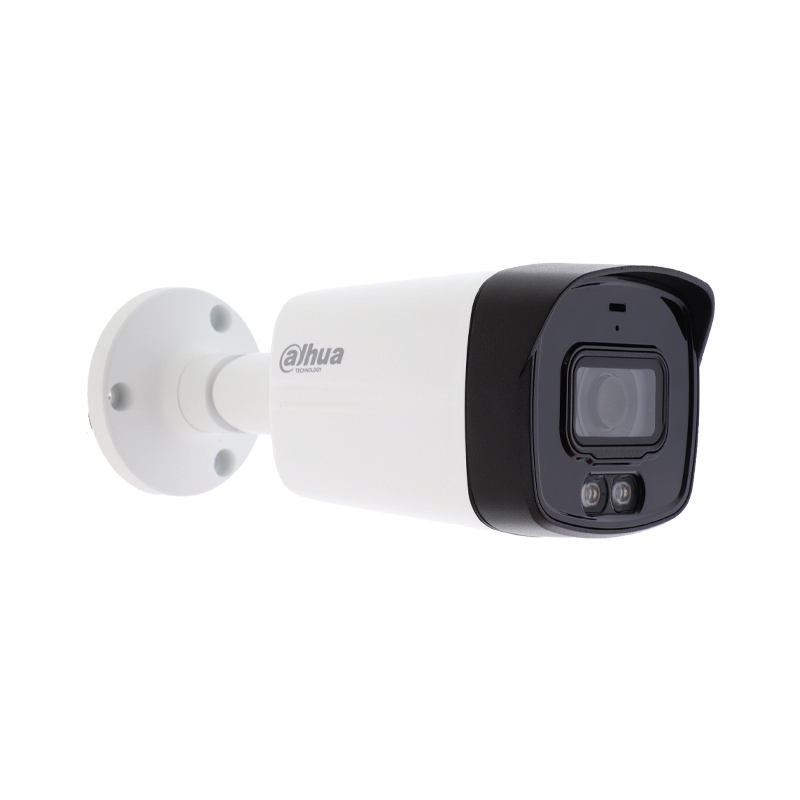

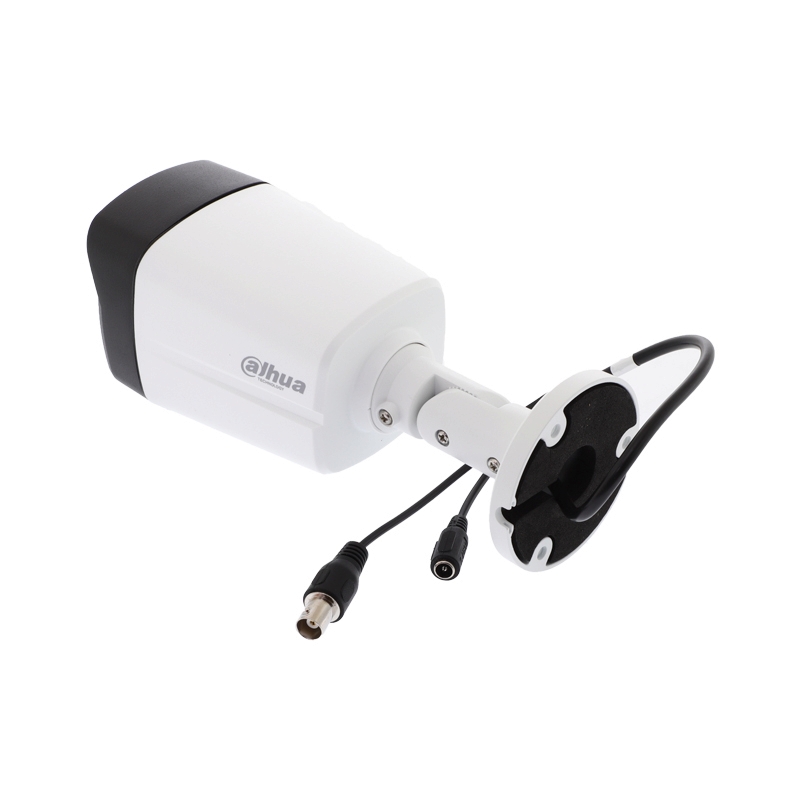

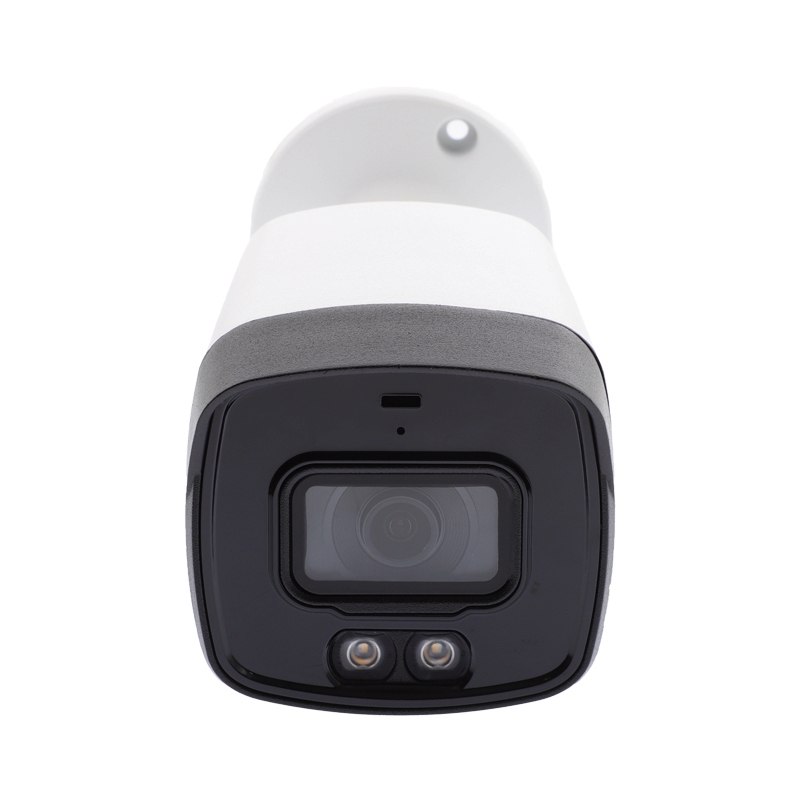

กล้องวงจรปิด 2.8mm HDCVI DAHUA HFW1200RHMP-IL-A
ประกัน 3 ปี
รหัสสินค้า: A0156794
- Image Sensor : 2MP , CMOS
- Max. Resolution : 1080P (1920×1080)
- Lens Type : 2.8mm
- Video Output : AHD/CVI/TVI/CVBS Switch
- IR Distance : 40m
- Frame Rate : 25/30fps@1080P
- Day/Night Mode : Auto(ICR)/Color/B/W
- Audio Port : Built-in mic
- Protection : IP67
- Casing Material : Metal front cover + plastic rear barrel + metal bracke
ราคาหน้าร้าน ฿890
ข้อมูลผลิตภัณฑ์
BrandDAHUA
Model
HFW1200RHMP-IL-A
Image Sensor
2 MP CMOS
Lens
Aperture : F2.0
Focal Length : 2.8mm
Lens Mount
M12
Angle of View
Horizontal : 102°
Vertical : 60°
Diagonal : 129°
Adjustment Angle
Pan : 0°-360°
Tilt : 0°-90°
Rotation : 0°-360°
Shutter
PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Min. Illumination
0.01 [email protected] (Color, 30 IRE)
0.001 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)
IR
40m
Video Resolution
1920 (H) × 1080 (V)
Frame Rate
CVI
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS
PAL: 960H;
NTSC: 960H
Audio
Built-in mic
Interface
BNC
Power
12 VDC ± 30%
Power Consumption
Max 4.1W (12 VDC, IR on)
Working Environment
Operating Temperature : -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Storage Temperature : -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Ingress Protection
IP67
Material
Metal front cover + plastic rear barrel + metal bracke
