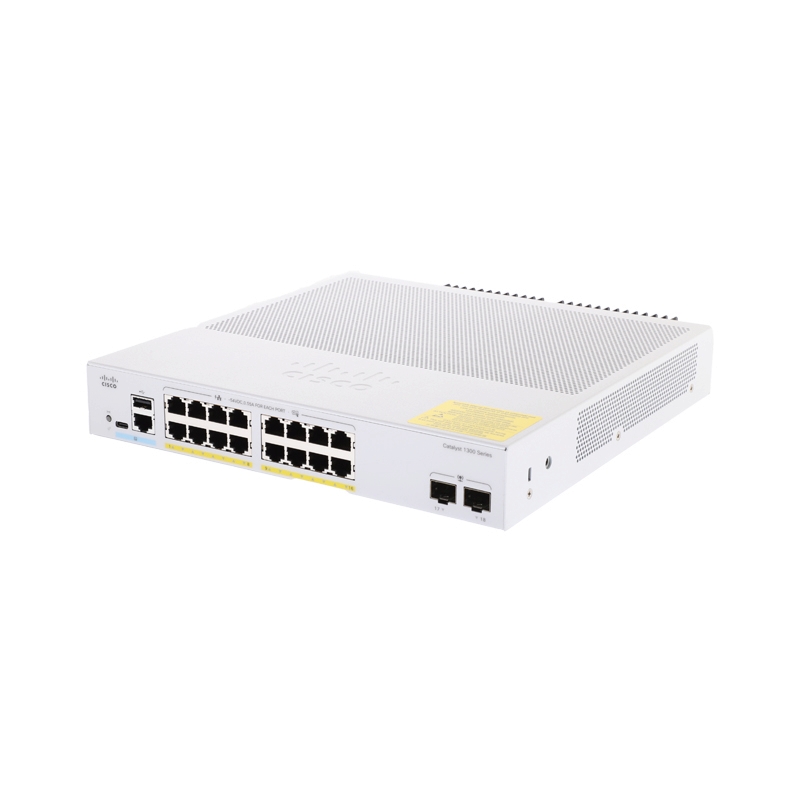

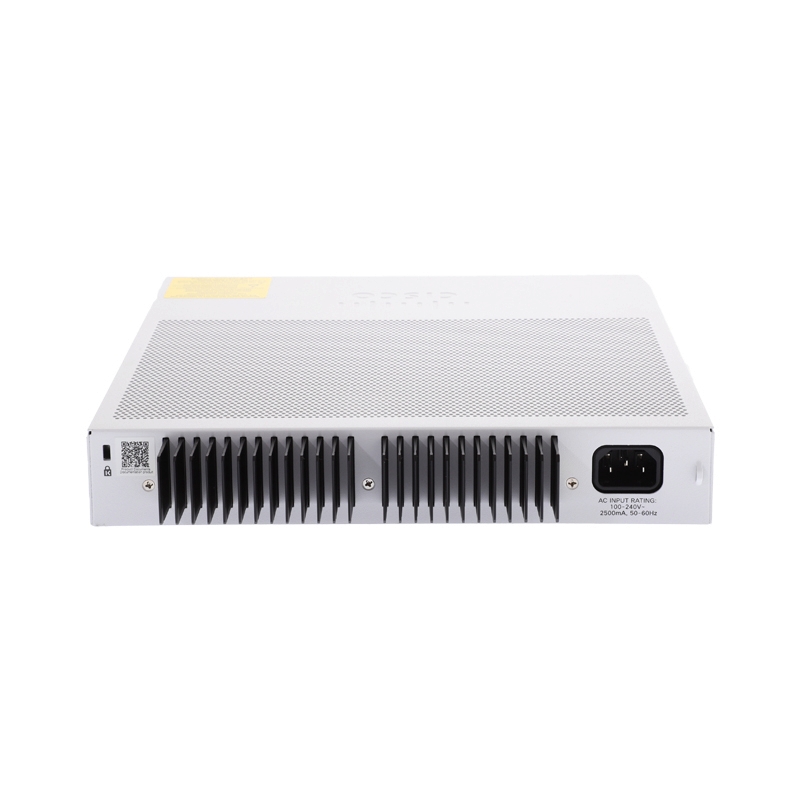

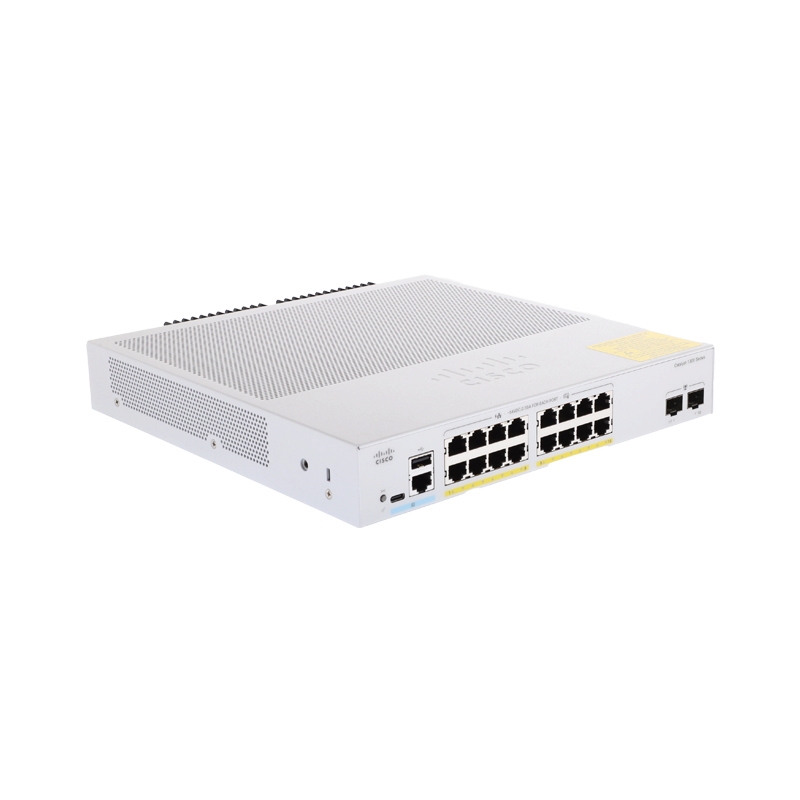

Gigabit Switching Hub 16 Port CISCO Catalyst C1300-16P-2G (11'',16POE +2 SFP)

C1300-16P-2G

16x 10/100/1000 PoE+ ports with 120W power budget
2x Gigabit SFP

USB Type C port

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbps Ethernet over fiber for LAN, IEEE 802.3an 10GBASE-T 10 Gbps Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet

36Gbps

16K addresses

Frame sizes up to 9000 bytes. The default MTU is 2000 bytes

1.5 MB

ARM dual-core

1.4 GHz

512 MB

System, Link/Act , PoE , Speed

Cisco Business mobile app
Web user interface

- Support for up to 4093 VLANs simultaneously
- Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN
- Management VLAN
- Private VLAN with promiscuous, isolated, and community port
- Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks
- Guest VLAN, unauthenticated VLAN
- Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication
- Customer premises equipment (CPE) VLAN
- Auto surveillance VLAN (ASV)

Secure Sockets Layer (SSL) , SSH Protocol , IEEE 802.1X (authenticator role) , STP loopback guard , Secure Core Technology (SCT) , Secure Sensitive Data (SSD) , Trustworthy systems , Port security , RADIUS , Storm control , DoS prevention , Multiple user privilege levels in CLI , ACLs

706,983 MTBF at 25°C (hours)

Fanless

Metal

120W

100-240V 50-60 Hz

System power consumption : 20.5W
Power consumption (with PoE) : 151W

Operating temperature : 23° to 122°F (-5° to 50°C)
                                       32° to 122°F (0° to 50°C)
Storage temperature : -13° to 158°F (-25° to 70°C)
Operating humidity : 10% to 90%, relative, noncondensing
Storage humidity : 10% to 90%, relative, noncondensing

UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

- Cisco Catalyst 1300 Series Switch

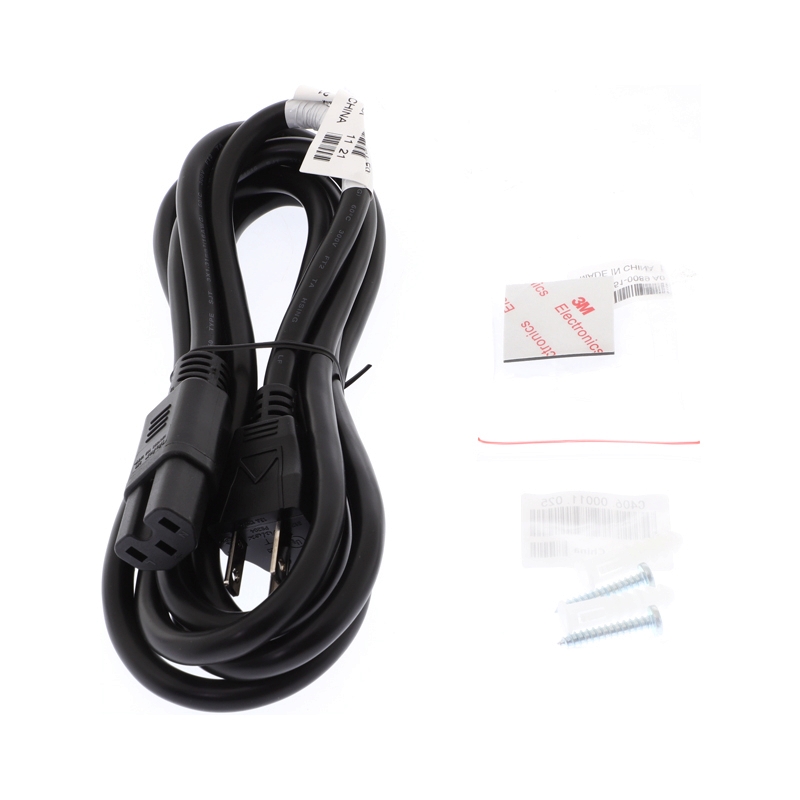

- Power cord (power adapter for select 8-port and 16-port SKUs)
- Mounting kit
- Pointer card
