ข้อมูลสินค้าAccess Point Outdoor TP-LINK (EAP650-Outdoor) AX3000 WiFi6

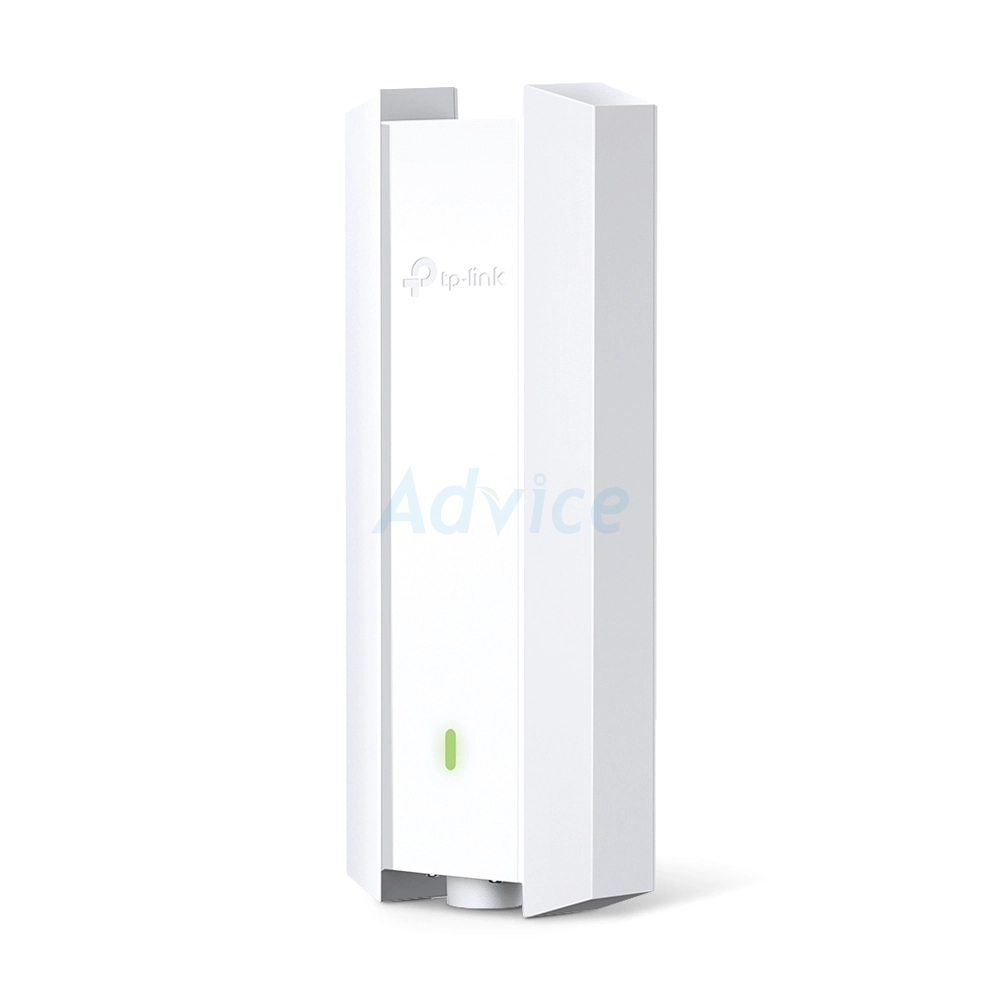

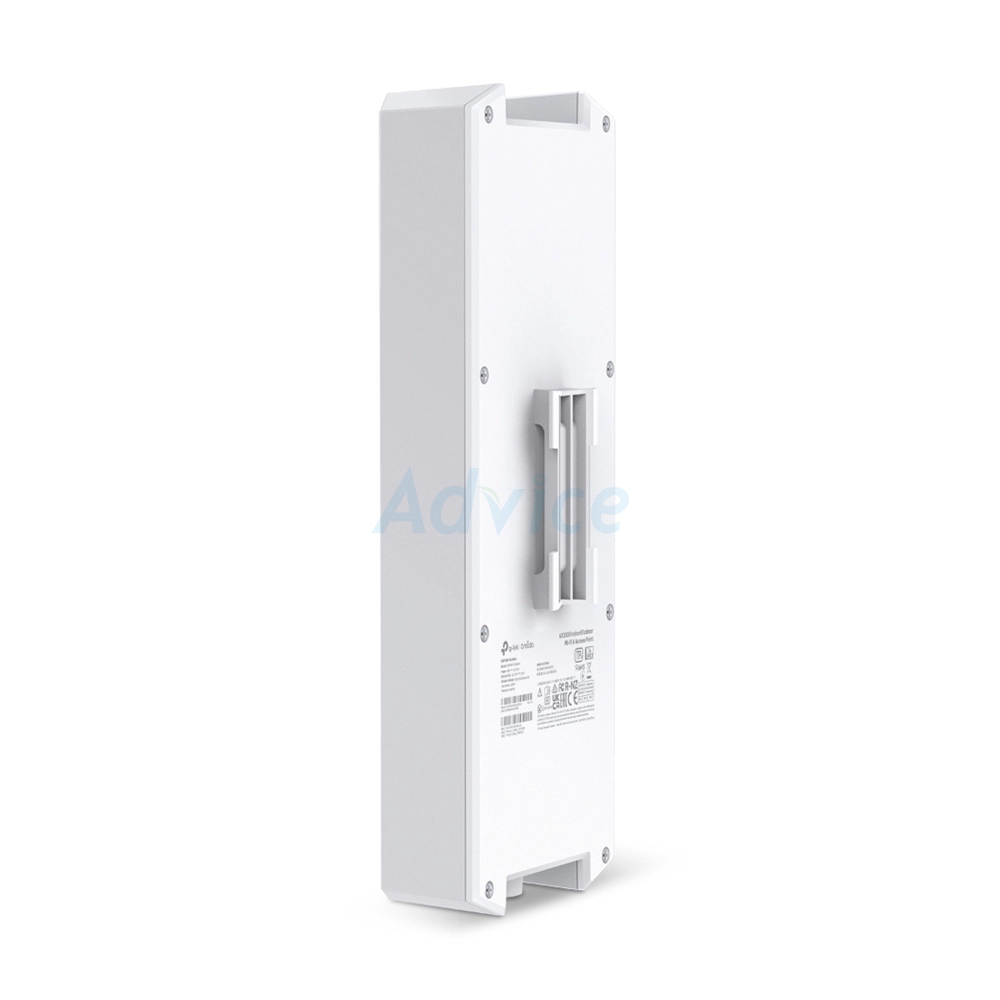

Access Point Outdoor TP-LINK (EAP650-Outdoor) AX3000 WiFi6
TP-LINK

Access Point Outdoor TP-LINK (EAP650-Outdoor) AX3000 WiFi6

ประกัน 3 ปี
รหัสสินค้า: A0157888
  • Wireless Standards : IEEE 802.11ax/ac/n/g/b/a
  • Signal Rate : Wireless AX3000
    • 5 GHz: Up to 2402 Mbps
    • 2.4 GHz: Up to 574 Mbps

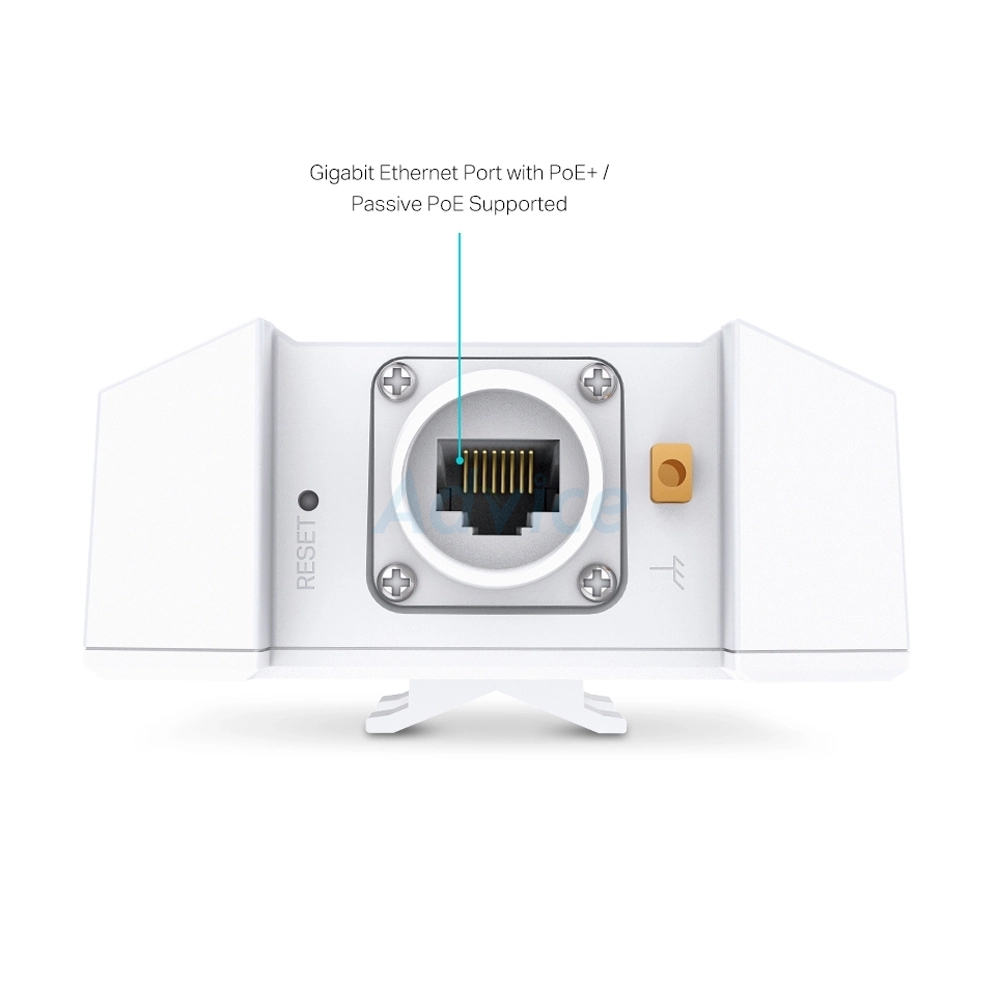

  • Interface : 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
  • Power Supply : 48V Passive PoE (PoE Adapter Included)
  • Mounting : Pole/Wall Mounting (Kits included)
  • Antenna Type : 2.4 GHz: 2× 4 dBi , 5 GHz: 2× 5 dBi

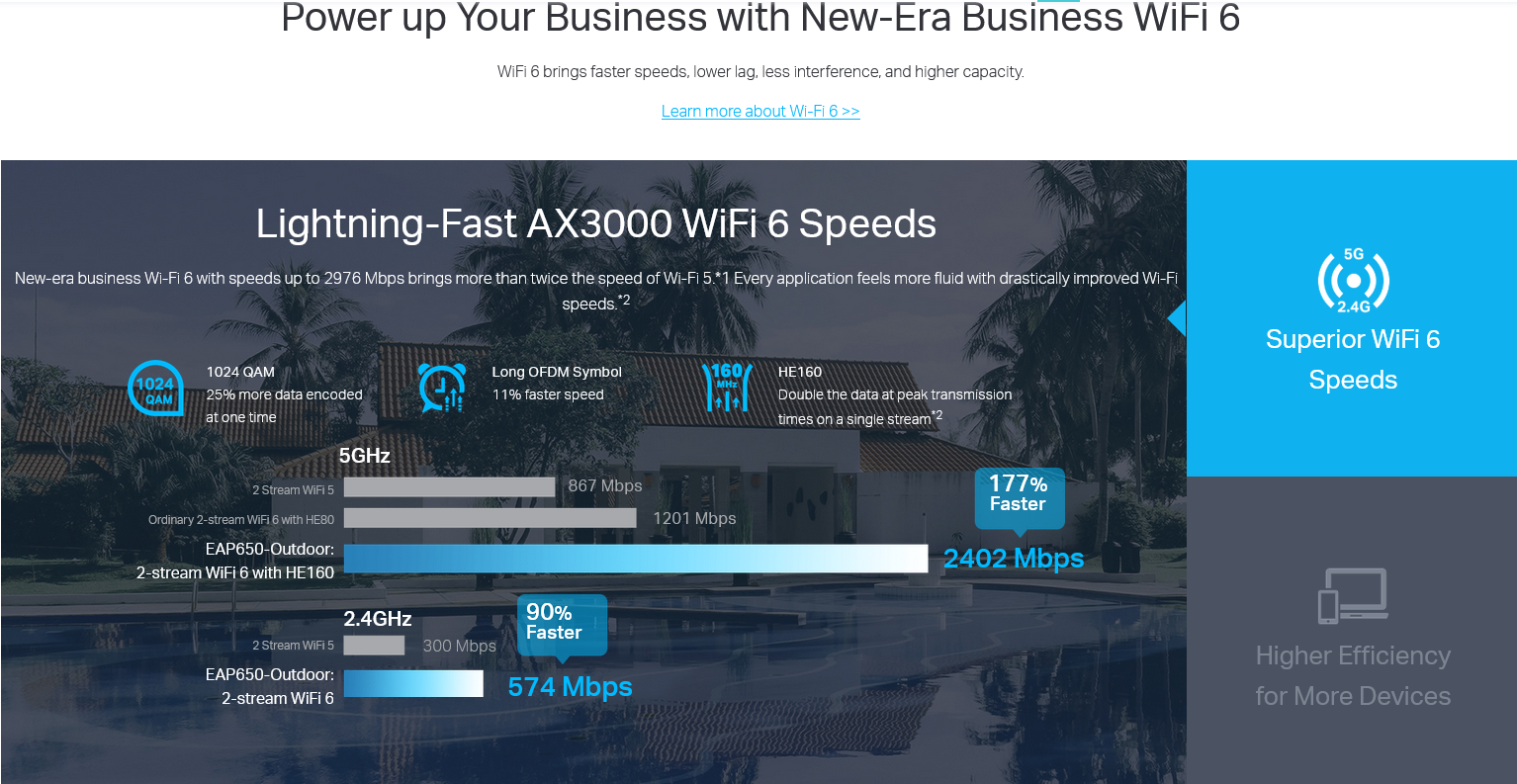

  • Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology
  • Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO
  • 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160

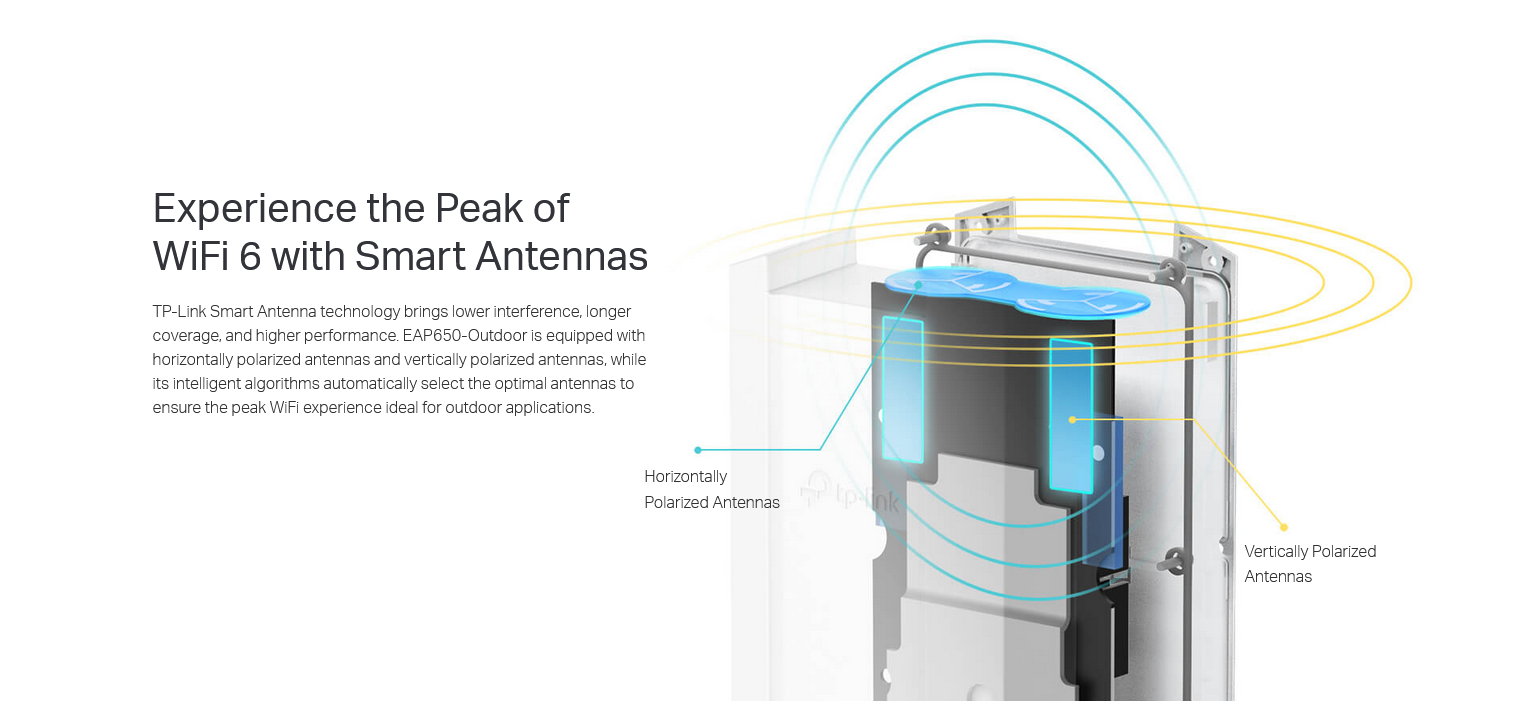

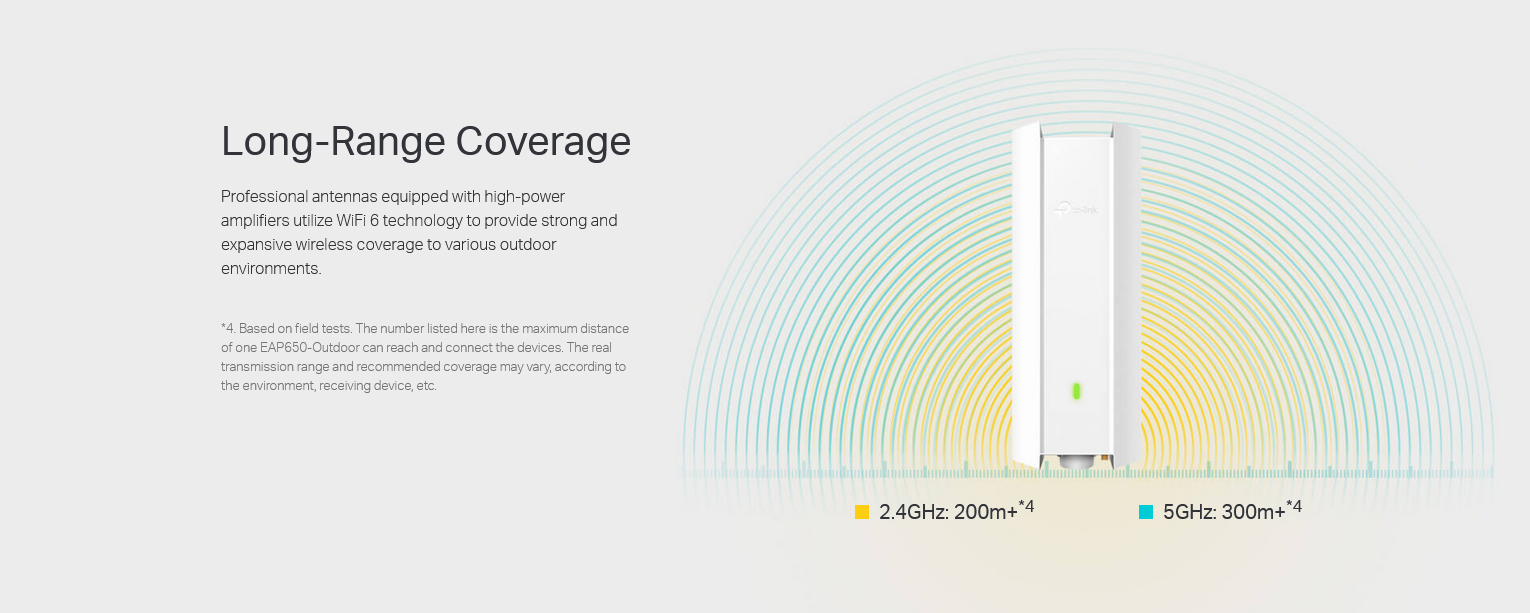

  • Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.

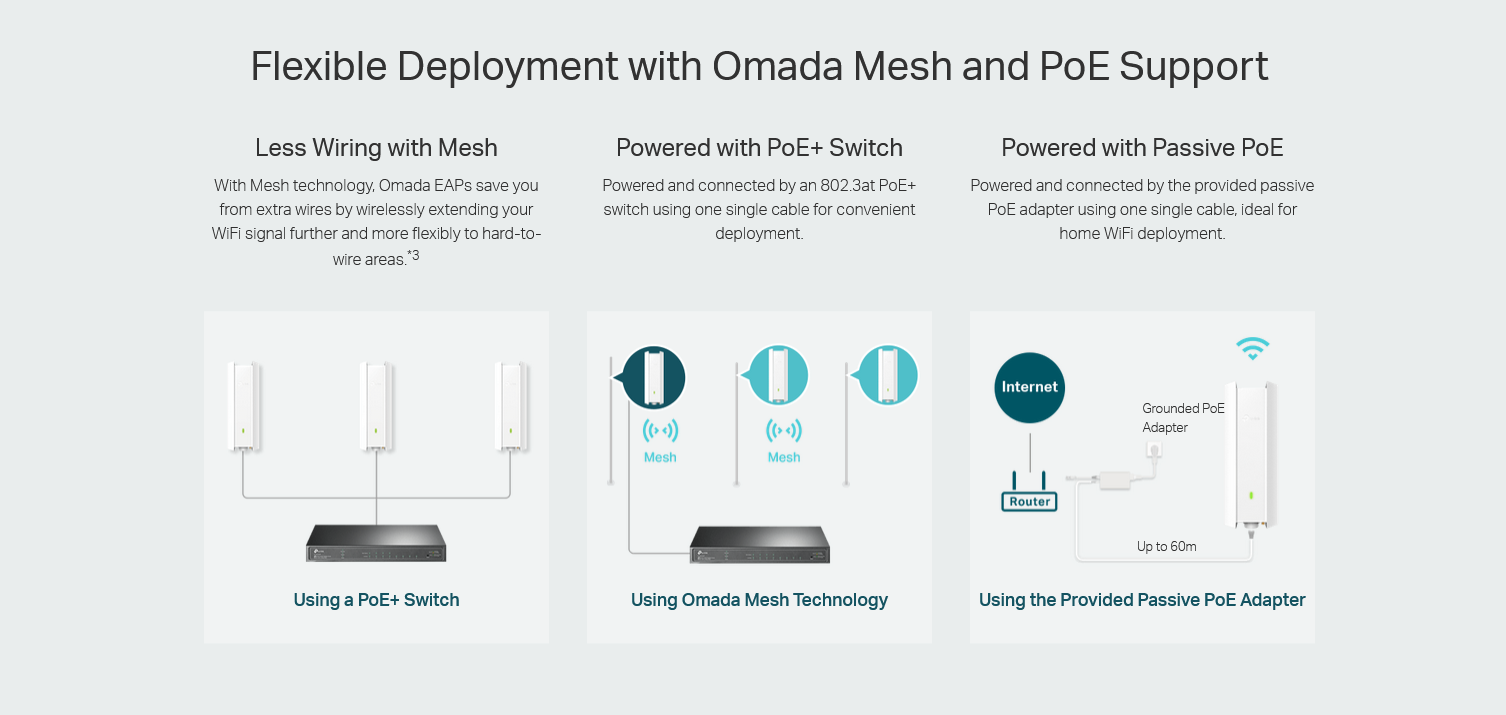

  • Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment
  • Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points
  • PoE Powered: : Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation

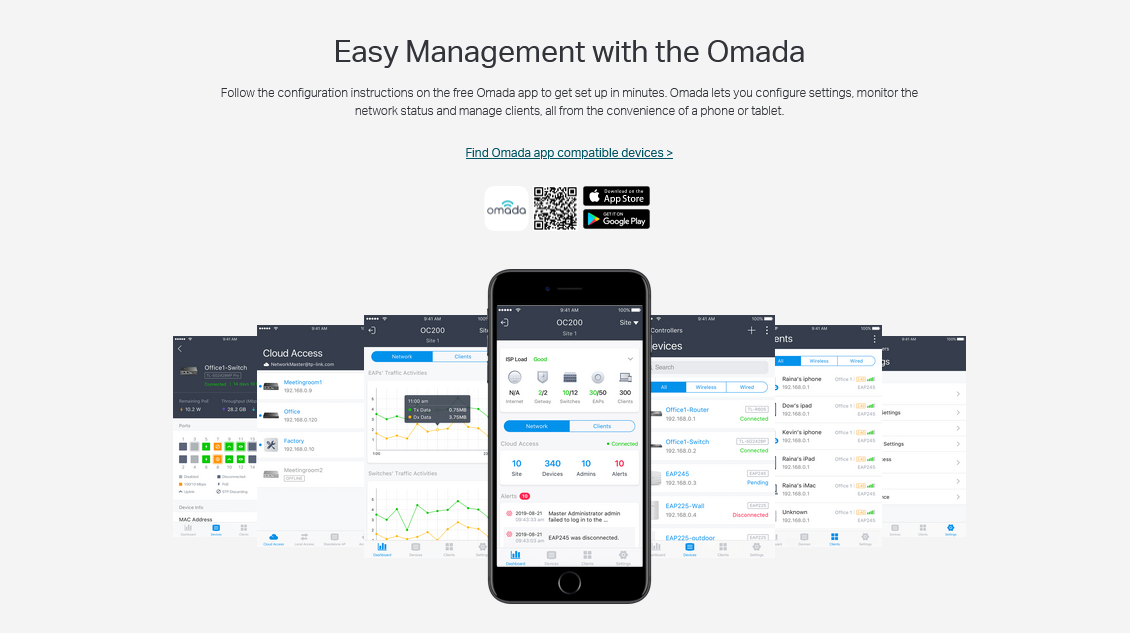

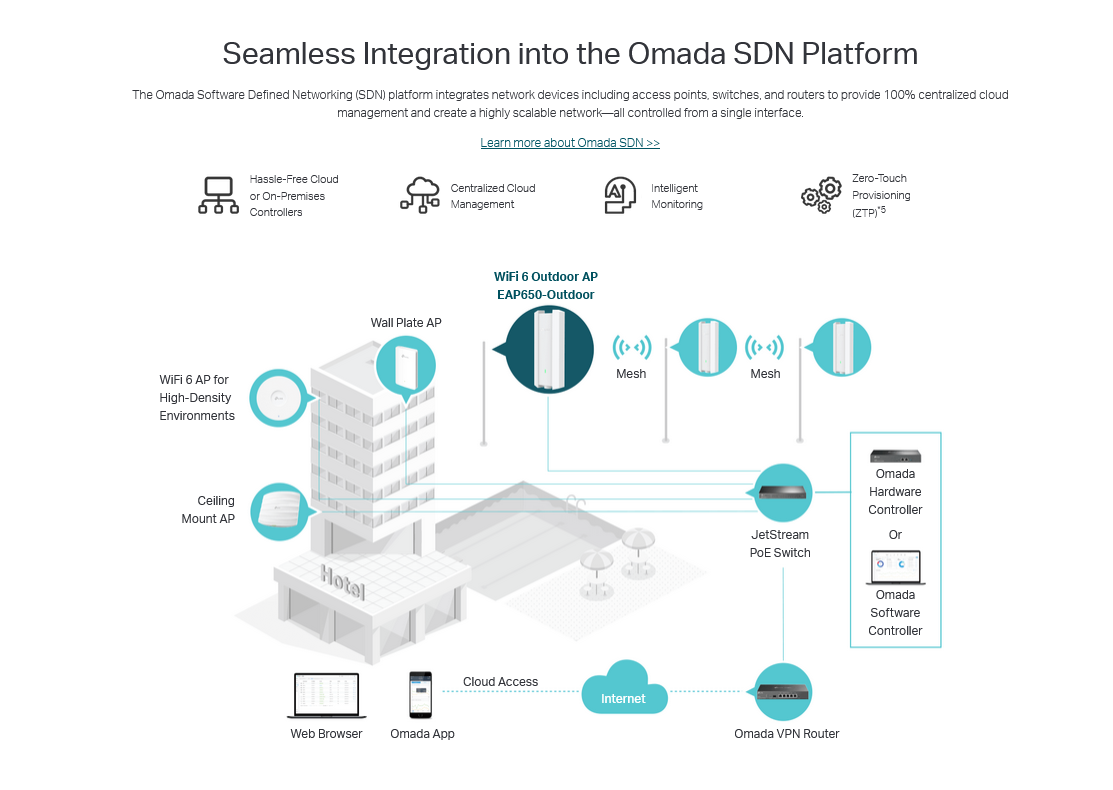

  • Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app
คำค้นหาAccessPointOutdoorTP-LINKEAP650-OutdoorWirelessAX3000Wifi 6แอคเซสพอยต์ตัวกระจายสัญญาณตัวขยายสัญญาณแอกเซสพอยต์
ราคาหน้าร้าน ฿6,350

รายละเอียดสินค้า

ข้อมูลผลิตภัณฑ์

BrandTP-LINK
Model

EAP650-Outdoor

Standards

IEEE 802.11ax/ac/n/g/b/a

Antennas

• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi

Transmit/Receive

• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
• FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)

Frequency

2.4 GHz, 5 GHz

Wireless Functions

• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO
• Omada Mesh3
• Seamless Roaming3
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Interface

1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)

Button


Reset

Data Rate

• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
• 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to
2 VHT20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

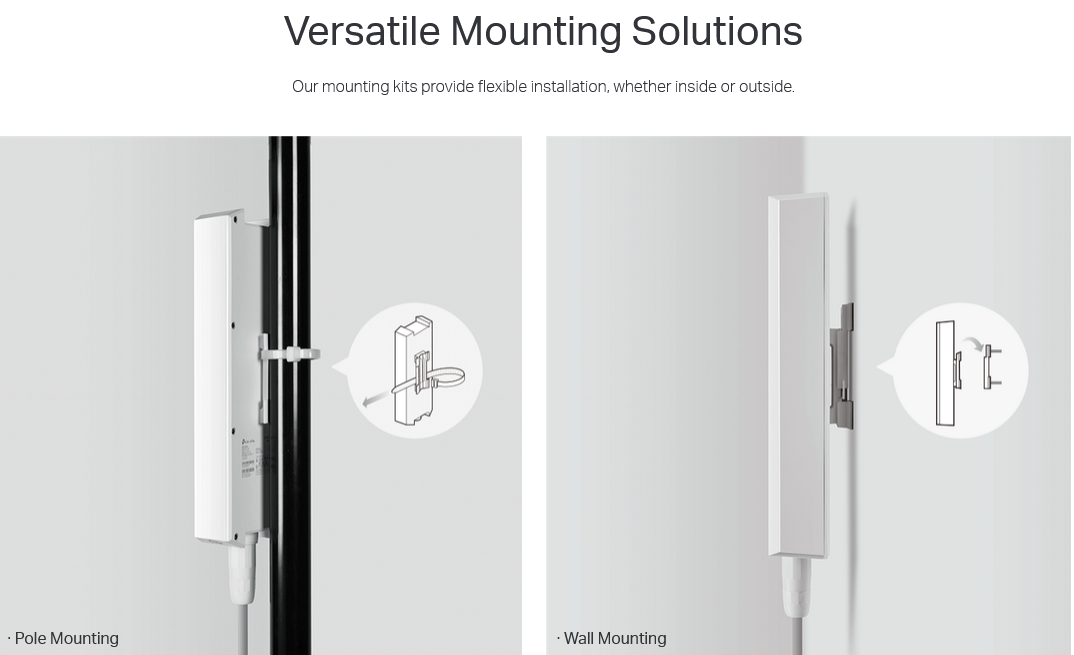

Mounting

Pole/Wall Mounting (Kits included)

Power Supply

• 802.3at PoE
• 48V Passive PoE (PoE Adapter Included)

Power Consumption

• EU: 12.5W (802.3at PoE or Passive PoE)
• US: 14.7W (802.3at PoE or Passive PoE)

Environment

• Operating Temperature: -30–70 °C (-22–158 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Certification

CE, FCC, RoHS

Package Contents

• Access Point EAP650-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
