ข้อมูลสินค้าSwitching Hub 4 Port HIKVISION DS-3E1106P-EI/M (5",4 PoE)
HIKVISION
Switching Hub 4 Port HIKVISION DS-3E1106P-EI/M (5",4 PoE)
ประกัน 3 ปี
รหัสสินค้า: A0158631
- Standards and Protocols : EEE 802.3af,IEEE 802.3at
- Interface
- 4× 10/100 Mbps PoE port (PoE Power Budget 45 W)
- 2x 10/100 Mbps RJ45 port
- Switching Type : Smart Managed
- Switching Capacity : 14 Gbps
- Casing : Metal
- Package Contents
- DS-3E1106P-EI/M

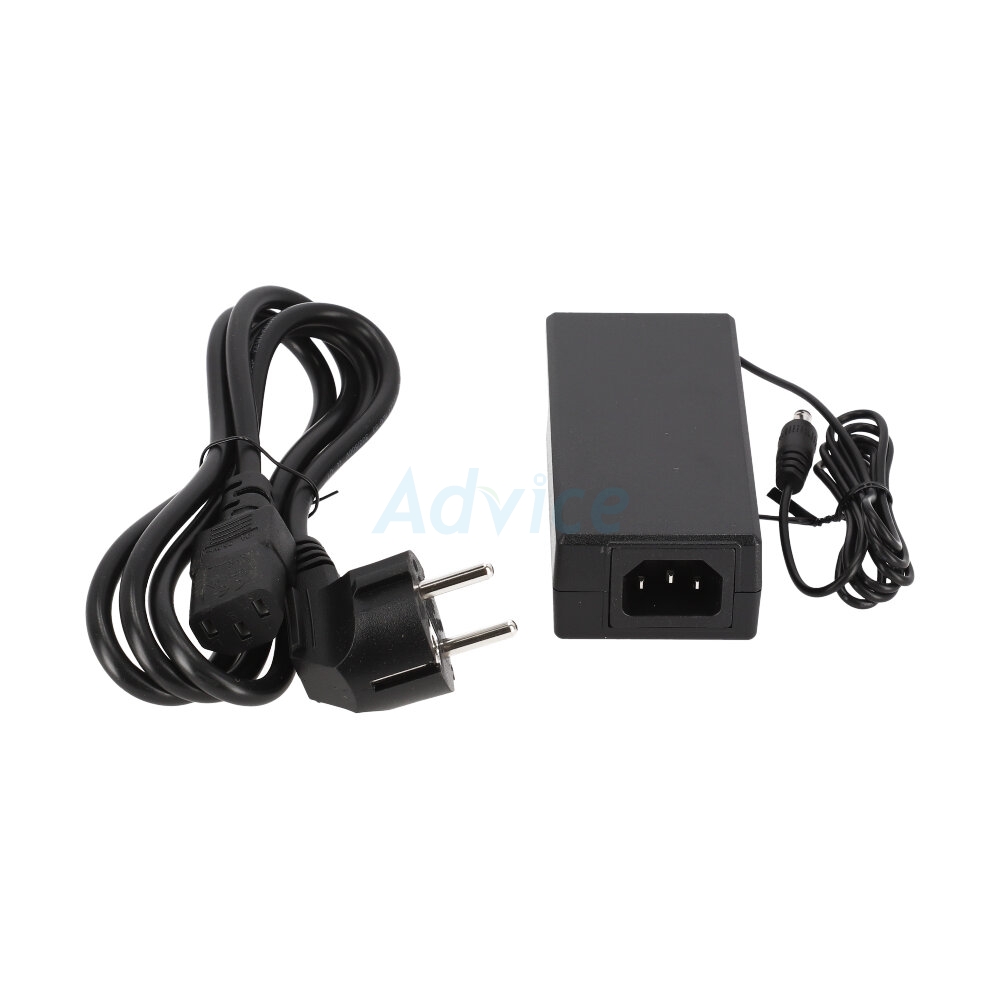

- Power Adapter
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6KV Surge Protection
ราคาหน้าร้าน ฿810
ข้อมูลผลิตภัณฑ์
BrandHIKVISION
Model
DS-3E1106P-EI/M
Network Interface
4× 10/100 Mbps PoE port
2x 10/100 Mbps RJ45 port
Standards and Protocols
IEEE 802.3af,IEEE 802.3at
Switching Capacity
14 Gbps
MAC Address Table
2 K
Forwarding Rate
10.42 Mpps
Material
Metal
PoE
Max. Port Power : 30 W
PoE Power Budget : 45 W
Power Supply
54VDC, 0.92A
Power Consumption
Power Consumption in Idle : 1.8 W
Max. Power Consumption : 50 W
Environment
Operating Temperature : 0 °C to 40 °C (0 °F to 104 °F)
Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity : 5% to 95% (no condensation)
Relative Humidity : 5% to 95% (no condensation)
Certifications
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
