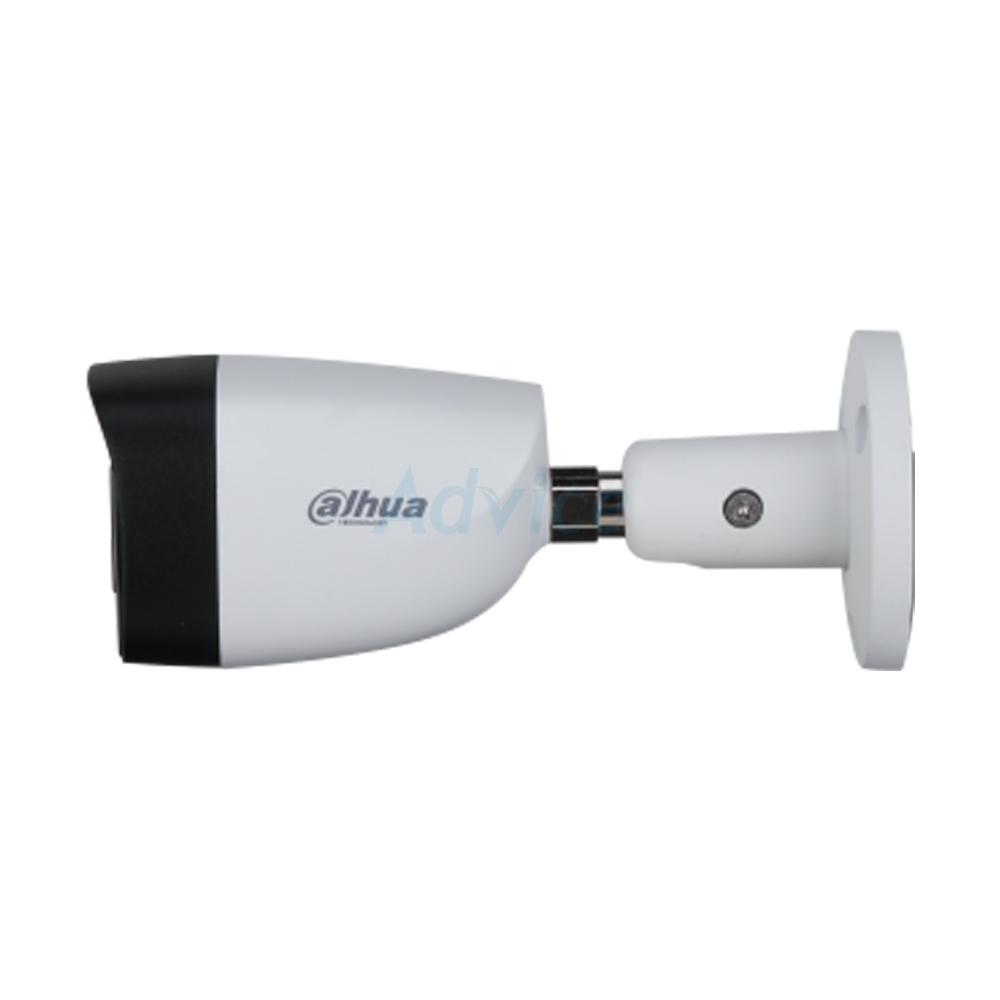

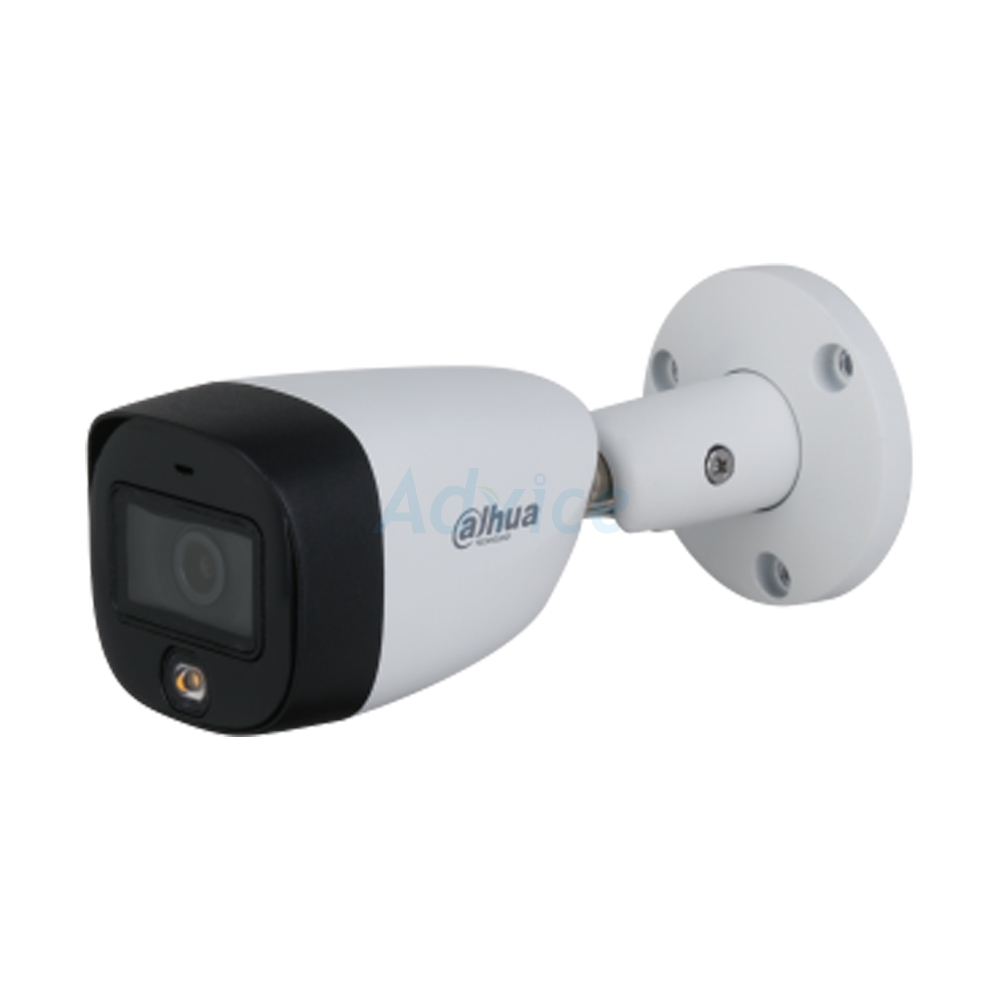

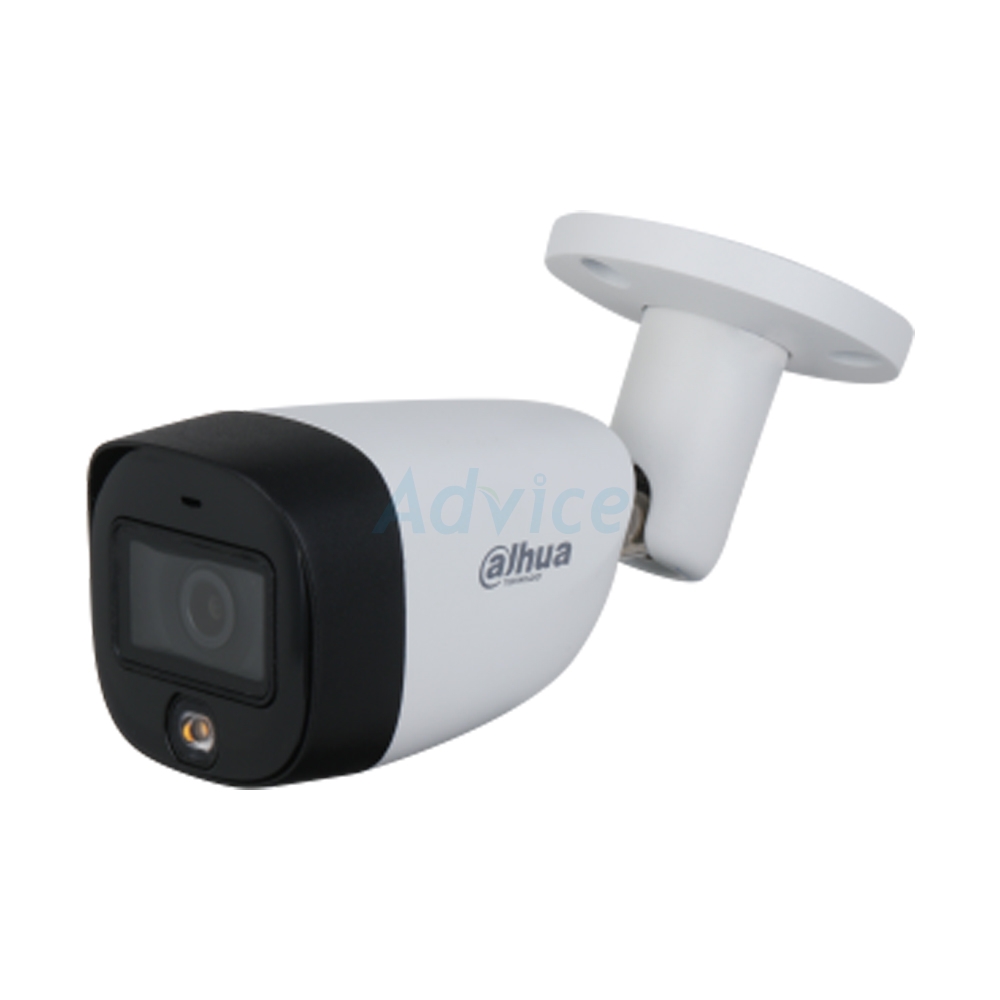

กล้องวงจรปิด 2.8mm HDCVI DAHUA HFW1500CMP-IL-A
- Image Sensor : 5MP , CMOS
- Max. Resolution : 2880 (H) × 1620 (V)
- Lens Type : 2.8mm
- Video Output : CVI/CVBS/AHD/TVI switchable
- IR Distance : 20m
- Frame Rate :
- PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
- NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
- Day/Night Mode : Auto(ICR)/Color/B/W
- Audio Port : Built-in mic (-A)
- Protection : IP67
- Casing Material : Metal
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์

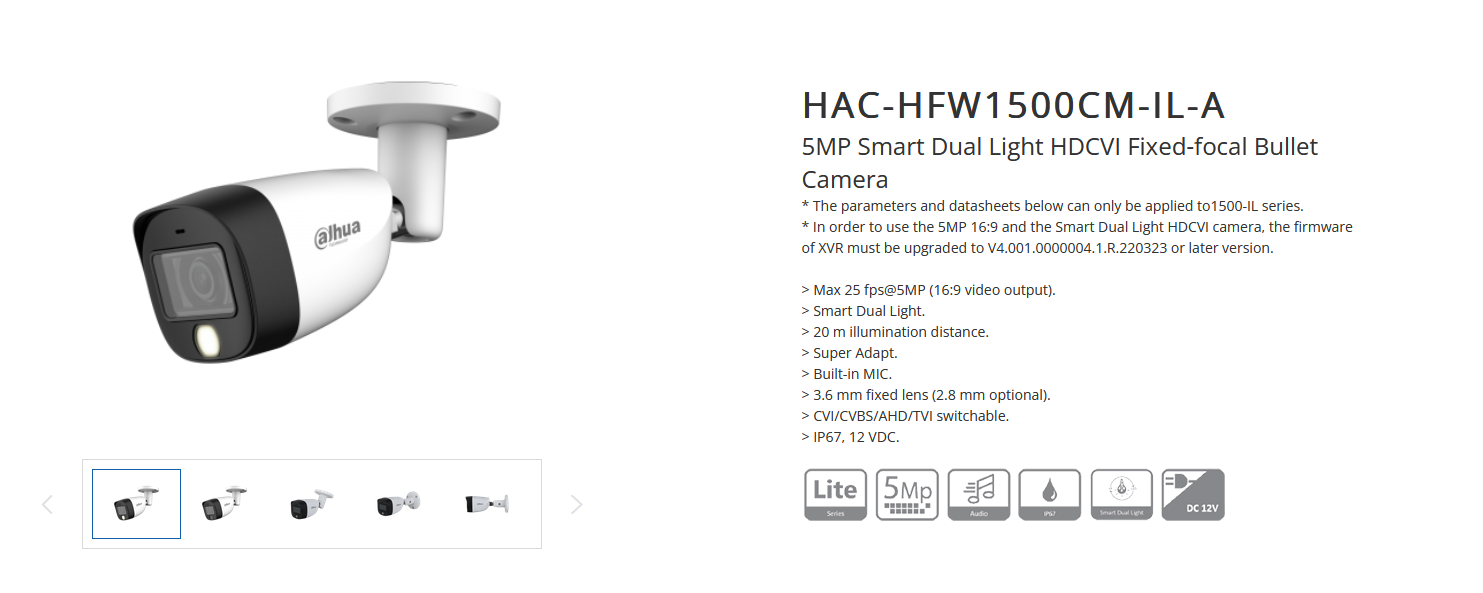

HFW1500CMP-IL-A
5 MP CMOS
2.8mm
M12
• 2.8 mm: H: 106°; V: 56°; D: 125°
• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°
PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
0.05 [email protected] (Color, 30 IRE)
0.005 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)
20m (65.62 ft)
2880 (H) × 1620 (V)
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H
NTSC: 960H
One channel built-in mic
12 VDC ± 30%
Max 3.1 W (12 VDC, WLED on)
Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity : <95% (RH), non-condensing
Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity : <95% (RH), non-condensing
IP67
Metal
