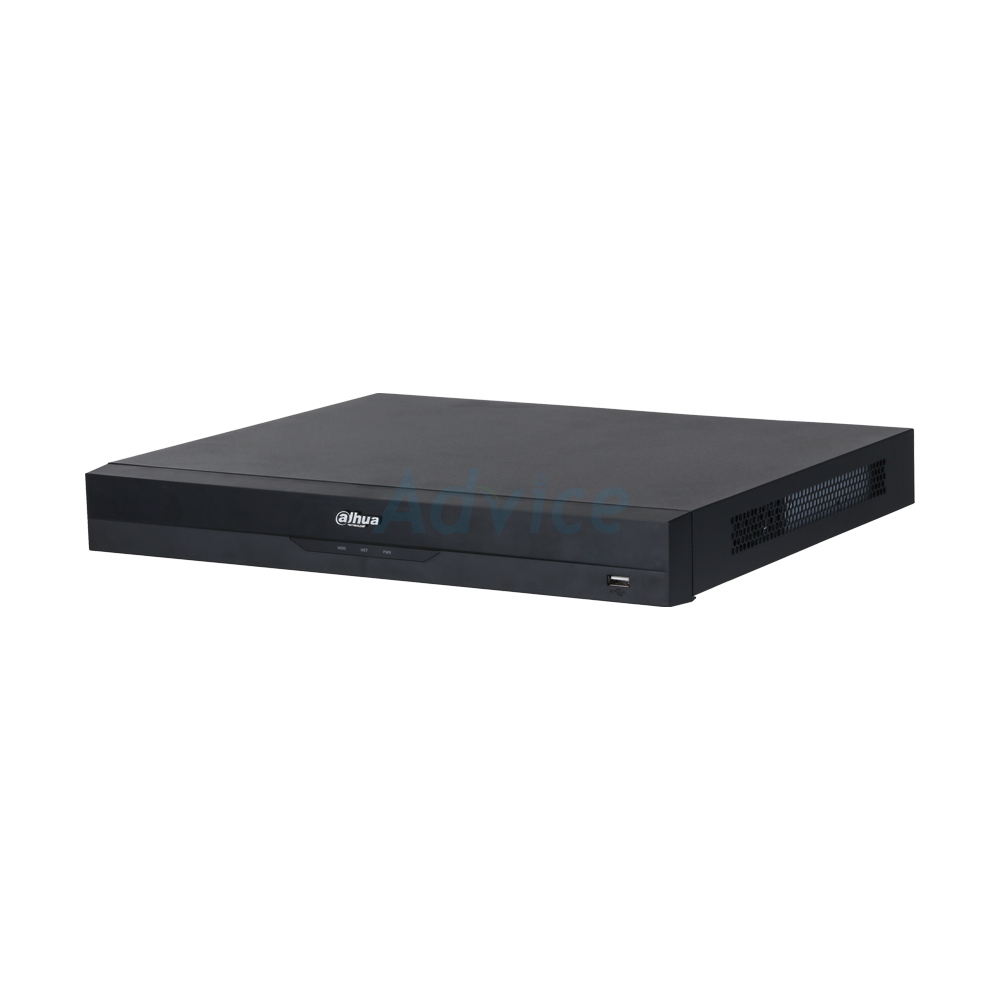

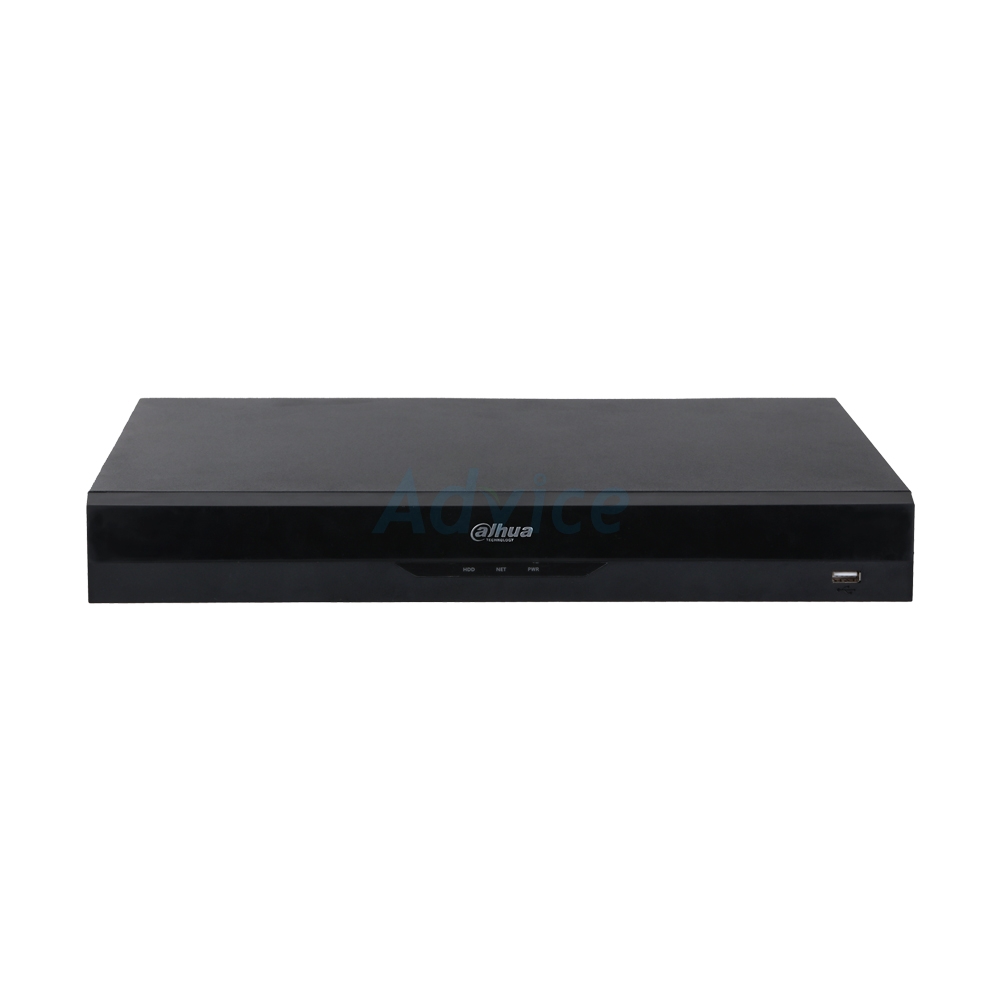

เครื่องบันทึก NVR 16CH. DAHUA NVR4216-16P-EI
- Video Compression : Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- Encoding Resolution : 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF

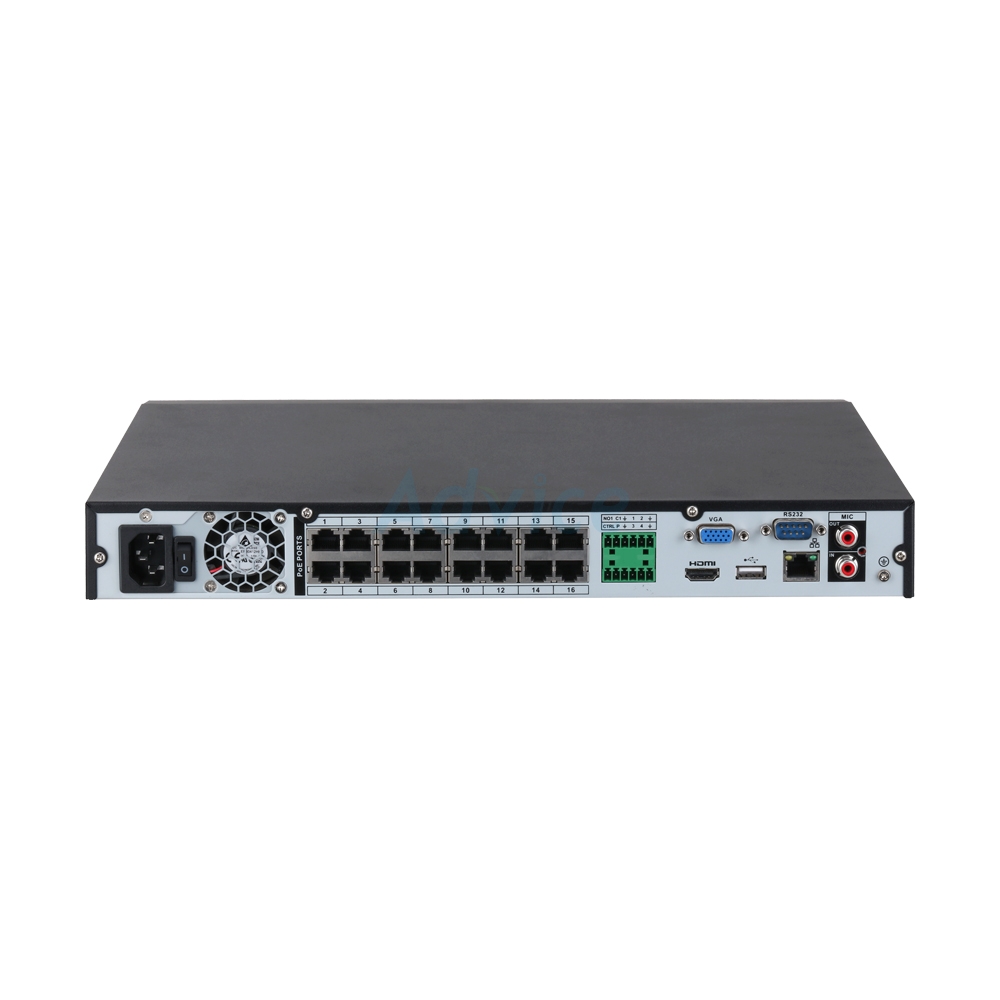

- Interface
- 2x SATA port
- 2x (1 front USB 2.0 port, 1 rear USB 2.0 port)
- 1x HDMI
- 1x VGA
- 1x (10/100/1000 Mbps Ethernet port, RJ-45)
- 16x ports, 10/100 Mbps, IEEE 802.3 af/at, 1-16 ports support PoE
- 1x RS-232
- Video output : HDMI/VGA independent output
- Capacity : up to 16 TB.The maximum HDD capacity varies with environment temperature.
- Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
- Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding.
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map
- Connected to the third-party network cameras
- Security baseline 2.3.
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
NVR4216-16P-EI
Video Input : 16CH
Video compression : Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression : G.711a; G.711u; PCM; G726
Audio Input : 1-channel RCA
Alarm Input : 4 channels
Video Output : HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Audio Output : 1-channel RCA
Alarm Output : 2 channels
AI disabled : 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps
AI enabled : 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps
Network Protocol : HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone Access : iOS; Android
Interoperability : ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK
Browser : Chrome; IE9 and later; Firefox
HDD Interface : 2 SATA ports, up to 16 TB.The maximum HDD capacity varies with environment temperature.
RS-232 : 1
USB : 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI : 1
VGA : 1
Network Port : 1 (10/100/1000 Mbps Ethernet port, RJ-45)
PoE Port : 16 ports, 10/100 Mbps, IEEE 802.3 af/at
2x SATA ports, up to 16 TB.The maximum HDD capacity varies with environment temperature.
100–240 VAC, 47-63 Hz
Total output of NVR is <10 W(without HDD) Total output power of PoE is 130W,the maximum output power of asingle port is 25.5W
Operating Temperature : –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity : 10%–93% (RH)
ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK
16 ports, 10/100 Mbps, IEEE 802.3 af/at
Total output power of PoE is 130W
