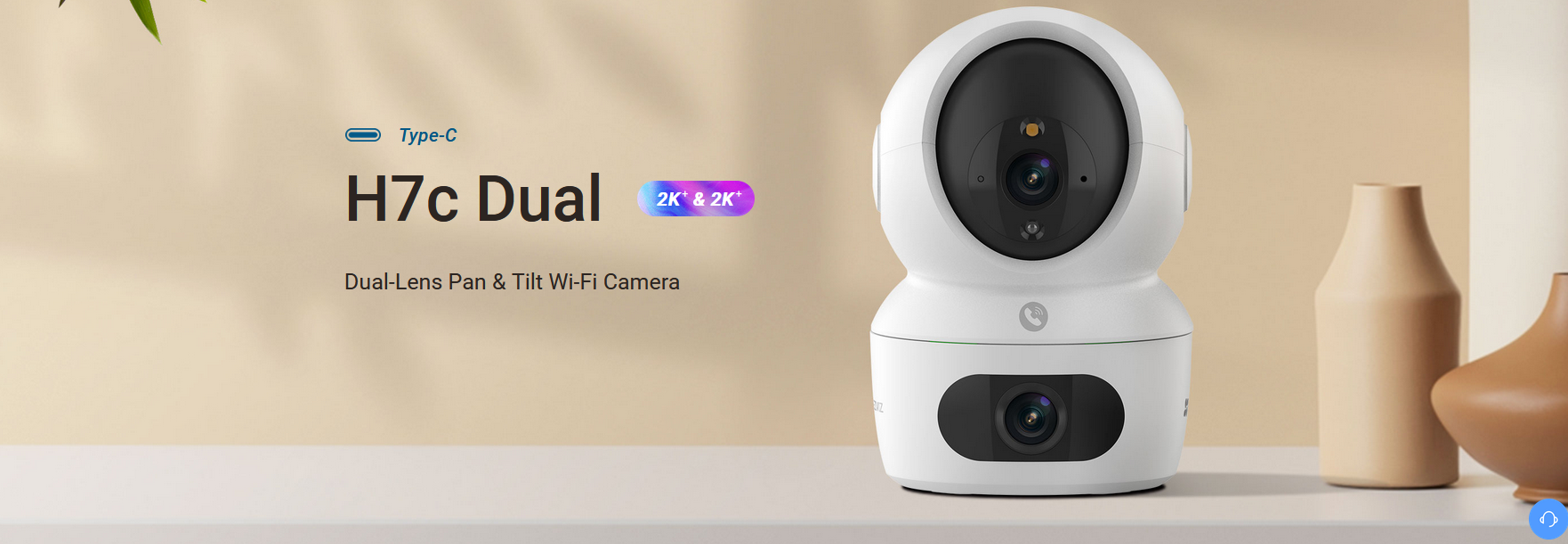

กล้องไร้สาย Smart Camera (4.0MP+4.0MP) EZVIZ H7C DUAL

H7C

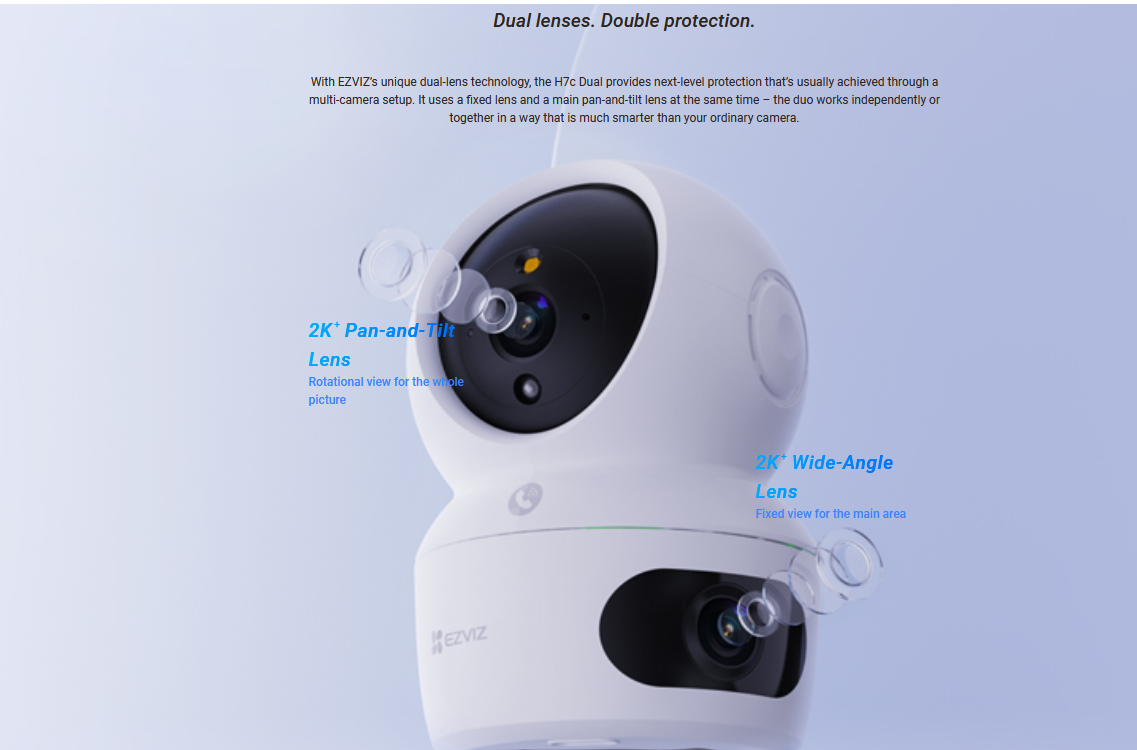

Fixed Lens:
1/3" Progressive Scan CMOS
4MP (2560 × 1440)
Pan & Tilt Lens:
1/3" Progressive Scan CMOS
4MP (2560 × 1440)

Fixed Lens  : [email protected]
PT Lens : [email protected]

M12

N/A

N/A

- [email protected] , view angle: 108°(Diagonal), 92° (Horizontal), 50°(Vertical)
- [email protected] , view angle: 60°(Diagonal), 51° (Horizontal), 28°(Vertical)

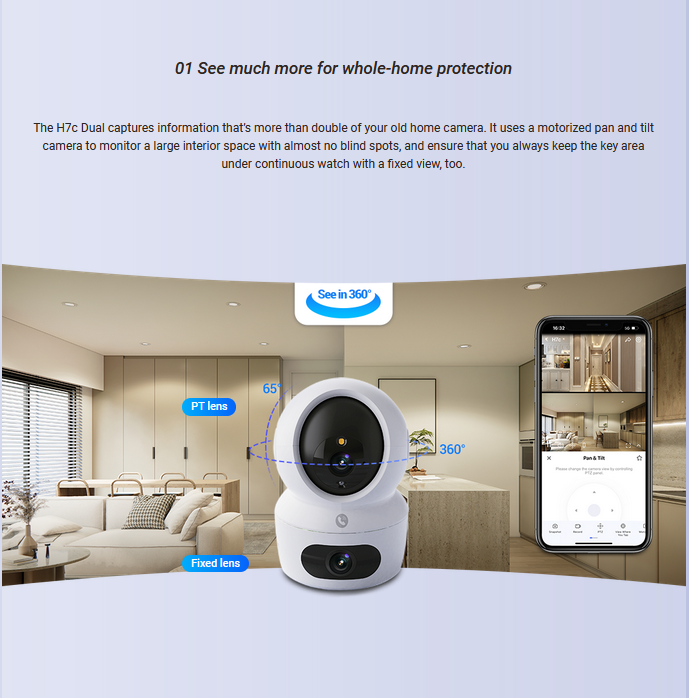

Fixed Lens:
0~355°Pan & 0~0°Tilt by Manual
Pan & Tilt Lens:
0~360°Pan & 0~65°Tilt

Self-adaptive shutter

N/A

10m

IR-cut filter with auto-switching

Digital WDR

Dual 2K+ Resolution  (2560 × 1440)

H.264/H.265

Max:30fps; Self-Adaptive during network transmission

Two-Way

Standard : IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax
Frequency Range : 2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.15GHz~5.25GHz
Channel Bandwidth : 2.4GHz Supports 20MHz 5GHz Supports 80MHz
Security : WPA-PSK, WPA2-PSK, WPA3-Personal
Transmission Rate : 2.4GHz Max. Rate Support: 11b_11M?11g_54M, 11n_MCS7_20M?11ax_MCS11_20M 5.15-5.25GHz Max.
Rate Support: 11a_54M, 11n_MCS7_20-40M?11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M
Output Power(EIRP) : 20 dBm
Antenna Gain : [email protected][email protected]

Micro SD card slot (Max. 512G)

x1 RJ45 (10M/100M self-adaptive Ethernet port)

YES

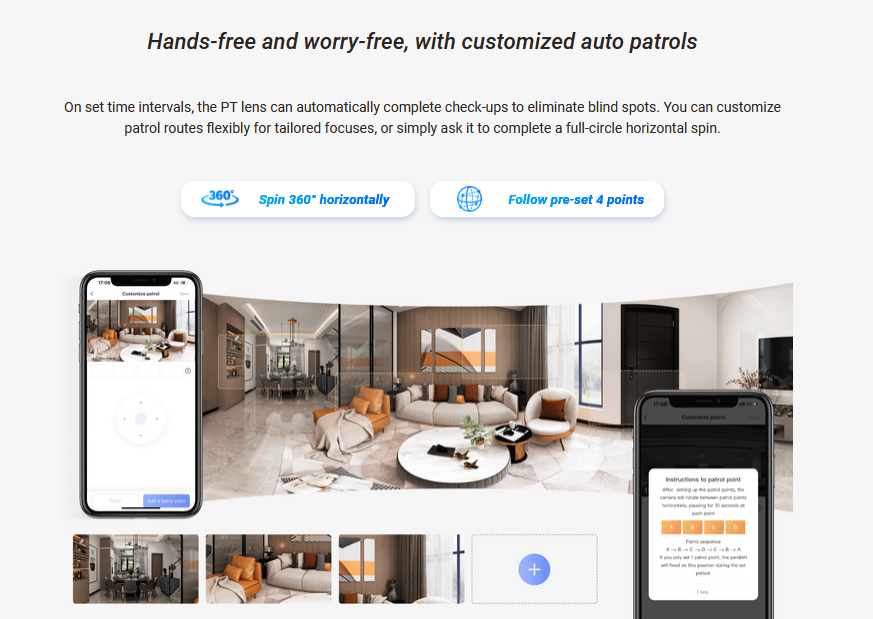

Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection

N/A

EZVIZ cloud proprietary protocol

- AI-Powered Human Shape Detection
- Two-Way Calling with Touch Button
- Loud Noise Detection
- Sleep Mode for Privacy Protection
- Panoramic View

N/A

DC 5V/2A

8W max

Operating Conditions : -10°C to 45°C ( -14 °F to 113 °F )
Humidity : 95% or less (non-condensing)

NONE

- Camera (x1)
- Power Adapter (x1)
- Power Cable (x1)
- Drill Template (x1)
- Mounting Plate (x1)
- Screw Kit (x1)
- Regulatory Information (x1)
- Quick Start Guide (x1)
