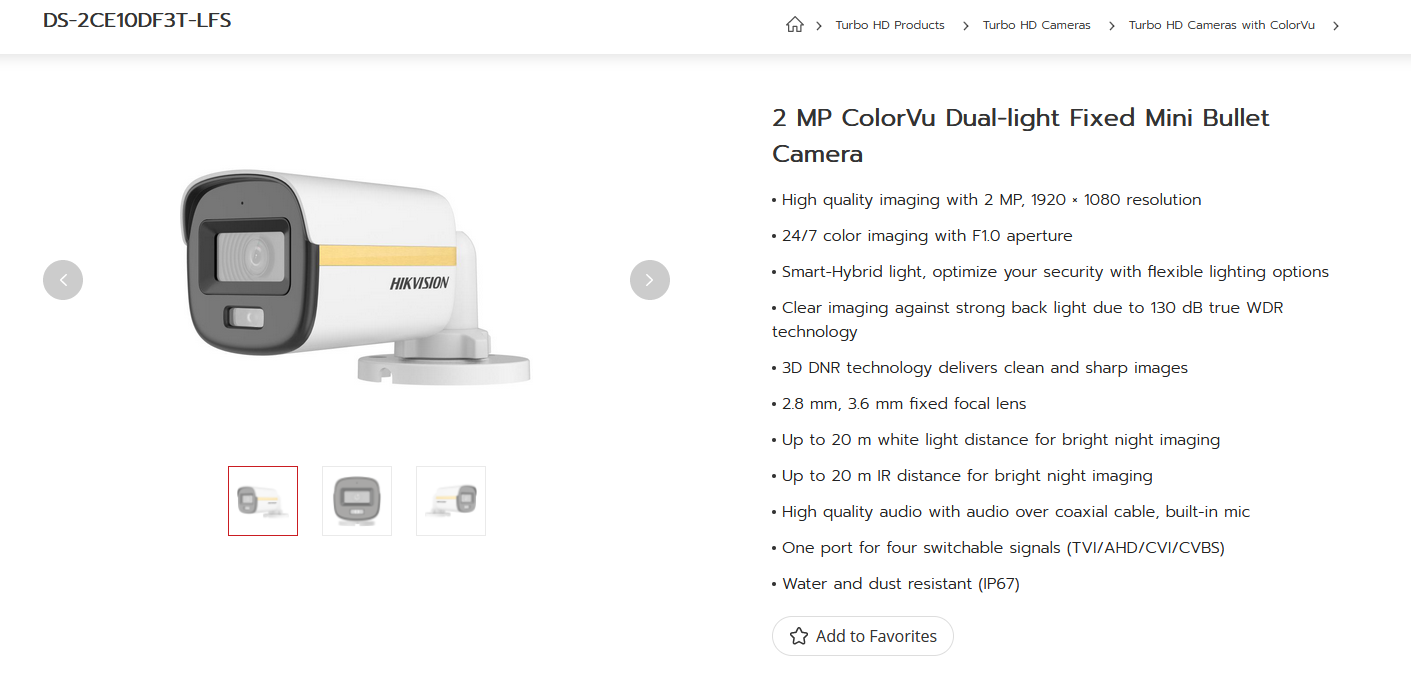

ข้อมูลสินค้าCCTV 3.6mm HDTVI HIKVISION#DS-2CE10DF3T-LFS
HIKVISION
CCTV 3.6mm HDTVI HIKVISION#DS-2CE10DF3T-LFS
รหัสสินค้า: A0159343
- Image Sensor : 2MP , CMOS
- Max. Resolution : 1920 (H) × 1080 (V)
- Lens Type : 3.6mm
- Video Output : TVI/AHD/CVI/CVB Switchable
- IR Distance : 20m
- Frame Rate : 1080p@25fps/30fps
- Day/Night Mode : ICR (ColorVu Dual-light)
- Audio Port : Built-in mic
- Protection : IP67
- Casing Material : Metal
ราคาหน้าร้าน ฿939
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
BrandHIKVISION
Model
2CE10DF3T-LFS
Image Sensor
2MP CMOS
Lens
Lens Type : 3.6mm
Lens Mount
M12
Angle of View
horizontal FOV: 85°, vertical FOV: 46°, diagonal FOV: 98°
Adjustment Angle
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Shutter
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Min. Illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
IR
20m
Video Resolution
1920 (H) × 1080 (V)
Video Compression
N/A
Frame Rate
TVI: 1080p @25 fps/30 fps
CVI: 1080p @25 fps/30 fps
AHD: 1080p @25 fps/30 fps
CVBS: PAL/NTSC
Audio
built-in mic
Interface
Video Output : Switchable TVI/AHD/CVI/CVBS
Alarm : Solid Light Alarm(White Light)
Functions
Motion Detection
Power
12 VDC ± 25%
Power Consumption
max. 5.4 W
Working Environment
Operating Condition : 40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
Ingress Protection
IP67
Material
Metal
Package Contents
N/A
