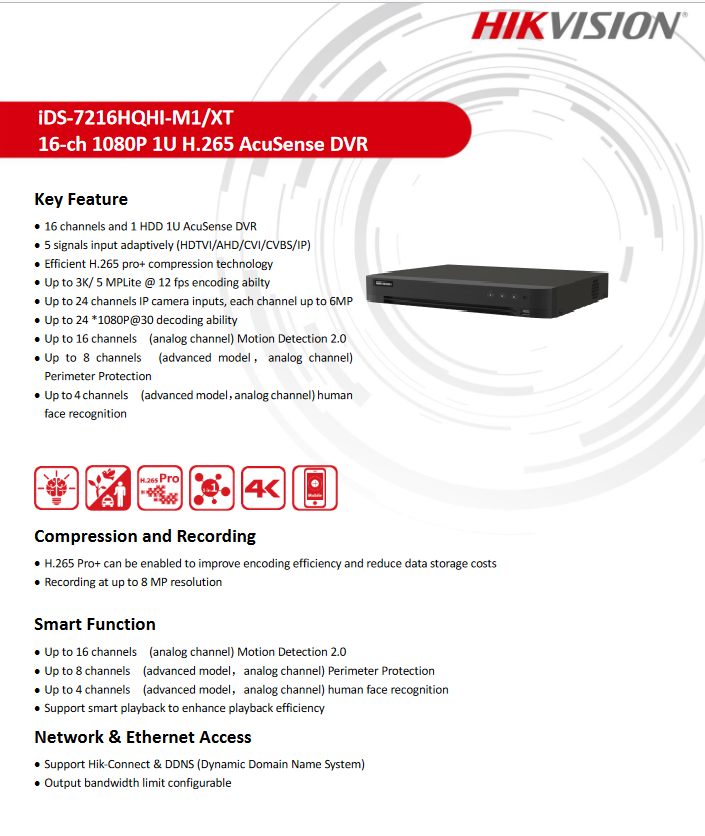

DVR 16CH. HDTVI HIKVISION#DS-7216HQHI-M1/XT

DS-7216HQHI-M1/XT

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Video Input : 16CH
Analog Camera Input :  16 BNC ports
Camera Input :
1. CVI : 5MP(2880 × 1620)@25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
2. TVI : 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps,  4MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
3. AHD : 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
4.CVBS : PAL: 704 × 576, NTSC: 704 × 480
IP Camera Input : 8-ch (up to 24-ch), each up to 4 Mbps ,Up to 6 MP resolution
Video Compression :  H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Audio Input : 1-ch (up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

HDMI output :  1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60H
VGA output :  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Frame rate :
Main stream :  3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20 fsp
Sub stream :  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Audio output : 1-ch, RCA (Linear, 1 KΩ)
Two-way Talk : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Remote Connection : 128
Total Bandwidth : 256 Mbps
DDNS : Support Hik-Connect & DDNS (Dynamic Domain Name System)

1x SATA interface, up to 12 TB capacity for each disk
2x (Front panel: 1 × USB 2.0 , Rear panel: 2 × USB 3.0)
1x HDMI
1x VGA
1x 10/100/1000 Mbps Ethernet port, RJ-45)


Up to 12 TB capacity for each disk

DC 12V, 3A

≤ 24 W

Operating Temperature : -10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity : 10%–90%

ONVIF, ISUP

NONE

N/A
