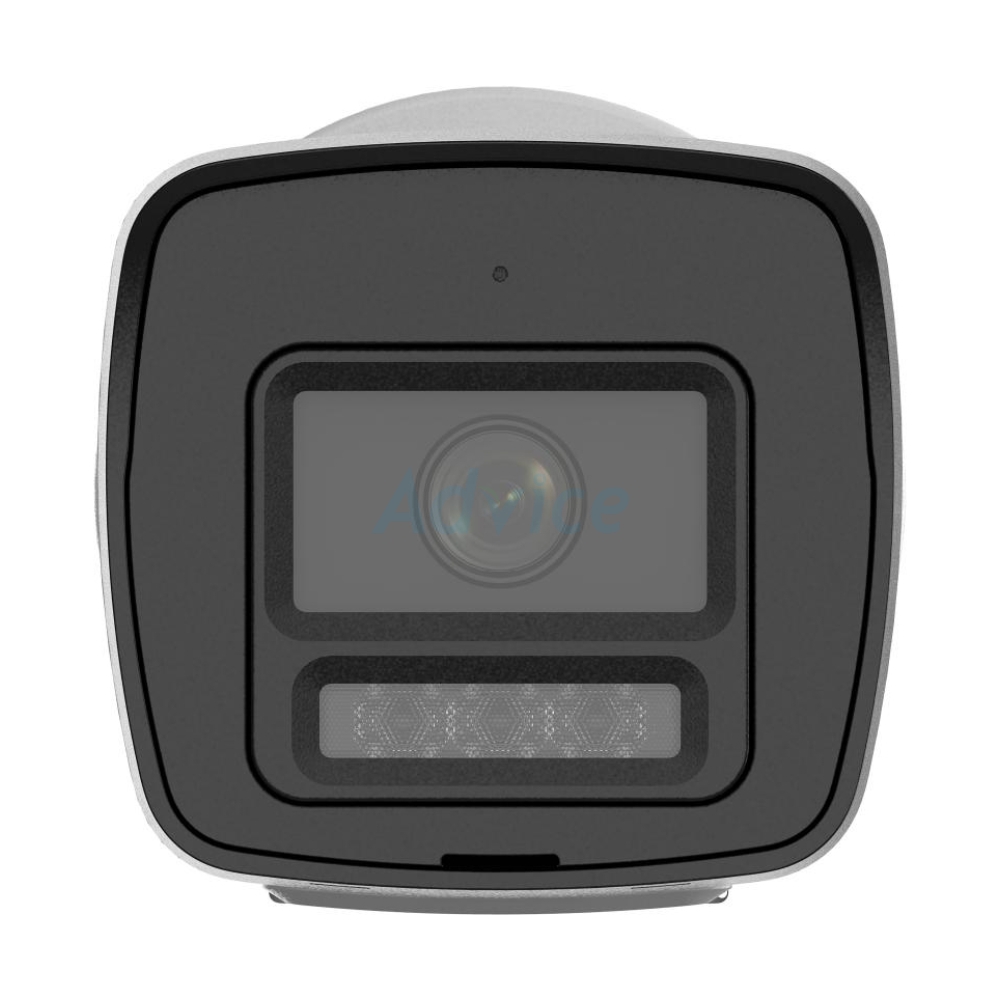

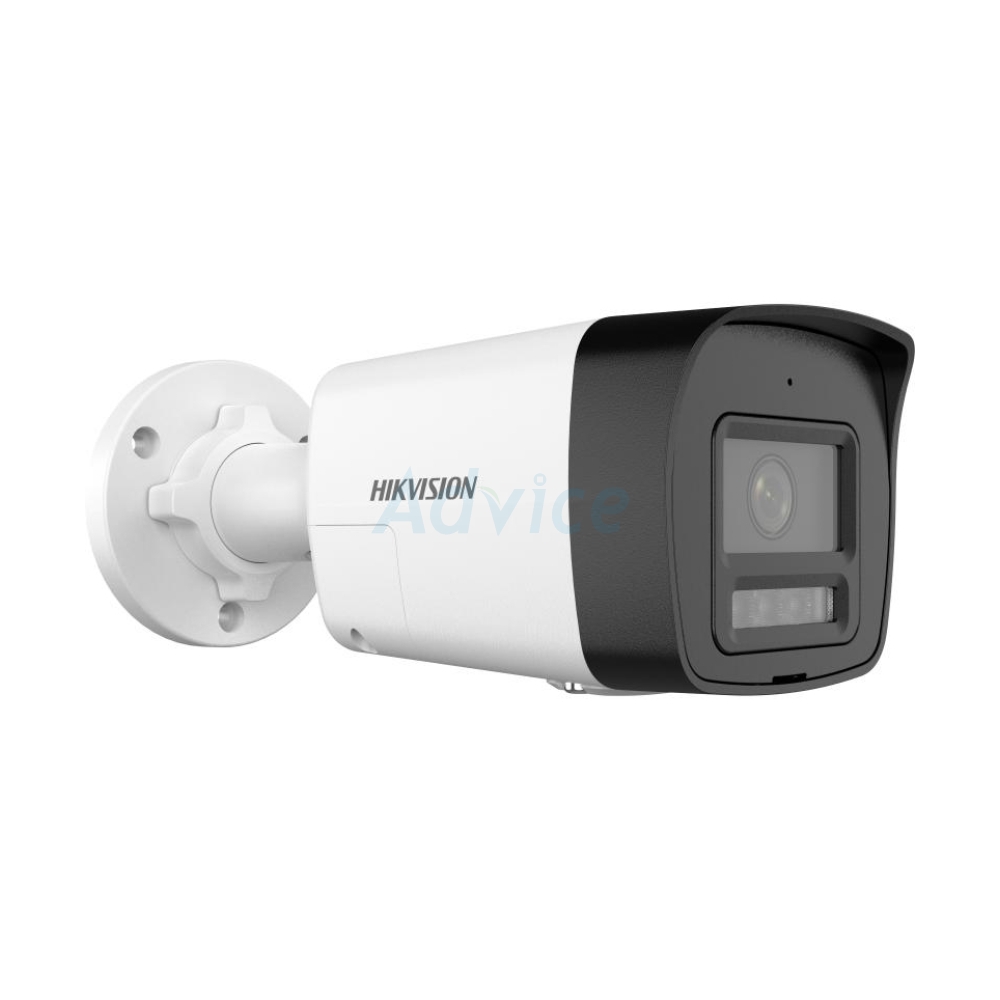

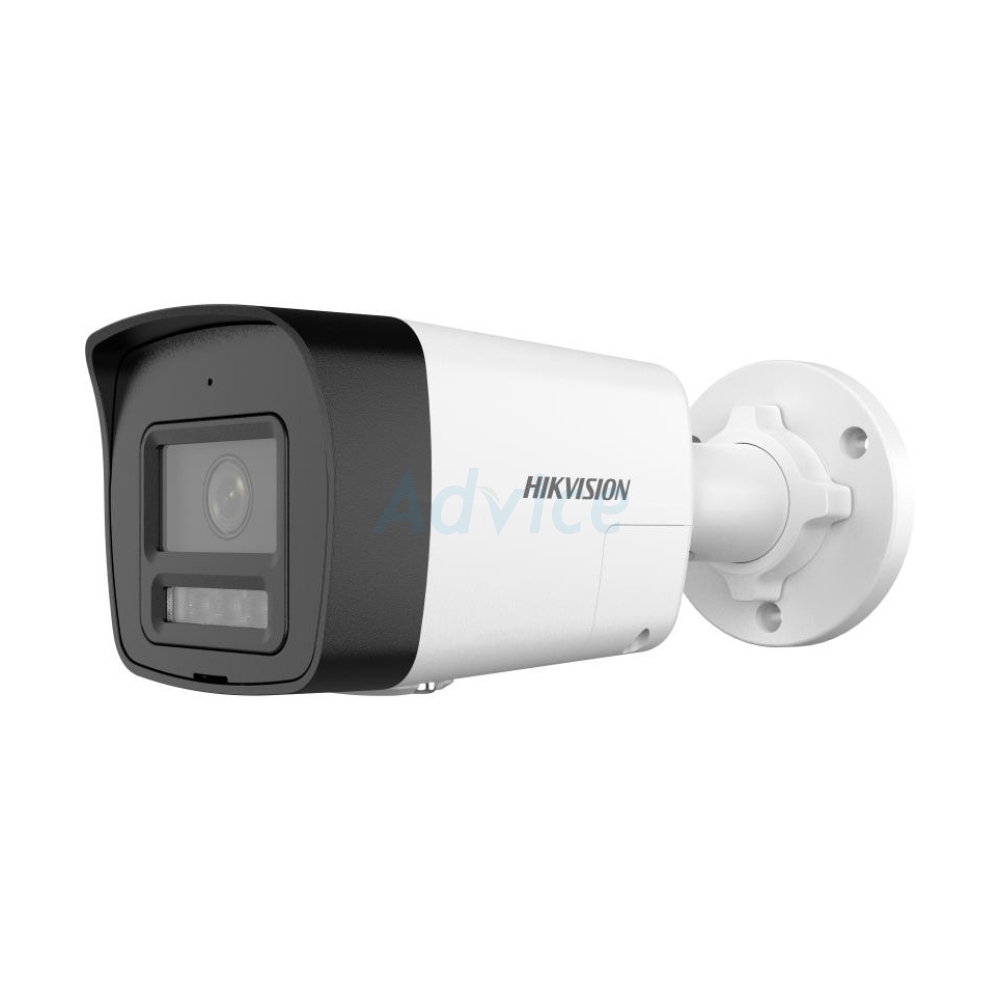

กล้องวงจรปิด 2.8mm IP Camera HIKVISION DS-2CD1023G2-LIUF/SL

DS-2CD1023G2-LIUF/SL

2MP , 1/2.9" Progressive Scan CMOS

Lens Type : 2.8mm
Iris Type : Fixed
Aperture : F1.6

M12

NONE

NONE

horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

1/3 s to 1/100,000 s

Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Yes

30m

Day,Night,Auto,Schedule
IR cut filter

N/A

Digital WDR

Support on-board storage up to 512 GB (SD card slot)

H.265+

50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Up to 32 users
3 user levels: administrator, operator, and user

Support on-board storage up to 512 GB (SD card slot)

1x RJ45 10 M/100 M self-adaptive Ethernet port
1x built-in microphone

N/A

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

NONE

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Heartbeat,anti-banding,mirror,password protection,password reset via email

12 VDC ± 25%

0.62 A, max. 7.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 9 W

Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

IP67: IEC 60529-2013

N/A
