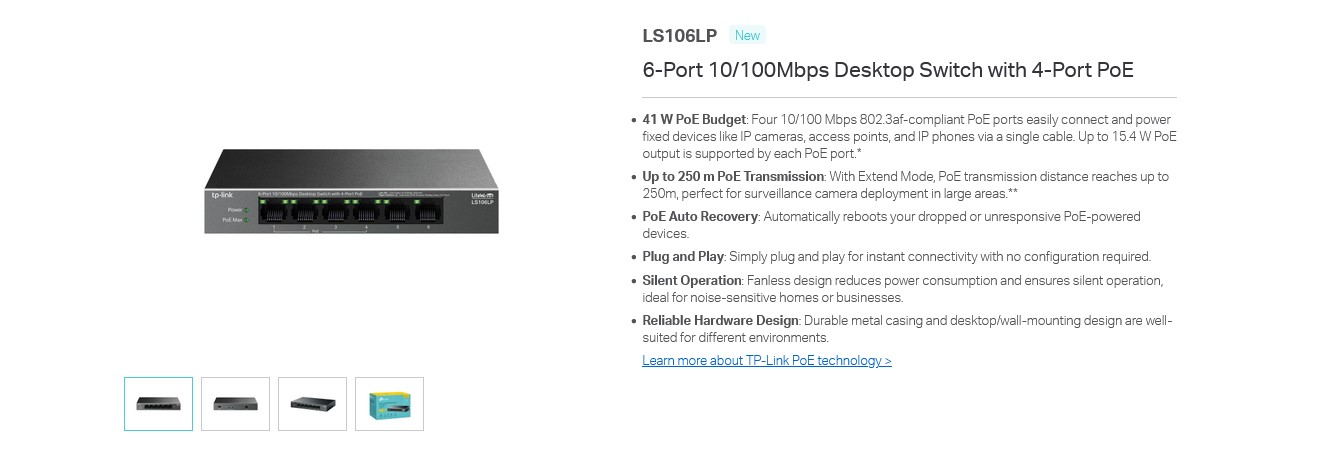

Switching Hub TP-LINK (LS106LP) 6 Port (6)
- Standards and Protocols : 802.3 af compliant
- Interface : 6x 10/100 Mbps RJ45 Ports ( 4× 10/100 Mbps 802.3af PoE Ports , Power Supply : 41 W )
- Switching Type : Unmanaged
- Switching Capacity : 1.2 Gbps
- Casing : Metal
- Package Contents
- LS106LP
- Power Adapter
- Installation Guide
- 41 W PoE Budget: Four 10/100 Mbps 802.3af-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 15.4 W PoE output is supported by each PoE port
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
LS106LP
• 6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports)
NONE
• 802.3 af compliant
• 1.2 Gbps
• Store and Forward
2K
• 0.8928 Mpps
• 2 KB
N/A
N/A
N/A
N/A
N/A
NONE
N/A
N/A
N/A
• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery Button (Ports 1-4)
• Compatible With IEEE 802.3af Compliant PDs
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• Green Technology
N/A
• Fanless
• Metal
• PoE Ports: Ports 1–4, up to 15.4 W PoE output per port
Power Supply: 41 W
• External Power Adapter (Output: 53.5VDC / 0.81A)
2.53 W (220 V/50 Hz no PD connected)
47.76 W (220 V/50 Hz with 41 W PD connected)
• Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
• CE, FCC, RoHS
• LS106LP
• Power Adapter
• Installation Guide
