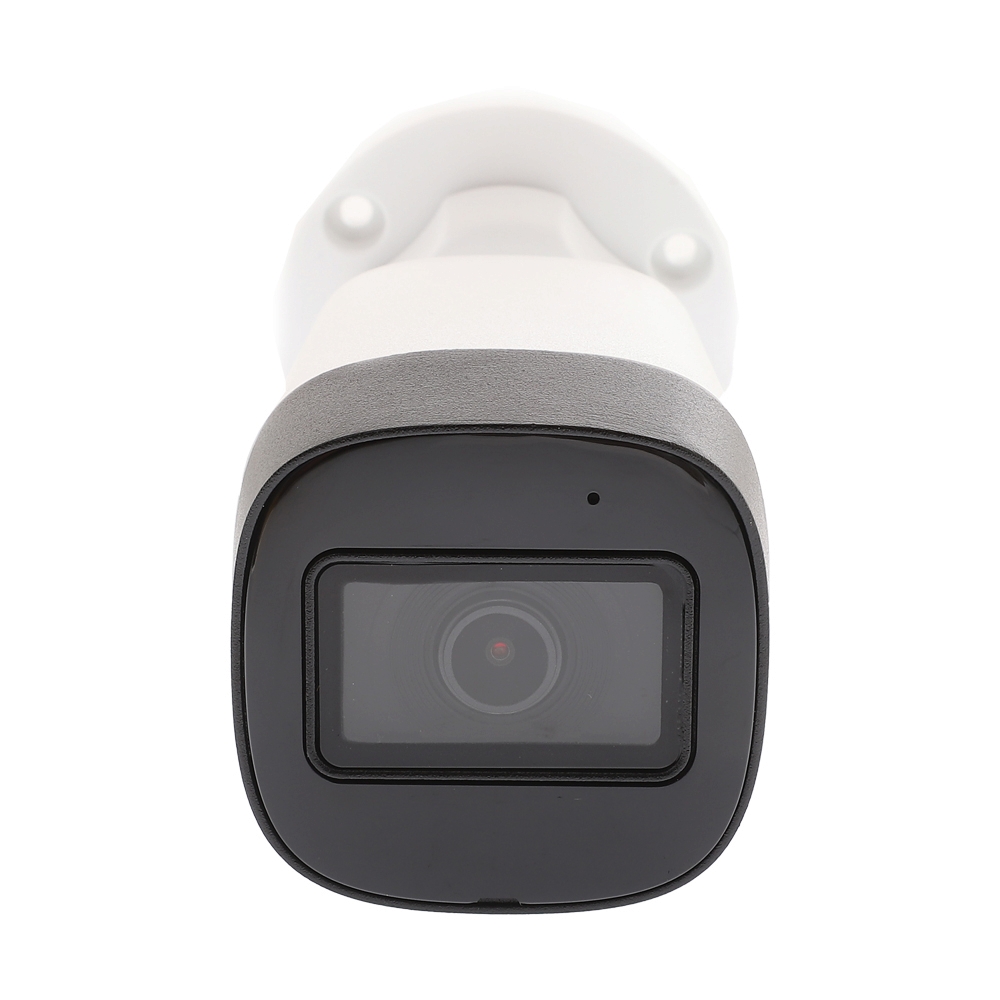

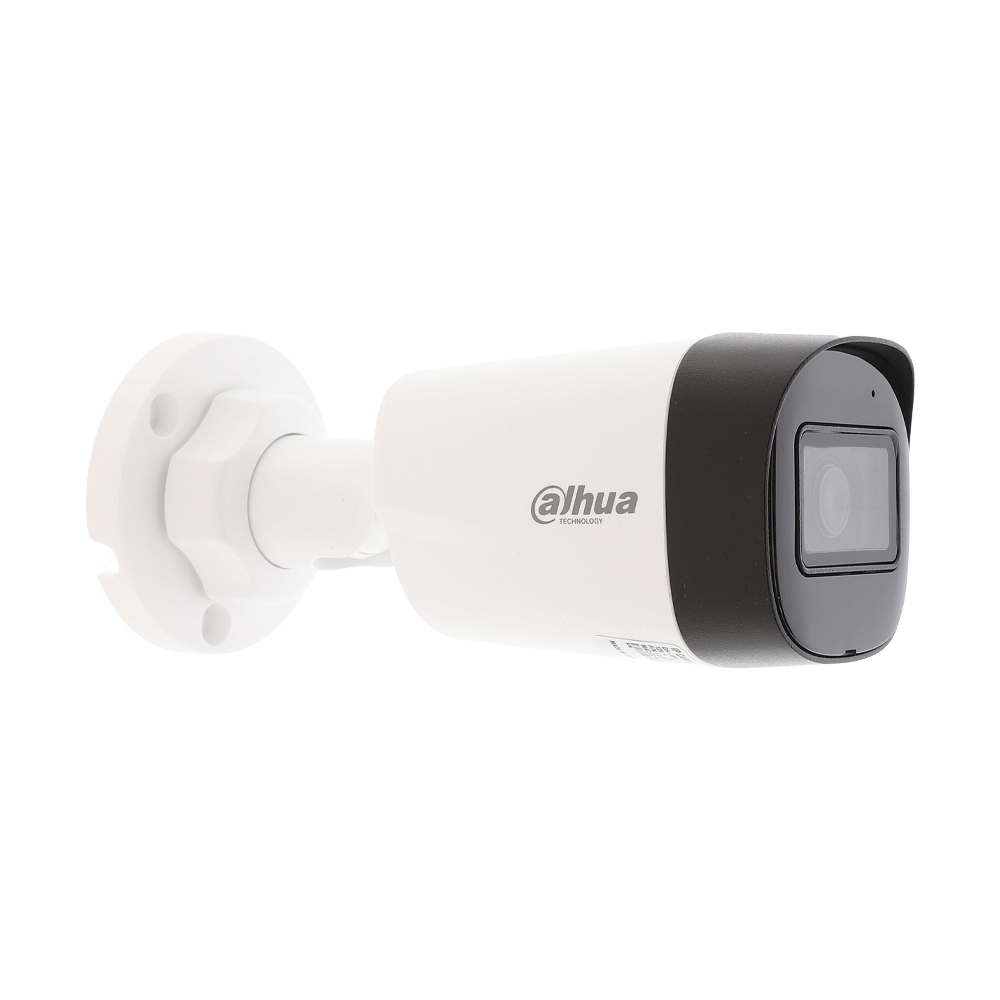

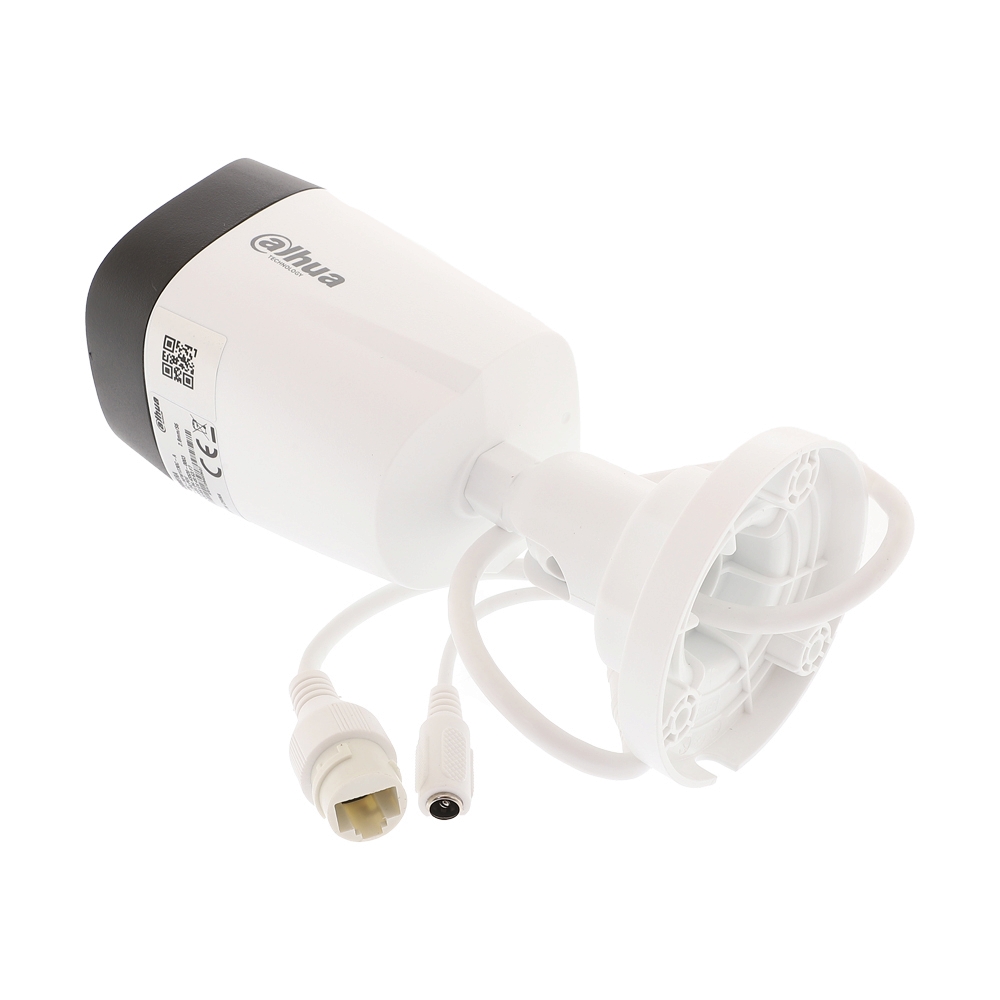

CCTV 2.8mm IP Camera DAHUA#IPC-HFW1230C-A
- Image Sensor : 2MP , 1/2.8" CMOS
- Max. Resolution : 1920 (H) × 1080 (V)
- Lens Type : 2.8mm
- Video Output : Network Camera
- IR Distance : 30m
- Frame Rate
- Main stream : 1920 × 1080@(1–25/30 fps)
- sub stream : 704 × 576@(1–25 fps)/704 × 480@(1–30fps)
- Day/Night Mode : Auto(ICR)/Color/B/W
- Protection : IP67
- Casing Material : Metal + plastic
- DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict, illegal access
- Supports human detection
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
IPC-HFW1230C-A
• 2MP , 1/2.8" CMOS
• Lens Type : Fixed-focal
• Focal Length : 2.8mm
• M12
N/A
N/A
• H: 101°; V: 54°; D: 119°
• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°
• Auto/Manual 1/3 s–1/100,000 s
• 0.01 [email protected] (Color, 30 IRE)
• 0.001 [email protected] (B/W, 30 IRE)
• 0 lux (Illuminator on)
N/A
• 30m
• Auto(ICR)/Color/B/W
• >56 dB
• DWDR
• 1920 (H) × 1080 (V)
• H.265; H.264; H.264H; H.264B; MJPEG (Only supported
by the sub stream)
• Main stream : 1920 × 1080@(1–25/30 fps)
• sub stream : 704 × 576@(1–25 fps)/704 × 480@(1–30fps)
• 6 (Total bandwidth: 24 M)
NONE
• 1x RJ-45 (10/100 Base-T)
N/A
• Network disconnection; IP conflict; illegal access; motion
detection; video tampering; audio detection; security
exception; SMD (human)
• ONVIF (Profile S & Profile T); CGI
• Pv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP;
SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP;
IGMP; P2P
• Smart H.265+ & Smart H.264+
• Smart Illumination
• Human Detection
• 12 VDC/PoE (802.3af)
• Basic : 1.3 W (12 VDC); 1.6 W (PoE);
Max. (H.265 + intelligence on + WDR+ IR intensity): 4.7 W (12 VDC); 6.0 W (PoE)
• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : ≤95%(RH), non-condensing
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity : ≤95%(RH), non-condensing
• IP67
N/A
