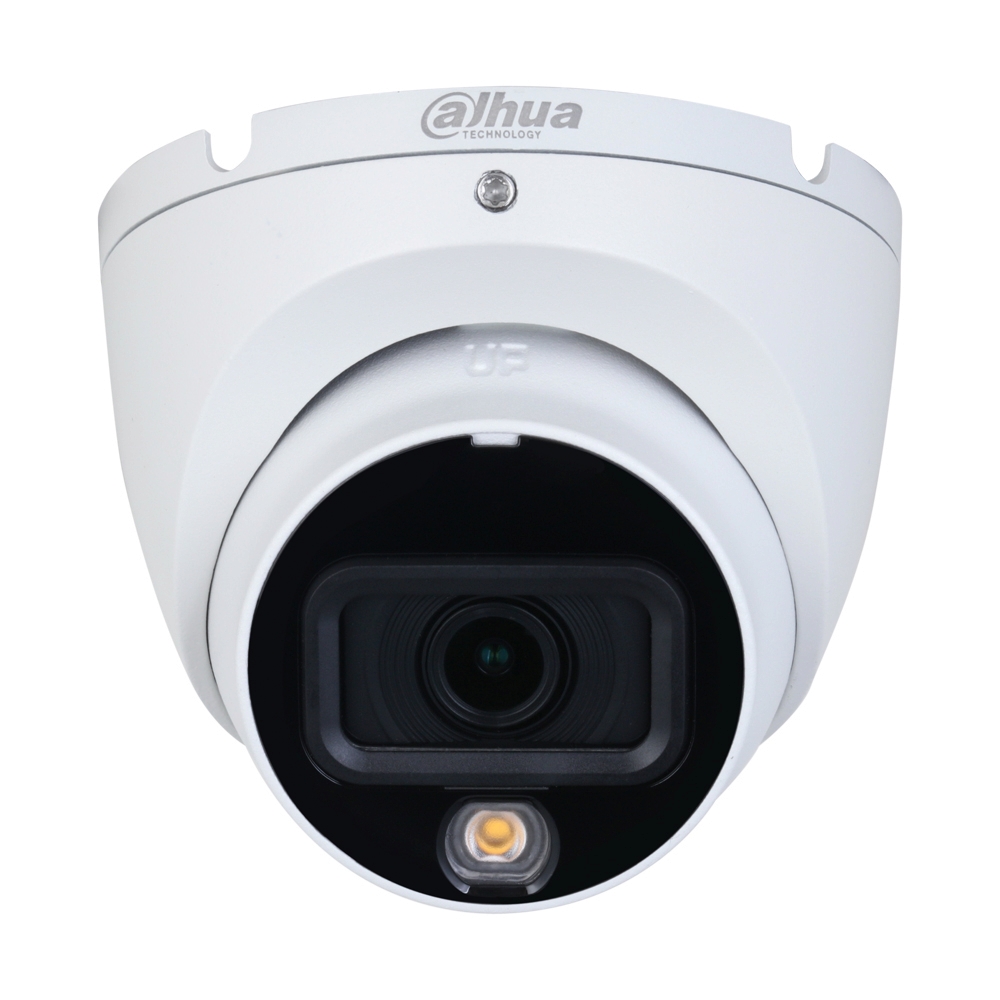

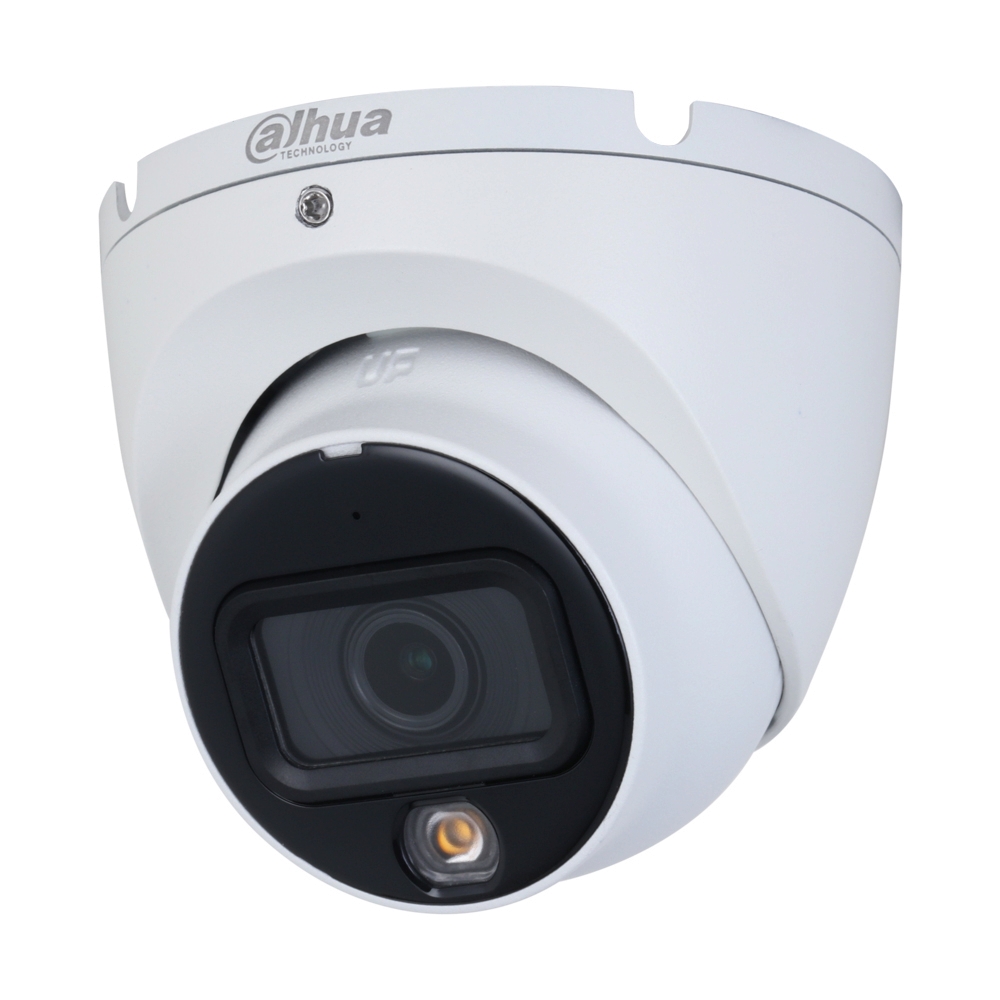

กล้องวงจรปิด 2.8mm HDCVI DAHUA HDW1500TLMP-IL-A
- Image Sensor : 5MP , CMOS
- Max. Resolution : 2880 x 1620
- Lens Type : 2.8mm
- Video Output : CVI/CVBS/AHD/TVI switchab
- IR Distance : 20m
- Frame Rate
- PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
- NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
- Day/Night Mode : Auto(ICR)/Color/B/W
- Audio Port : Built-in mic
- Protection : IP67
- Casing Material : Metal
- Smart Dual Light
- Super Adapt
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์

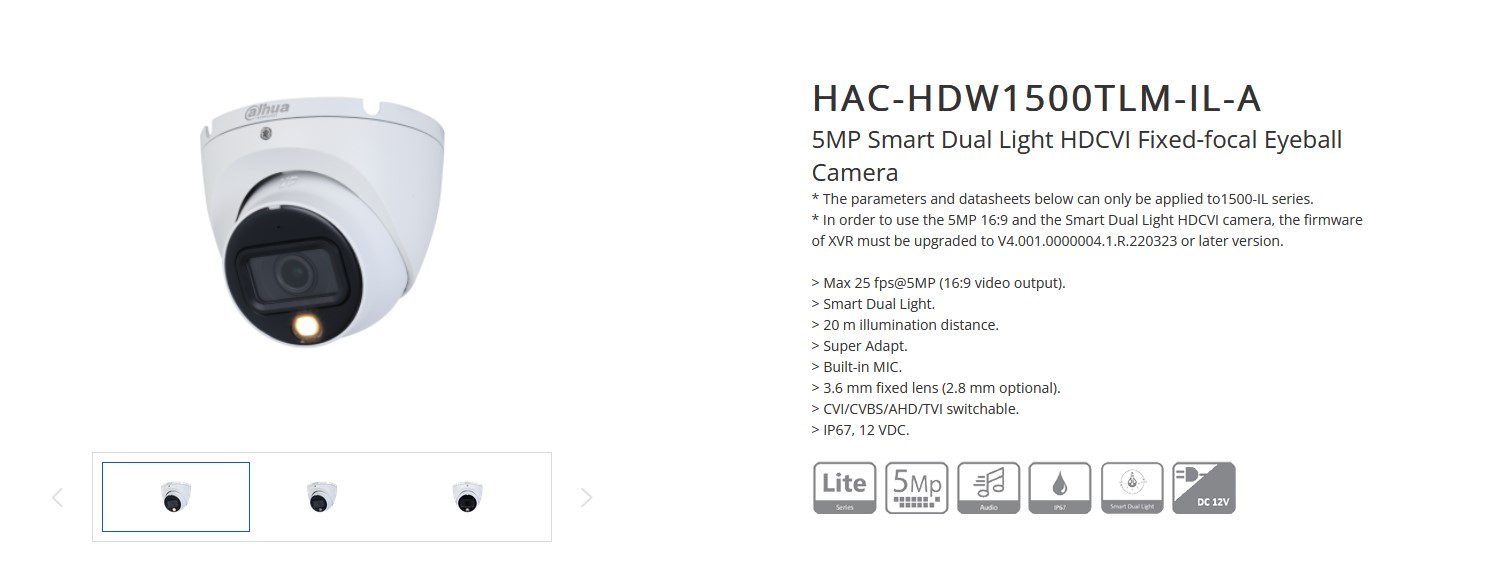

HDW1500TLMP-IL-A
• 5 MP , CMOS
• Lens Type : Fixed-focal
• Focal Length : 2.8mm
• Max. Aperture : F1.6
• M12
• H: 106°; V: 56°; D: 125°
• Pan: 0°–360°
• Tilt: 0°–78°
• Rotation: 0°–360°
• PAL: 1/25 s–1/100000 s
• NTSC: 1/30 s–1/100000 s
• 0.05 [email protected] (Color, 30 IRE)
• 0.005 [email protected] (B/W, 30 IRE)
• 0 lux (Illuminator on)
• IR : 20 m (65.62 ft)
• Warm Light : 20 m (65.62 ft)
• 2880 (H) × 1620 (V)
N/A
CVI
• PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
• NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD
• PAL: 4M@25 fps;
• NTSC: 4M@30 fps
TVI
• PAL: 4M@25 fps;
• NTSC: 4M@30 fps
CVBS
• PAL: 960H;
• NTSC: 960H
• One channel built-in mic
• Video output choices of CVI/TVI/AHD/CVBS by one BNC port
N/A
• 12 VDC ± 30%
• Max 3.1 W (12 VDC, WLED on)
• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : <95% (RH), non-condensing
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity : <95% (RH), non-condensing
IP67
Metal
N/A
