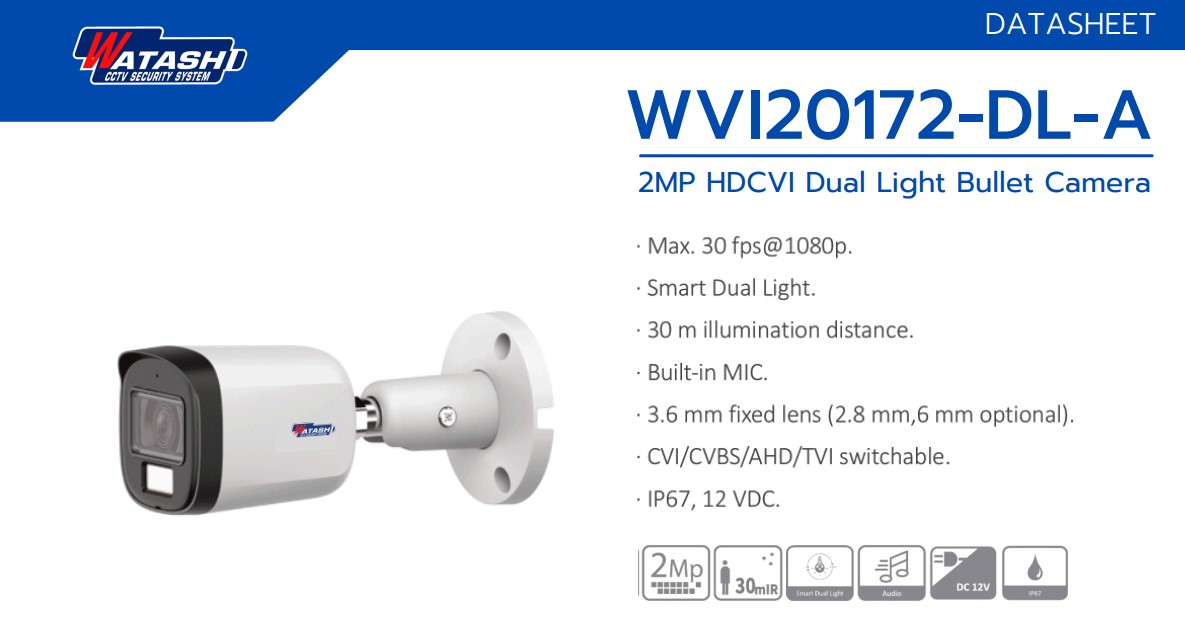

CCTV 3.6mm HDCVI WATASHI WVI20172-DL-A

รหัสสินค้า: A0162932

Image Sensor : 2MP , CMOS
Max. Resolution : 1080P (1920×1080)
Lens Type : 3.6mm
Video Output : AHD/CVI/TVI/CVBS Switch
IR Distance : 30m
Frame Rate : 25/30fps@1080P
Day/Night Mode : Auto(ICR)/Color/B/W
Audio Port : Built-in mic
Protection : IP67
Casing Material : Metal

คำค้นหาCCTV 3.6mm HDCVI WATASHI WVI20172-DL-A

ราคาหน้าร้าน ฿670

รายละเอียดสินค้า

ข้อมูลผลิตภัณฑ์

BrandWATASHI

Model
WVI20172-DL-A

Image Sensor
• 2MP , CMOS

Lens
• Focal Lenght : 3.6mm
• Max. Aperture : F2.0

Lens Mount
• M12

Angle of View
• H: 80° , V: 43° , D: 94°

Adjustment Angle • Pan: 0°-360°
• Tilt: 0°-90°
• Rotation: 0°-360°

Shutter
• PAL: 1/25~1/100000s
• NTSC: 1/30~1/100000s

Min. Illumination
• 0.02 [email protected] (Color, 30 IRE)
• 0.002 [email protected] (B/W, 30 IRE)
• 0 lux (illuminator on)

IR
• 30m

Video Resolution
• 1920 x 1080

Video Compression
N/A

Frame Rate
CVI , AHD ,TVI
• PAL : 1080p@25 fps
• NRSC : 1080p@ 30fps

Audio
• Built-in Mic

Interface
• 1x BNC

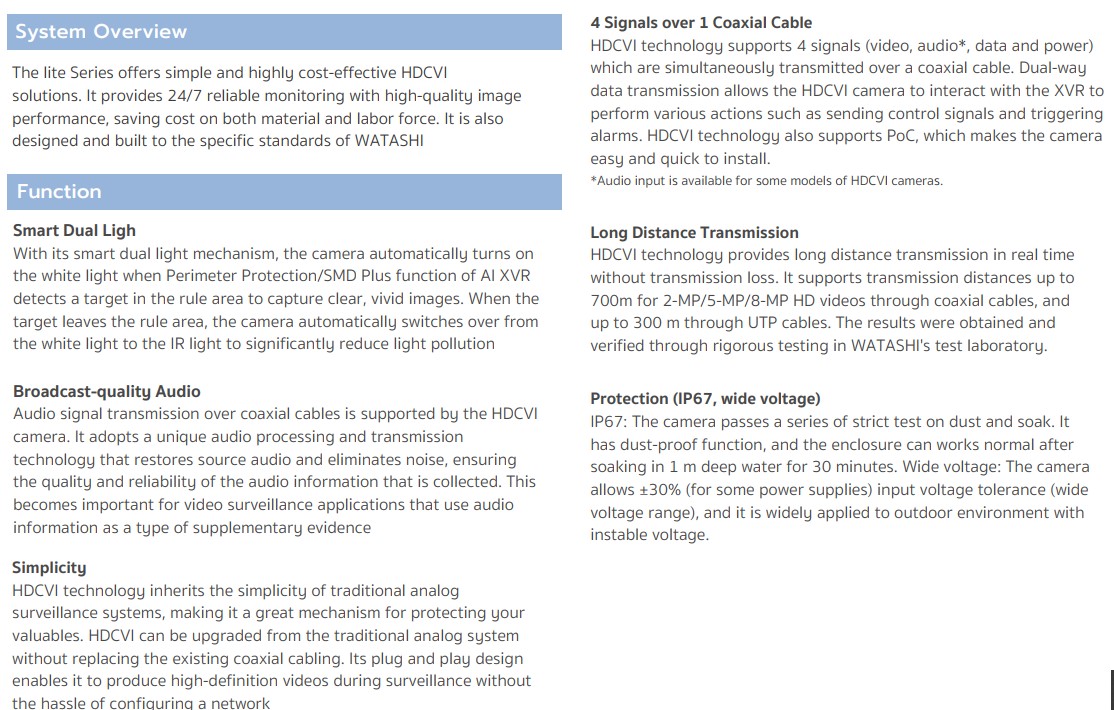

Functions
• Smart Dual Ligh
• Broadcast-quality Audio
• Simplicity
• 4 Singnals over 1 Coaxial Cable

Power
• 12 VDC ±30%

Power Consumption
• Max 3.3 W (12 VDC , LED on)

Working Environment
• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : ≤ 95% (RH) , non-condensing
• Storage Temperature : –40 °C to +60 °C ( –40 °F to +140 °F)
• Storage humidity : ≤ 95% (RH) , non-condensing

Ingress Protection
• IP67

Material
• Metal

Package Contents
N/A
