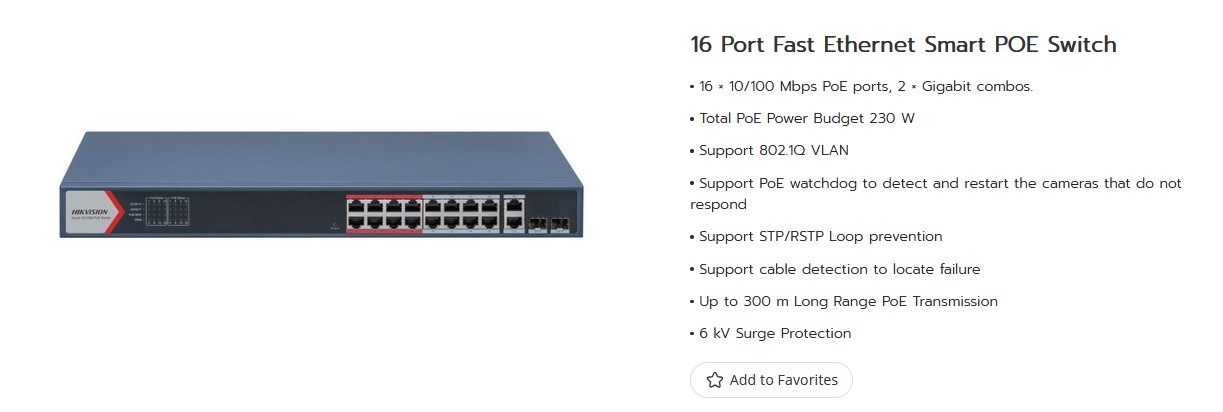

Switching Hub HIKVISION (DS-3E1318P-EI) 16 Port PoE

DS-3E1318P-EI

• 16× 10/100 Mbps PoE port (230W)
• 2× Gigabit combo

NONE

• IEEE 802.3af,IEEE 802.3at

• Whole-Device Performance: 9.2 Gbps
• Port Performance: 7.2 Gbps

• Up to 300 m Long Range PoE Transmission

16 K

• Whole-Device Performance: 6.84 Mpps
• Port Performance: 5.36 Mpps

N/A

N/A

N/A

N/A

N/A

YES

• Support device management via web
• Support management via Hik-Central Pro
• Support remote management via Hik-Partner Pro

• VLAN is used for network scale planning and network health improvement.
• Support 802.1Q.
• Configurable VLAN ID from 1-4094.
• Support Trunk, Access port mode.
• Support Max. 4094 VLAN.

• Ports 1 to 16: port isolation mode to improve network security

N/A

• Support STP/RSTP Loop prevention
• Support cable detection to locate failure
• Support PoE watchdog to detect and restart the cameras that do not respond

N/A

N/A

• Metal material

• Max. Port Power : 30W
• PoE Power Budget : 230W

• 100-240 VAC, 50/60 Hz, Max. 4 A

• Max. Power Consumption : 250 W
• Power Consumption in Idle : 20 W
• Surge Protection : 6 kV

• Operating Temperature : 0 °C to 45 °C (0 °F to 113 °F)
• Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity : 5% to 95% (no condensation)
• Relative Humidity : 5% to 95% (no condensation)

• CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)

N/A
