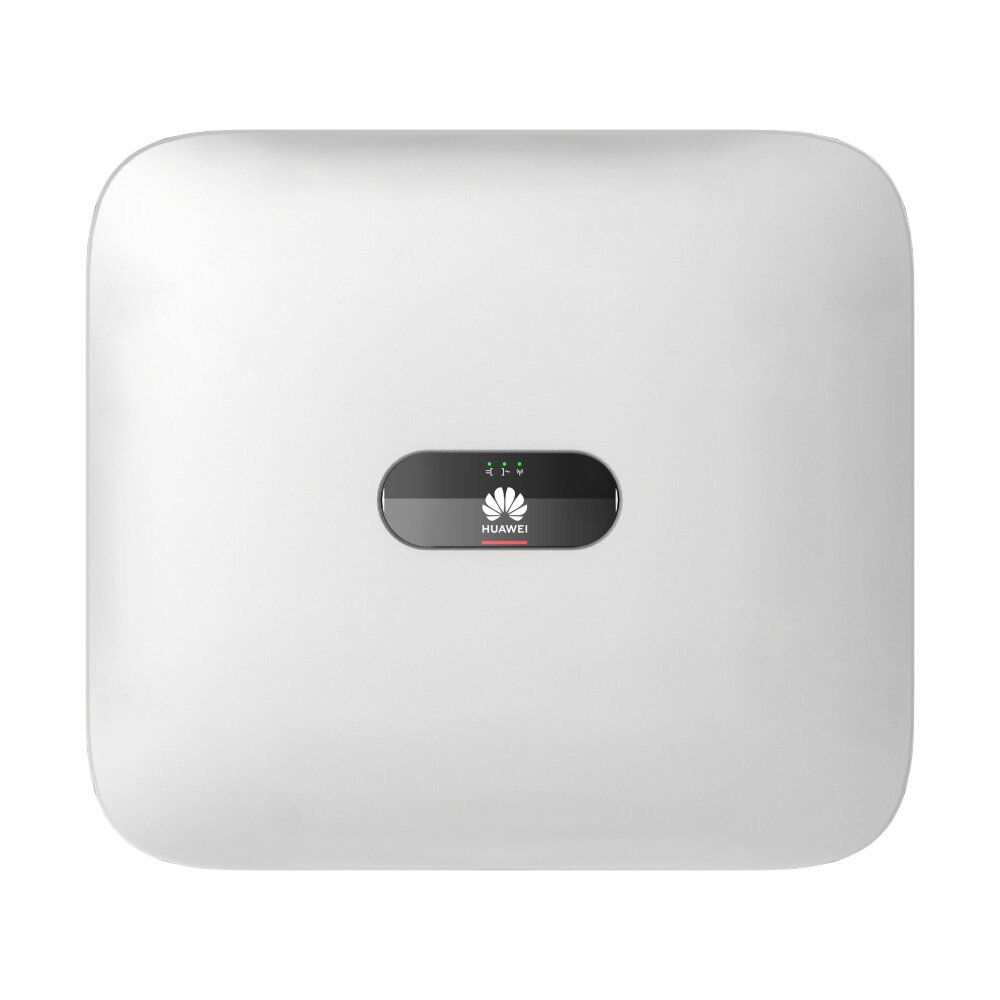

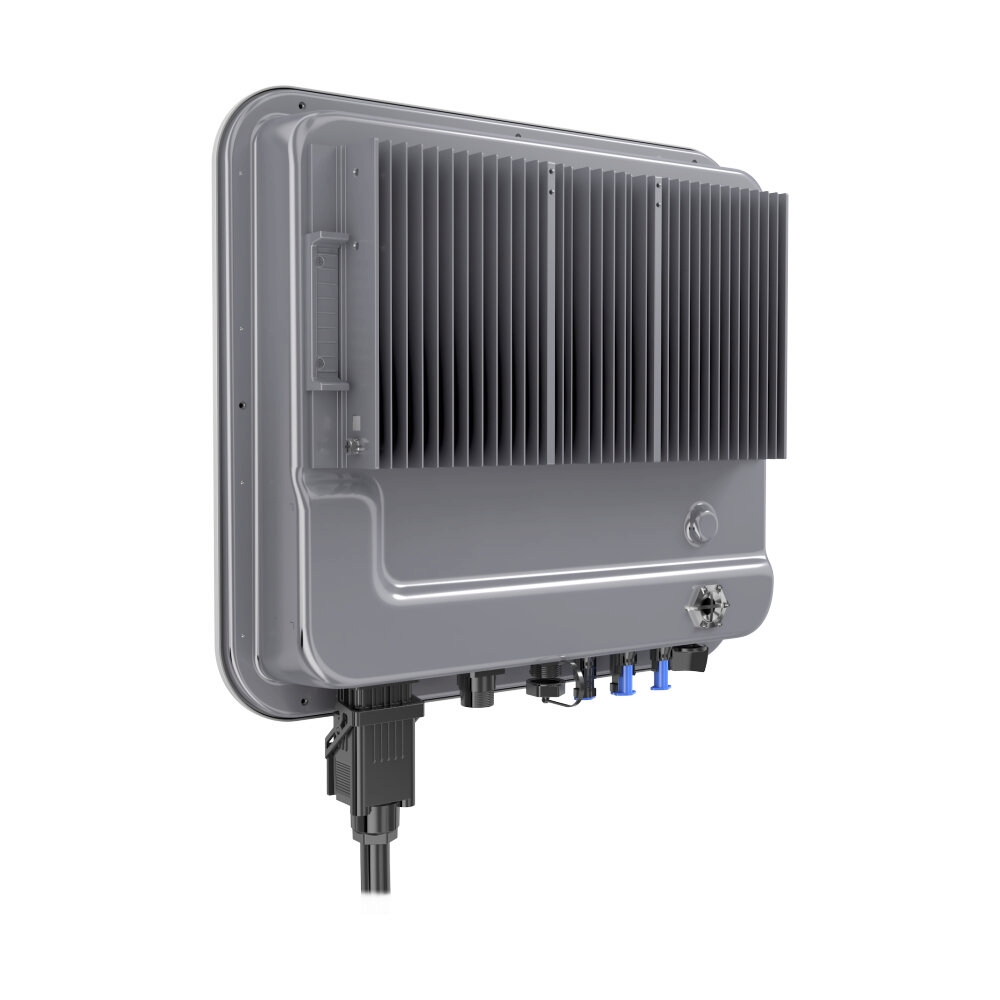

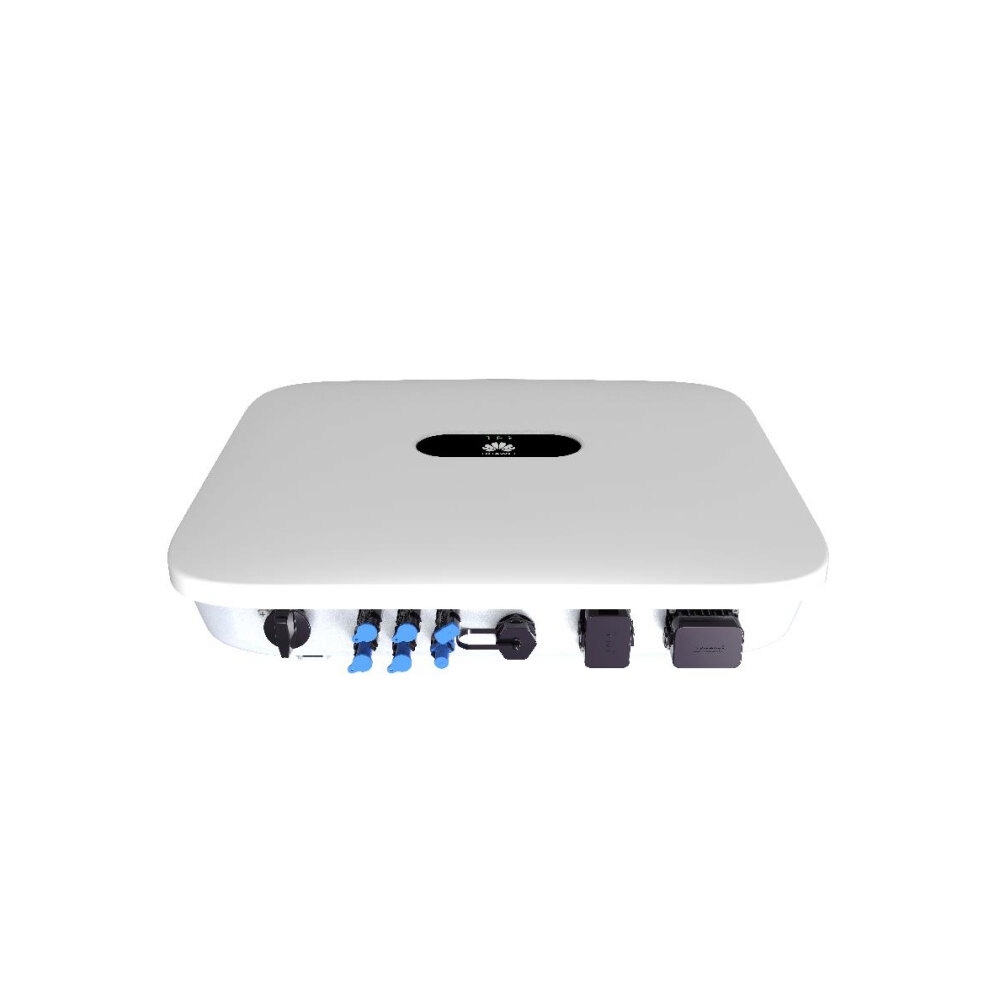

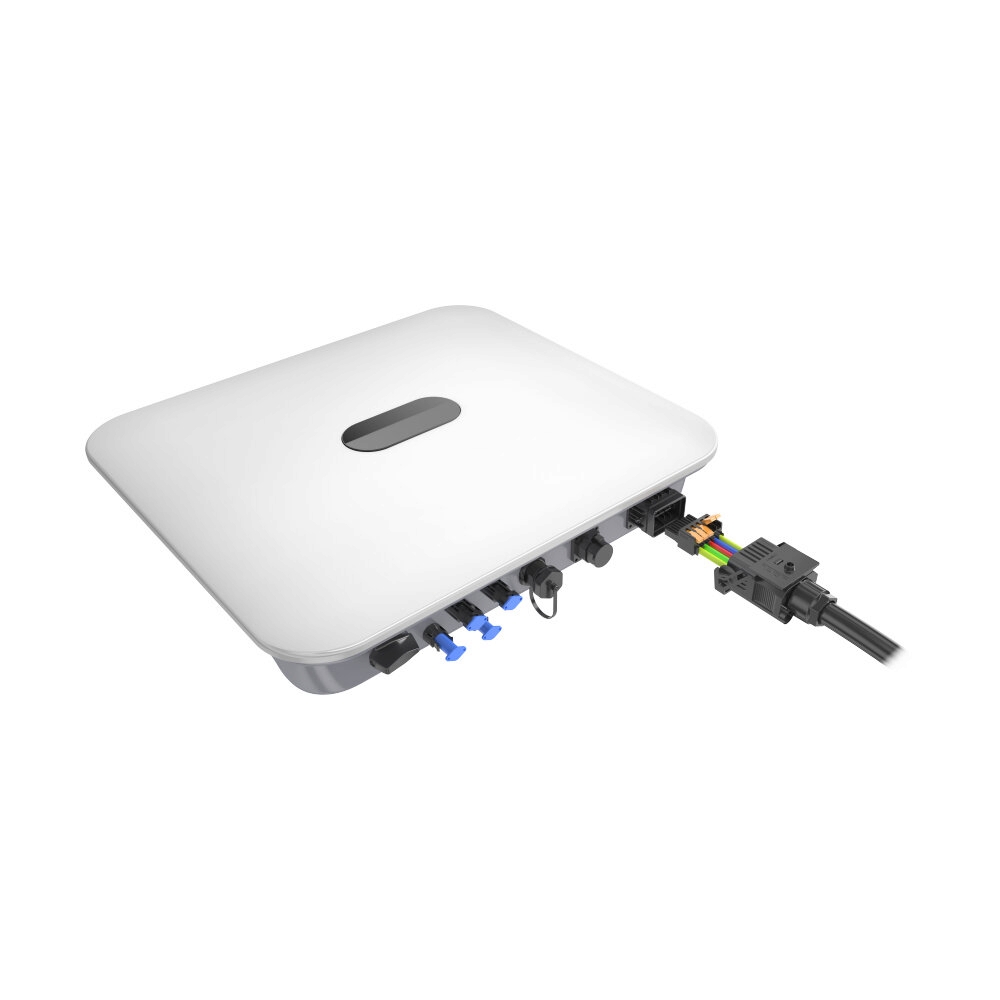

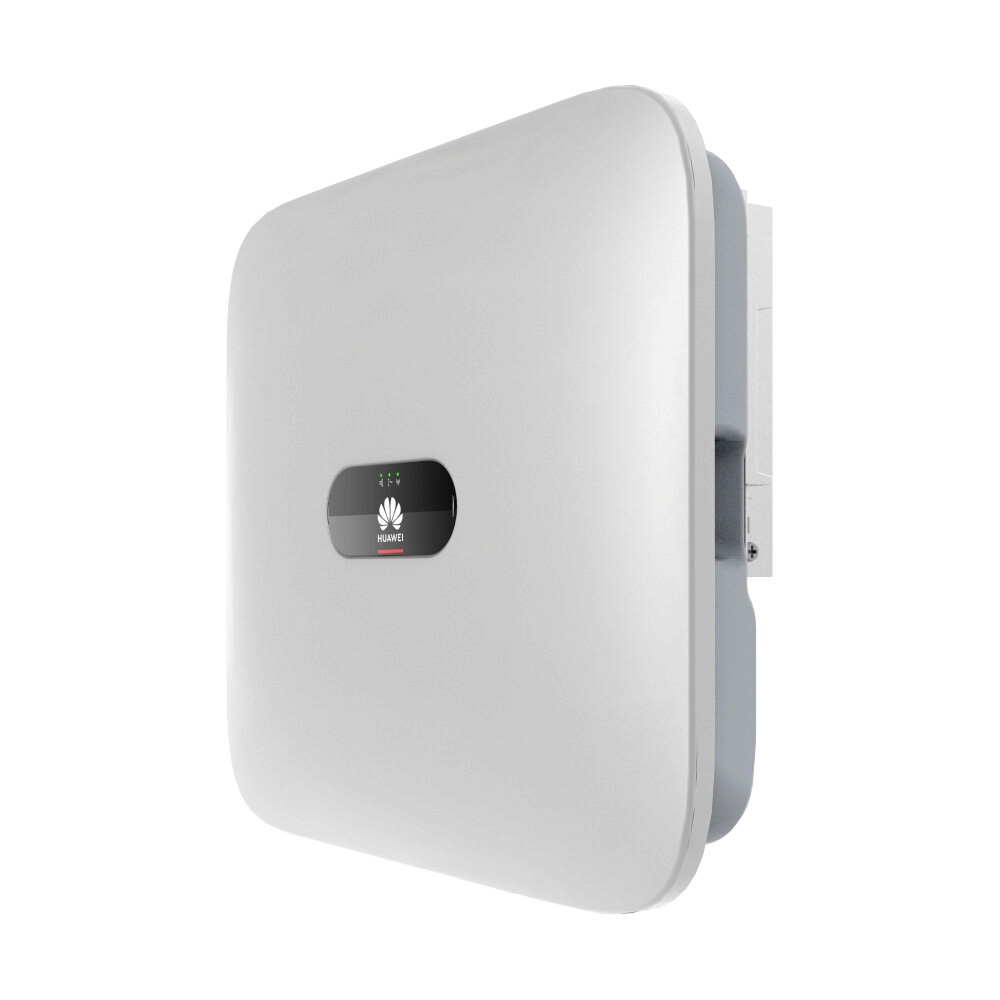

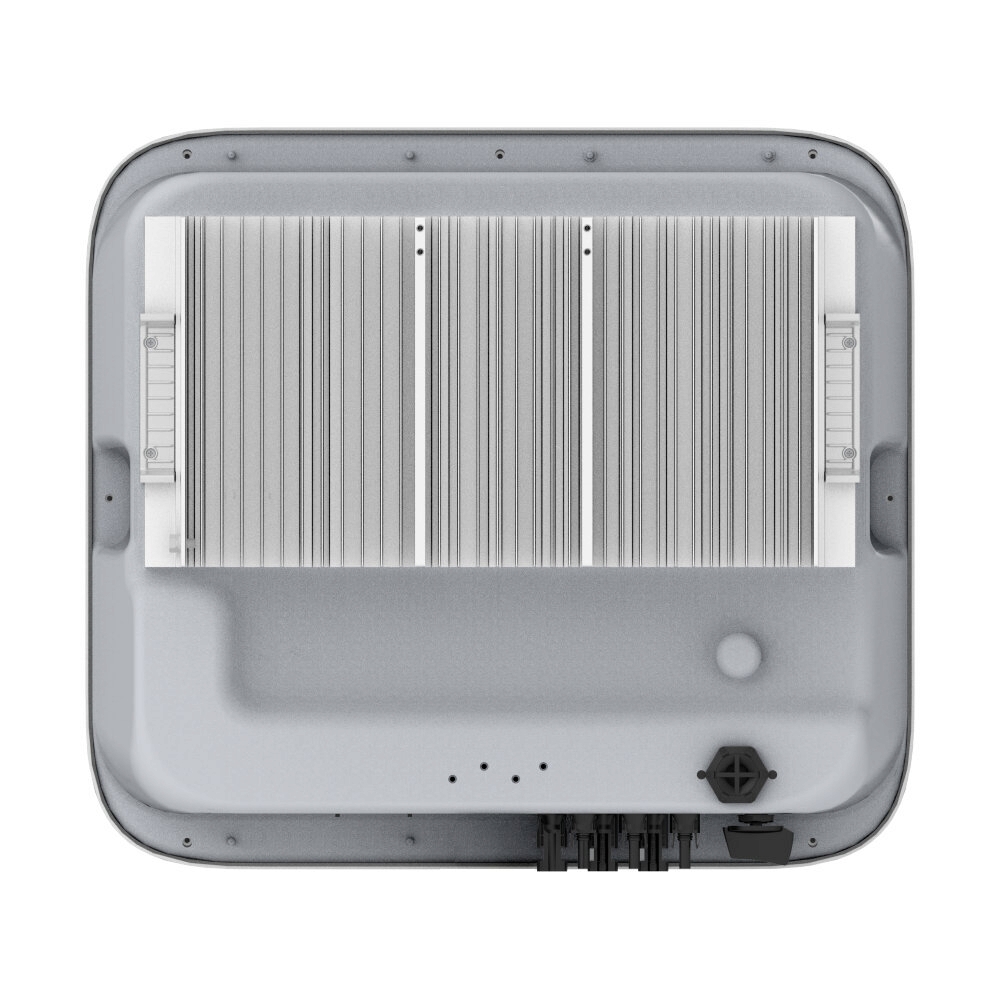

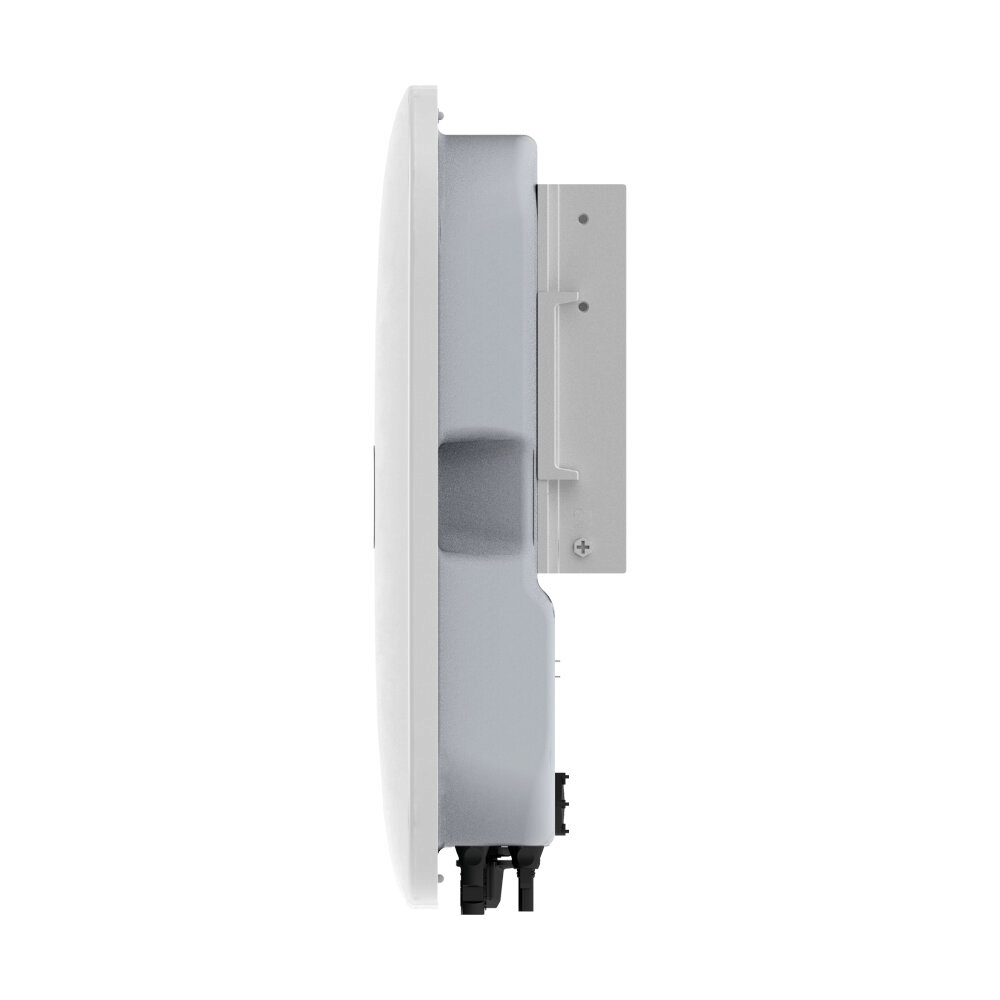

INVERTER HUAWEI HYBRID 5kW 3PHASE

HUW-2000-5KTLM1

• ใช้สำหรับระบบโซล่าเซลล์ Rooftop ประเภท Residential

Input  ( PV )
• Recommended max. PV power : 7,500 Wp
• Max. input voltage : 1,000 V
• Operatingvoltagerange : 140 V - 980 V
• Start-up voltage : 200 V
• Rated input voltage : 600 V
• Max. input current per MPPT : 19 A
• Number of MPP trackers : 2
• Max. number of input : 1
Input (DC Battery)
• Compatible Battery : HUAWEISmartStringESS 5kWh 30kWh
• Operating voltage range : 600V - 980 V
• Max operating current : 16A
• Max. charge power : 10,000 W
• Max. discharge power : 5,500 W

Output (OnGrid)
• Grid connection : Three-phase
• Rated output power : 5,000 W
• Max. apparent power : 5,500 VA
• Rated output voltage : 220Vac/380Vac,230Vac/400Vac,3W/N+PE
• Rated AC grid frequency : 50 Hz / 60 Hz
• Max. output current : 8.5 A
• Adjustable power factor : 0.8 leading ... 0.8 lagging
• Max. total harmonic distortion : ≤3 %
Output ( Backup Powervia Backup Box-B1 )
• Maximum Apparent power : 3,300VA
• Rated output voltage : 220V / 230V
• Max. output current : 15A
• Power factor range : 0.8leading...0.8 lagging

• Operating temperature range : –25°C to +60°C (-13 °F ~ 140 °F)
• Relative operating humidity : 0%-100% RH
• Operating altitude : 0-4,000 m (Derating above 2,000 m)
• Cooling : Natural convection
• Display : LED indicators; integrated WLAN + FusionSolarAPP
• Communication : RS485;WLAN/EthernetviaSmart Dongle-WLAN-FE;4G/3G/2Gvia Smart Dongle-4G(Optional)
• Degree of protection : IP65
