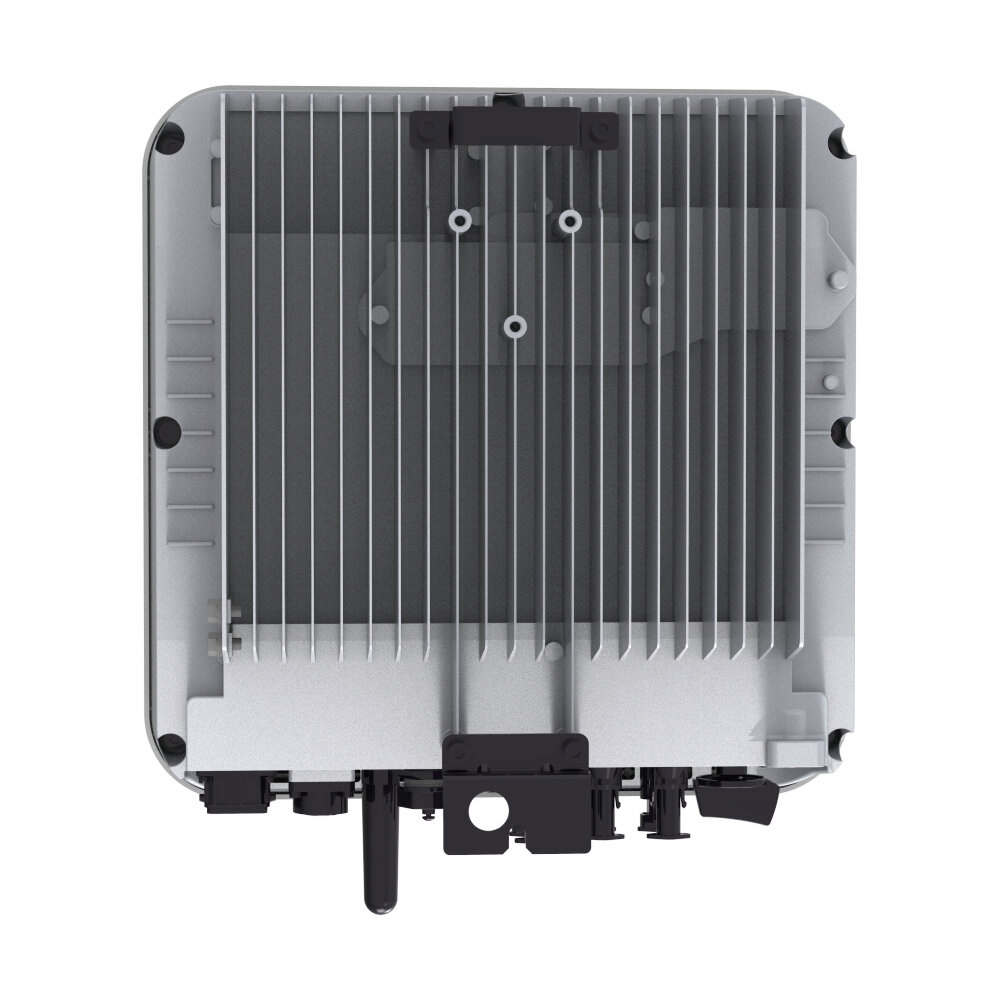

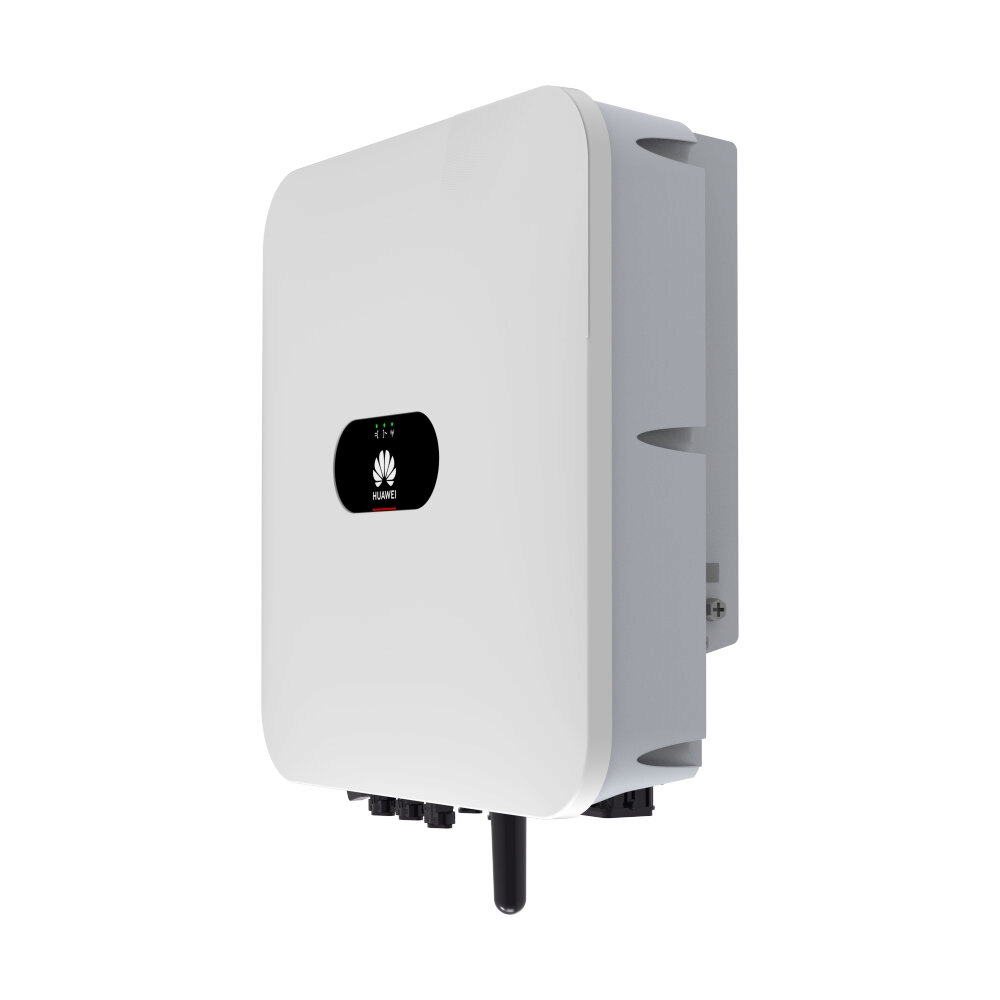

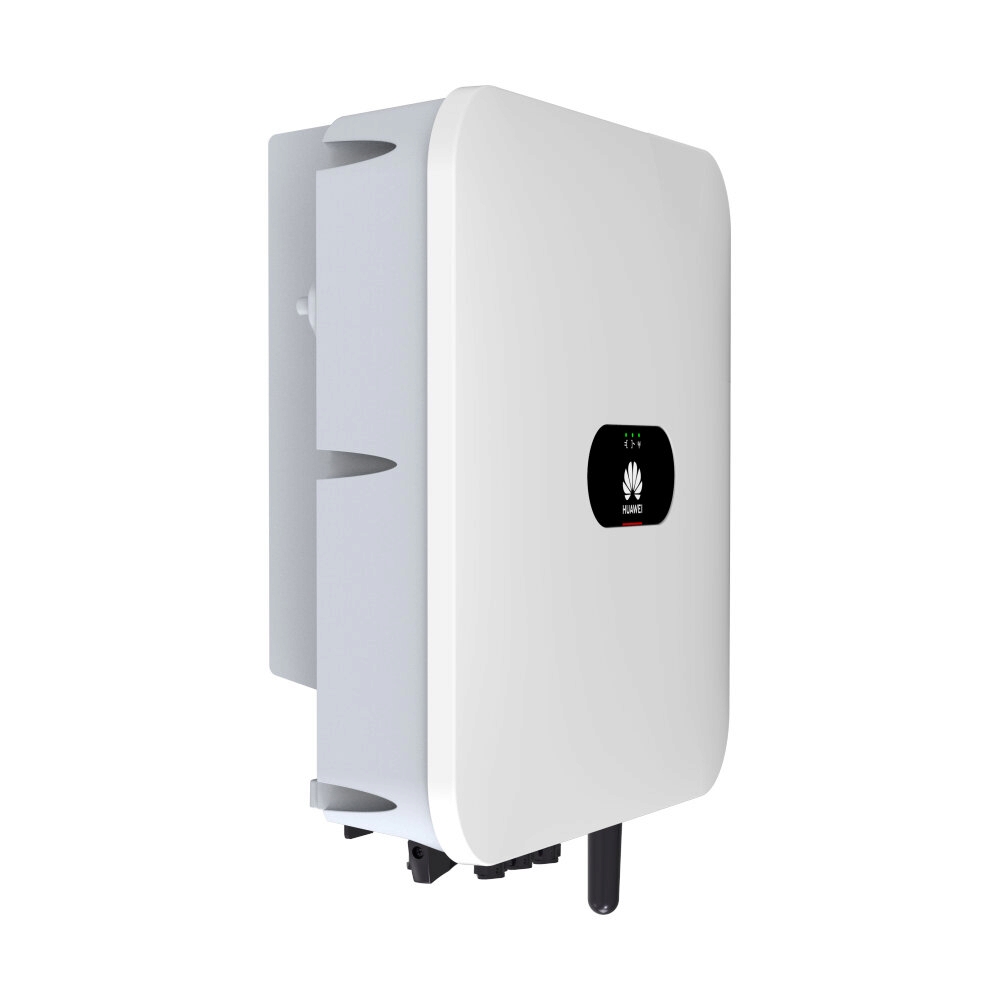

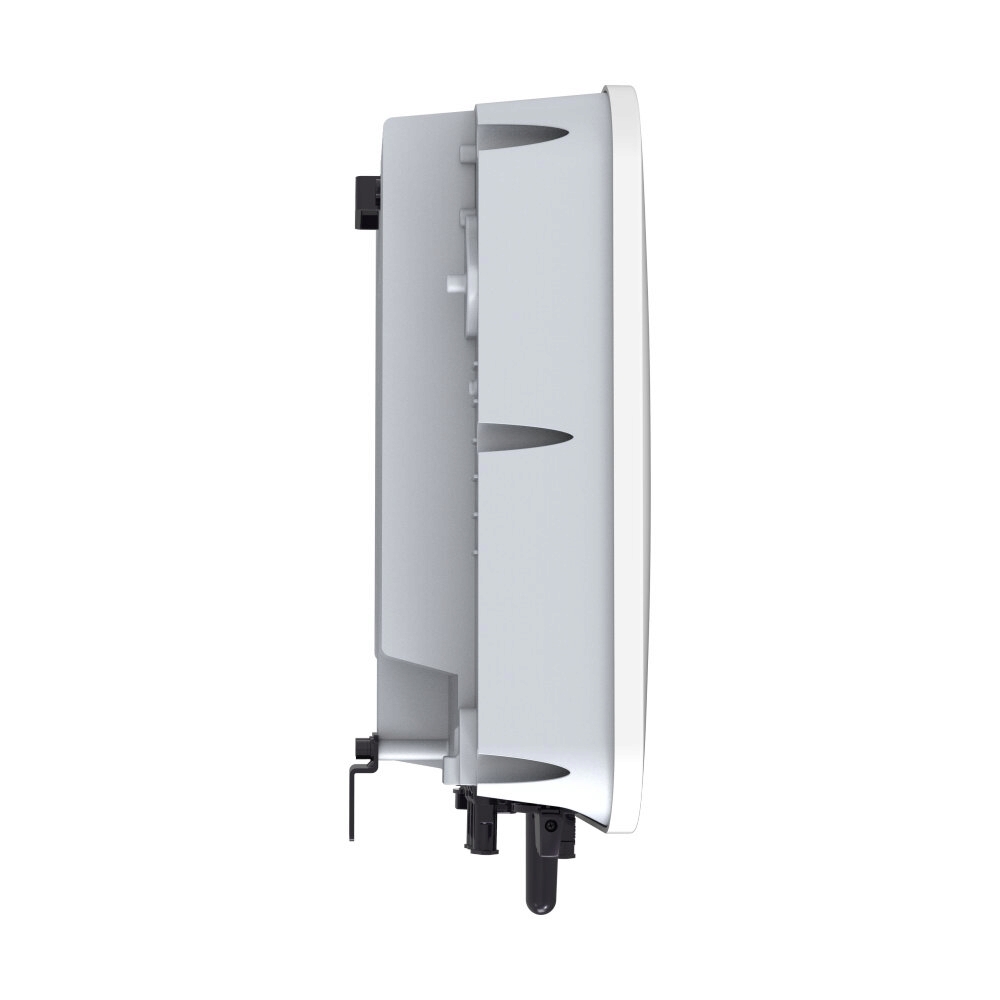

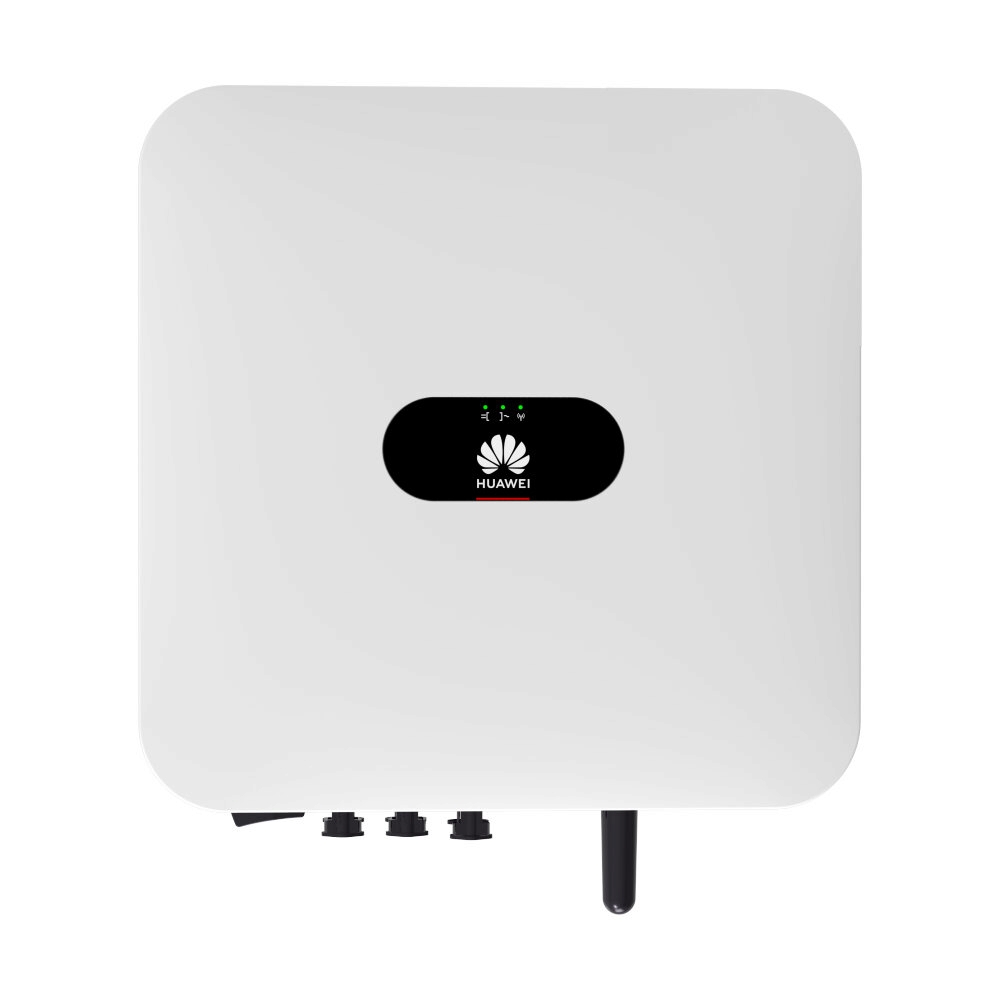

INVERTER HUAWEI HYBRID (SUN-2000-5KTL-L1)

HUW-2000-5KTLL1

• ใช้สำหรับระบบโซล่าเซลล์ Rooftop ประเภท Residential

Input  ( PV )
• Recommended max. PV power : 7,500 Wp
• Max. input voltage : 600 V³
• Start-up voltage : 100 V
• MPPT operating voltage range : 90 V –560 V³
• Rated input voltage : 360 V
• Max. input current per MPPT : 12.5 A
• Max. short-circuit current : 18 A
• Number of MPP trackers : 2
• Max. number of input : 2
Input (DC Battery)
• Compatible Battery : LG ChemRESU 7H_R / 10H_R
• Operating voltage range : 350 ~ 450 Vdc
• Max operating current : 10 A @7H_R / 15 A @10H_R
• Max charge power : 3,500 W @7H_R / 5,000 W @10H_R
• Max discharge Power @7H_R : 3,500 W
• Max discharge Power @10H_R : 5,500 W
• Compatible Battery : HUAWEI Smart ESS Battery 5kWh – 30kWh
• Max operating current : 15 A
• Max charge Power : 5,000 W⁴
• Max discharge Power : 5,000 W

• Grid connection : Single phase
• Rated output power : 5,000 W⁵
• Max. apparent power : 5,500 VA
• Rated output voltage : 220 Vac/ 230 Vac/ 240 Vac
• Rated AC grid frequency : 50 Hz / 60 Hz
• Max. output current : 25 A⁸
• Adjustable power factor : 0.8 leading ... 0.8 lagging
• Max. total harmonic distortion : ≤3 %
• Backup power output : Yes (via Backup Box-B0¹)

• Operating temperature range : -25 ~ +60 °C (Derating above 45°C @ Rated output power)
• Relative operating humidity : 0 %RH?100 %RH
• Operating altitude : 0 ?4,000 m (Derating above 2,000 m)
• Cooling : Natural convection
• Display : LED indicators; integrated WLAN + FusionSolarAPP
• Communication : RS485, WLAN via inverter built-in WLAN moduleEthernet via Smart Dongle-WLAN-FE (Optional); 4G / 3G / 2G via Smart Dongle-4G (Optional)
• Degree of protection : IP65
