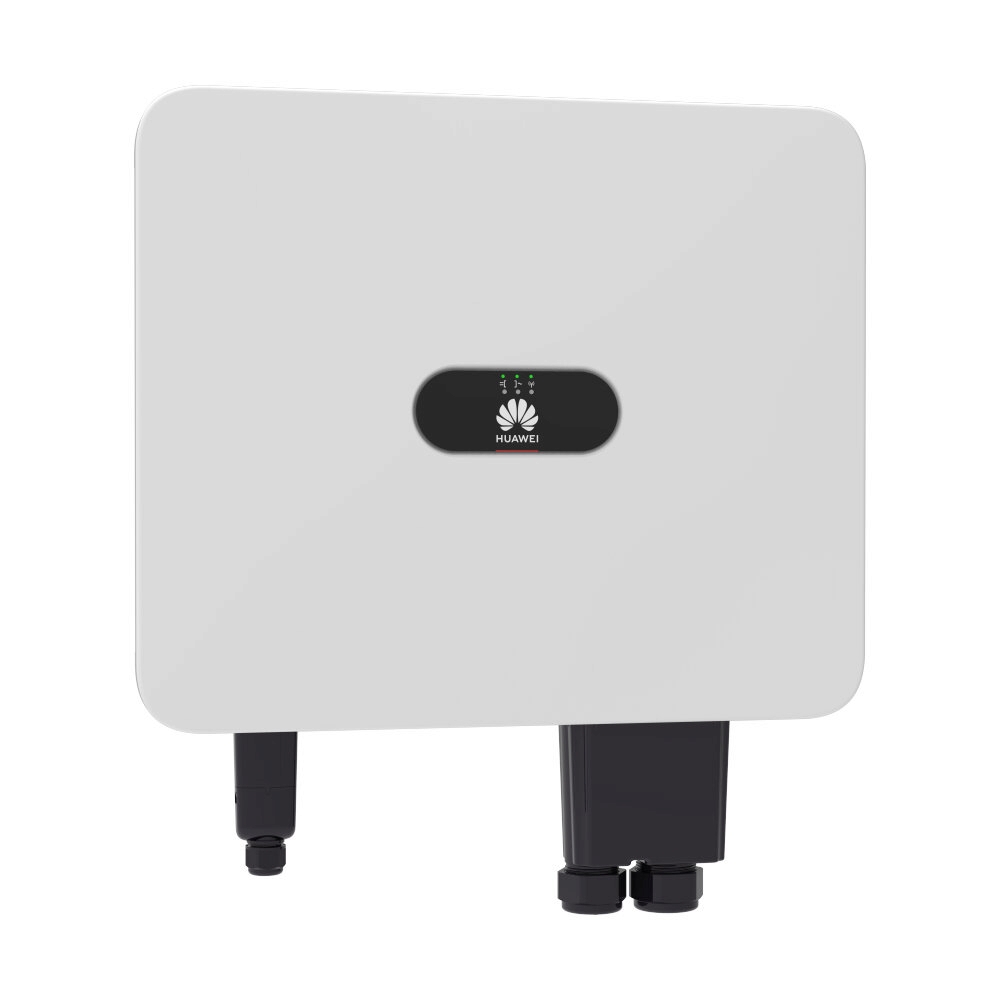

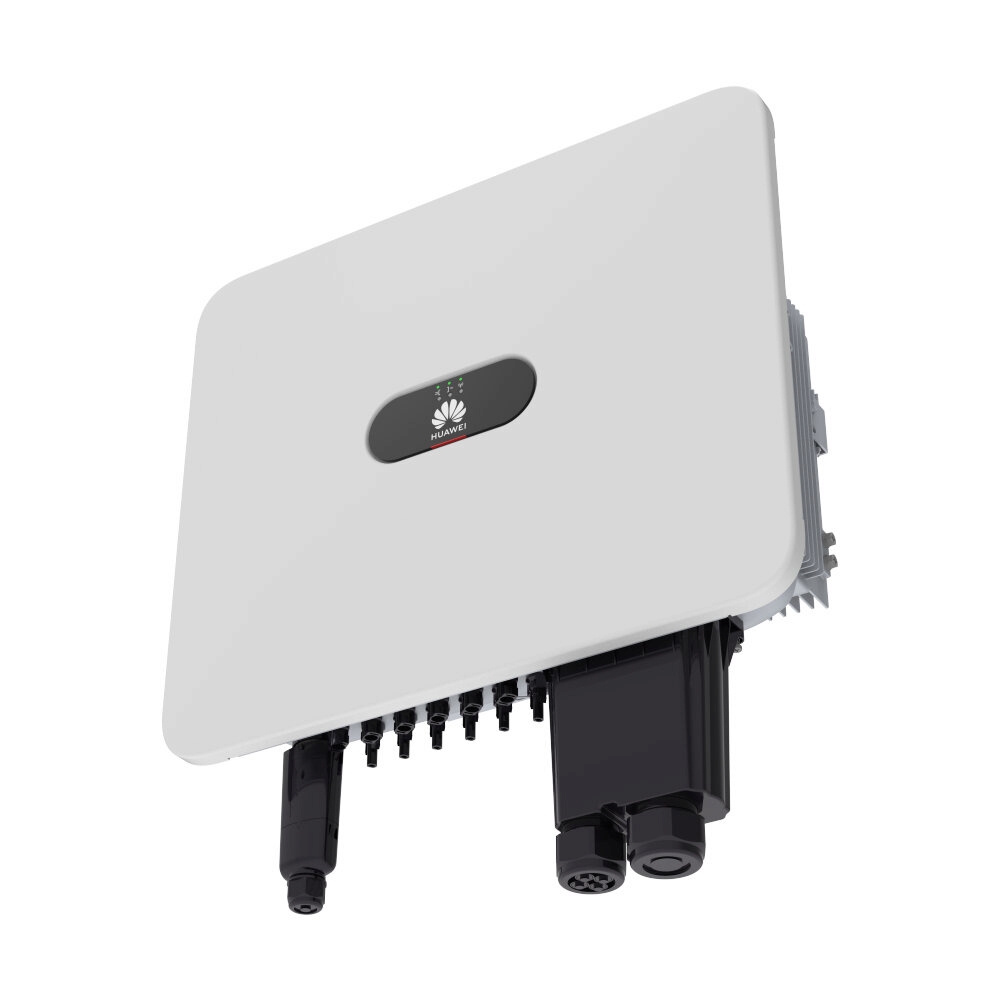

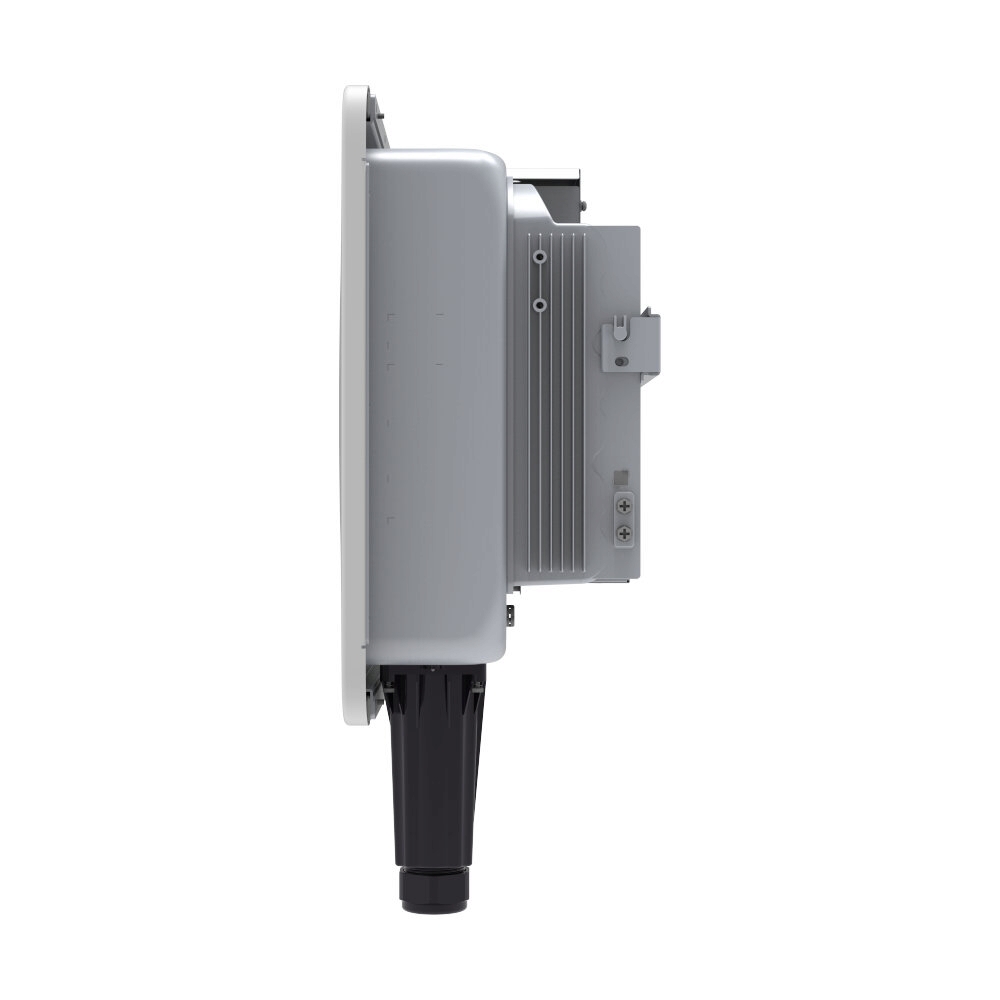

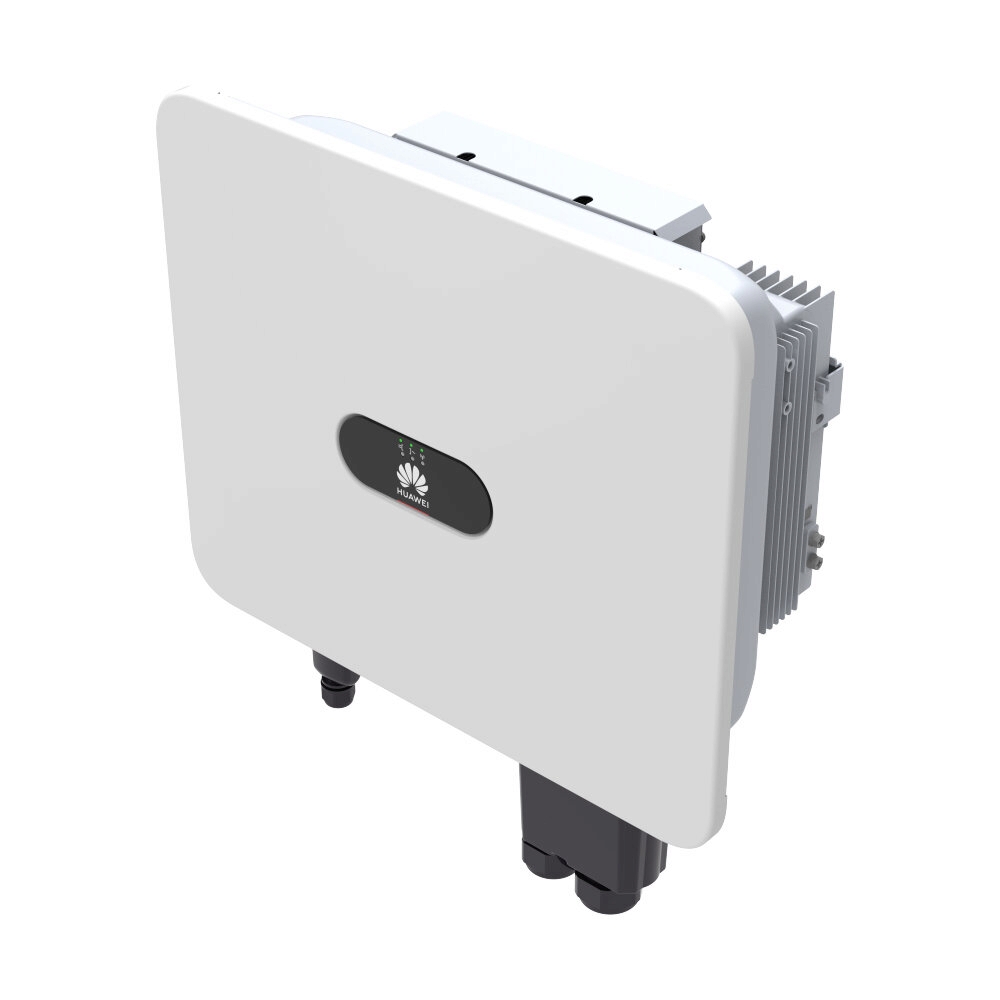

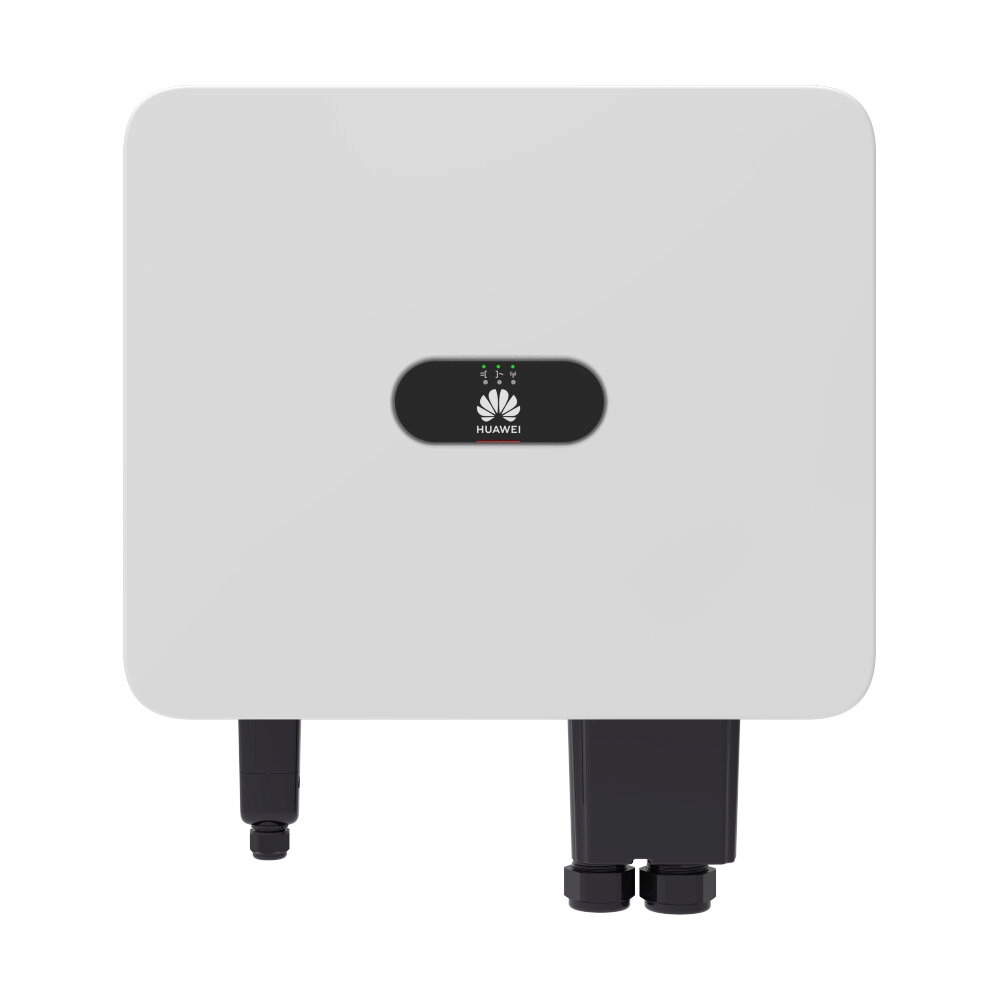

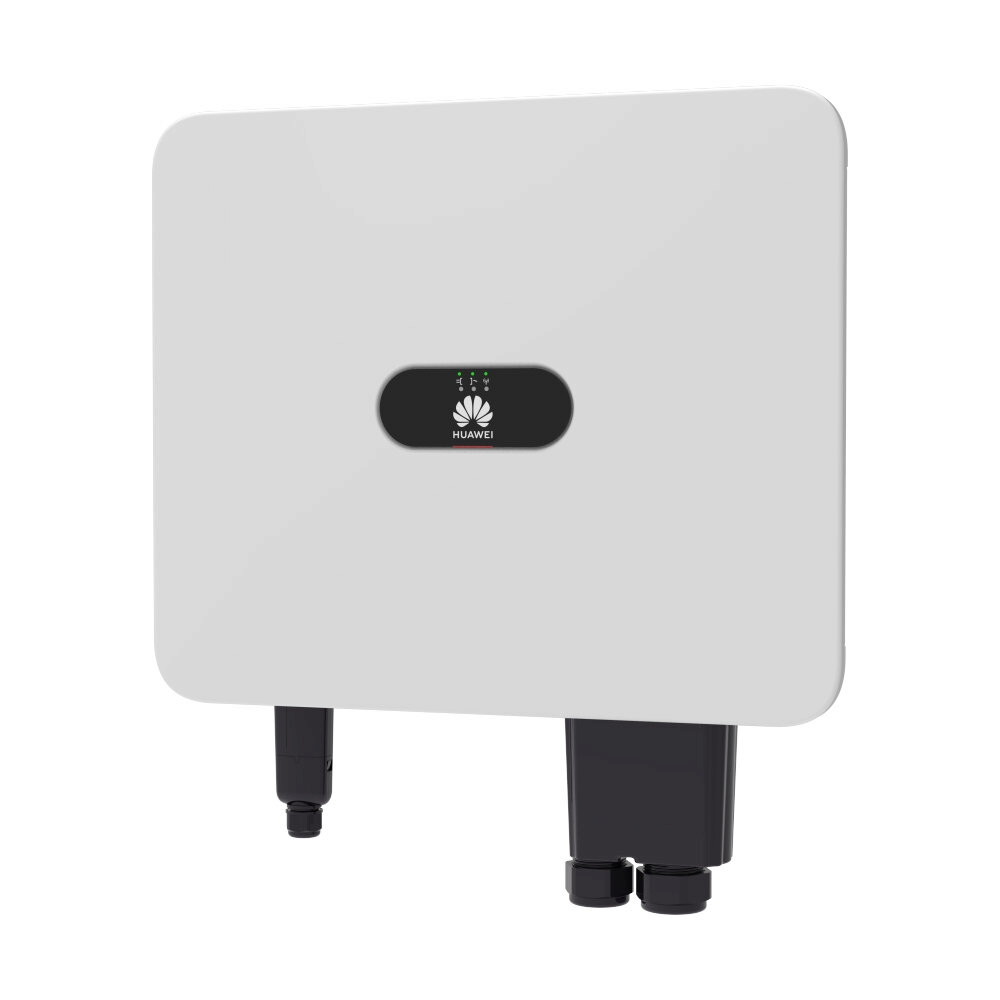

INVERTER HUAWEI HYBRID 20kW 3PHASE (M5)

HUW-2000-20KTLM5

• ใช้สำหรับระบบโซล่าเซลล์ Rooftop ประเภท Residential

Input  ( DC )
• Recommended max. PV power : 30,000 Wp
• Max. input voltage : 1100 V
• Full-load MPPT voltage range : 480V-800V
• MPPT Operating voltage range : 200 V ~ 1000 V
• Start-up voltage : 200 V
• Rated input voltage : 600 V
• Max. input current per MPPT : 30 A (two string) / 20 A (single string)
• Max. short-circuit current : 40 A
• Number of MPP trackers : 2
• Max. number of inputs : 4

• Grid connection : Three phase
• Rated output power : 20,000 W
• Max. apparent power : 22,000 VA
• Rated output voltage : 220 Vac/ 380 Vac, 230 Vac/ 400 Vac, 239.6 Vac/ 415Vac, 3W + N + PE
• Rated AC grid frequency : 50 Hz / 60 Hz
• Max. output current : 33.6A/380Vac , 31.9A/400Vac  , 30.8A/415Vac
• Adjustable power factor : 0.8 leading ... 0.8 lagging
• Max. total harmonic distortion : ≤3 %

• RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional)
• 4G / 3G / 2G via Smart Dongle-4G (Optional)

• Overvoltage Category : PV II/AC III
• Input-side disconnection device : Yes
• Anti-islanding protection : Yes
• AC over-current protection : Yes
• DC reverse-polarity protection : Yes
• String fault detection : Yes
• DC surge protection : TYPE II
• AC surgeprotection : CLASS II
• Residual current monitoring unit : Yes
• Arc fault protection : Yes
• Ripple control ripple control : Yes
• Integrated PID recovery 4 : Yes

• Operation temperature range : -25~ + 60 °C (-13 °F ~ 140 °F)
• Relative humidity : 0 % RH ~ 100% RH
• Max. operating altitude : 0 ~4,000 m (13,123 ft.) (Derating above 2000 m)
• Cooling : Smart air cooling
• Display : LED Indicators; Integrated WLAN + FusionSolarApp
• Degree of protection : IP66
• Safety : EN/IEC 62109-1,EN/IEC62109-2
