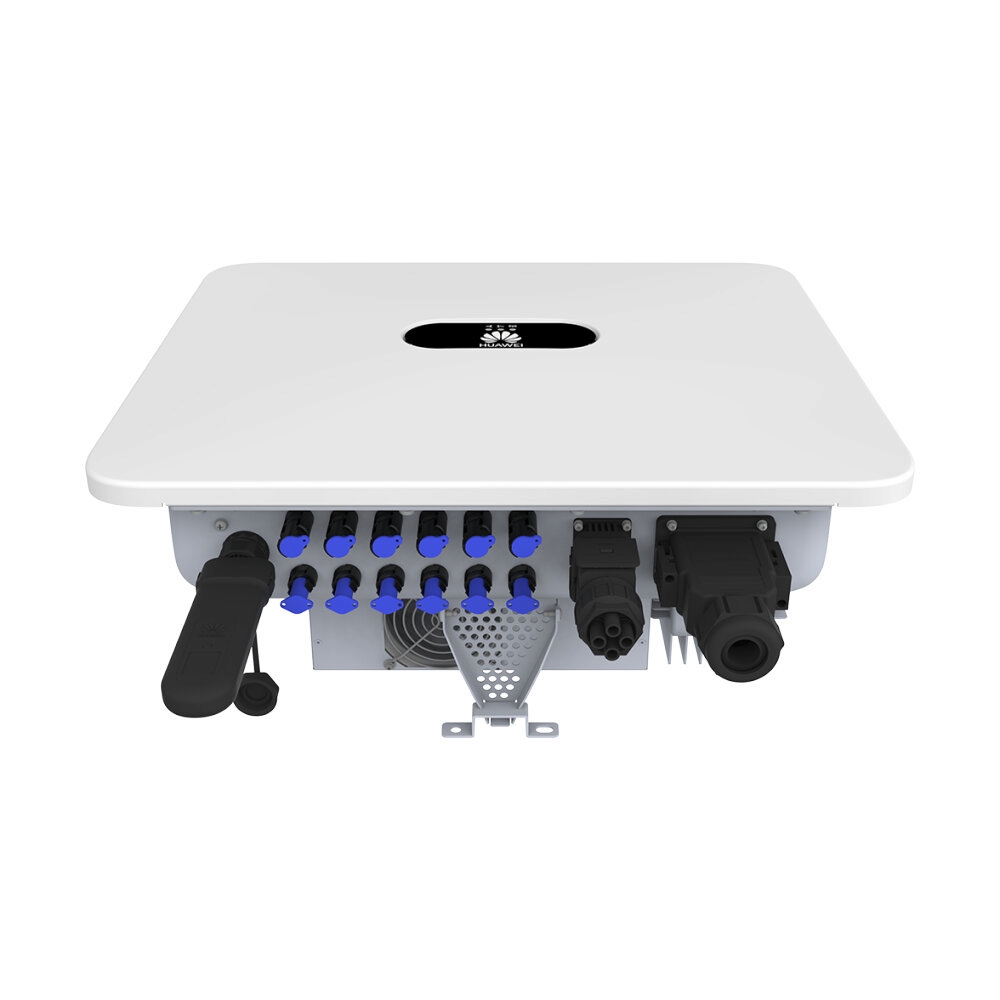

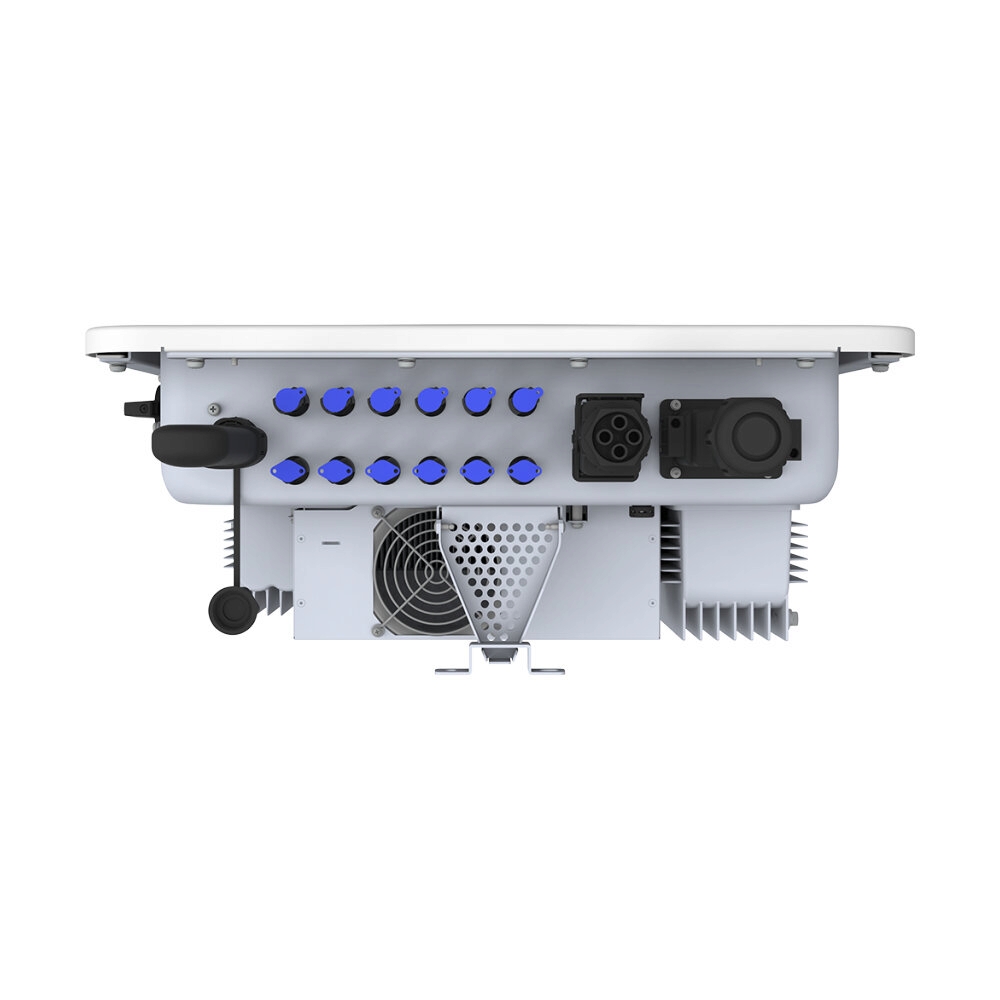

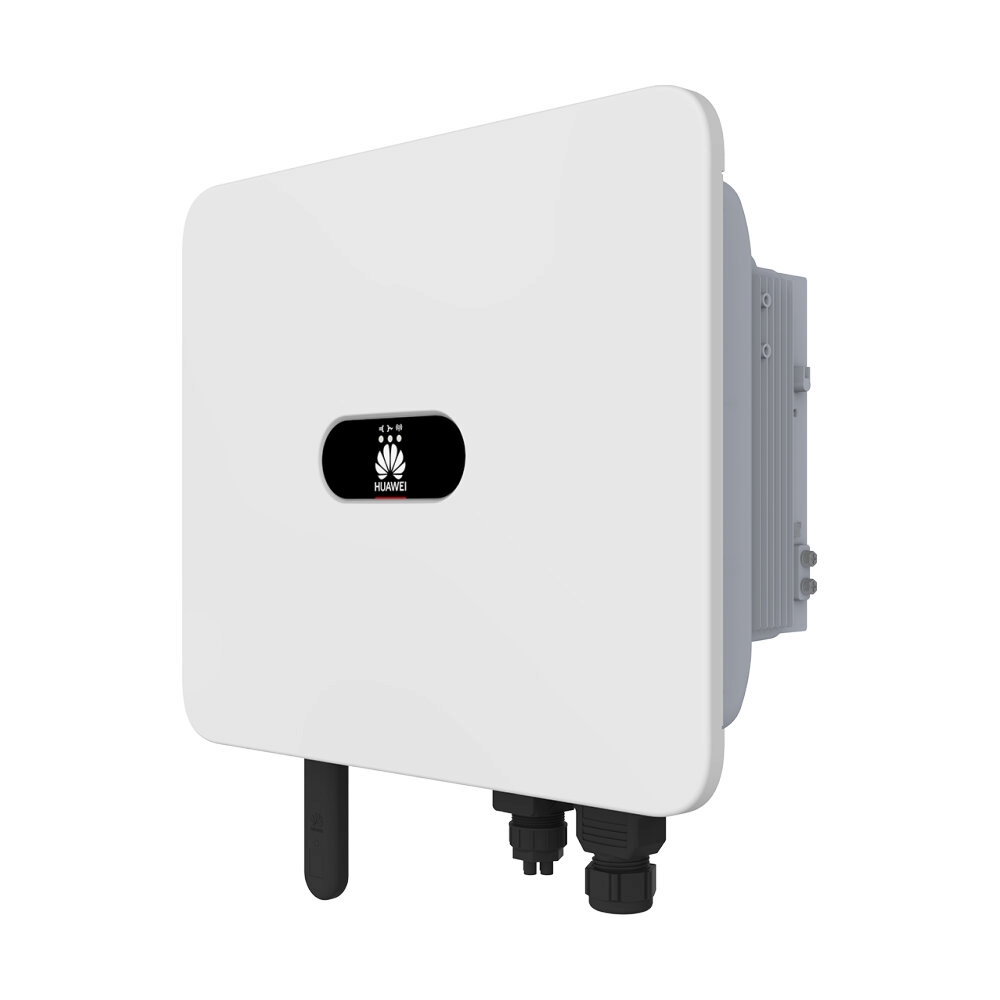

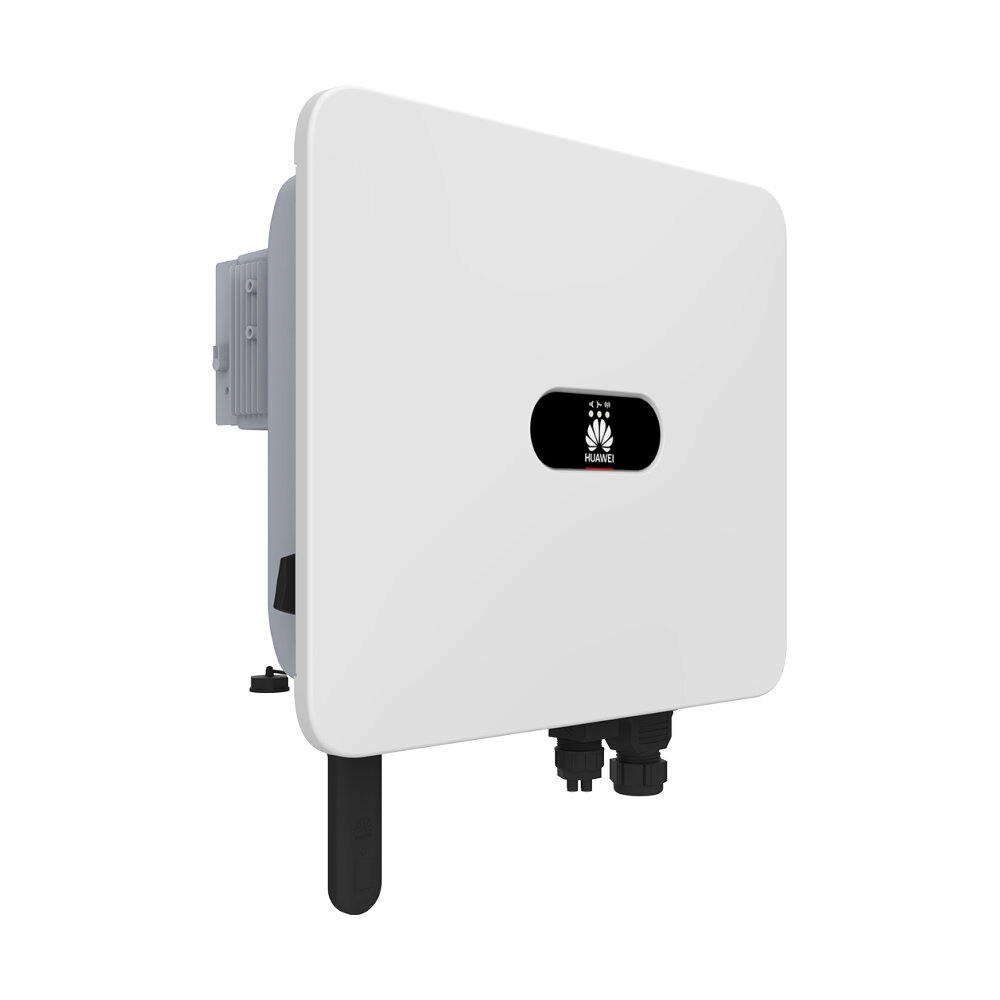

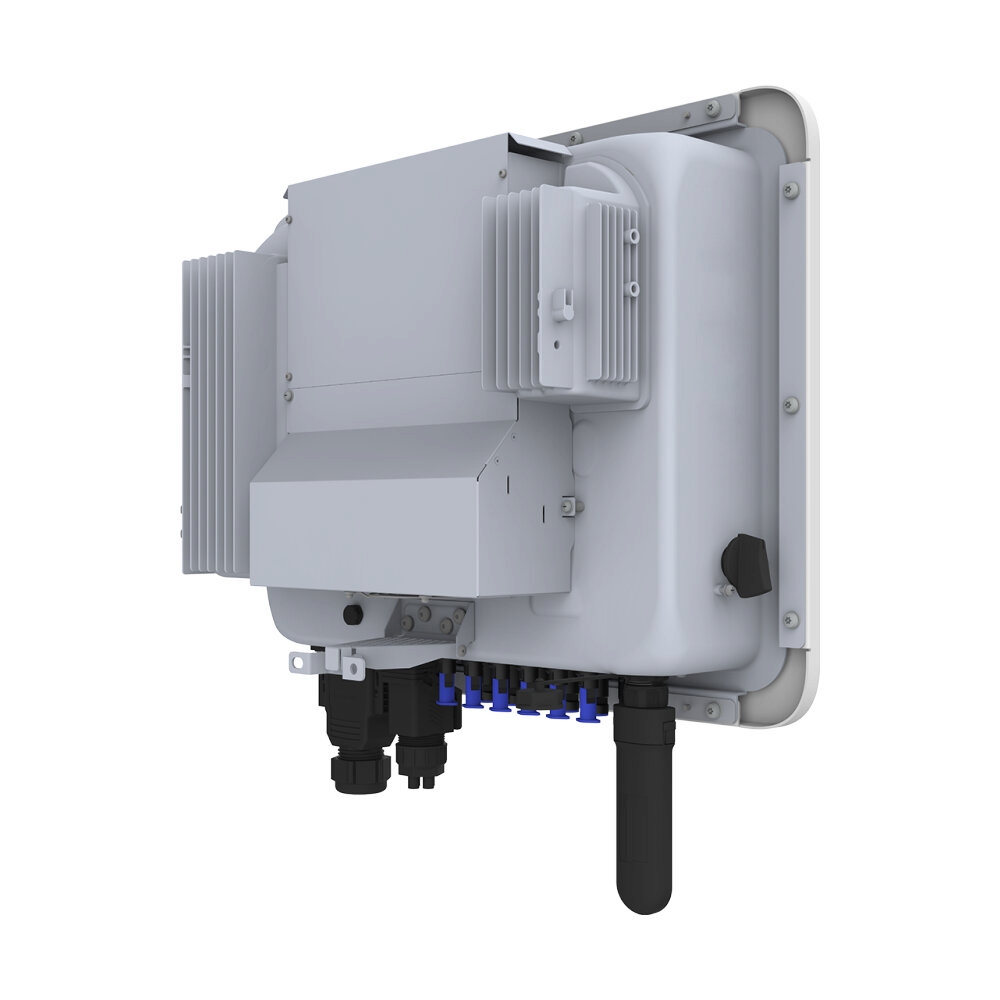

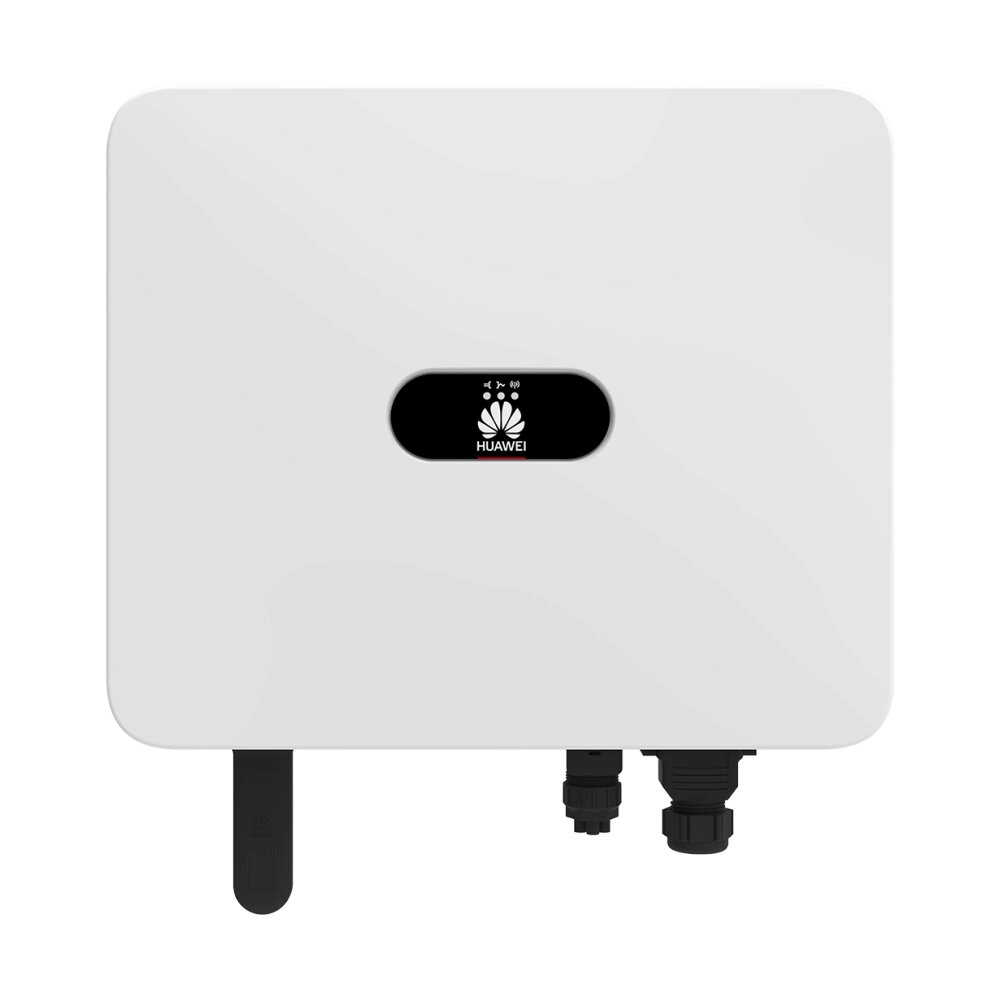

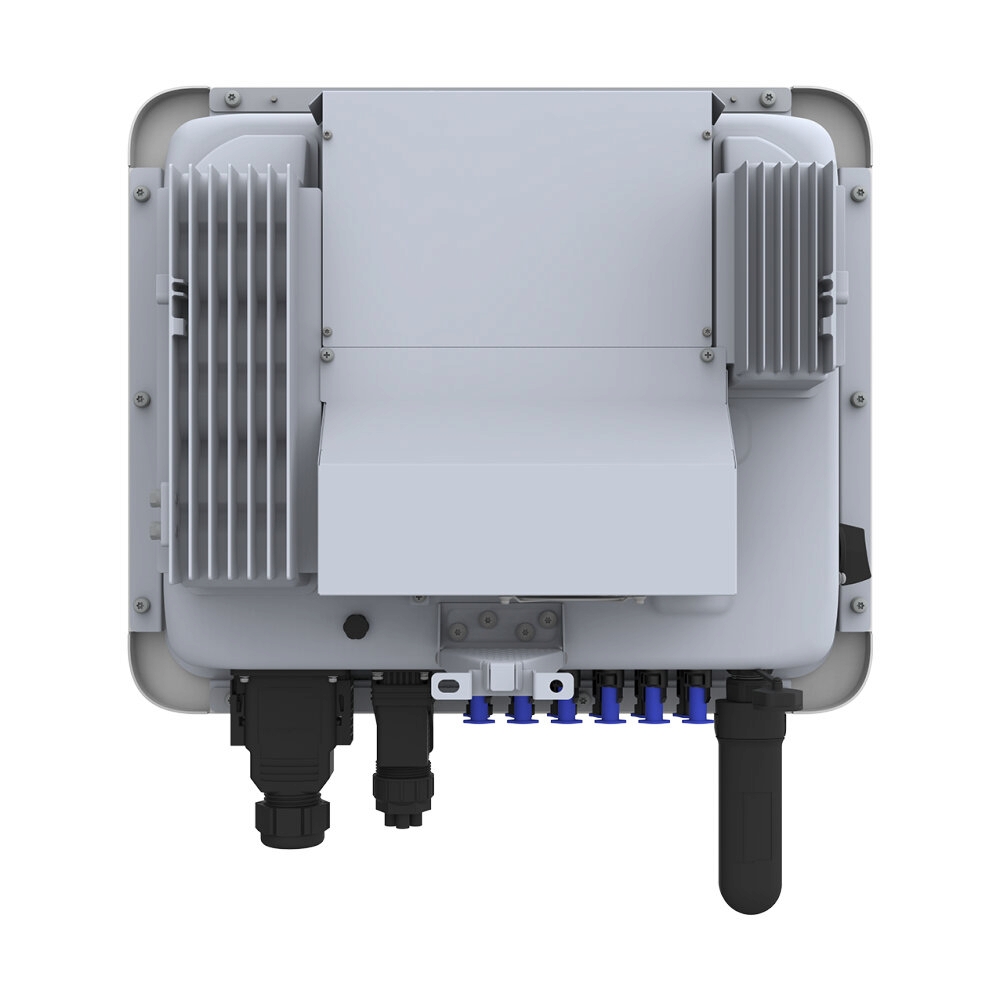

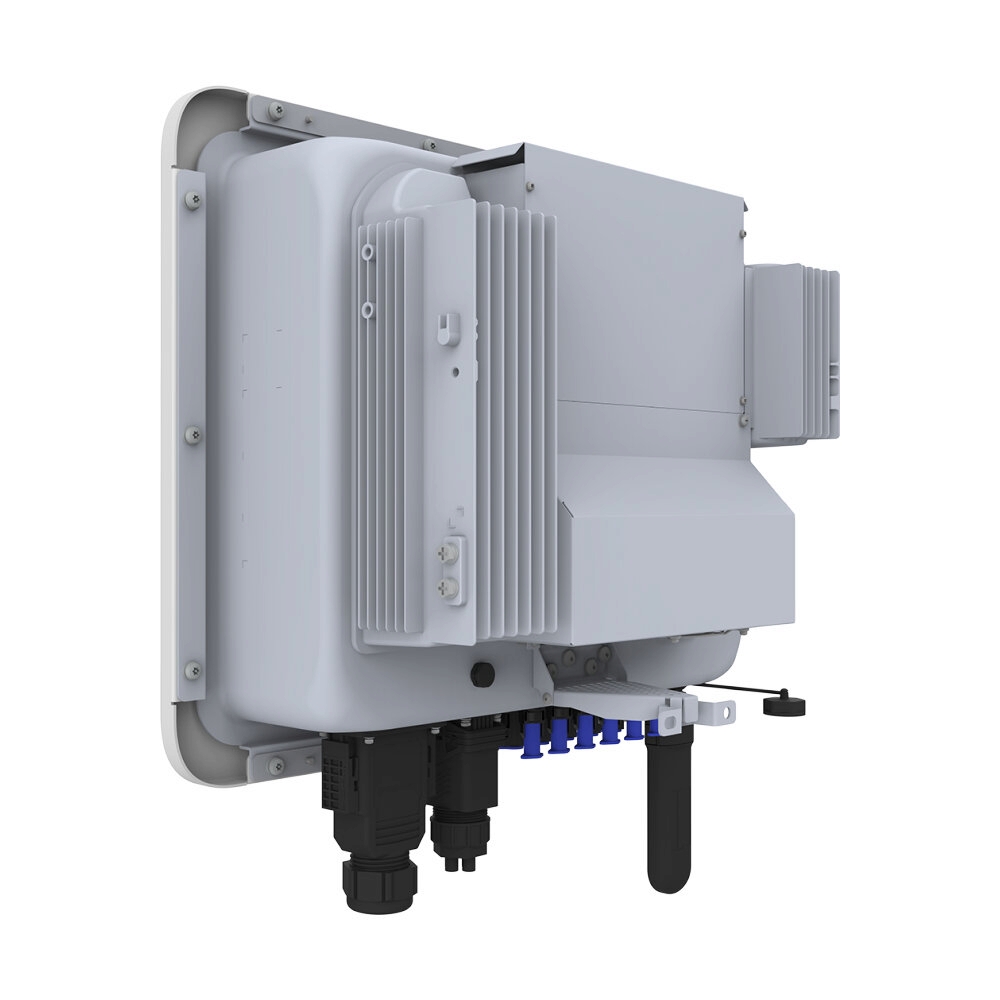

INVERTER HUAWEI HYBRID 15kW 3PHASE (MB0)

HUW-2000-15K-MB0

• ใช้สำหรับระบบโซล่าเซลล์ Rooftop ประเภท Residential

Input  ( DC )
• Recommended max. PV power : 22,500 Wp
• Max. input voltage : 1,100 V
• Max. input current per MPPT : 30 A (two strings) / 20 A (single string)
• Max. short-circuit current : 40 A
• Start-up voltage : 200 V
• MPPT operating voltage range : 200 V ~ 1,000 V
• Full-load MPPT voltage range : 410 V~800 V
• Rated input voltage : 600 V
• Max. number of inputs : 4
• Number of MPP trackers : 2

Output
• Rated output power : 15,000 W
• Max. apparent power : 16,500 VA
• Max. active power (cosφ = 1) : 16,500 W
•  Rated output voltage : 220 Vac / 380 Vac, 230 Vac / 400 Vac, 240 Vac / 415 Vac; 3 W / N + PE
• Rated output current : 22.8 A / 380 Vac , 21.7 A / 415 Vac , 20.9 A / 415 Vac
• Max. output current : 25.2 A / 380 Vac , 23.9 A / 400 Vac  , 23.1 A / 415 Vac
• Rated AC grid frequency : 50 Hz / 60 Hz
• Adjustable power factor : 0.8 leading ... 0.8 lagging
• Max. total harmonic distortion : ≤ 3%

• RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (Optional)
• 4G / 3G / 2G via Smart Dongle-4G (Optional); EMMA (Optional)

• Overvoltage category : PV II /AC III
• Input-side disconnection device : Yes
• Anti-islanding protection : Yes
• AC over-current protection : Yes
• DC reverse-polarity protection : Yes
• DC surge protection : TYPE II
• AC surge protection : Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
• DC insulation resistance detection : Yes
• Residual current monitoring unit : Yes
• Arc fault protection : Yes

• Operating temperature range : -25 °C ~ +60 °C (-13 °F ~ 140 °F
• Relative humidity : 0 % RH ~ 100 % RH
• Max. operating altitude : 4,000 m (13,123 ft.) (Derating above 2,000 m)
• Cooling : Smart air cooling
• Display : LED indicators, Integrated WLAN + FusionSolar APP
• Protection level : IP66
• Max. number of paralleled unit (with Smart String ESS) : 3
• Certificates : EN/IEC62109-1, EN/IEC62109-2
