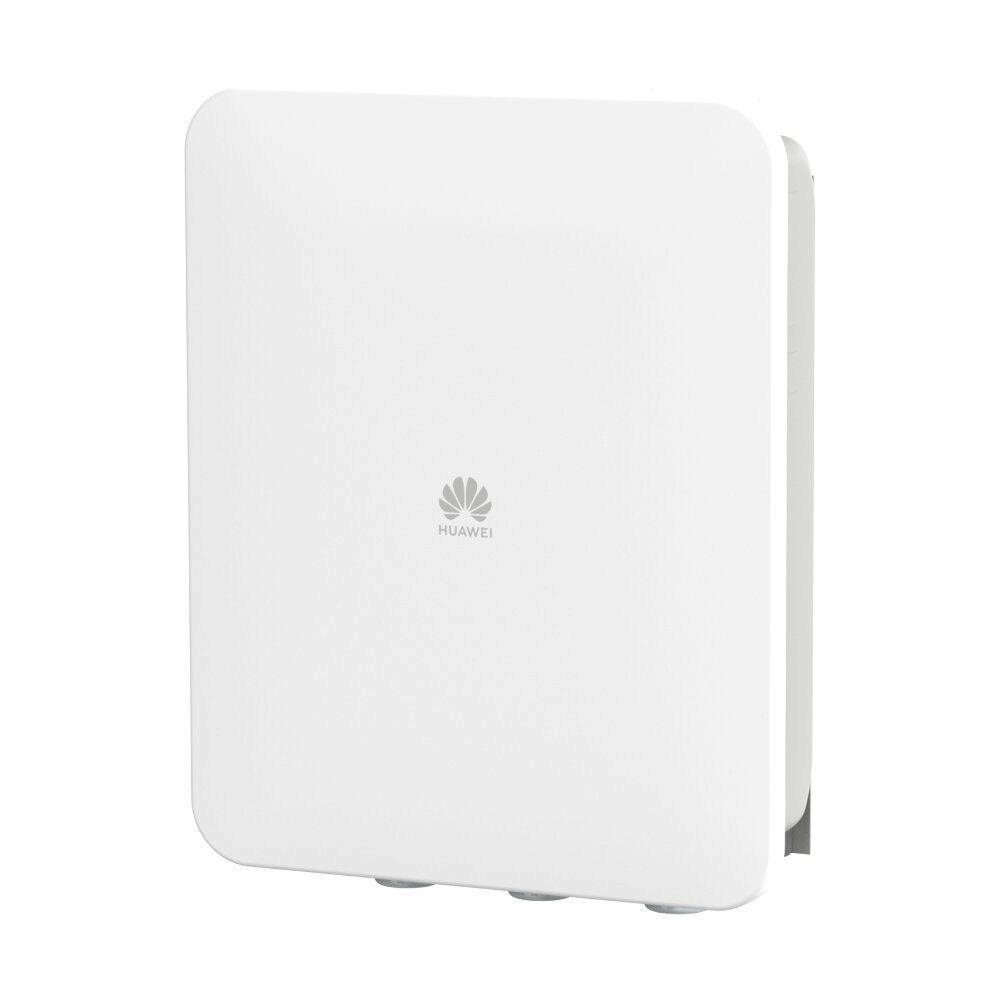

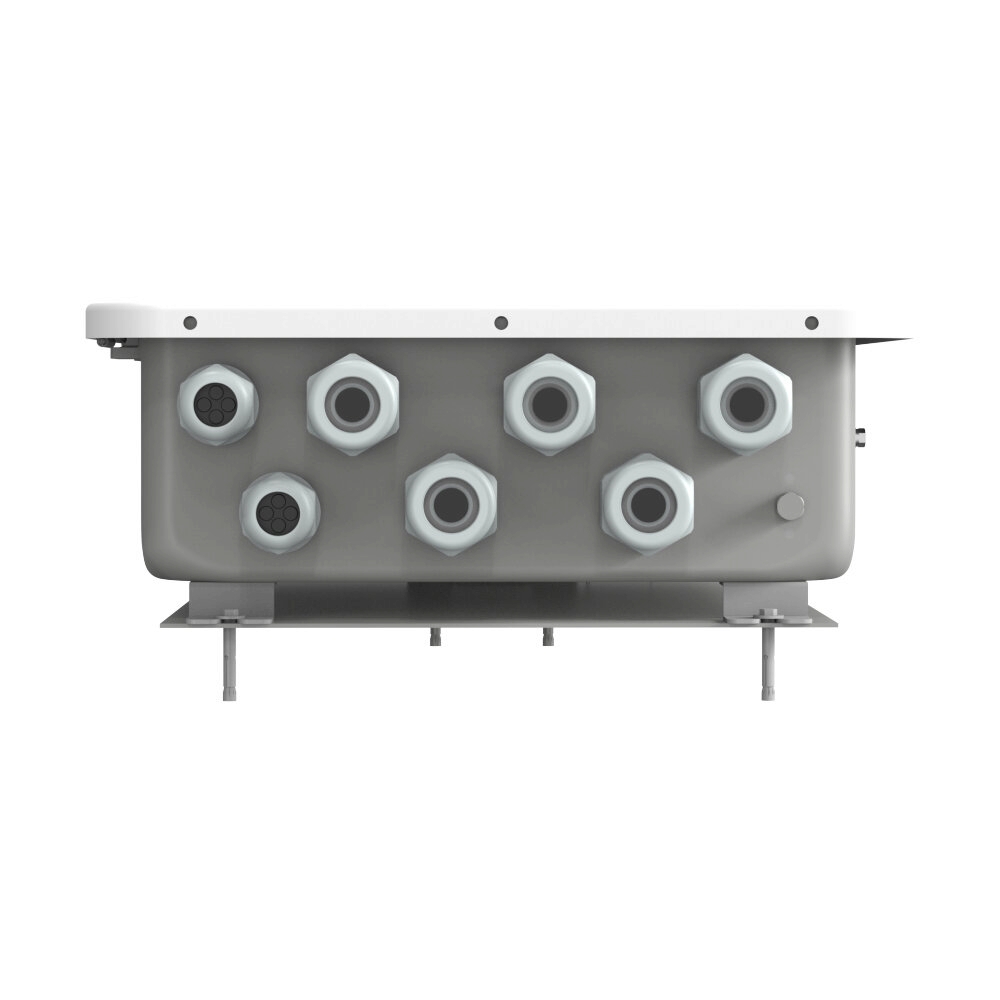

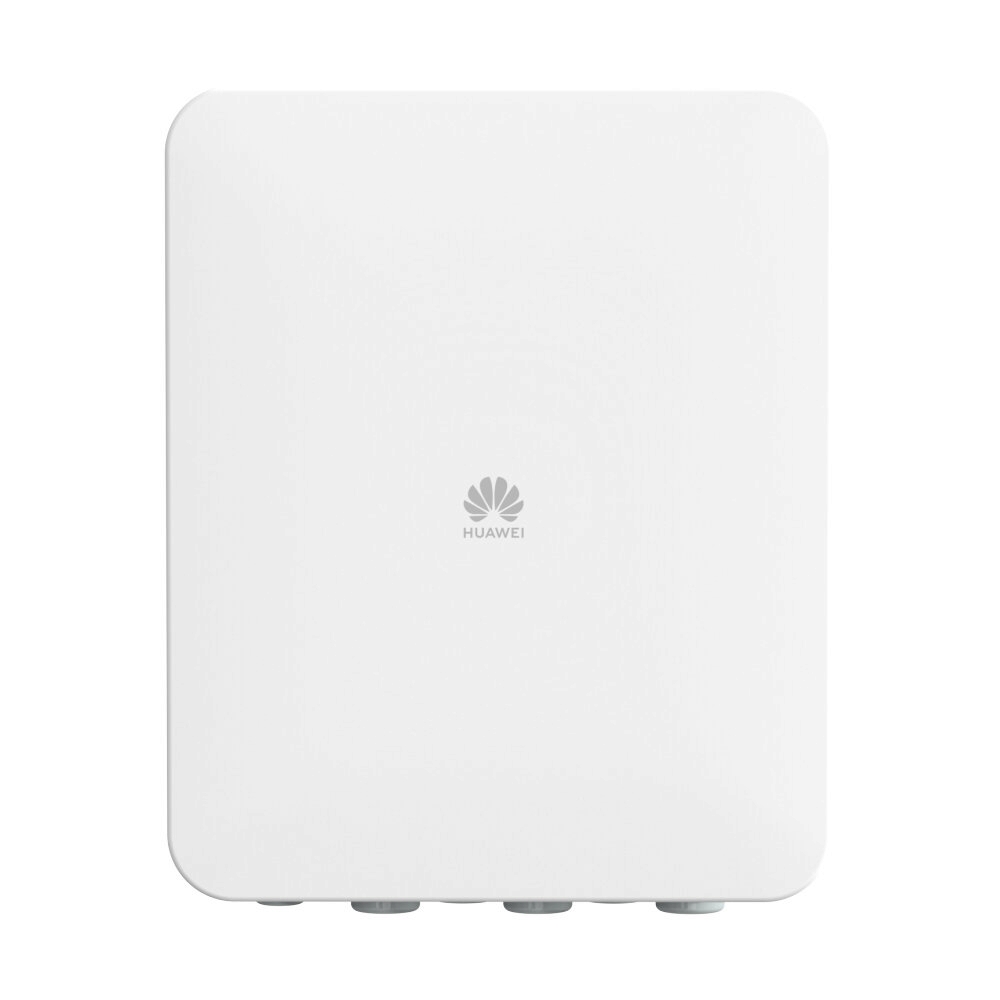

HUAWEI SMART GUARD (G-63A-S0)

HUW-SMART-G-63A-S0

• Smart Guard เชื่อมต่อระหว่างอินเวอร์เตอร์ Huawei และเครื่องใช้ไฟฟ้าที่ต้องการสำรองไฟ

• Current range : < 63 A
• Voltage range : 1P (L-N): 85 ~ 299 Vac
• Energy accuracy : + 1%

• Power output : 9.5 ~ 13.2V@100mA, 3m
• LAN : 10 / 100Mbps, < 100m
• WAN : 10 / 100Mbps, < 100m
• WLAN : AP Mode, 802.11b/g/n (2.412GHz ~ 2.484GHz)
• RS485 : 9600 / 19200/115200bps,x 2,50m
• Digital input : x2, < 20m
• Digital output : x2, < 20m

• AC Voltage (Nominal) : 220/230/240V L/N+PE
• Max. current (from Grid) : 63A
• Max. current (from Inverter) : 60A
• Max. current (to Backup Load) : 63A
• Max. current (to Non-BackupLoad) : 63A
• Self consumption : 10W
• Low-Voltage ride-through : Supported
• Switchover time : < 20ms (in Seamless Mode)
• Bypass operation mode : Manual

Device Management
• Smart energy controllers : up to 1
• Smart chargers : up to 2
• Heat pump : up to 12
• Shelly device : up to 20
Enviroment
• Noise emission : < 29dBA
• Cooling : Natural Convection
• Relative humidity range : 5% ~ 95% RH (non condensing)
• Max. operating altitude : 4000m (derating over 2000m)
• Degree of protection : IP55
• Operating temperature range : -25% ~ 50%C 3
Compatible Device
• Smart energy controller : SUN2000-2-6KTL-L1 / SUN2000-8-10K-LCO
• Smart charger : SCharger-7KS-S0
• Heat pump : SG-ready
• Shelly device : Shelly Plus Plug S, Shelly Plus 2PM, Shelly Pro 2PM 4
