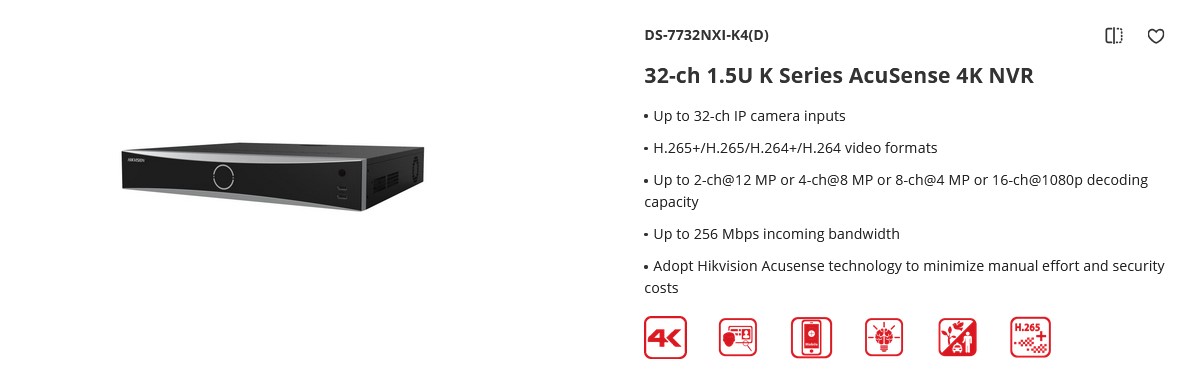

NVR 32CH. HIKVISION#DS-7732NXI-K4(D)
- IP Video Input : 32-ch
- Video Compression : H.265/H.265+/H.264+/H.264
- Encoding Resolution : 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Interface
- 2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- 4x SATA port
- 3x USB (Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0)
- 2x RS-485 (half-duplex)
- 1x RS-232
- 1x HDMI
- 1x VGA
- Video output : 1 HDMI, 1 VGA
- Capacity : Up to 16 TB capacity for each HDD
- Up to 2-ch@12 MP or 4-ch@8 MP or 8-ch@4 MP or 16-ch@1080p decoding capacity
- Up to 256 Mbps incoming bandwidth
- Adopt Hikvision Acusense technology to minimize manual effort and security costs
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
DS-7732NXI-K4(D)
• Video Input : 32CH
• Incoming Bandwidth : 256 Mbps
• Outgoing Bandwidth : 160 Mbps
• Audio input : 1CH, RCA
• Two-way audio : 1CH, RCA (2.0Vp-p, 1kΩ)
• HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode : HDMI/VGA independent output
• Audio Output : 1-ch, RCA (Linear, 1 KΩ)
• Decoding Format : H.265/H.265+/H.264+/H.264
• Recording Resolution : 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback : 16-ch
• Decoding Capability
- AI on: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
- AI off: 2-ch@12 MP (30 fps)/4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
• Stream Type : Video, Video & Audio
• Audio Compression : G.711ulaw/G.711alaw/G.722/G.726/AAC
• Remote Connection : 128
• API : ONVIF (profile S/G); SDK; ISAPI
• Compatible Browser : IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network Protocol : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• ONVIF (profile S/G); SDK; ISAPI
• 2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
• 4x SATA interfaces
• 2x RS-485 (half-duplex)
• 1x RS-232
• 3x USB (Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0)
• Up to 16 TB capacity for each HDD
• 100 to 240 VAC, 50 to 60Hz
• ≤ 20 W (without HDD)
NONE
• Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity : 10 to 90 %
N/A
