Barcode Scanner ZEBRA DS4608 (สายเกลียว USB)

DS-4608 (สายเกลียว USB)

1D, 2D

USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

Aiming Pattern : circular 617nm amber LED
Illumination : (2) 660nm red LEDs

1280 x 800 pixels

100 scans per second

Skew : +/- 60°
Pitch : +/- 60°
Roll : 0°–360°

31.6° H x 22.6° V nominal

Code 39: 3 mil - 2.2 in to 5.4 in (5.6cm to 13.7cm)
Code 39: 5 mil - 0.7 in to 11.0 in (1.8cm to 27.9cm)
Code 39: 20 mil - 0 in to 44.0 in (0cm to 111.8cm)
Code 128: 5 mil - 2.7 in to 5.4 in (6.9cm to 13.7cm)
PDF 417: 6.7 mil - 1.3 in to 10.0 in (3.3cm to 25.4cm)
UPC: 13 mil (100%) - 0 in to 28.0 in (0cm to 71.1cm)
DataMatrix: 10 mil - 1.0 in to 11.5 in (2.5cm to 29.2cm)
QR: 20 mil - 0 in to 17.5 in (0cm to 44.5cm)

15% minimum reflective difference

1D
Code 39, Code 128, Code 93, Codabar/NW7, Code 1 1, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm, DotCode, Dotted DataMatrix

OCR
OCR-A, OCR-B, MICR, US Currency

Minimum Element Resolution
Code 39–3.0 mil (DS4600-SR)
DataMatrix–5.0 mil (DS4600-SR)
Code 39–2.0 mil (DS4600-HD)
DataMatrix–4.0 mil (DS4600-HD)

Hand-held, Hands-free

Direct Decode Indicator, Good Decode LEDs, Rear view LEDs, Beeper (adjustable tone and volume)

Input Voltage Range
4.5 to 5.5 VDC

Operating Current at Nominal Voltage (5.0V)
340 mA (typical)

Standby Current (Idle) at Nominal Voltage (5.0V)
150 mA (typical)

Operating Temp.
+32.0F to +122.0F (0.0C to +50.0C)

Storage Temp.
-40.0F to +158.0F (-40.0C to +70.0C)

Humidity
5% to 95% RH, non-condensing

Drop Specification
Designed to withstand multiple drops at 6.0 ft (1.8m) to concrete

Tumble Specification
Designed to withstand 2,000 tumbles in 1.5 ft (0.5m) tumbler

Sealing
IP52

ESD
Scanner/Standard Cradle/Presentation Cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient Light Immunity
0 to 10,000 foot candles/0 to 107,000 Lux

N/A

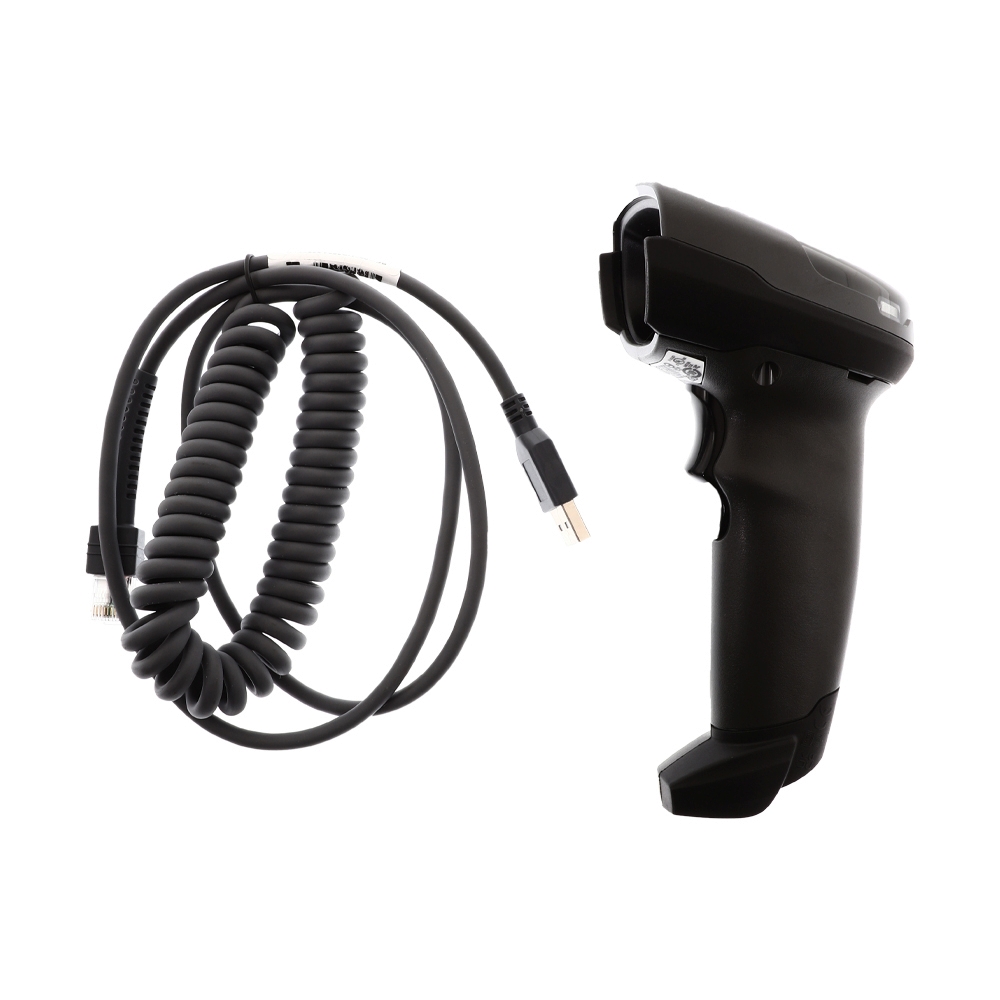

Barcode Scanner

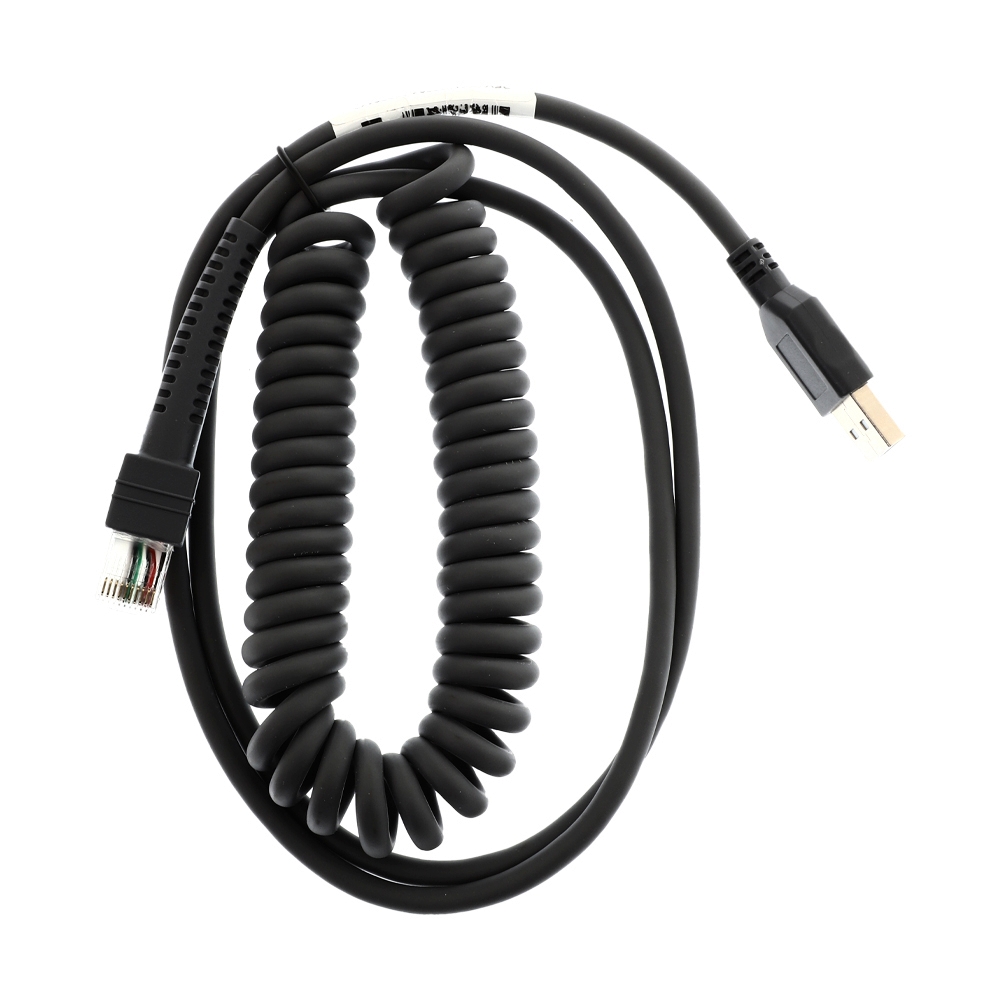

Cable USB (สายเกลียว)

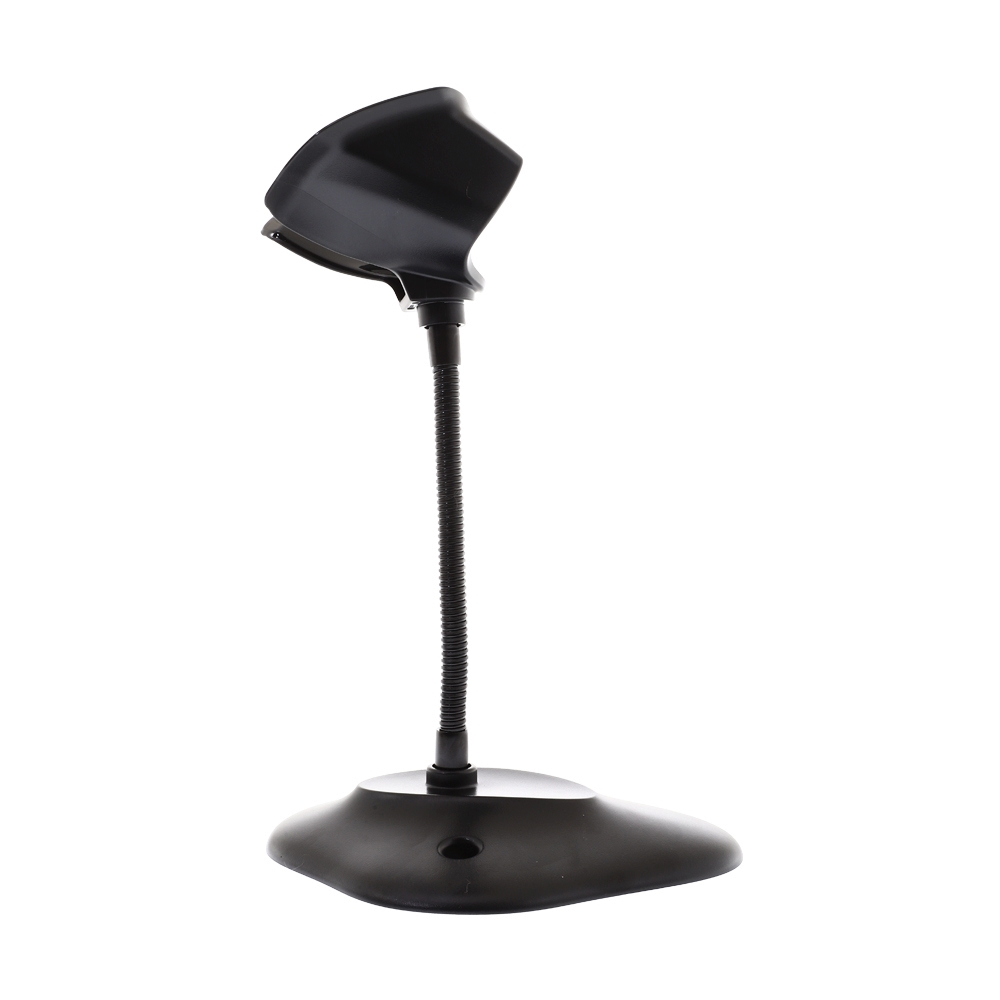

Stands
