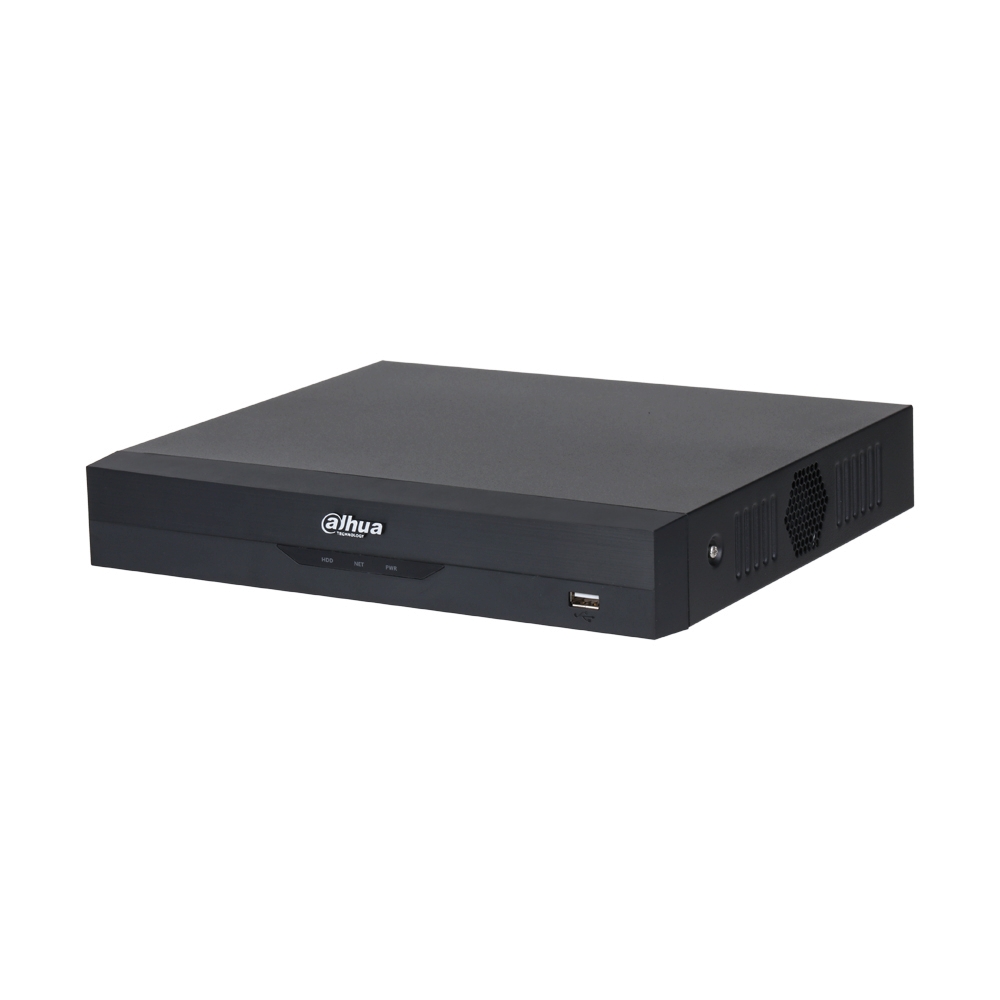

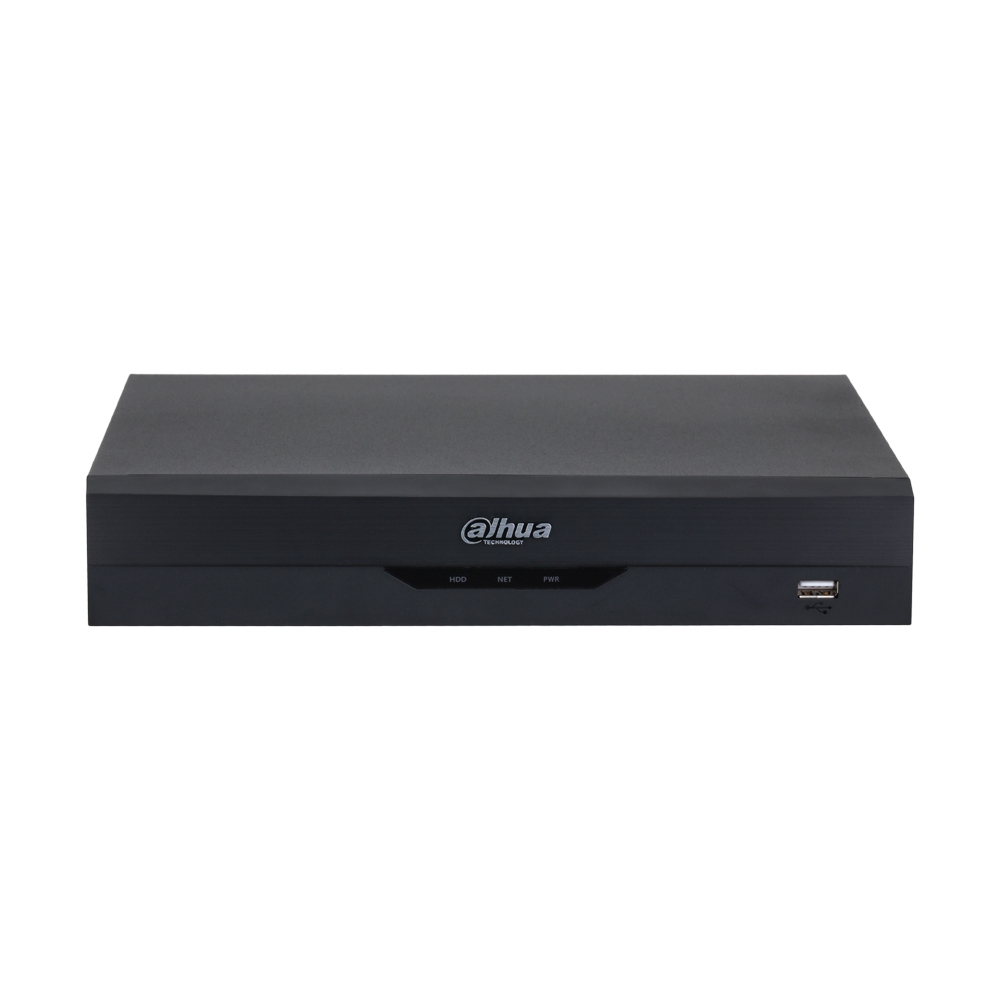

เครื่องบันทึก DVR 4CH. HDCVI DAHUA XVR5104HS-5M-I3

XVR5104HS-5M-I3

• Supports HDCVI/AHD/TVI/CVBS auto-detect

• Analog Camera Input : 4 Ch.
• Camera Input
- CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps.
- TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
- AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
• Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
• Two-way Talk : Yes (share the same audio input with the first channel)
• Audio Compression : G.711a; G.711u; PCM
• Up to 6 channels of IPC access
- 2 IP channels by default + 4 channels (analog channels are converted to IP channels)
- Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps
*After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection and QuickPick 2.0 cannot be used.*

• HDMI : 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
•  Frame rate Main stream
- Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps)
- Channels 1-2 4M-N/1080p@(1 fps–25/30 fps), others 4M-N/1080p@(1 fps–15 fps)
- 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
•  Frame rate Sub stream : D1/CIF@(1 fps–15 fps)
• Video Bit Rate : 32 kbps–6144 kbps
• Audio Sampling : 8 kHz, 16 bit
• Audio Bit Rate : 64 kbps

• Record Mode : General; alarm; motion detection; intelligent; POS
• Recording Playback : 1/4
• Backup Method : USB device and network
• Playback Mode : Instant playback; general playback; event playback; tag playback; smart playback

• Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access : iOS; Android
• Interoperability : USB device and network
• Playback Mode : Chrome; IE; Safari; Edge; Firefox

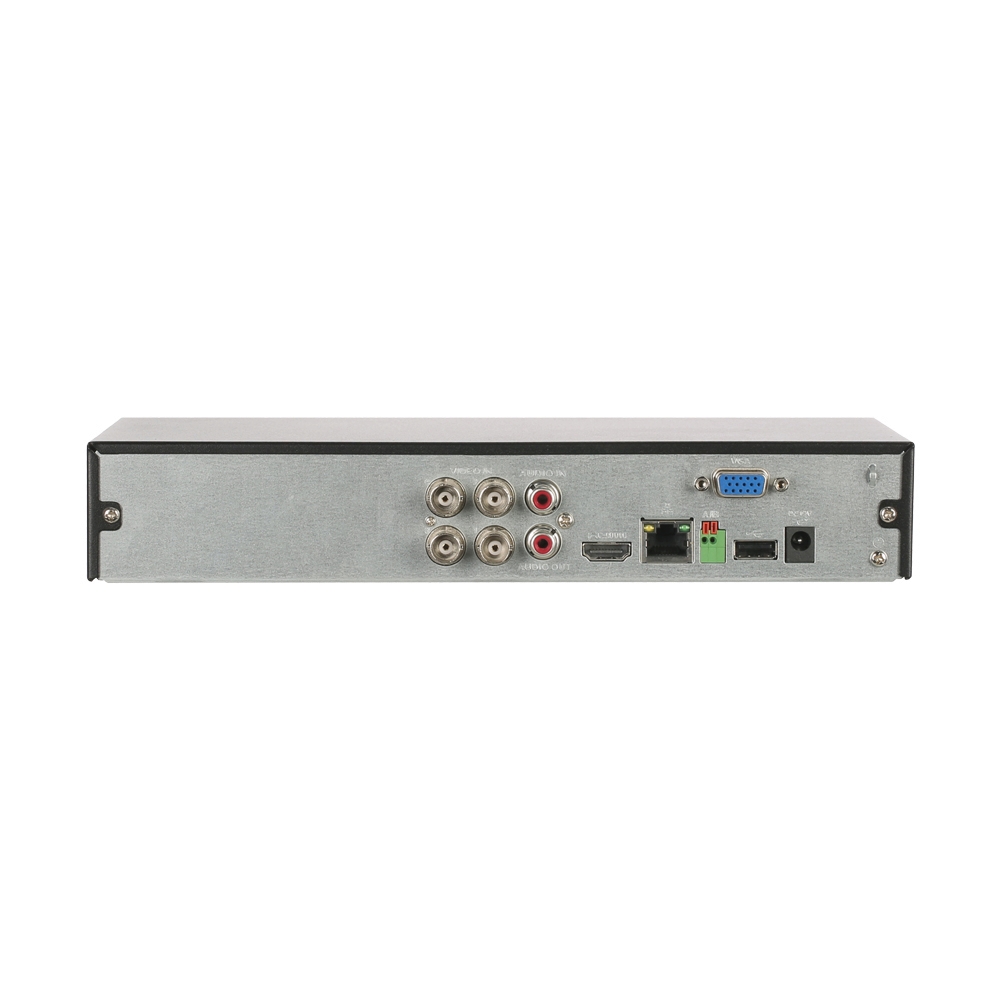

• 1x (10/100 Mbps Ethernet port, RJ-45)
• 2x (1 front USB 2.0 port, 1 rear USB 2.0 port)
• 1x SATA port
• 1x RS-485
• 1x Audio Input 1-channel RCA
• 1x Audio Output 1-channel RCA
• 1x HDMI
• 1x VGA

• Up to 16 TB. This limit varies depending on the environment temperature.

• 12 VDC, 1.5 A

• <5 W (without HDD)

• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–90% (RH), non-condensing

• ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
