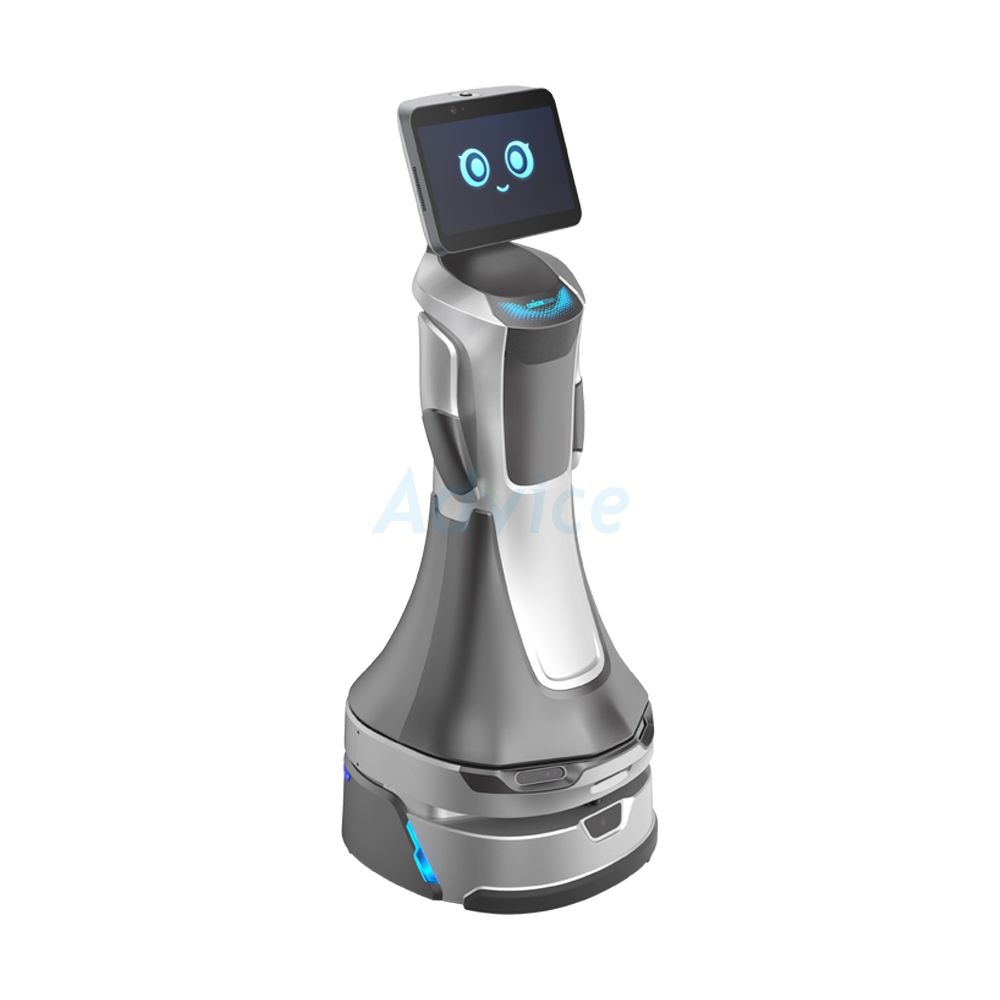

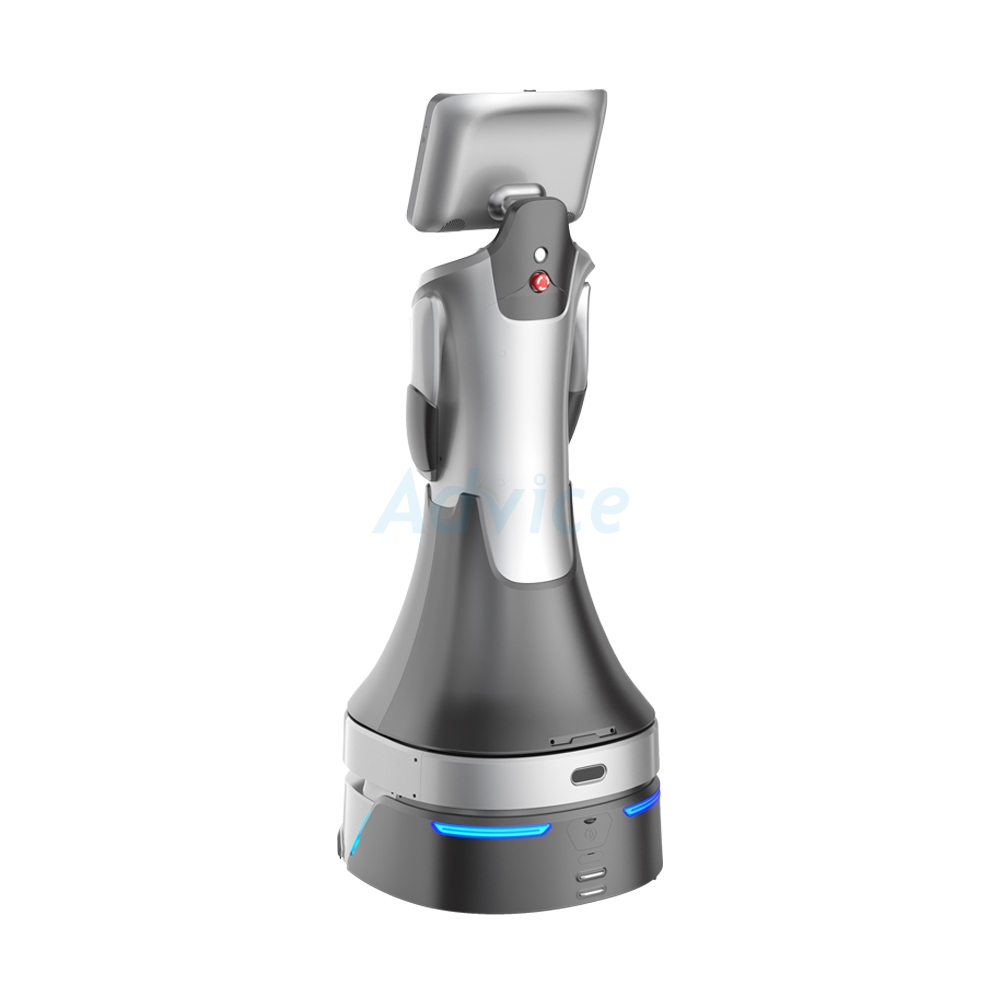

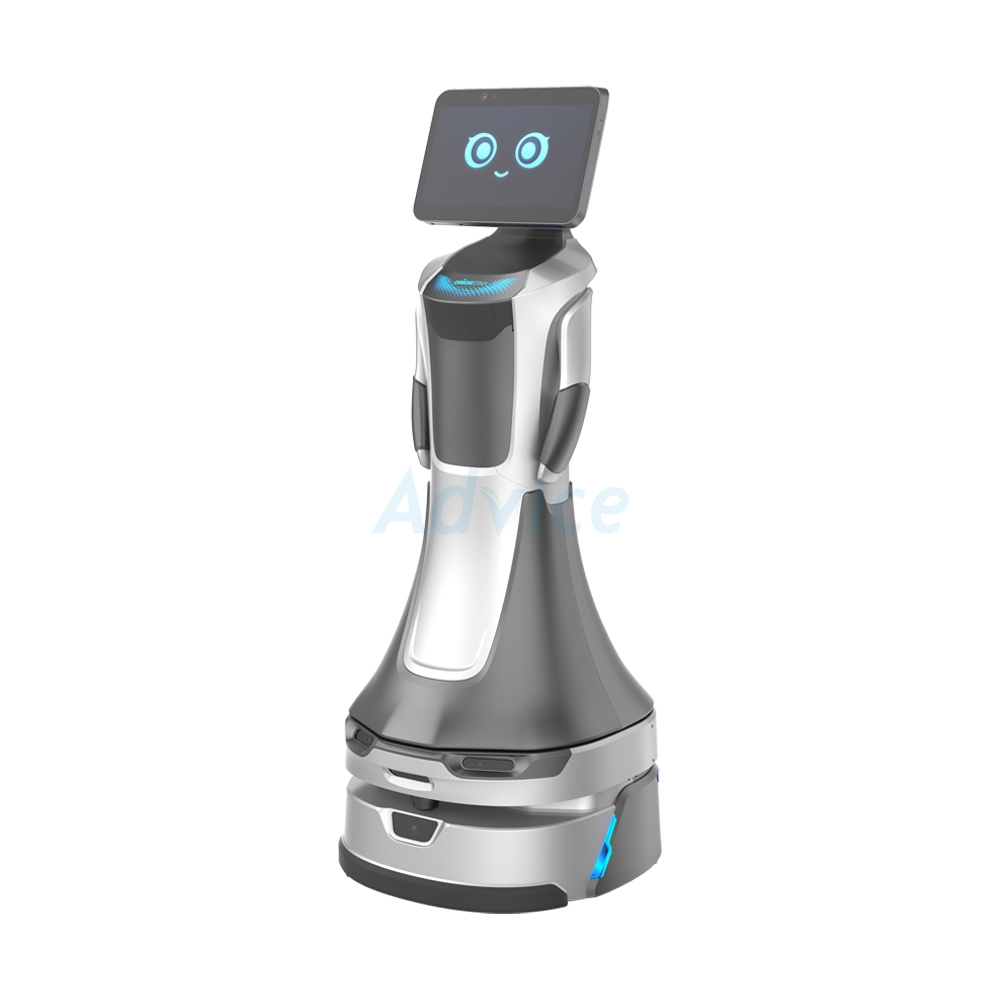

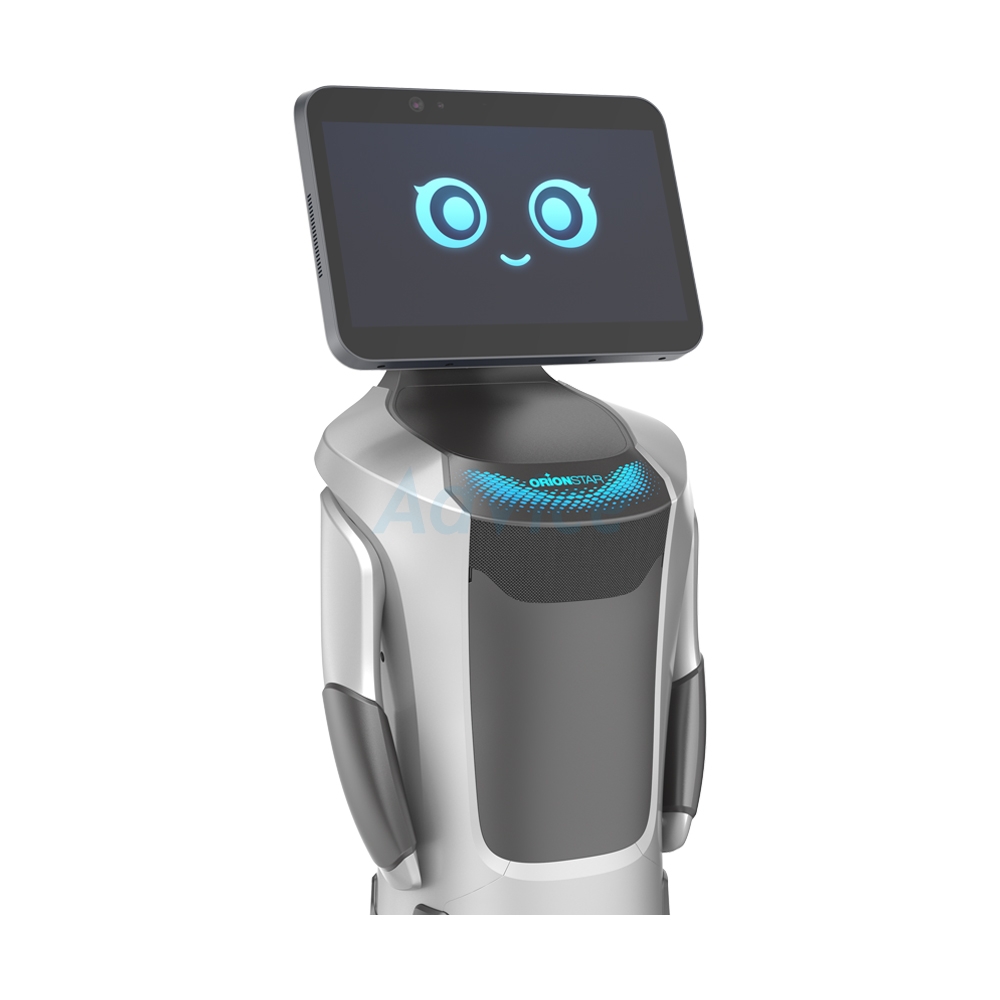

AI-Service Robot ORIONSTAR OS-R-SG04

• Screen size : 14 inches, full HD 1080P
• Color : silver and gray
• Body material : High strength PC+ABS

• Neck load space : Length 104mm * Width 80mm * Height 16mm

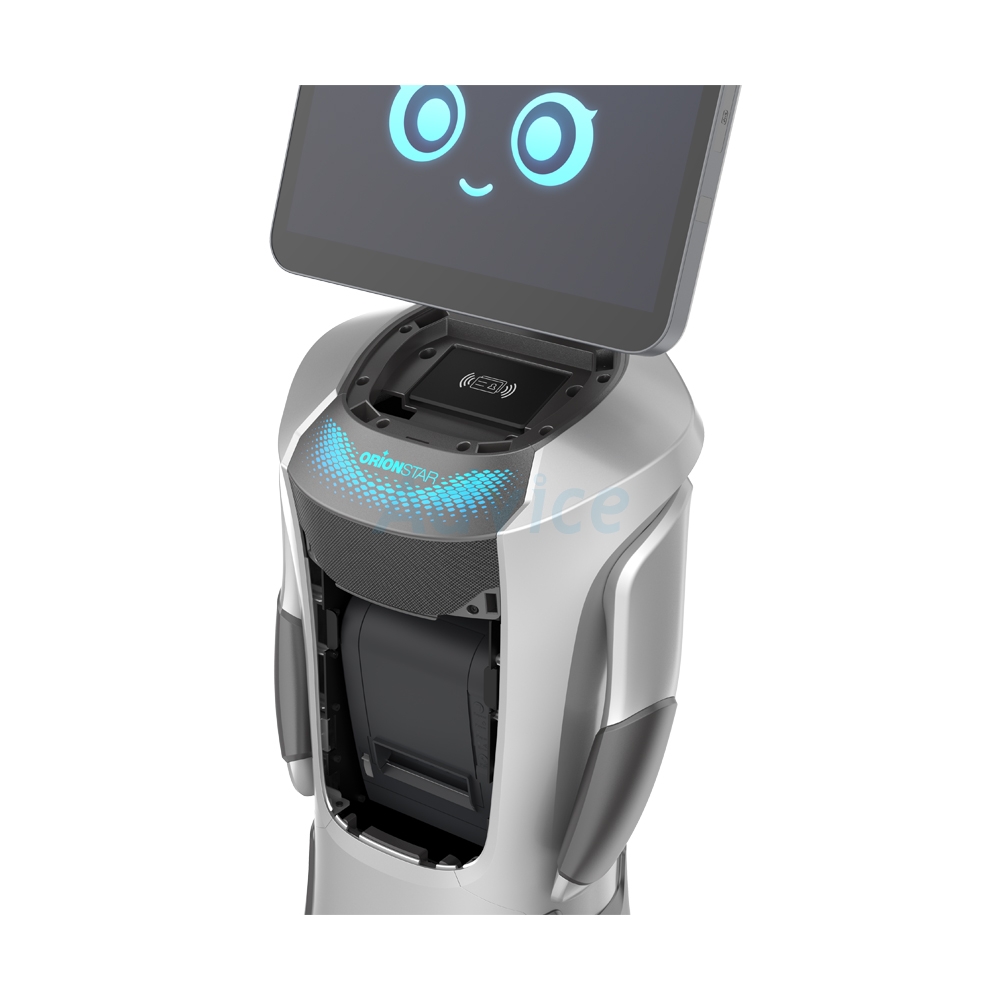

• Chest load space : Length 135mm * Width 129mm * Height 190mm
• Chest loading weight : 5kg
• Single layer loading weight : Max15kg

• Head pitch angle : -15° to 40°
• Gradeability : 5°
• Narrowest passing width : 70cm
• Movement speed : 0.5~1.2m/s (adjustable)

• Hardware platform : Qualcomm 8-core chip + industrial-grade MCU
• Operating system : RobotOS robot operating system deeply customized based on Android 9.0
• RAM(Memory) : 8GB
• ROM(capacity) : 64GB
• Navigation sensor : Lidar × 1 + depth vision sensor × 3 + fisheye camera × 1 + infrared recharge camera × 1 + odometer + • • • inertial measurement unit × 1
• Maximum mapping area : ≤5000 m²
• Head wide angle color camera : 2 million pixels, wide-angle camera
• Mic array : 6-mic array full-range radio and noise reduction, 360° sound source positioning

• Network support : 4G (supports TDD-LTE, FDD-LTE), WiFi supports 2.4G/5G
• 4G Frequency Bands : LTE Band 1/3/5/7/8/20/28/38/40
• Transmitter Maximum Output Power : < 25 dBm
• WiFi (2.4G) Frequency Bands and Maximum RF Power
- WLAN1_2.4G (2412 - 2472 MHz): < 20 dBm EIRP
- WLAN2_2.4G (2412 - 2472 MHz): < 20 dBm EIRP
• WiFi (5G) Frequency Bands and Maximum RF Power:
- WLAN1_5G (5180 - 5320 MHz): < 23 dBm EIRP
- WLAN1_5G (5745 - 5825 MHz): < 14 dBm EIRP

• Battery : Ternary lithium battery, 24.3Ah/ 25.55V
• charging method : Supports two methods: automatic recharge at charging station + wired charging
• Charging time : 4.5 hours (Charging Dock)

• Battery : Ternary lithium battery, 24.3Ah/ 25.55V
• charging method : Supports two methods: automatic recharge at charging station + wired charging
• Charging time : 4.5 hours (Charging Dock)

• CE and CE relative countries
- input : DC 32V /MAX 7.8A
- ouput: DC 32V / 7A
• Other countries:
- Input : DC 32V /MAX 7.8A
- Output: DC 32V /MAX 7.5A
