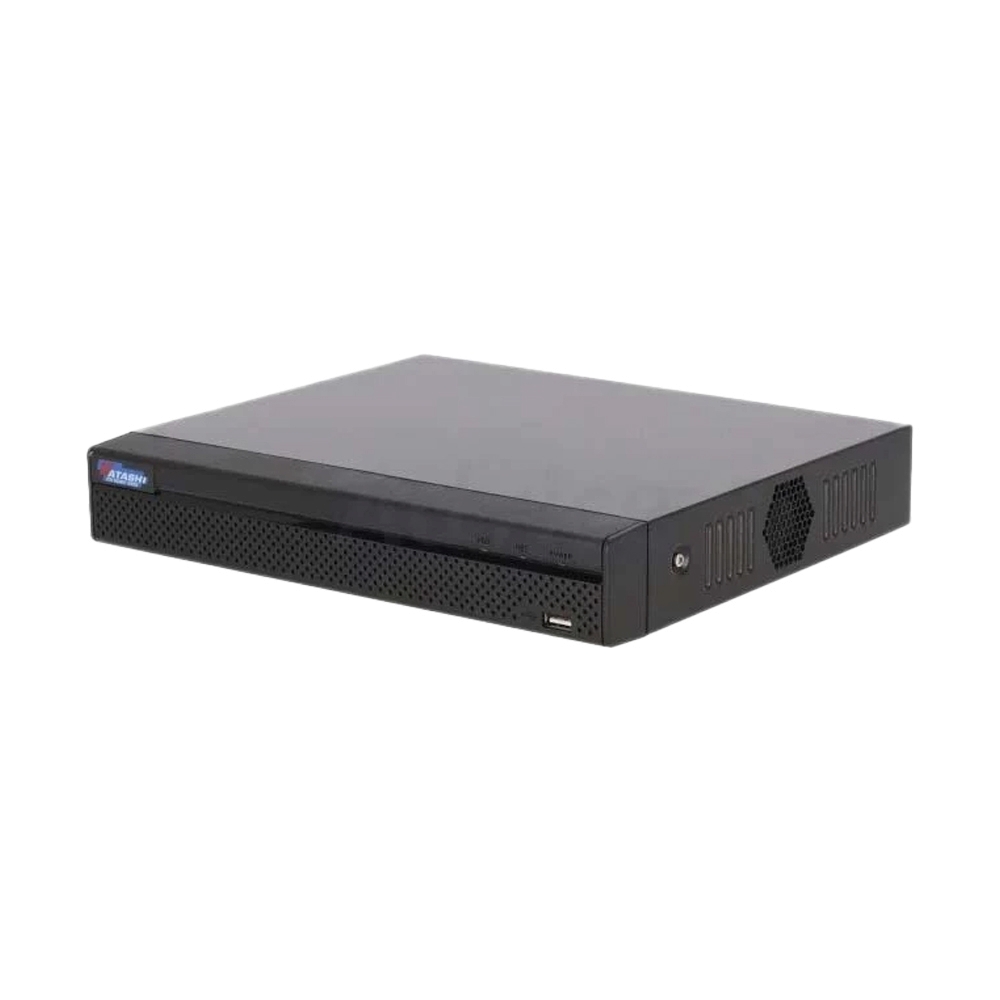

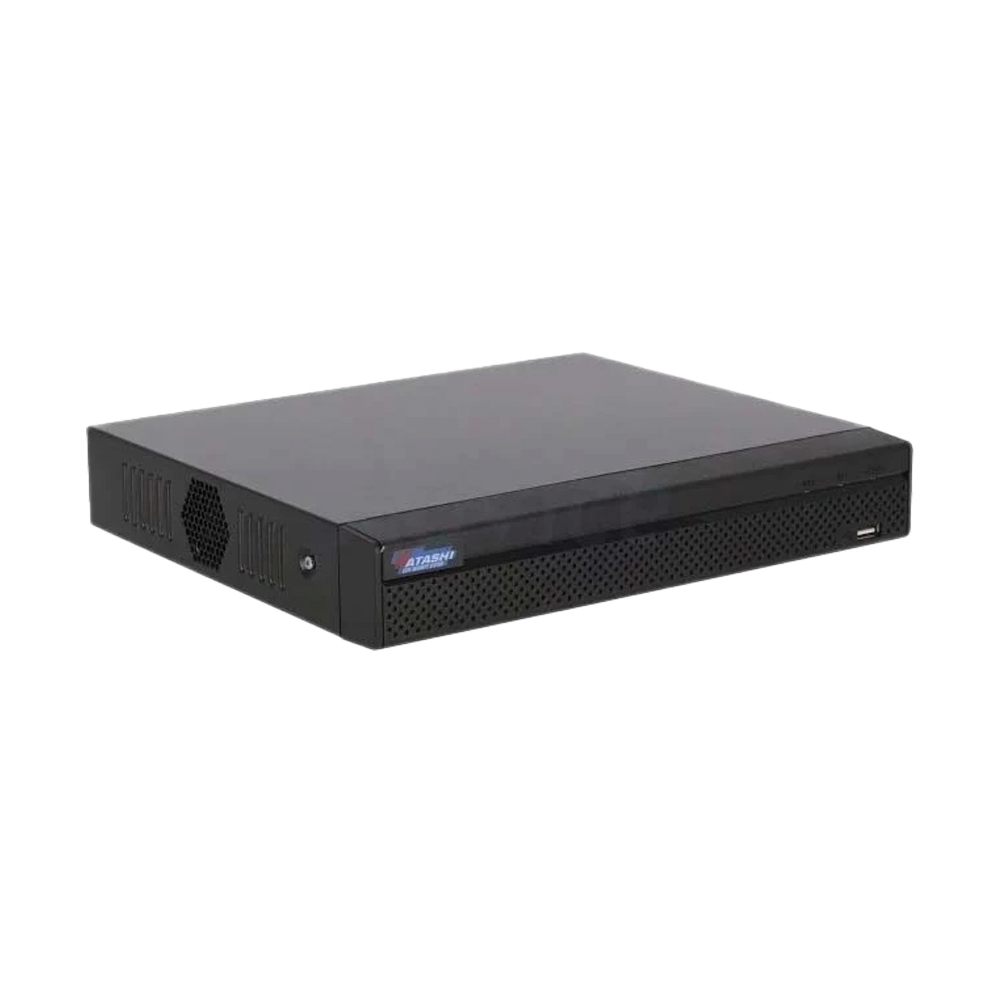

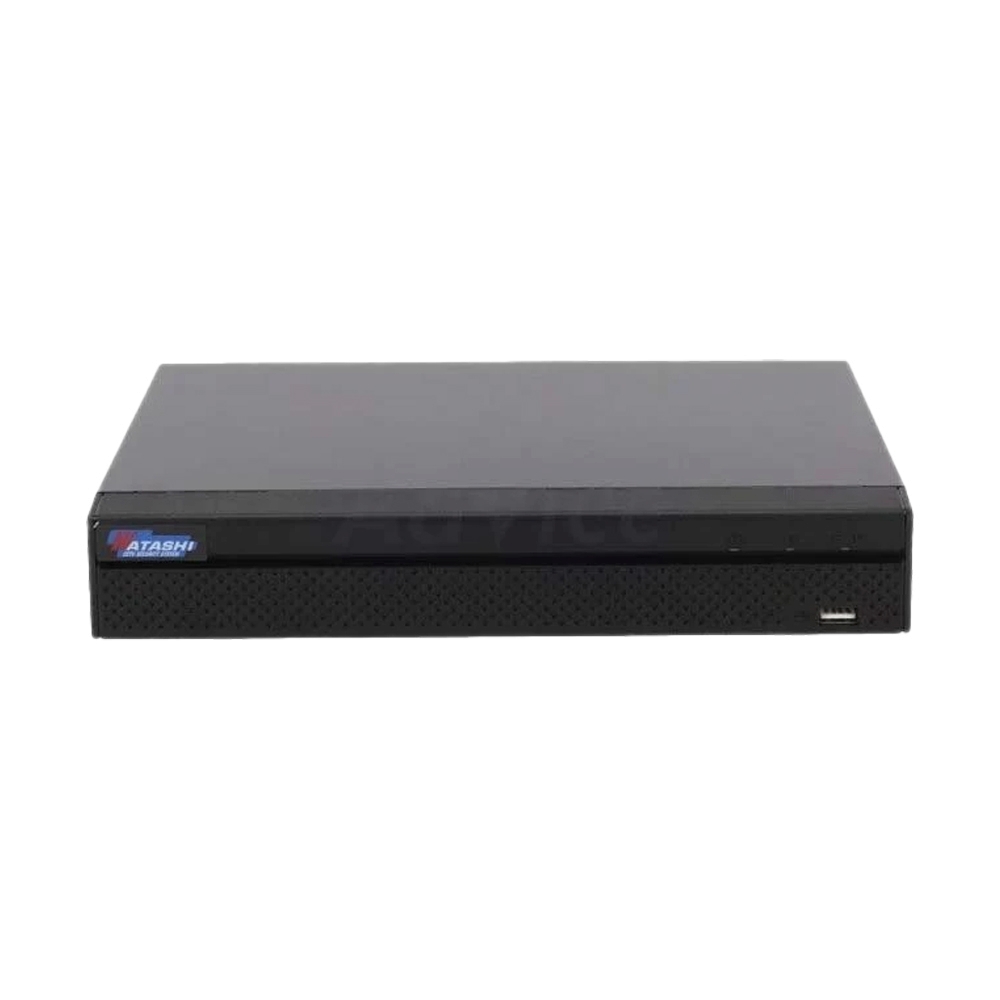

เครื่องบันทึก DVR 8CH. HDCVI WATASHI WVR002X-5M-I3
- Video input : 8Ch.
- Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Encoding Resolution : 4M-N/1080p@(1 fps-15 fps); 1080N/720p/960H/D1/CIF@(1 fps-25/30 fps)

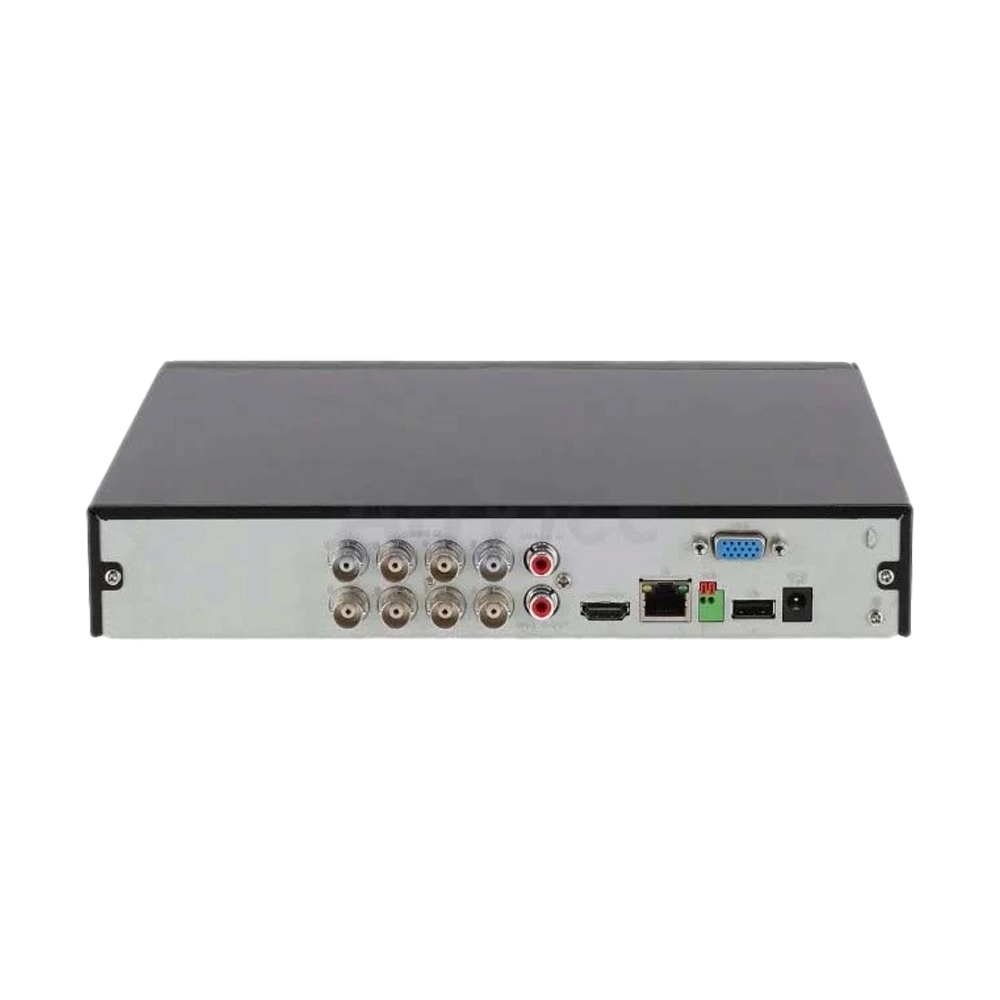

- Interface
- 1x SATA port
- 1x (10/100 Mbps Ethernet port, RJ-45)
- 2x USB (1 front USB 2.0 port, 1 rear USB 2.0 port)
- 1x RS-485
- 1x HDMI
- 1x VGA
- Video output : HDMI/VGA independent output
- Capacity : up to 16 TB. This limit varies depending on the environment temperature.
ข้อมูลผลิตภัณฑ์
WVR002X-5M-I3
• Supports HDCVI/AHD/TVI/CVBS auto-detect
• 8 Ch.
• 1.CVI:5 MP@25 fps;5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps;720p@25/30 fps.
• 2.TVI:5MP@20fps;4MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
• 3.AHD:5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30fps ; 720p@25/30 fps.
• Up to 6 channels of IPC access2 IP channels by default + 4 channels (analog channelsare converted to IP channels)
• Incoming bandwidth: 32 Mbps, recording bandwidth:32 Mbps and outgoing bandwidth: 32 Mbps
• *After IP extension is enabled, Video Quality Analytics,Scene Changing, Face Recognition, Face Detection,SMD, Perimeter Protection and QuickPick 2.0 cannot be used.*
• HDMI : 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720
• VGA : 1920 x 1080, 1280 x 1024, 1280 x 720
• Dual-stream : Yes
• Video Bit Rate : 32 kbps-6144 kbps
• Audio Sampling : 8 kHz, 16 bit
• Audio Bit Rate : 64 kbps
• Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
• Audio Compression : G.711a; G.711u; PCM
• Main stream : SM-N@(1 fps -12 fps); 4M-N/1080p@(1 fps-15 fps); 1080N/720p/960H/D1/CIF@(1 fps-25/30 fps)
• Sub stream: D1/CIF@(1 fps-15 fps) It changes to D1/CIF@(1 fps-7 fps) when Main stream is 5 MP/5M-N.
• Network Protocol : HTTP; HTTPS; TCP/IP; IPV4; IPv6; RTSP; UDP; NTP; DHCP;DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm
• Mobile Phone Access : iOS; Android
• Interoperability : ONVIF 23.12 (Profile T; Profile S; Profile G); SDK
• Browser : Chrome; IE; Safari; Edge; Firefox
• Record Mode : General; alarm; motion detection; intelligent; POS1/4
• Recording Playback : USB device and network
• Backup Method : USB device and network
• Playback Mode : Instant playback; general playback; event playback; tag playback; smart playback
• 1x Audio Input
• 1x Audio Output
• 1x (10/100 Mbps Ethernet port, RJ-45)
• 1x SATA Port
• 1x RS-485
• 2x USB (1 front USB 2.0 port, 1 rear USB 2.0 port)
• 1x HDMI
• 1x VGA
• up to 16 TB. This limit varies depending on the environment temperature.
• 12 VDC, 1.5 A
• <5 W (without HDD)
• Operating Temperature : -10°C to +55 °C (+14°F to +131°F)
• Storage Temperature : -20°C to +60°C (-4°F to +140°F)
• Operating Humidity : 10%-90% (RH), non-condensing
• ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK
