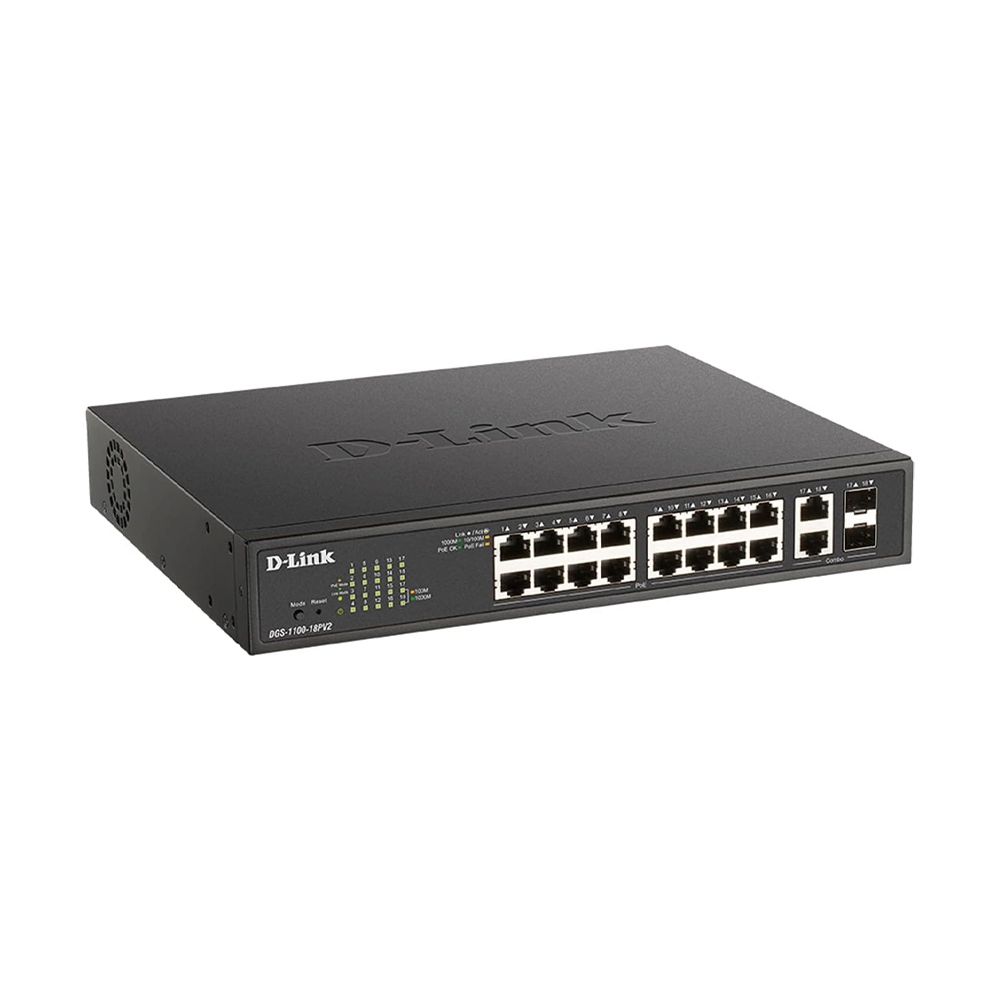

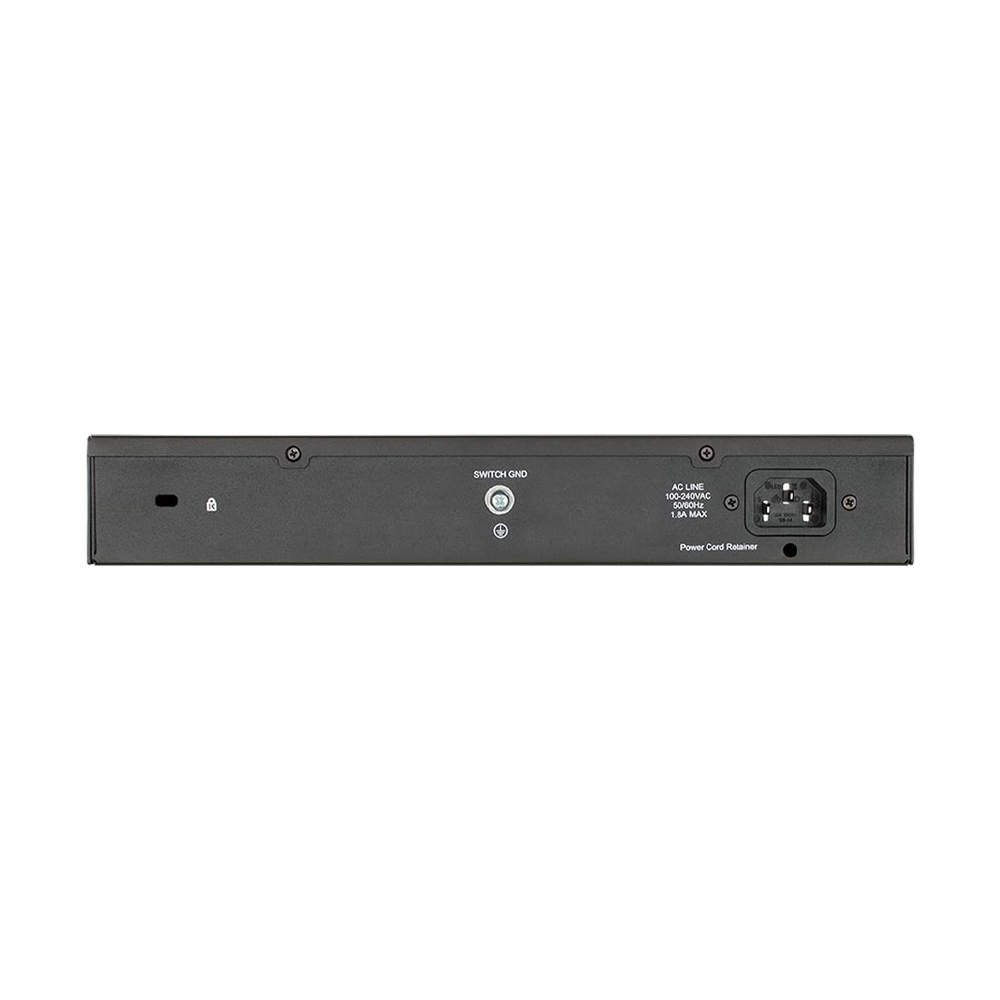

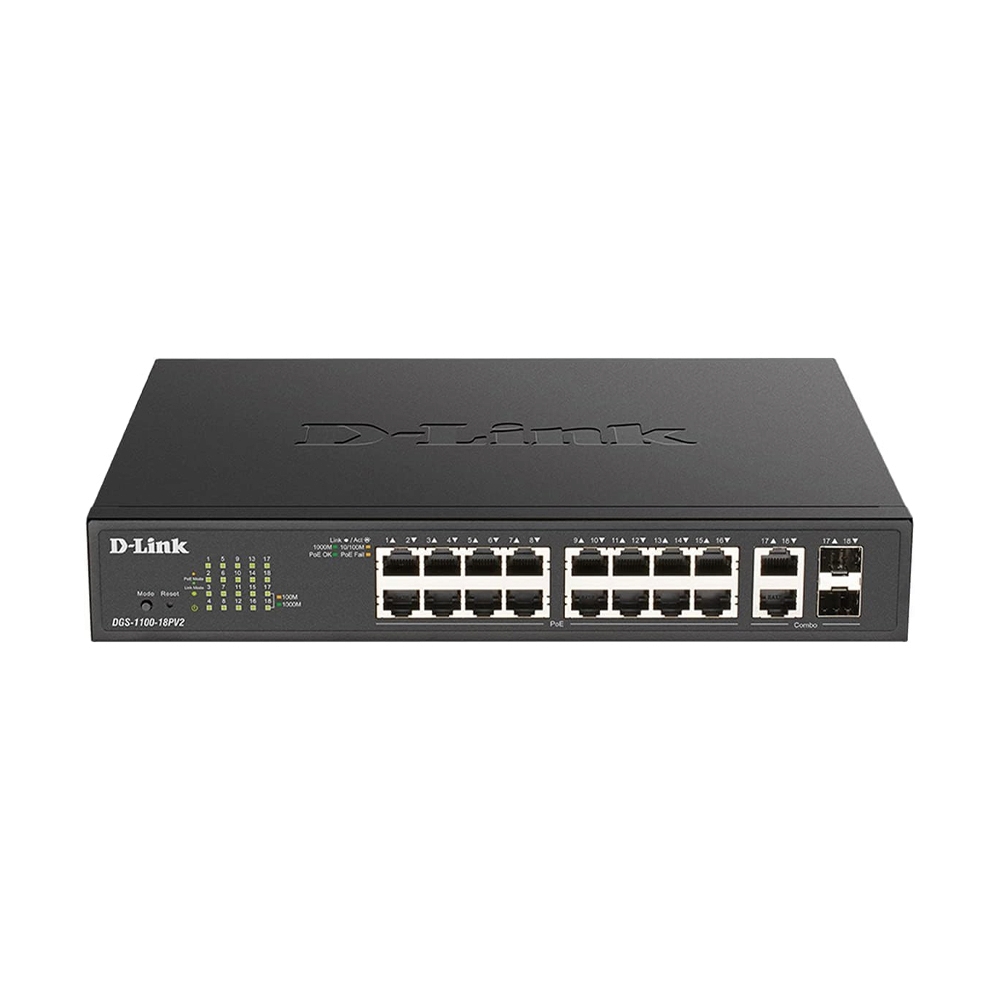

Gigabit Switching Hub 16 Port D-LINK DGS-1100-18P V2 (11",16 PoE)

DGS-1100-18P

• 16x 10/100/1000 Mbps (PoE 130 W)
• 2x Combo GE/SFP

NONE

• IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3az,IEEE 802.3x,IEEE 802.3af/802.3at

• 36 Gbps

N/A

• 8K Entries

• 26.78 Mpps

• Up to 9216 bytes

• 4.1 Mbits

N/A

N/A

N/A

• LED shut-off

• Web-based GUI (supports IPv4/IPv6)

• Port-based VLAN
• 802.1Q tagged VLAN
• Auto Surveillance VLAN
• Voice VLAN
• Management VLAN
• Asymmetric VLAN
• VLAN Group
- Supports 128 static VLAN groups
- Max. 4094 VIDs

• Static MAC addresses
- Up to 32 entries
• Traffic segmentation
• Broadcast/Multicast/Unknown Unicast Storm Controlort security

NONE

• IGMP Snooping
• Bandwidth Control
• IEEE 802.1Q VLAN traffic segregation
• Port-based VLAN
• IEEE 802.1p Quality of Service
• Surveillance VLAN
• Voice VLAN

• 343,695 hours

• Fanless

• Metal

• IEEE 802.3af/802.3at
• PoE Power Budget : 130 W

• AC: 100-240V

• Standby Mode : 10 W
• Maximum Power Consumption : 166.7 W (PoE on) , 18.3 W (PoE off )

• Operating Temperature : -5 to 50 °C (23 to 122 °F)
• Storage Temperature : -40 to 70 °C (-40 to 158 °F)
• Operating Humidity : 0% to 95% non-condensing
• Storage Humidity : 0% to 95% non-condensing

• cUL, UL, LVD, CB, BSMI

N/A
