ข้อมูลสินค้าCCTV 3.6mm HDCVI WATASHI WVI20174-DL-A
WATASHI

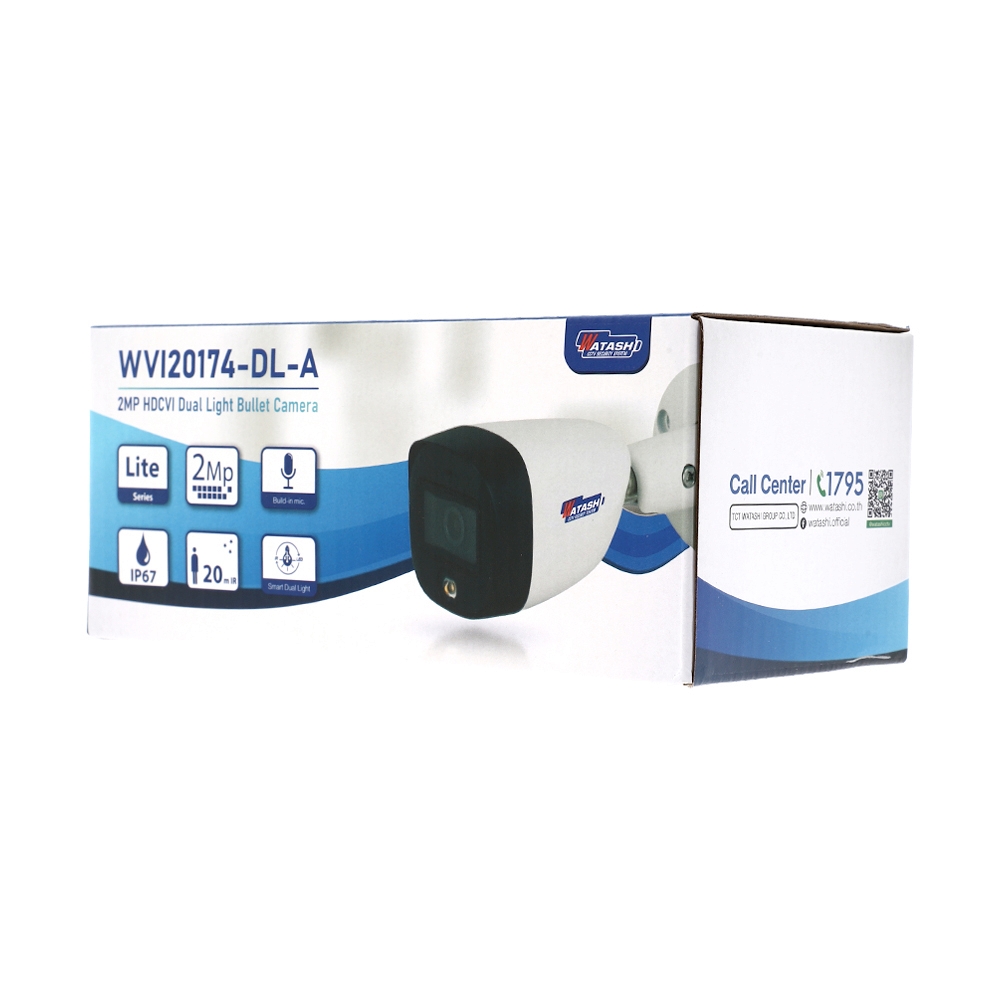

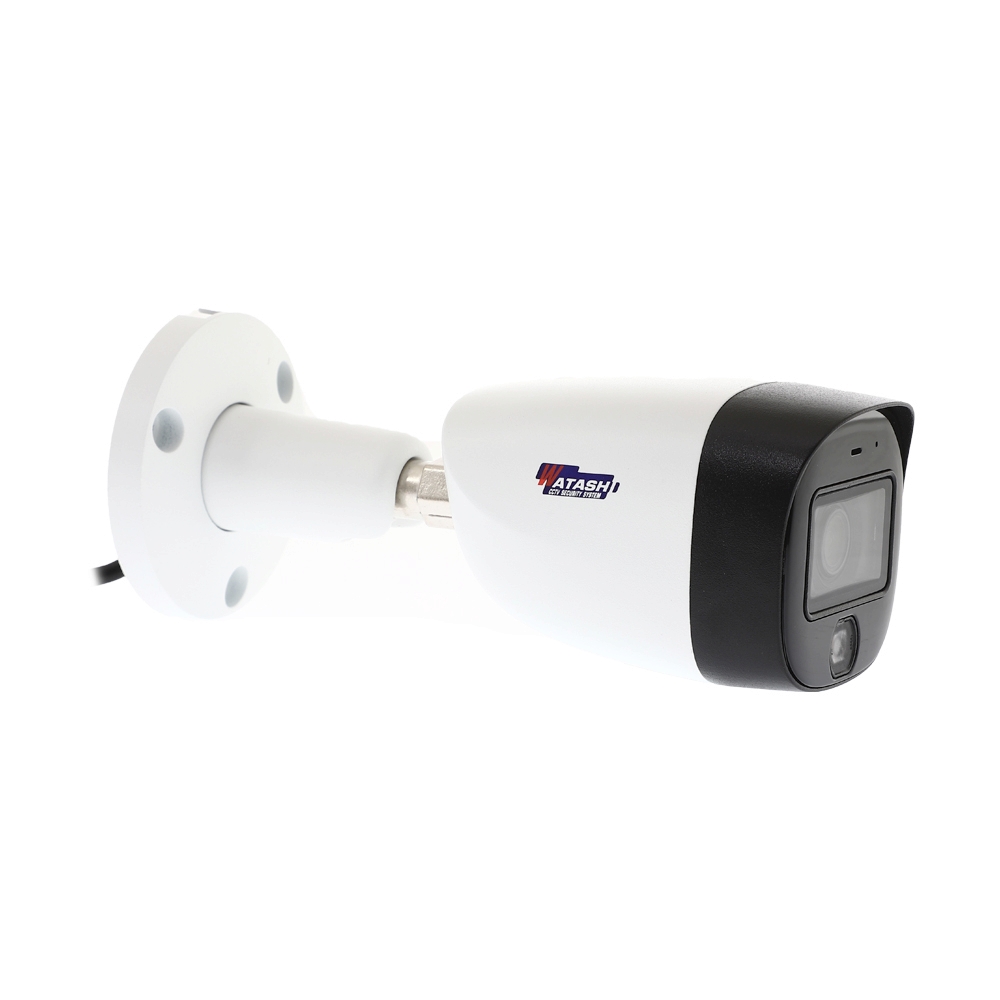

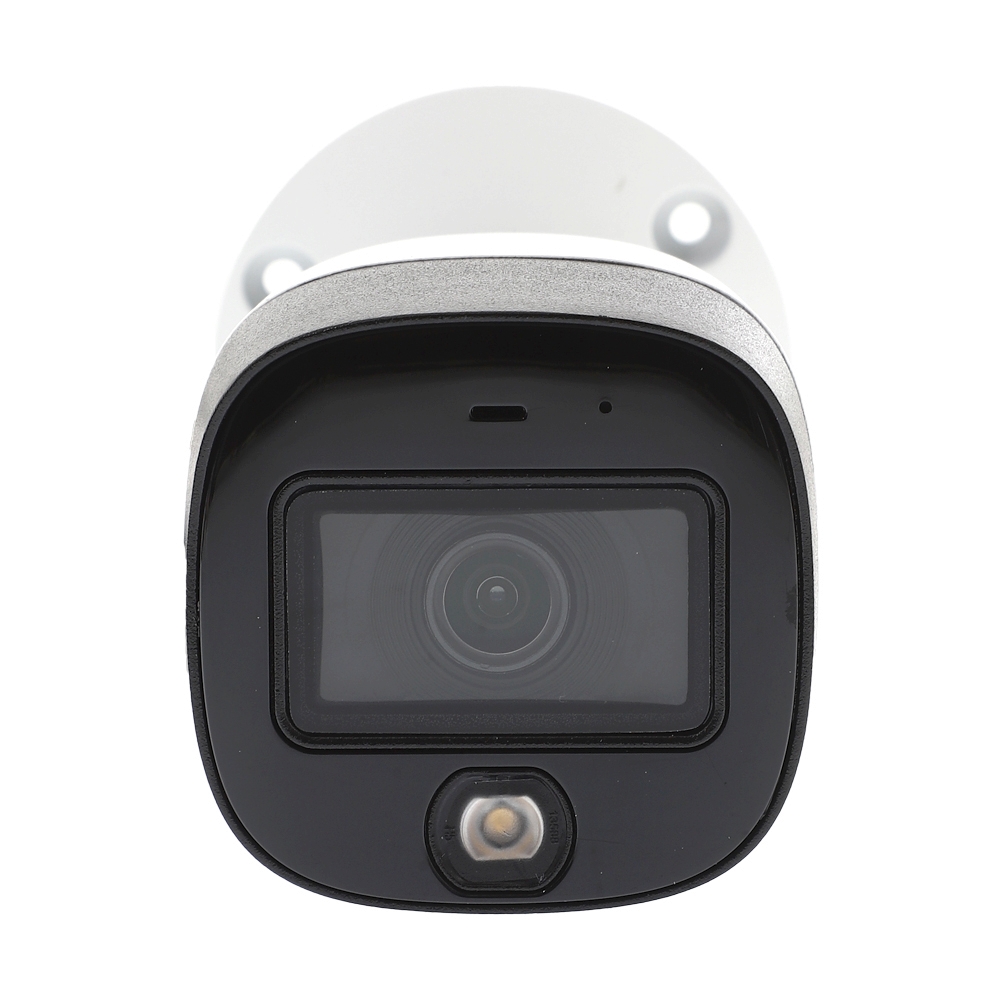

CCTV 3.6mm HDCVI WATASHI WVI20174-DL-A
ประกัน 3 ปี
รหัสสินค้า: A0167922
- Image Sensor : 2MP , CMOS
- Max. Resolution : 1080P (1920×1080)
- Lens Type : 3.6mm
- Video Output : AHD/CVI/TVI/CVBS Switch
- IR Distance : 20m
- Frame Rate : 25/30fps@1080P
- Day/Night Mode : Smart Dual Light
- Audio Port : Built-in mic
- Protection : IP67
- Casing Material : Metal
ราคาหน้าร้าน ฿720
ข้อมูลผลิตภัณฑ์
BrandWATASHI
Model
WVI20174-DL-A
Image Sensor
• 2MP CMOS
Lens
• 3.6
Lens Mount
• M12
Minimum Illumination
• 0.01 [email protected] (Color, 30 IRE)
• 0.001 [email protected] (B/W,30 IRE)
• O lux (Illuminator on)
Focus
N/A
Zoom
N/A
Angle of View
• 3.6 mm: H: 83 ; V: 48 ; D: 105
Adjustment Angle
• Pan: 0°-360°
• Tilt: 0°-90°
• Rotation: 0°-360°
Shutter
• PAL: 1/25 s-1/100000 s
• NTSC: 1/30 s-1/100000 s
Intelligence
N/A
IR
• 20m
Day/Night
• Smart Dual Light
S/N
• >65 dB
WDR
• DWDR
Video Resolution
• 1920 x 1080
Video Compression
N/A
Frame Rate
• 25/30fps@1080P
User/Host
N/A
Storage
NONE
Interface
• Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Reset Button
N/A
Alarm
N/A
ONVIF
NONE
Protocols
N/A
Function
N/A
Power
• 12 VDC + 30%
Power Consumption
• Max 2.6W (12 VDC, IR on)
Working Environment
• Operating Temperature : -40 °C to +60°C (-40°F to +140°F)
• Operating Humidity : <95% (RH), non-condensing
• Storage Temperature : -40 °C to +60 &C (-40°Fto +140°F)
• Storage Humidity : <95% (RH), non-condensing
Ingress Protection
• IP67
Package Content
N/A
