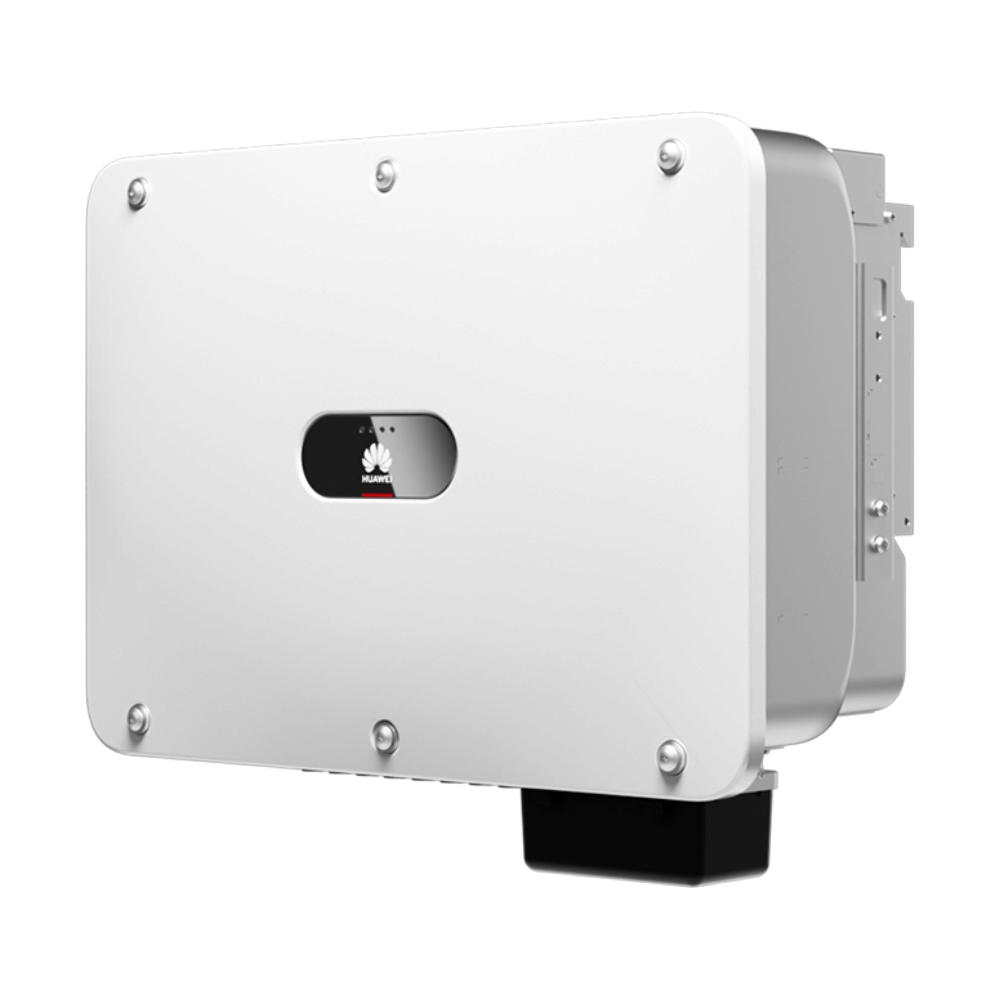

INVERTER HUAWEI (SUN2000-50K-M3)

SUN2000-50KTL-M3

• Max. efficiency : 98.5%
• European efficiency : 98.0%

• Max. input voltage : 1,100 V
• Max. current per MPPT : 30 A
• Max. current per input : 20A
• Max. short circuit current per MPPT : 40 A
• Start voltage : 200 V
• MPPT operating voltage range : 200 V ~ 1,000 V
• Rated input voltage : 600 V
• Number of inputs : 8
• Number of MPP trackers : 4

• Rated AC active power : 50,000 W
• Max. AC apparent power : 55,000 VA
• Max. AC active power (cosφ=1) : 55,000 W
• Rated output voltage : 400 Vac / 480 Vac, 3W+(N) + PE
• Rated AC grid frequency : 50 Hz / 60 Hz
• Rated output current : 72.2 A @ 400Vac, 60.1 A @ 480Vac
• Max. output current : 79.8 A @ 400Vac, 66.5 A @ 480Vac
• Adjustable power factor range : 0.8 LG ... 0.8 LD
• Max. total harmonic distortion : <3%

• Display : LED Indicators, WLAN + APP
• RS485 : YES
• Smart dongle : WLAN / Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional)
• Monitoring BUS (MBUS) : Yes (Isolation Transformer required)

• Input-side disconnection device : Yes
• Anti-islanding protection : Yes
• AC overcurrent protection : Yes
• DC reverse-polarity protection : Yes
• PV-array string fault monitoring : Yes
• DC surge arrester : Type II
• AC surge arrester : Type II
• DC insulation resistance detection : Yes
• Residual current monitoring unit : Yes
• Arc fault protection : Yes
• Ripple receiver control : Yes
• Integrated PID recovery : Yes

• Safety : EN 62109-1/-2, IEC 62109-1/-2, IEC 62116, IEC 60068, IEC 61683
• Grid connection standards : IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P.O. 12.3,RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution No.7, NRS 097-2-1, DEWA

• Operating temperature range :  -25 °C ~ 60 °C (-13 °F ~ 140 °F)
• Cooling method Smart : Air Cooling
• Max. operating altitude : 4,000 m (13,123 ft.)
• Relative humidity : 0% RH ~ 100% RH
• DC connector : Amphenol HH4
• AC connector : Waterproof Connector + OT/DT Terminal
• Protection degree : IP 66
• Topology : Transformerless
• Nighttime power consumption : ≤ 5.5W
