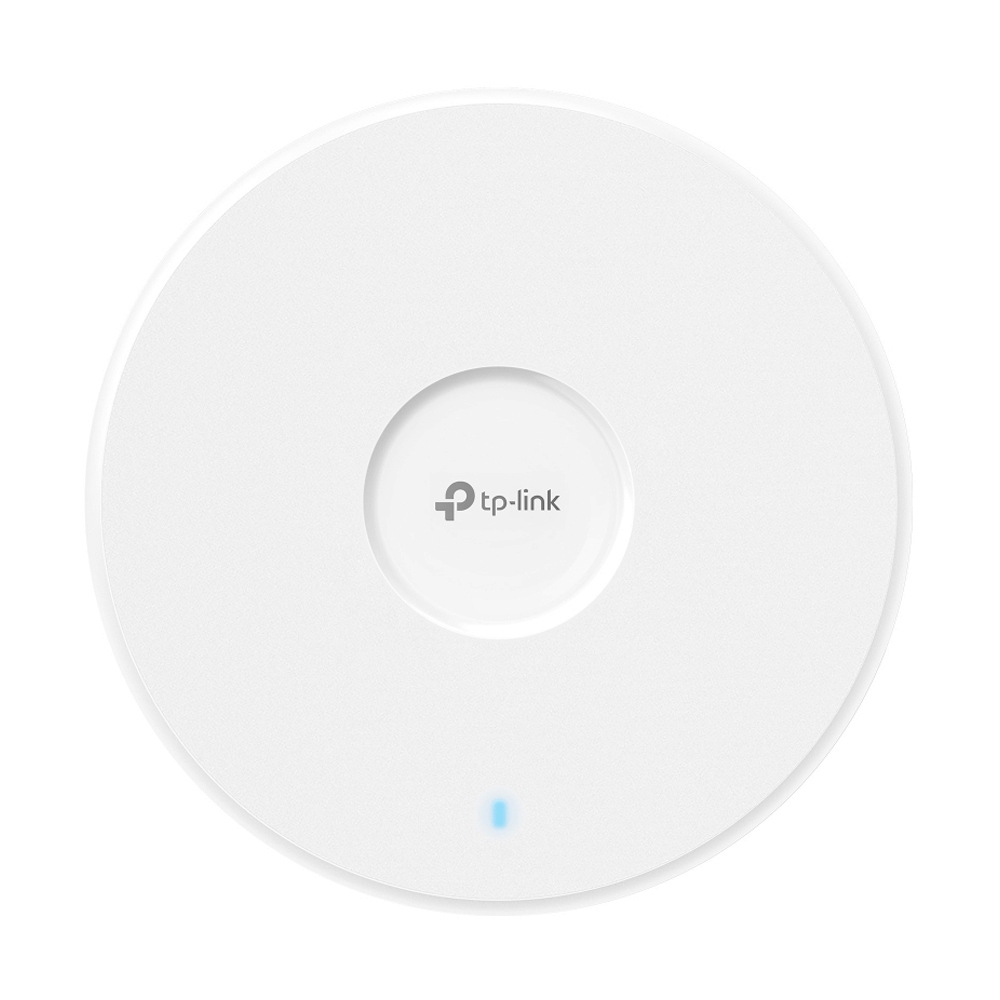

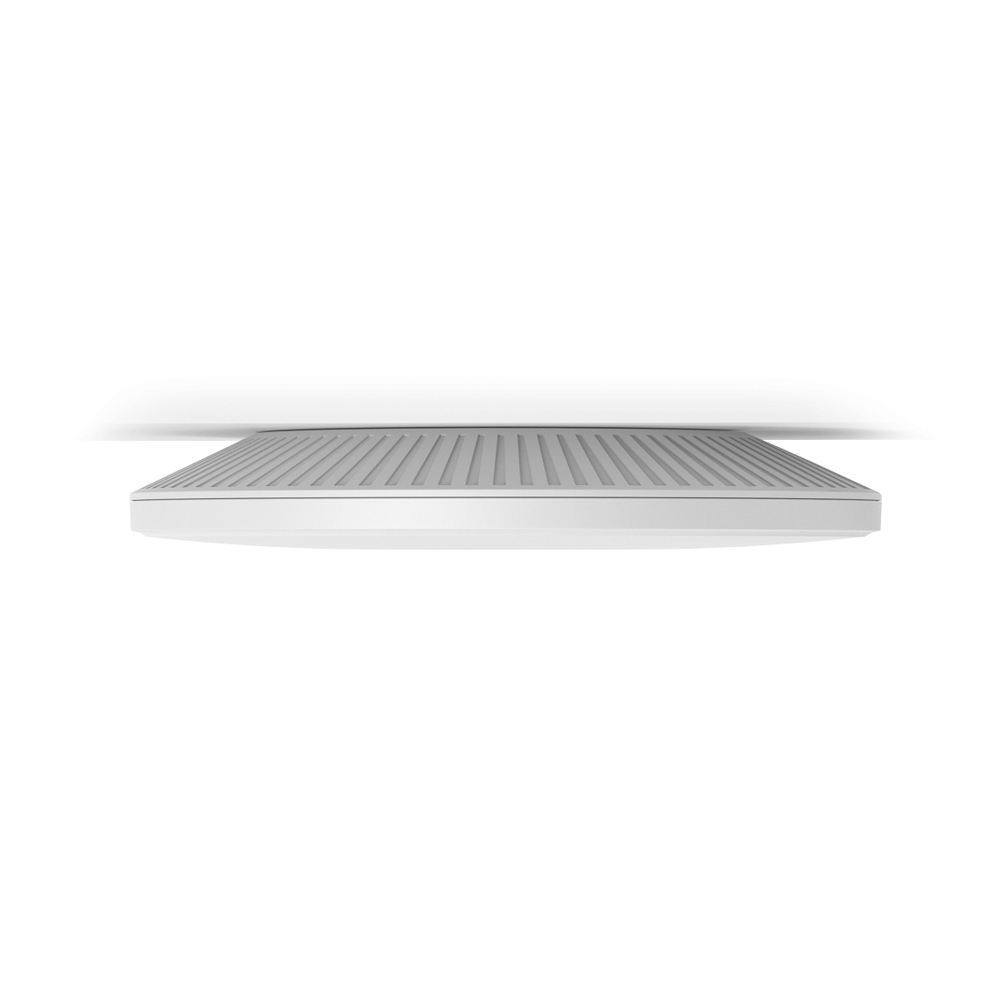

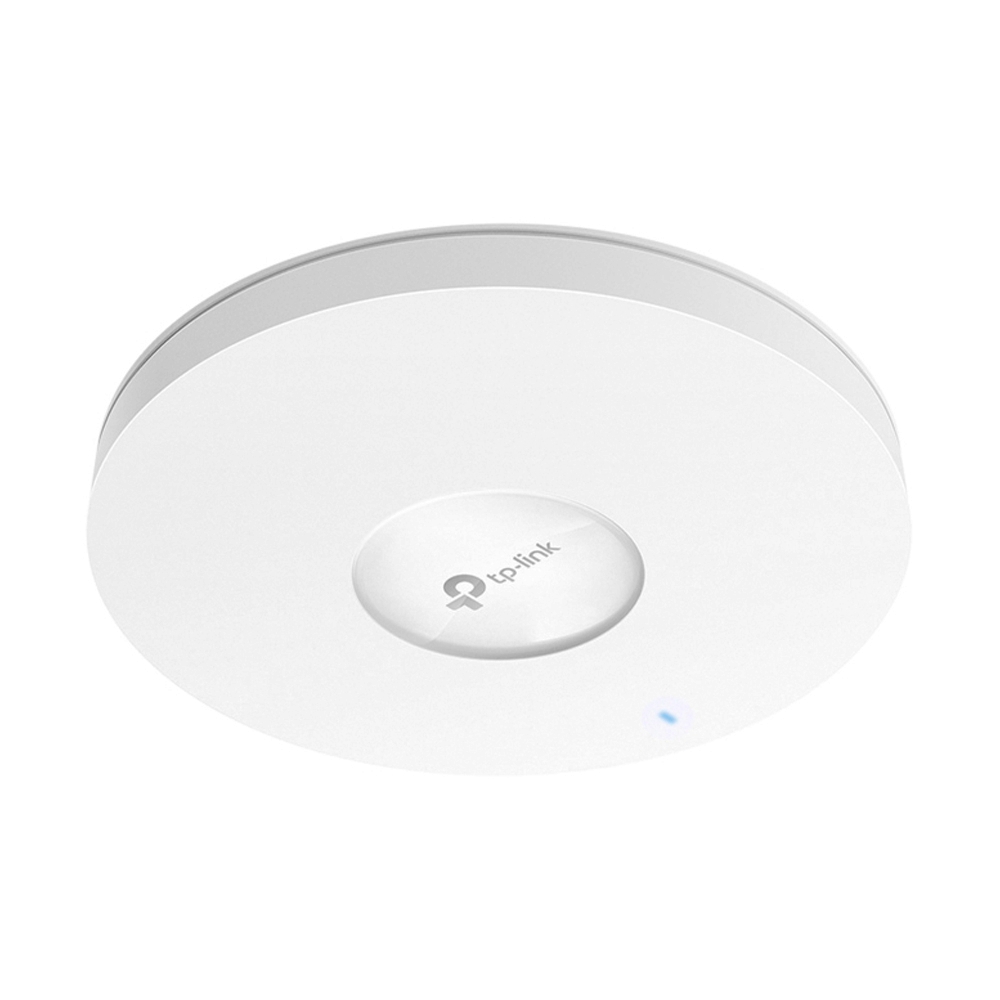

Access Point TP-LINK (EAP772) Wireless BE9300 WiFi 7

EAP772

• IEEE 802.11 a/b/g/n/ac/ax/be

• 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi
• 6 GHz: 2× 5.0 dBi

• Coverage :  140m(1500 ft²)^§

• 6 GHz, 5 GHz, and 2.4 GHz

• < 20 dBm (2.4 GHz, EIRP)
• < 23 dBm (5 GHz, band 1&band 2, EIRP)
• < 28 dBm (5 GHz, band 3, EIRP)
• < 23dBm (6 GHz, EIRP)

N/A

N/A

N/A

YES

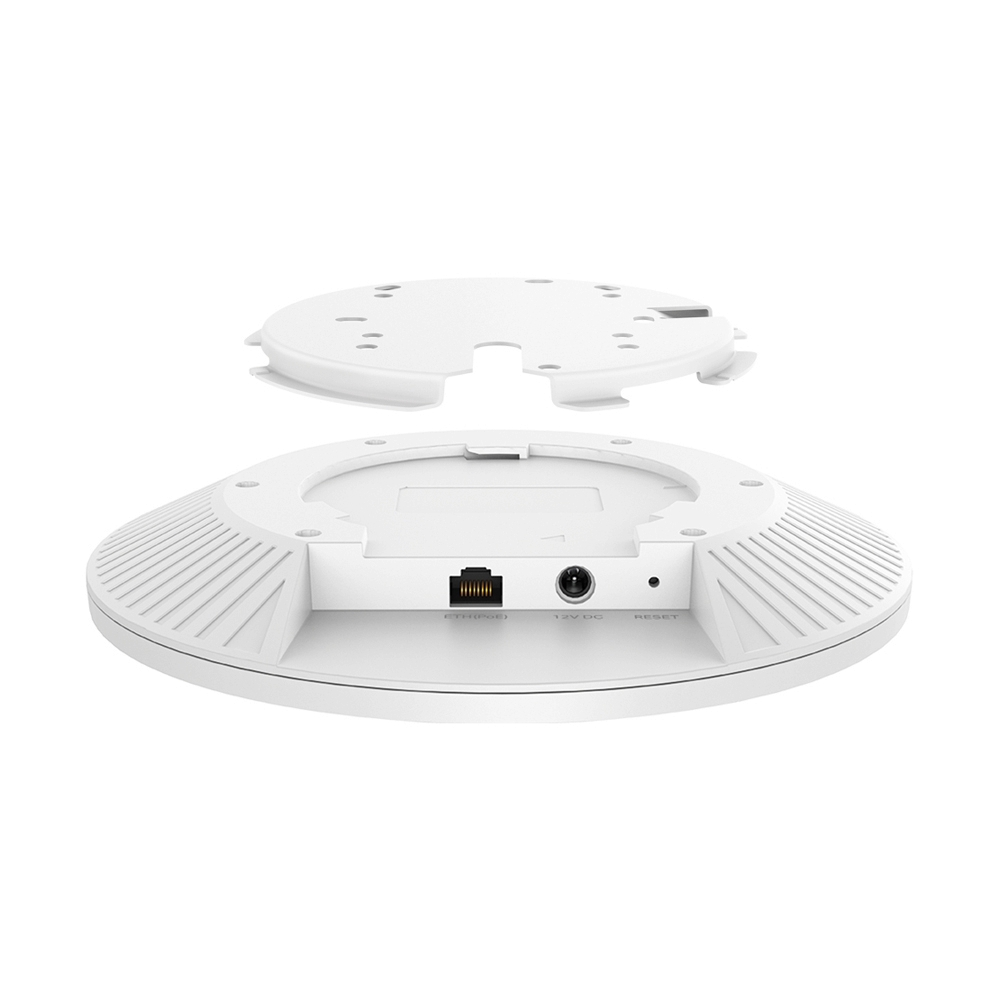

• 1× 2.5G Ethernet Port

• Reset

N/A

• 688 Mbps (2.4 GHz)
• 2882 Mbps (5 GHz)
• 5765 Mbps (6 GHz)

• Captive Portal Authentication
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

• MLO^‡
• 4K-QAM^‡
• Seamless Roaming(802.11k/v/r)
• MU-MIMO^‡
• EHT320^‡
• Mesh^?
• BSS Coloring^‡
• OFDMA^‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:24(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication

• 802.3at PoE

• 12V/2.5A DC

• 24.05 W (For PoE);
• 20.92 W (For DC)

• Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;

• CE, FCC, RoHS, IC

• EAP772
• Installation Guide
• Ceiling/Wall Mounting Kit
Note: Power Adapter is NOT included.
