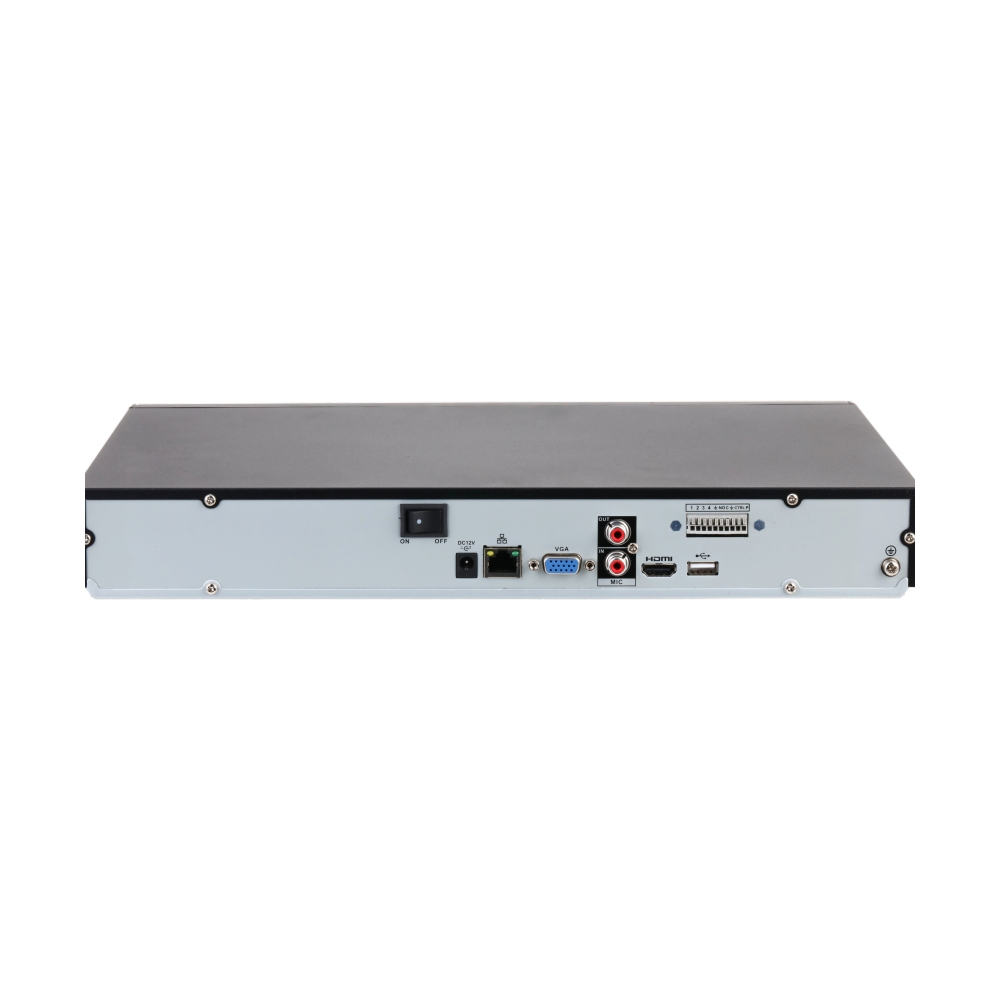

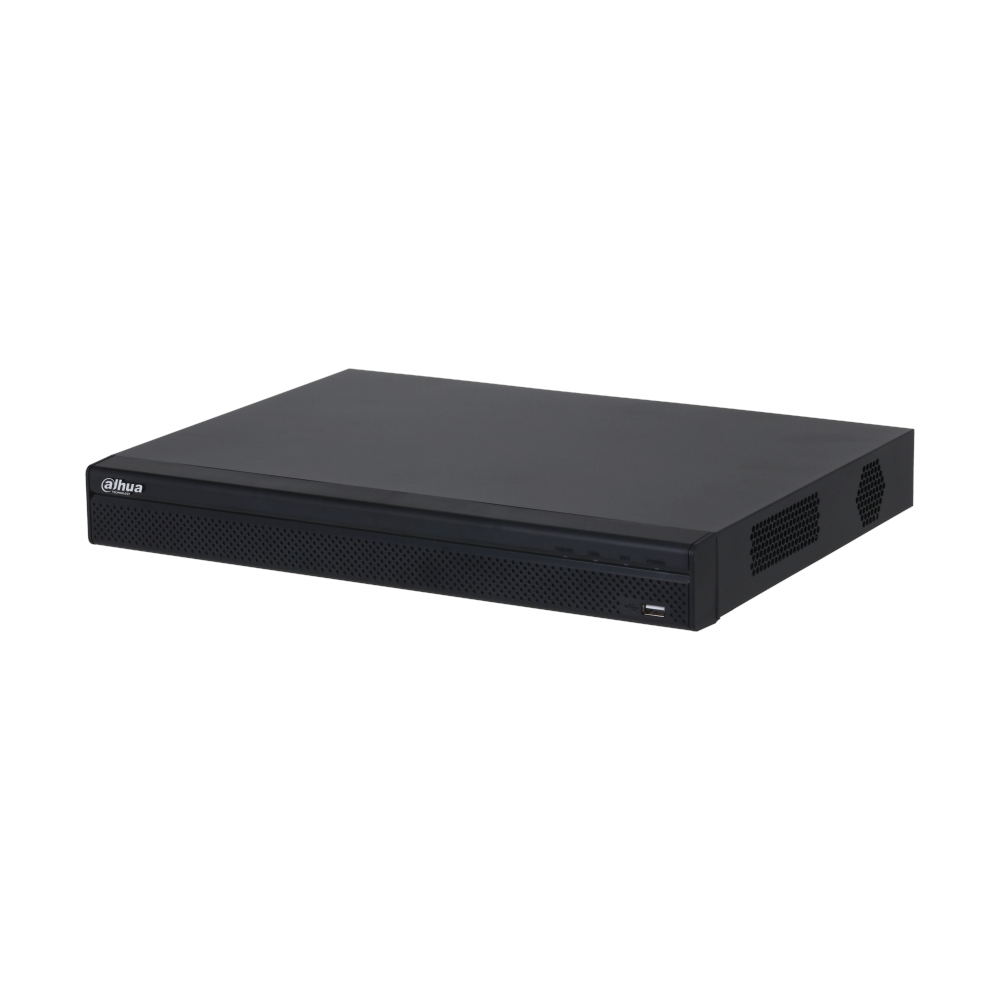

เครื่องบันทึก NVR 32CH. DAHUA NVR4232-4KS3

NVR4232-4KS3

• IP Input : 32 Ch.
• Resolution : 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF

• 1 HDMI, 1 VGA Simultaneous : HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
• Heterogeneous  HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• AI disabled: Main Screen: 1/4/8/9/16/25/36
• Sub Screen: 1/4/8/9/16 AI
• enabled: Main Screen: 1/4/8/9/16
• Sub Screen: 1/4/8/9/16

• AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps
• Video Compression :  Smart H.265+; H.265; Smart H.264+; H.264

• Network Protocol :  HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; • Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access : iOS; Android
• Interoperability : ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
• Browser : Chrome; IE; Safari; Edge; Firefox

• ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK

• 2x SATA port
• 2x (1 front USB 2.0 port, 1 rear USB 2.0 port)
• 1x HDMI
• 1x VGA
• 1x (10/100/1000 Mbps Ethernet port, RJ-45)

• up to 20 TB. This limit varies depending on the environment temperature.

• 12 VDC, 4 A

• Total output of NVR is <10 W(without HDD)

NONE

• Operating Temperature : –10 °C to +55 °C (14 °F to +131 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–93% (RH), non-condensing

N/A
