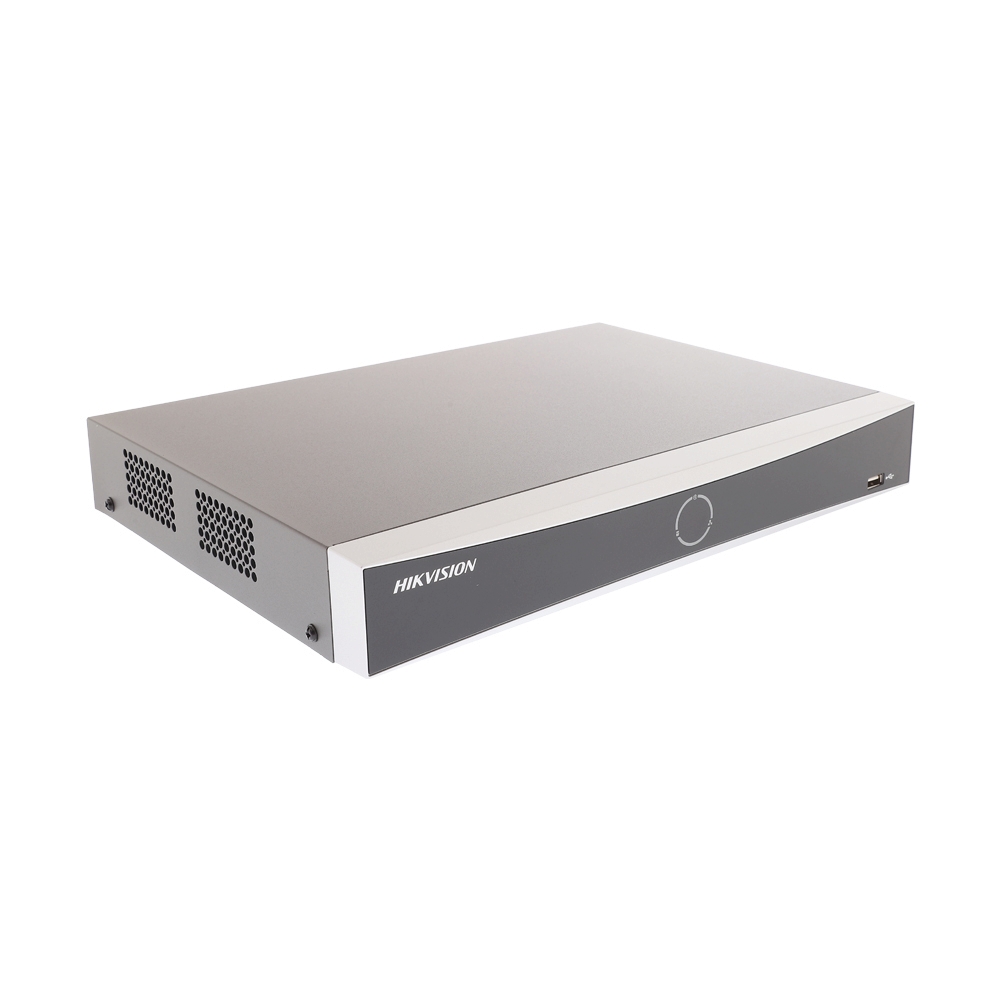

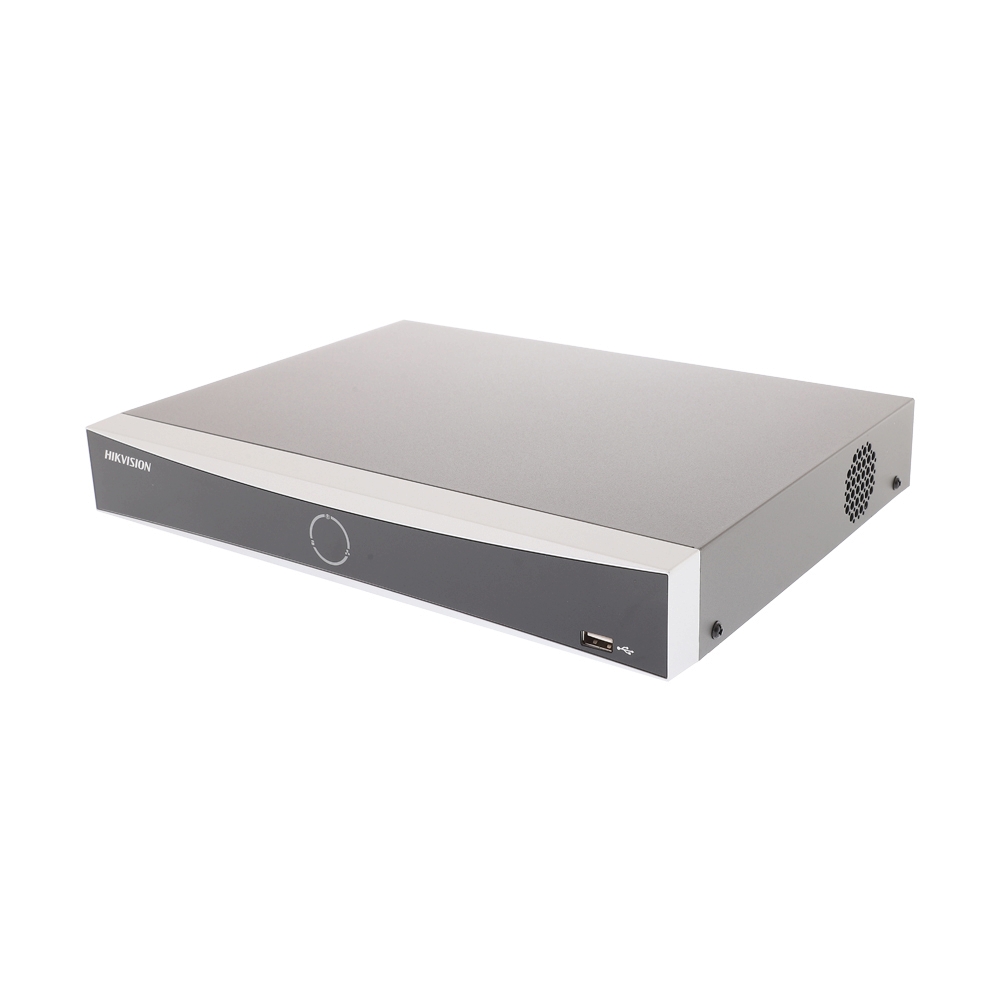

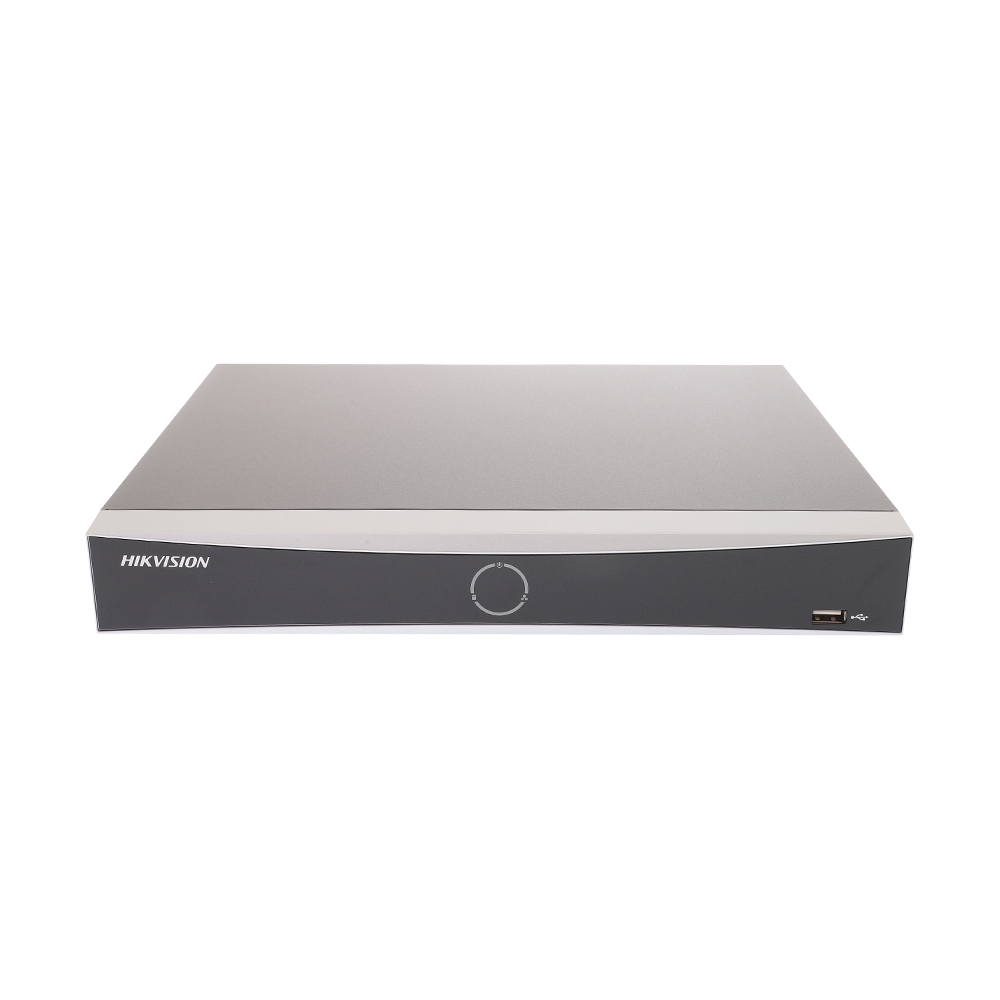

เครื่องบันทึก NVR 4CH. HIKVISION DS-7604NXI-K1(D)

DS-7604NXI-K1(D)

• Video Input : 4CH
• Two-way audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
• Incoming Bandwidth : 40 Mbps
• Outgoing Bandwidth : 80 Mbps

• HDMI output :  1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz 1600
• VGA output :  1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode : HDMI1/VGA simultaneous output
• Frame rate : AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
• Audio output :  1-ch, RCA (Linear, 1 KΩ)

• Video compression : H.265/H.265+/H.264+/H.264
• Recording Resolution : 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback : 4-ch
• Decoding Capability : AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
• Stream Type : Video, Video & Audio
• Audio Compression : G.711ulaw/G.711alaw/G.722/G.726/AAC

• Remote Connection : 128
• API : ONVIF (profile S/G); SDK; ISAPI
• Compatible Browser : IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network Protocol : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

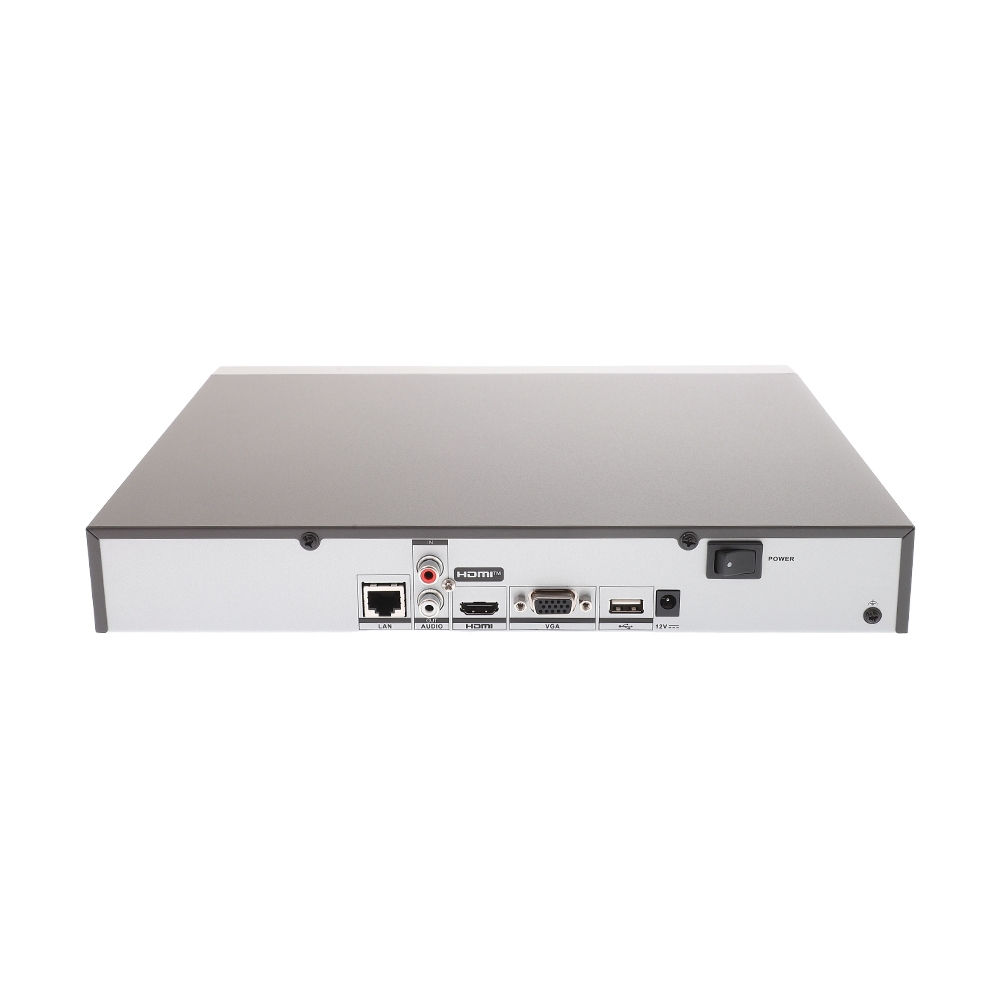

• Network Interface : 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• ONVIF (profile S/G); SDK; ISAPI

• 1x SATA interface
• 2x (Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0)
• 1x RJ-45 10/100/1000 Mbps
• 1x HDMI
• 1x VGA

• Up to 10 TB capacity for each HDD

• 12 VDC, 1.5 A

• ≤ 10 W (without HDD)

NONE

• Working Temperature : 10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity : 10% to 90%

N/A
