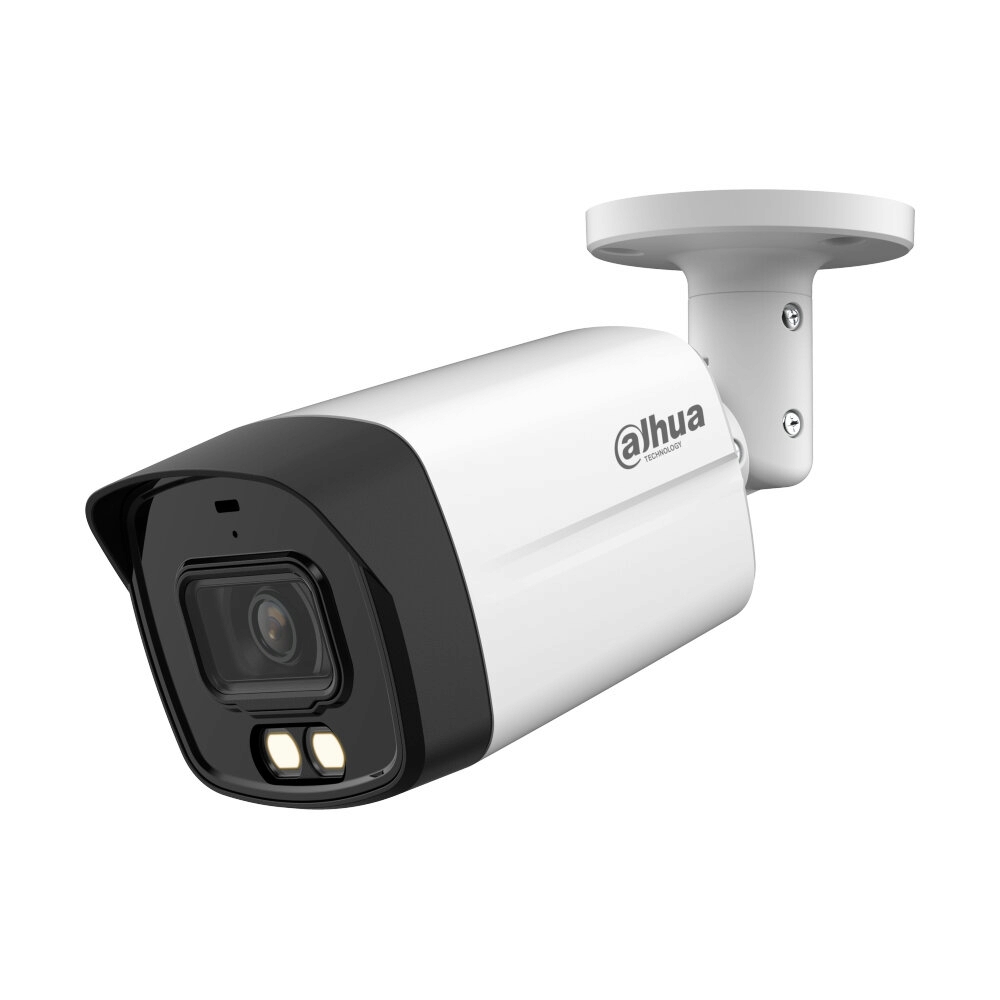

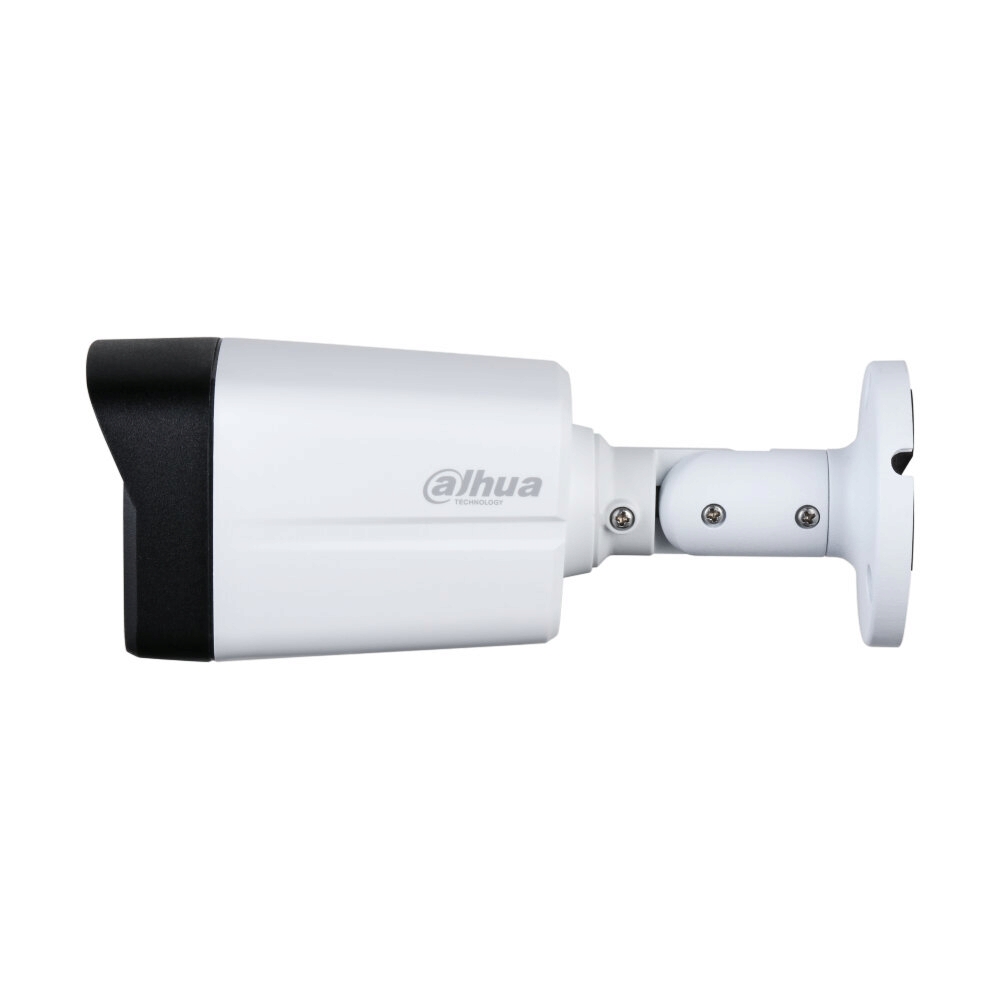

กล้องวงจรปิด 3.6mm HDCVI DAHUA HFW1200TLMP-IL-A
- Image Sensor : 2MP , CMOS
- Max. Resolution : 1080P (1920×1080)
- Lens Type : 3.6mm
- Video Output : AHD/CVI/TVI/CVBS Switch
- IR Distance : 40m
- Frame Rate : 25/30fps@1080P
- Day/Night Mode : Auto(ICR)/Color/B/W
- Audio Port : Built-in mic
- Protection : IP67
- Smart Dual Light
- Casing Material : Metal front cover + plastic rear barrel + metal bracket
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
HFW1200TLMP-IL-A
• 2MP , CMOS
• Lens Type : Fixed-focal
• Focal Length : 3.6mm
• Max. Aperture : F2.0
• M12
• H: 83°; V: 48°; D: 105°
• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°
• PAL: 1/25 s–1/100000 s
• NTSC: 1/30 s–1/100000 s
• 0.01 [email protected] (Color, 30 IRE)
• 0.001 [email protected] (B/W, 30 IRE)
• 0 lux (Illuminator on)
• 40m
• 1920 (H) × 1080 (V)
• N/A
CVI
• PAL: 1080p@25 fps;
• NTSC: 1080p@30 fps
AHD
• PAL: 1080p@25 fps;
• NTSC: 1080p@30 fps
TVI
• PAL: 1080p@25 fps;
• NTSC: 1080p@30 fps
CVBS
• PAL: 960H
• NTSC: 960H
• Built-in mic
• Video output choices of CVI/TVI/AHD/CVBS by one BNC port
• Smart Dual Light.
• 12 VDC ± 30%
• Max 4.1W (12 VDC, IR on)
• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : <95% (RH), non-condensing
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity : <95% (RH), non-condensing
• IP67
• Metal front cover + plastic rear barrel + metal bracket
N/A
